NSN 5330-01-339-9068 4022514AD, 4022-514AD, 01-339-9068
Product Details | PREFORMED PACKING
5330-01-339-9068 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: 4022514AD, 4022-514AD, 5330-01-339-9068, 01-339-9068, 5330013399068, 013399068
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUN 1991 | 01-339-9068 | 04521 ( PACKING, PREFORMED ) |

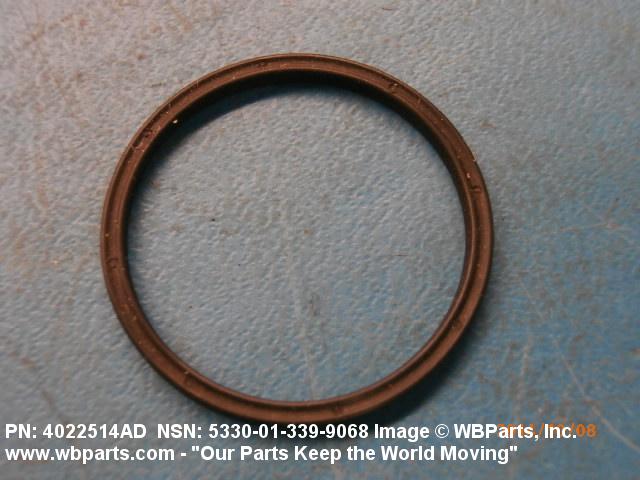

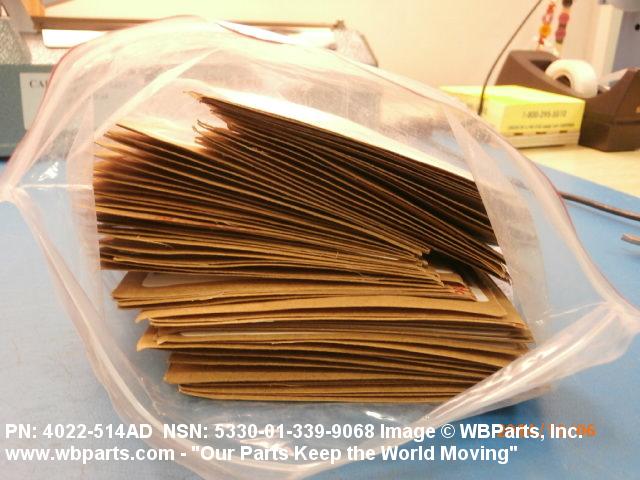

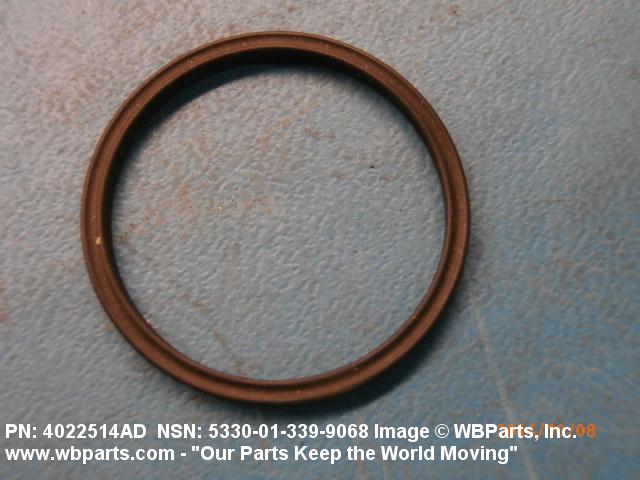

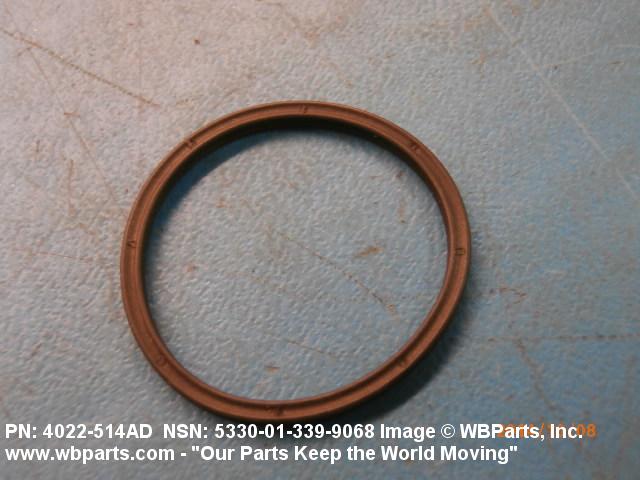

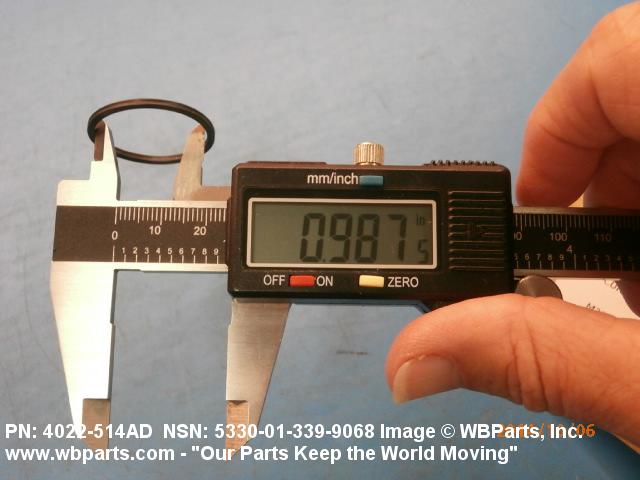

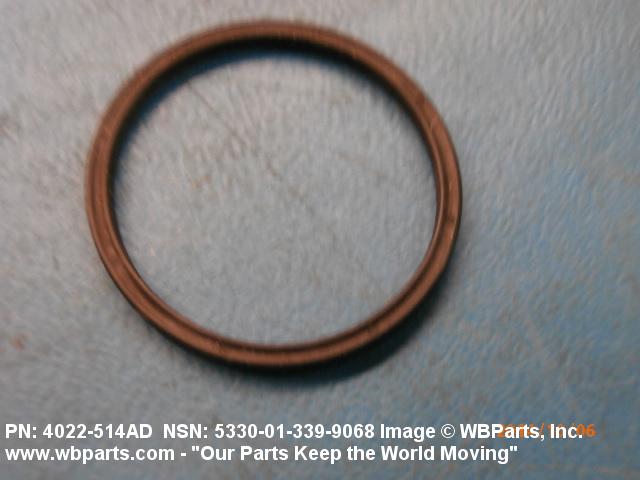

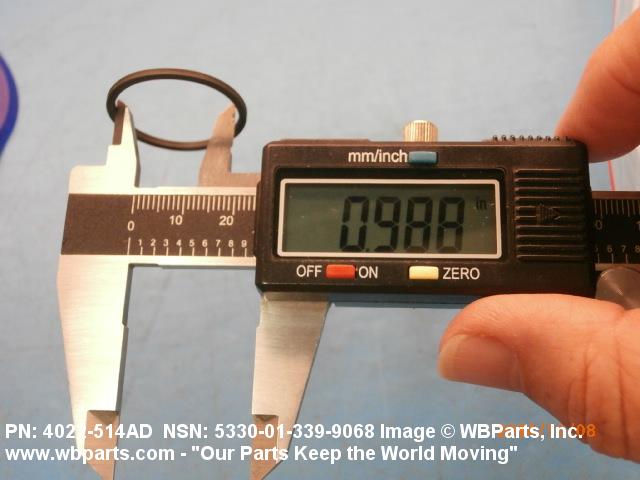

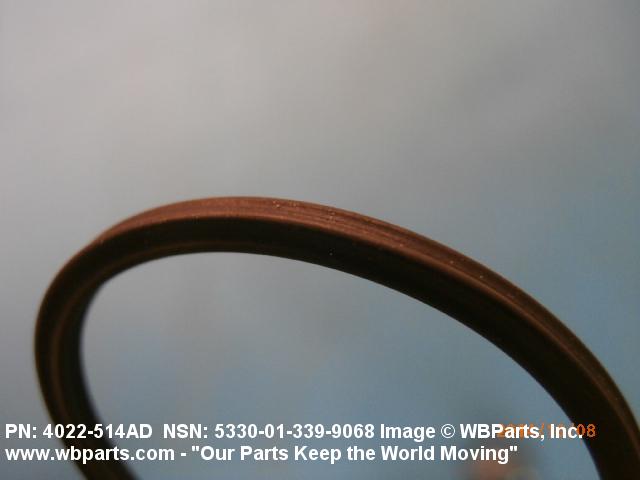

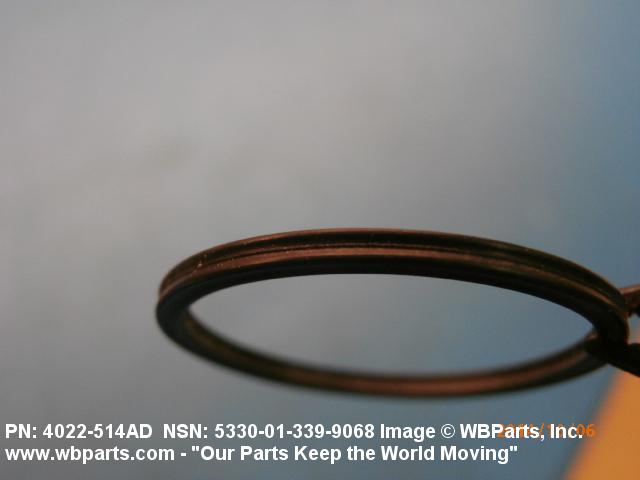

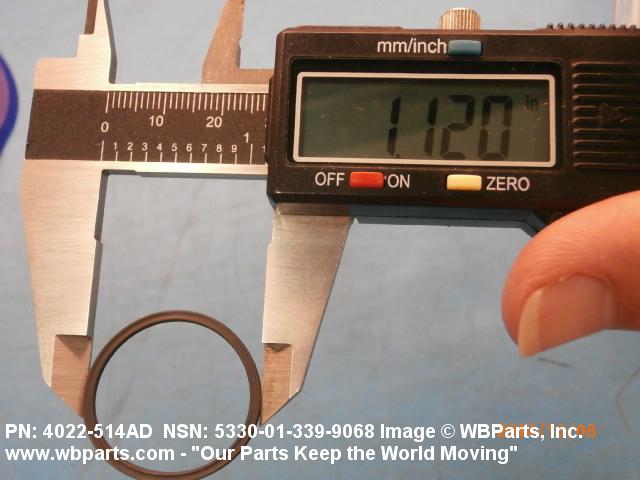

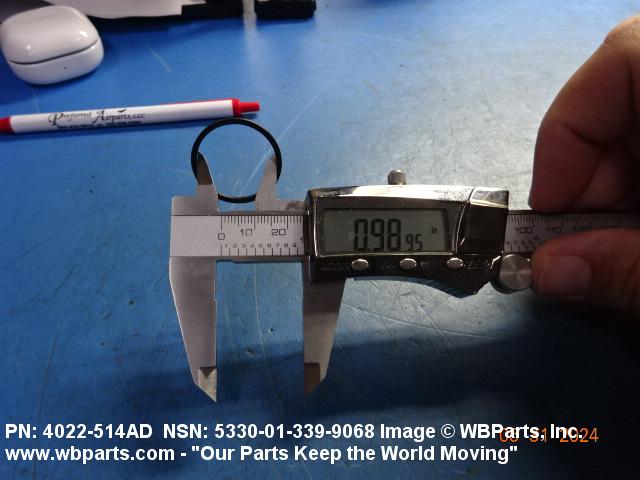

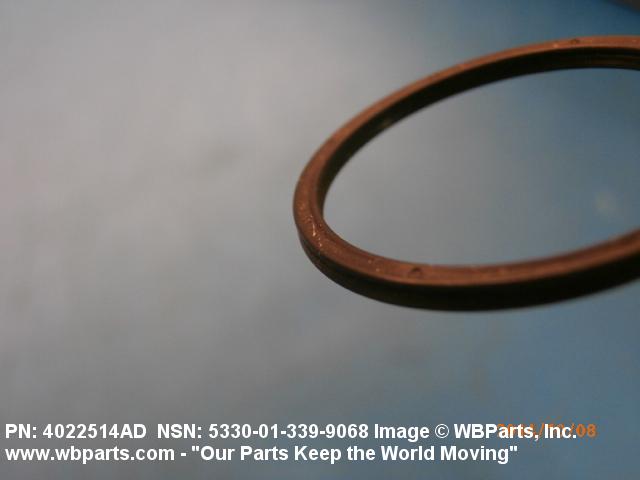

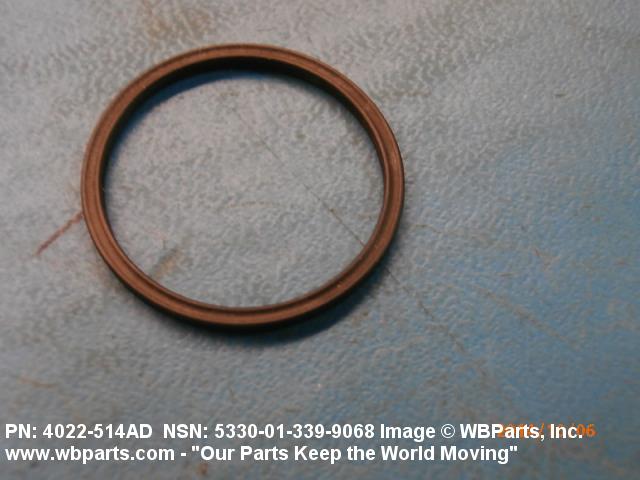

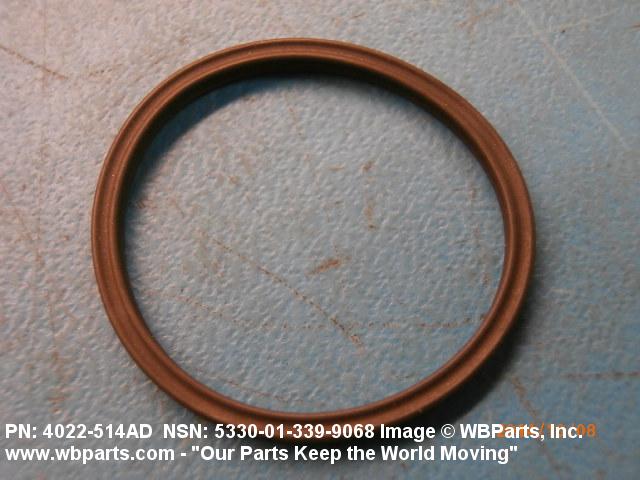

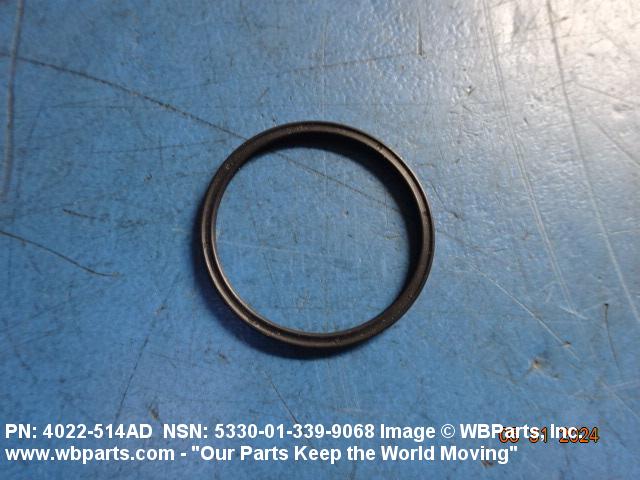

Drawings & Photos | NSN 5330-01-339-9068
Demand History | NSN 5330-01-339-9068
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-339-9068 | 2024-05-122 | 200 | United States |
| 4022514AD | 2024-04-121 | 500 | United States |
| 4022514AD | 2014-10-275 | 200 | United States |
Cross Reference | NSN 5330-01-339-9068
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4022-514AD | 07322 | MINNESOTA RUBBER CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-339-9068
Technical Data | NSN 5330-01-339-9068
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER POLYMETHYLENE-PERFLUOROALKYLENE CLASS FKM OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 514AD,CAGEC07322 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 70.0 SHORE DUROMETER A NOMINAL OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D103 SPECIAL |

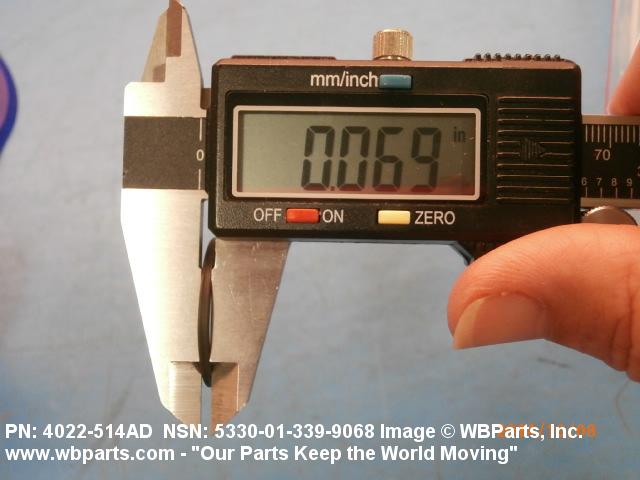

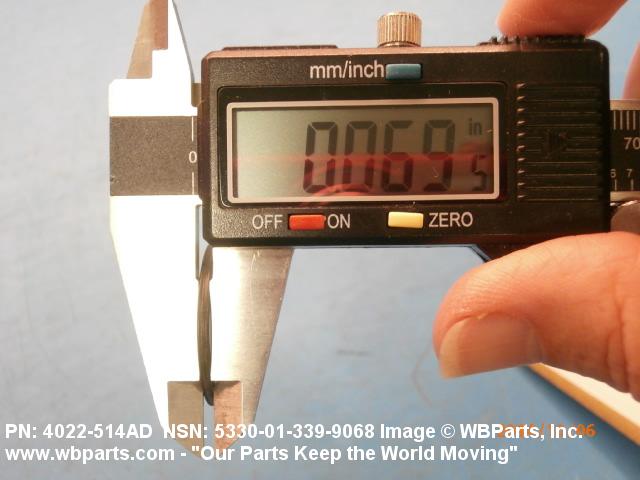

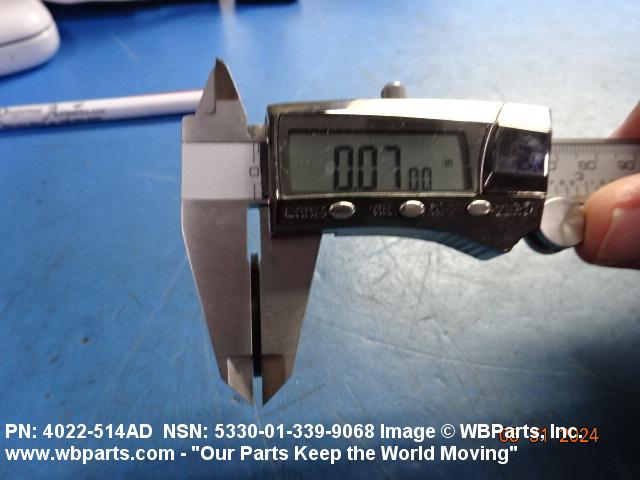

| CROSS-SECTIONAL HEIGHT | 0.067 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 0.983 INCHES MINIMUM AND 0.995 INCHES MAXIMUM |

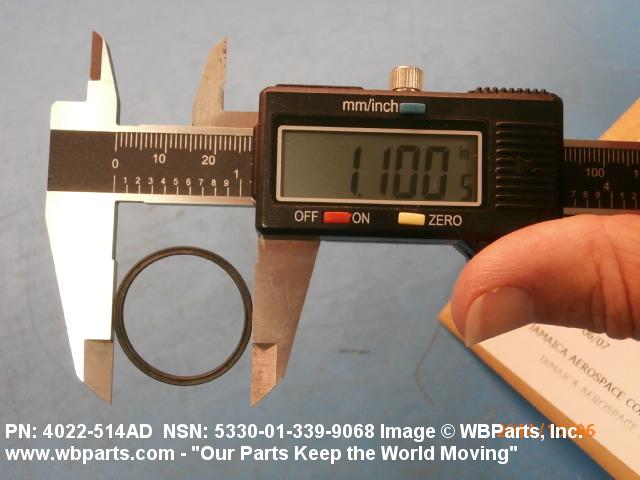

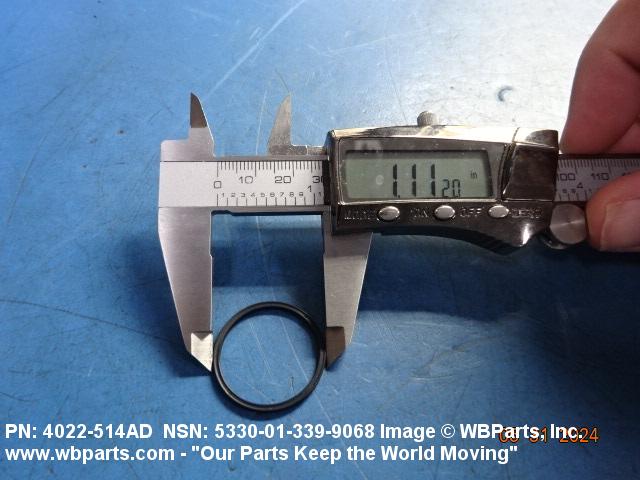

| PERIPHERAL DIAMETER | 1.129 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | HOOD/MASK ASSEMBLY,PIHM (QUAD-RING SEAL) |
| MANUFACTURERS CODE | 07322 |
| DESIGN CONTROL REFERENCE | 4022-514AD |
Restrictions/Controls & Freight Information | NSN 5330-01-339-9068
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Z | 240 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI SUB2 |
| Less than car load rating | ||
| Less than truck load rating | B | 300.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-339-9068
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | MH | TG:LIFE SUPPORT SYSTEM 412A |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Z | 240 months |
| Purchasing | QTY UOM |
1 EA : Each |
