NSN 5330-01-362-4480 A78094023P99, A78094-023P-99, S3292523P99
Product Details | PACKING RETAINER
5330-01-362-4480 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: A78094023P99, A78094-023P-99, S3292523P99, S32925-23P99, 5330-01-362-4480, 01-362-4480, 5330013624480, 013624480
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 AUG 1992 | 01-362-4480 | 13706 ( RETAINER, PACKING ) |
Drawings & Photos | NSN 5330-01-362-4480
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-362-4480
Technical Data | NSN 5330-01-362-4480
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR PACKING |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-83461 MIL SPEC SINGLE MATERIAL RESPONSE PACKING TURCON 99 MFR REF SINGLE MATERIAL RESPONSE RETAINER |

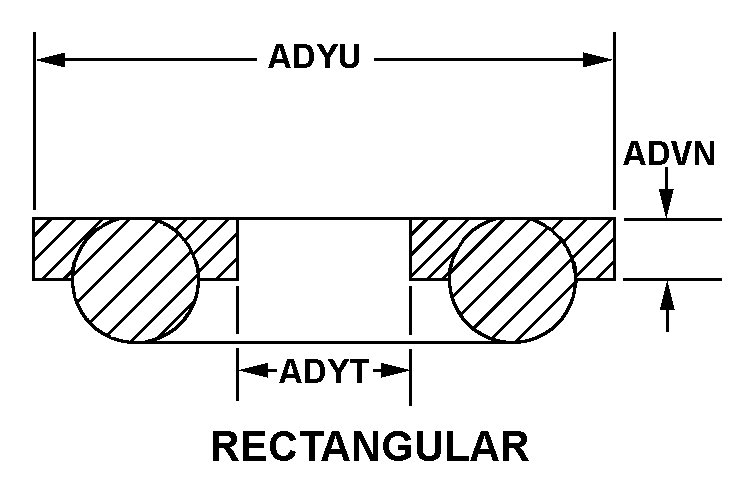

| CROSS-SECTIONAL SHAPE STYLE | D155 RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 0.195 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 2.247 INCHES MINIMUM AND 2.248 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 2.516 INCHES MINIMUM AND 2.518 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5330-01-362-4480
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
