NSN 5330-01-399-7053 2962580000, 296-2580-00-0, 29940-2099
Product Details | PLAIN ENCASED SEAL
5330-01-399-7053 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: 2962580000, 296-2580-00-0, 29940-2099, 535099, 53509961, 535099-61, 5330-01-399-7053, 01-399-7053, 5330013997053, 013997053, 299402099
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 DEC 1994 | 01-399-7053 | 04214 ( SEAL, PLAIN ENCASED ) |
Drawings & Photos | NSN 5330-01-399-7053
Cross Reference | NSN 5330-01-399-7053
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 296-2580-00-0 | 26840 | HALE PRODUCTS INC. |
| 29940-2099 | 80201 | SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS |
| 29940-2099 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 535099 | 80201 | SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS |
| 535099-61 | 80201 | SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-399-7053
Technical Data | NSN 5330-01-399-7053
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 CASE PLASTIC POLYTETRAFLUOROETHYLENE INSERT RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR SEALING ELEMENT STEEL COMP 631 SPRING |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-25043 MIL SPEC SINGLE MATERIAL RESPONSE SPRING |

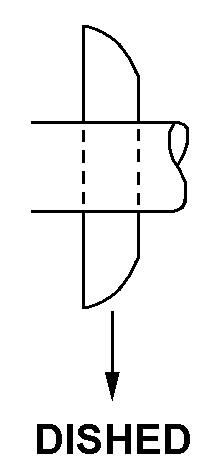

| CASE STYLE | 5 DISHED |
| SEALING ELEMENT STYLE | 8 VERTICAL-ANGULAR |
| SEAL WIDTH | 0.265 INCHES MINIMUM AND 0.295 INCHES MAXIMUM |
| ATTACHMENT METHOD | ROUND HOLE |
| ATTACHMENT FEATURE QUANTITY | 4 |
| ATTACHMENT HOLE DIAMETER | 0.062 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 1.122 INCHES MINIMUM AND 1.128 INCHES MAXIMUM |
| HOUSING BORE DIAMETER | 1.623 INCHES MINIMUM AND 1.625 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5330-01-399-7053
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-399-7053
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
