NSN 5330-01-434-4609 MS28776R24, MS28776R2-4, 01-434-4609
Product Details | WIPER RING
5330-01-434-4609 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Part Alternates: MS28776R24, MS28776R2-4, 5330-01-434-4609, 01-434-4609, 5330014344609, 014344609
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 JUL 1996 | 01-434-4609 | 20256 ( RING, WIPER ) |

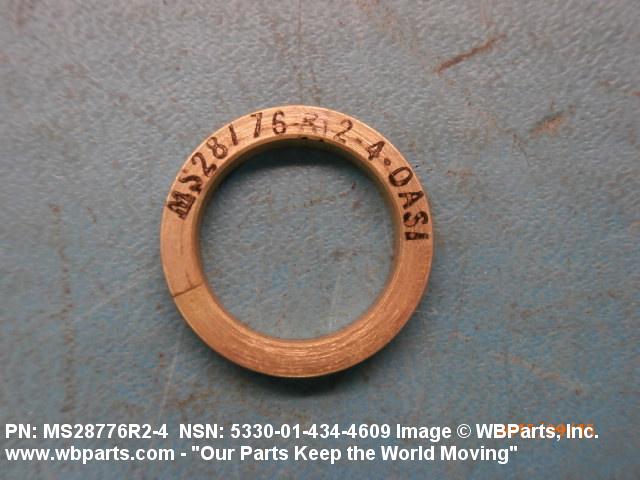

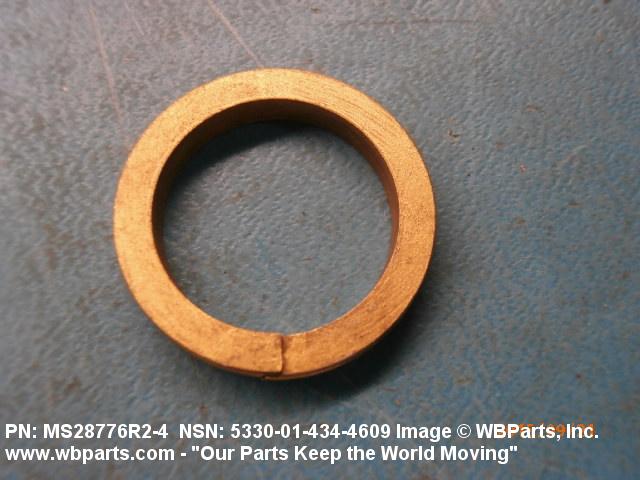

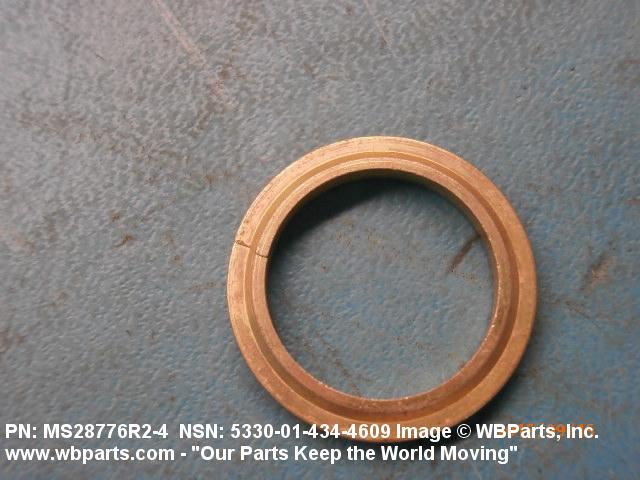

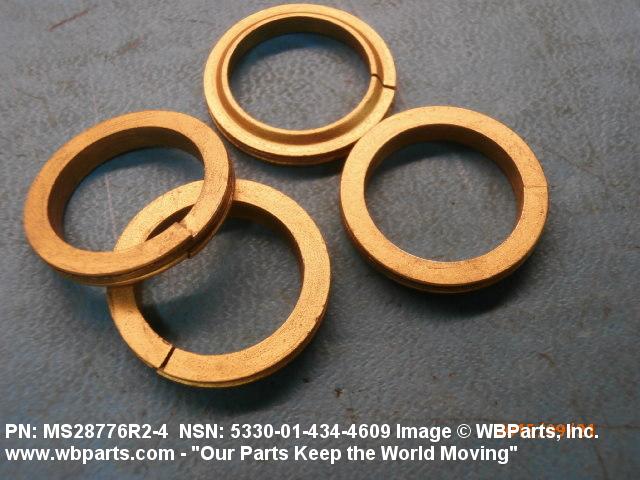

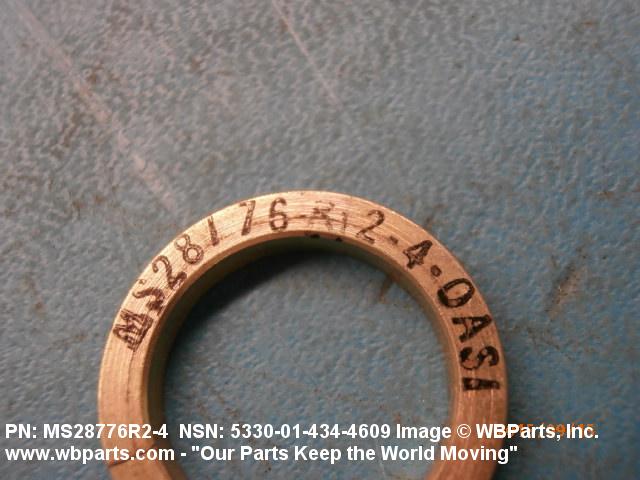

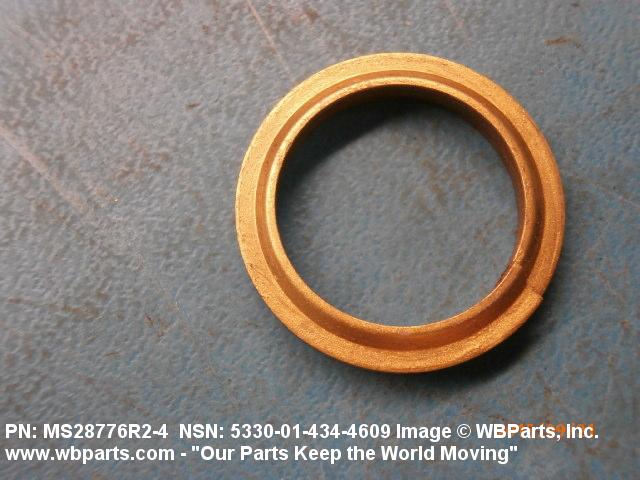

Drawings & Photos | NSN 5330-01-434-4609
Demand History | NSN 5330-01-434-4609
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-434-4609 | 2015-08-239 | 15 | Canada |
| 5330-01-434-4609 | 2015-08-231 | 14 | Canada |
Cross Reference | NSN 5330-01-434-4609
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS28776R2-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-434-4609
Technical Data | NSN 5330-01-434-4609
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-83461 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

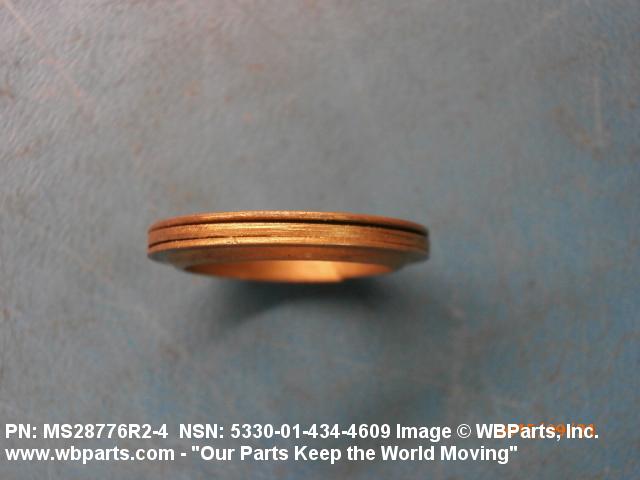

| CROSS-SECTIONAL SHAPE STYLE | B4 OUTSIDE GROOVED, STRAIGHT FACE |
| RING STYLE | 7 CONCENTRIC |

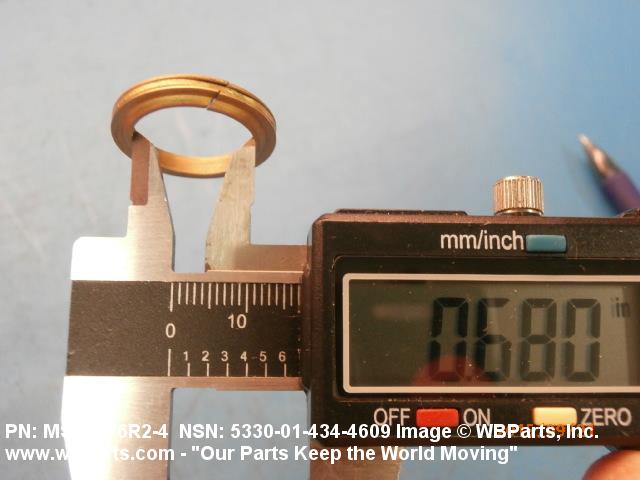

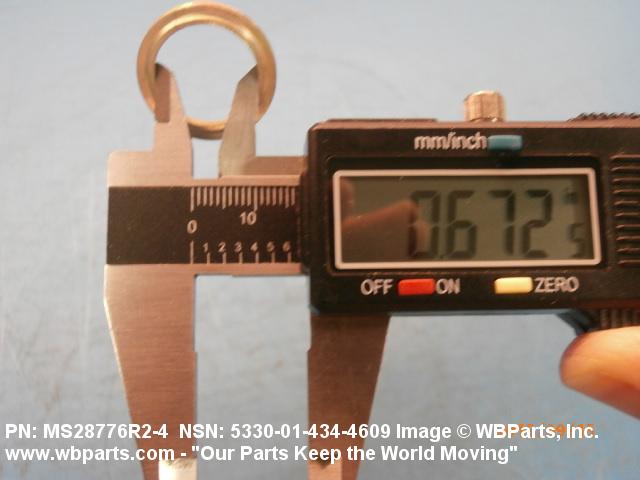

| INSIDE DIAMETER | 0.688 INCHES NOMINAL |

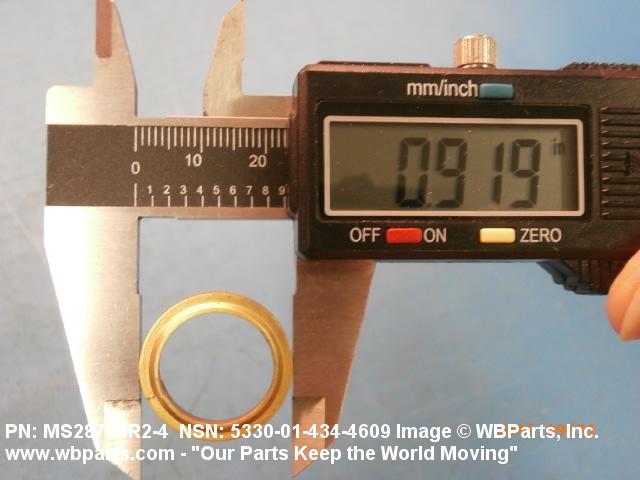

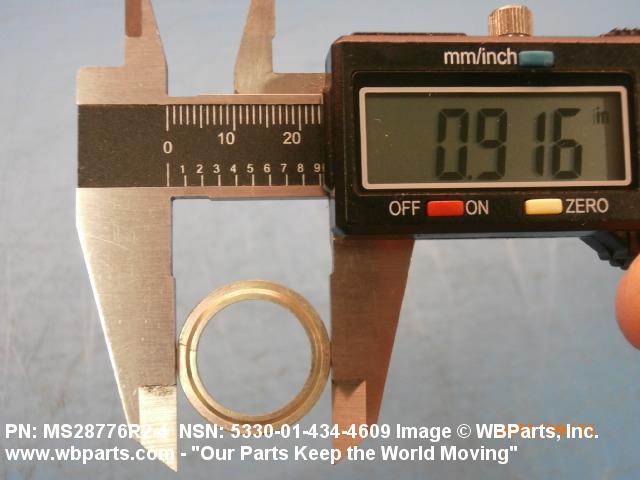

| OUTSIDE DIAMETER | 0.928 INCHES NOMINAL |

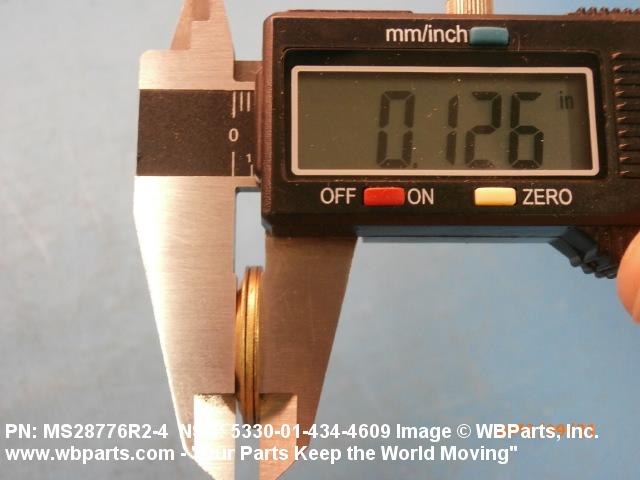

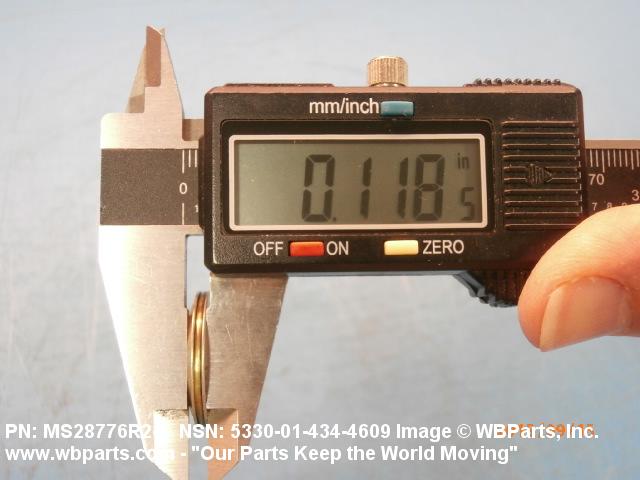

| MATERIAL THICKNESS | 0.1250 INCHES NOMINAL |

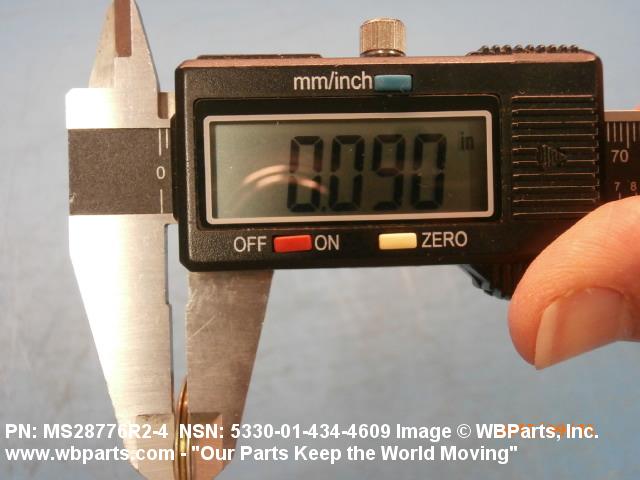

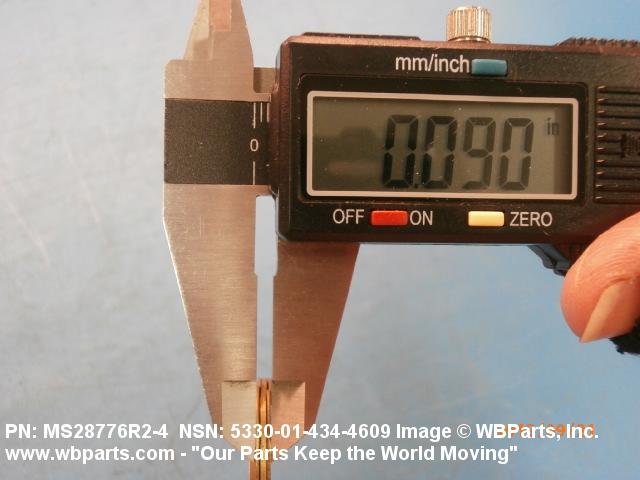

| OUTER EDGE THICKNESS | 0.0940 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28776R2-4 |
Restrictions/Controls & Freight Information | NSN 5330-01-434-4609
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
