NSN 5330-01-452-7168 AS109710, AS1097-10, 01-452-7168
Product Details | PREFORMED PACKING
5330-01-452-7168 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: AS109710, AS1097-10, 5330-01-452-7168, 01-452-7168, 5330014527168, 014527168
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 FEB 1998 | 01-452-7168 | 04521 ( PACKING, PREFORMED ) |

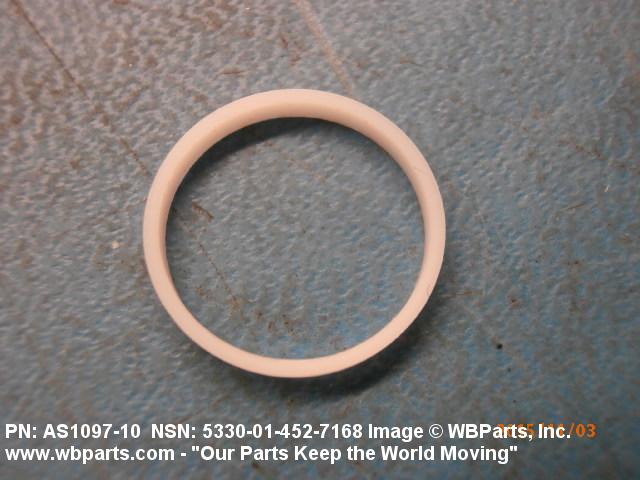

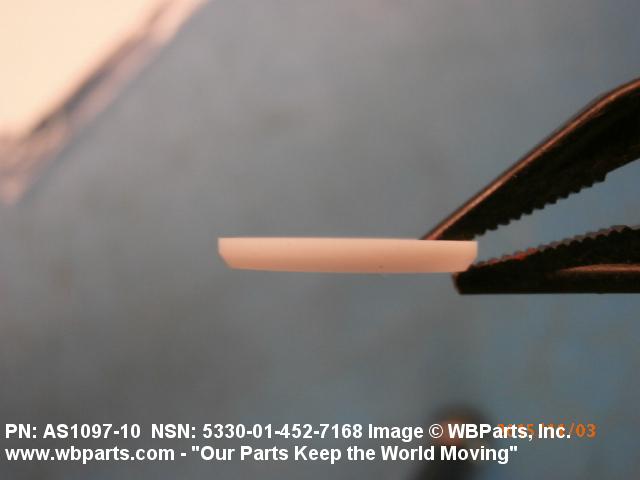

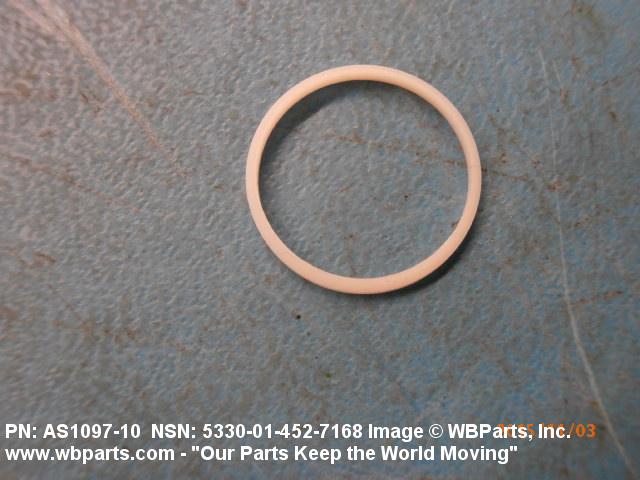

Drawings & Photos | NSN 5330-01-452-7168
Demand History | NSN 5330-01-452-7168
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-452-7168 | 2025-11-334 | 1725 | DIBBS |
| 5330-01-452-7168 | 2025-11-316 | 1725 | DIBBS |
| 5330-01-452-7168 | 2025-08-226 | 1526 | DIBBS |
| 5330-01-452-7168 | 2025-02-51 | 1261 | DIBBS |
| 5330-01-452-7168 | 2024-10-291 | 1533 | DIBBS |
| 5330-01-452-7168 | 2024-07-200 | 1073 | DIBBS |
| 5330-01-452-7168 | 2022-03-61 | 10 | US |
| AS109710 | 2020-04-106 | 5 | Estonia |
| 5330-01-452-7168 | 2019-05-125 | 350 | DIBBS |
| 5330-01-452-7168 | 2019-03-74 | 1 | DIBBS-RFPs |
| 5330-01-452-7168 | 2016-10-290 | 4067 | DIBBS |
| AS109710 | 2015-06-169 | 12 | Seychelles |
| 5330-01-452-7168 | 2015-03-68 | 4991 | DIBBS |
| 5330-01-452-7168 | 2014-08-230 | 1429 | DIBBS |
| 5330-01-452-7168 | 2014-08-217 | 1429 | DIBBS |
| 5330-01-452-7168 | 2012-01-25 | 3664 | DIBBS |
| 5330-01-452-7168 | 2011-08-232 | 0 | DIBBS |
| 5330-01-452-7168 | 2011-03-87 | 2000 | DIBBS |
| 5330-01-452-7168 | 2011-01-28 | 2000 | DIBBS |
| AS109710 | 2008-11-309 | 10 | United States |
| 5330-01-452-7168 | 2008-06-175 | 10 | us |
| 5330-01-452-7168 | 2008-04-93 | 5000 | DIBBS |
| 5330-01-452-7168 | 2008-03-83 | 10 | DIBBS |
| AS109710 | 2008-02-44 | 8500 | us |
Cross Reference | NSN 5330-01-452-7168
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-452-7168
Related Products | NSN 5330-01-452-7168
Technical Data | NSN 5330-01-452-7168
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC TETRAFLUOROETHYLENE PACKING |
| CROSS-SECTIONAL SHAPE STYLE | D56 ANGLE |

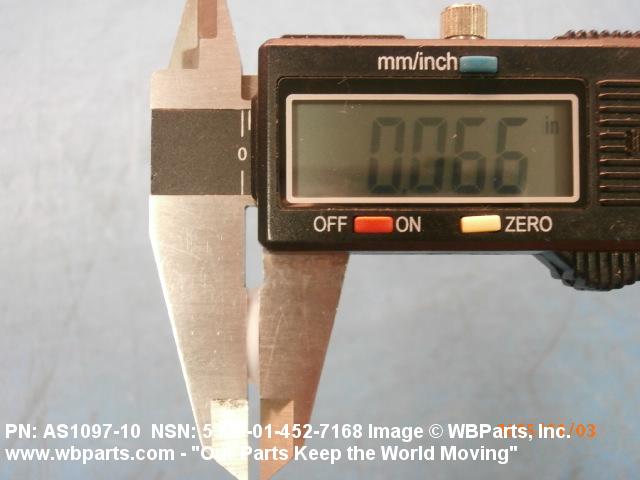

| CROSS-SECTIONAL HEIGHT | 0.0663 INCHES MINIMUM AND 0.0703 INCHES MAXIMUM |
| RIM SURFACE WIDTH | 0.0320 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM |

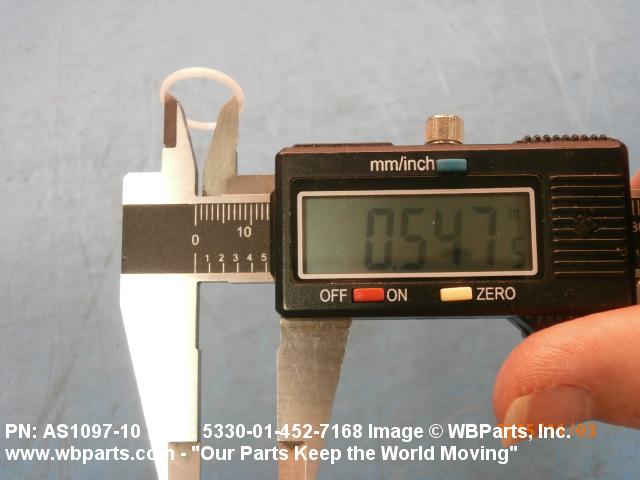

| CENTER HOLE DIAMETER | 0.544 INCHES MINIMUM AND 0.554 INCHES MAXIMUM |

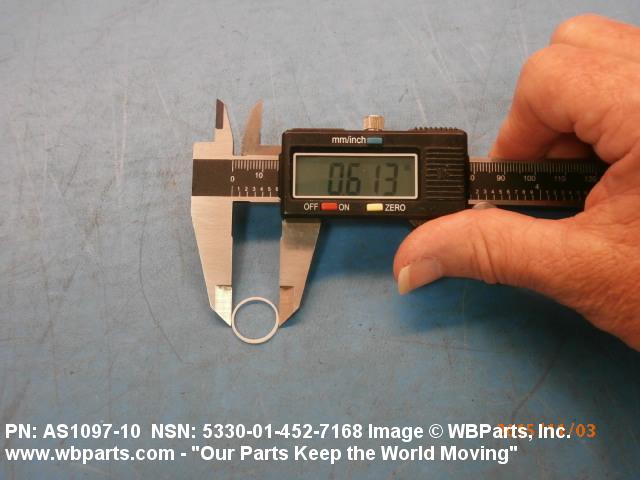

| PERIPHERAL DIAMETER | 0.610 INCHES NOMINAL |
| ANGLE | 37.0 DEGREES NOMINAL |
| SPECIFICATION/STANDARD DATA | 81343-AS1097B PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SEAL RING, 37 DEGREES FLARED TUBE FITTING END |
Restrictions/Controls & Freight Information | NSN 5330-01-452-7168
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194130 | WASHERS/GASKETS/MAINT I/C ENG |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | QE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-452-7168
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
