NSN 5330-01-540-5496 5937-05035, 01-540-5496, 593705035
Product Details | METAL SEAL RING
5330-01-540-5496 A circular shaped item designed to be installed in a specially prepared groove or counterbore to provide a low pressure seal. It may be supplied in various cross-sectional shapes and is cut through at one point to allow for installation and fitting. Excludes items whose primary function is to provide sealing, wiping, or wearing surface capabilities for piston configurations. See also RING, PISTON and RING, WIPER.
Part Alternates: 5937-05035, 5330-01-540-5496, 01-540-5496, 5330015405496, 593705035, 015405496
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 MAY 2006 | 01-540-5496 | 21205 ( SEAL RING, METAL ) |

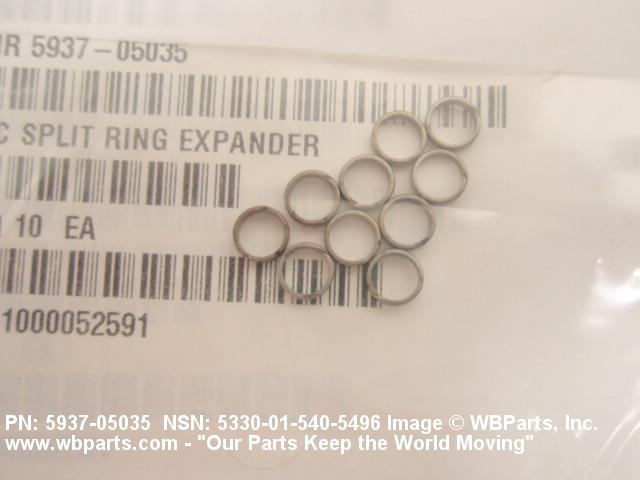

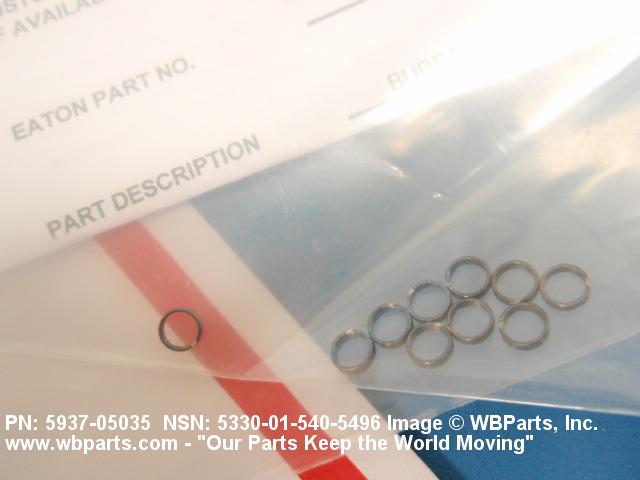

Drawings & Photos | NSN 5330-01-540-5496
Demand History | NSN 5330-01-540-5496
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 593705035 | 2011-12-361 | 4 | us |
| 5330-01-540-5496 | 2010-03-64 | 14 | Argentina |
| 593705035 | 2009-11-314 | 20 | Switzerland |
| 5330-01-540-5496 | 2009-11-314 | 20 | Switzerland |
Cross Reference | NSN 5330-01-540-5496
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5937-05035 | 08199 | EATON AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-540-5496
Technical Data | NSN 5330-01-540-5496
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| METALLIC HARDNESS RATING | 56.0 NOMINAL ROCKWELL C |
| CROSS-SECTIONAL SHAPE STYLE | A1 PLAIN RECTANGULAR, STRAIGHT FACE |
| JOINT STYLE | 2 DIAGONAL JOINT |
| RING STYLE | 5 EXPANDING CONCENTRIC |
| OUTSIDE DIAMETER | 0.301 INCHES MINIMUM AND 0.306 INCHES MAXIMUM |
| RADIAL WALL THICKNESS | 0.0350 INCHES NOMINAL |
| OVERALL WIDTH | 0.3750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-01-540-5496
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
