NSN 5330-01-549-4704 M83248/1-214, M83248/1-214CP, M832481214
Product Details | PREFORMED PACKING
5330-01-549-4704 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: M83248/1-214, M83248/1-214CP, M832481214, M832481214CP, AS3208-214 CP , AS3208214CP, AS3209214CP, AS3209-214CP , G547000226438208630, G547-0002-264382086-30, G547000226438208630CP, G547-0002-264382086-30CP, 2643-820-86 ITEM 30, 2643-820-86 ITEM 30CP, 26438208630, 264382086-30, 26438208630CP, 264382086-30CP, 264382086ITEM30, 264382086ITEM30CP, 755047826438208630, 7550478-264382086-30, 755047826438208630CP, 7550478-264382086-30CP, 845-7284928 ITEM 30, 845-7284928 ITEM 30CP, 8457284928ITEM30, 8457284928ITEM30CP, 5330-01-549-4704, 01-549-4704, 5330015494704, 015494704
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 MAR 2007 | 01-549-4704 | 04521 ( PACKING, PREFORMED ) |

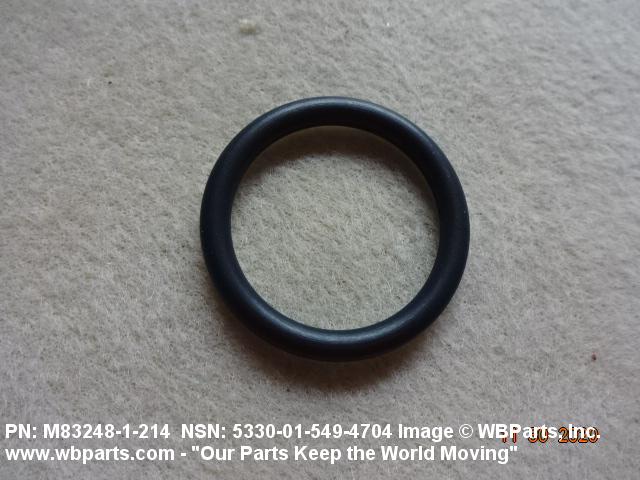

Drawings & Photos | NSN 5330-01-549-4704
Demand History | NSN 5330-01-549-4704
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M832481214 | 2025-01-08 | 10 | United States |
| M832481214 | 2024-08-218 | 10 | United Arab Emirates |
| M832481214 | 2021-04-97 | 60 | AE |
| M832481214 | 2015-11-328 | 10 | Malaysia |
| M83248/1-214 | 2015-03-85 | 18 | US |
| M83248/1-214 | 2015-03-69 | 500 | US |
| M832481214 | 2014-06-162 | 18 | UK |
| M83248/1-214 | 2013-05-134 | 50 | CZ |
| 5330-01-549-4704 | 2012-04-104 | 10 | US |
| M832481214 | 2012-01-12 | 2 | Switzerland |
| M832481214 | 2012-01-12 | 4 | Switzerland |
| M832481214 | 2011-04-108 | 50 | us |
| 5330-01-549-4704 | 2010-11-318 | 30 | AE |
| M832481214 | 2010-08-242 | 2 | BD |
| 5330-01-549-4704 | 2009-03-71 | 250 | DIBBS |
| 5330-01-549-4704 | 2009-03-68 | 22 | DIBBS |
| 5330-01-549-4704 | 2009-01-26 | 38 | DIBBS |
| 5330-01-549-4704 | 2008-08-238 | 1 | DIBBS |
| 5330-01-549-4704 | 2008-08-238 | 1 | DIBBS |
Cross Reference | NSN 5330-01-549-4704
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2643-820-86 ITEM 30 | 96169 | ELECTRIC BOAT CORPORATION |
| 2643-820-86 ITEM 30CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 264382086-30 | 96169 | ELECTRIC BOAT CORPORATION |
| 264382086-30CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 7550478-264382086-30 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 7550478-264382086-30CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 845-7284928 ITEM 30 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 845-7284928 ITEM 30CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| AS3208-214 CP | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS3209-214CP | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| G547-0002-264382086-30 | 96169 | ELECTRIC BOAT CORPORATION |
| G547-0002-264382086-30CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| M83248/1-214 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83248/1-214CP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-549-4704
Technical Data | NSN 5330-01-549-4704
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D1 O-RING |
| CROSS SECTION OUTSIDE DIAMETER | 0.139 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.984 INCHES NOMINAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | CLEANING, PACKAGING, AND MARKING IAW MIL-STD-1330D. |
| III END ITEM IDENTIFICATION | VALVE, BALL, 2.000 IPS 700 PSI CU NI BTWLD. |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 7550478-264382086-30 |
Restrictions/Controls & Freight Information | NSN 5330-01-549-4704
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-549-4704
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | CP | An item that requires special cleaning and packaging for oxygen/nitrogen service (e.g, valves, piping systems, generators). |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
