Product Details | DOOR HANDLE
5340-00-040-8720 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 2093159, 5340-00-040-8720, 00-040-8720, 5340000408720, 000408720
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 NOV 1972 | 00-040-8720 | 18073 ( HANDLE, DOOR ) |
Drawings & Photos | NSN 5340-00-040-8720
Cross Reference | NSN 5340-00-040-8720
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2093159 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5340-00-040-8720
5340-00-040-8725, 5340-00-040-8884, 5340-00-040-8912, 5340-00-040-9201, 5340-00-040-9646
Technical Data | NSN 5340-00-040-8720
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 836 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-16540,GRADE C MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

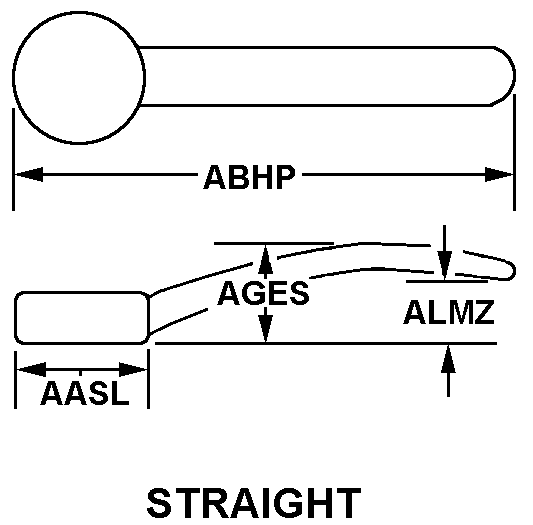

| STYLE DESIGNATOR | C27 STRAIGHT |
| HEAD DIAMETER | 1.620 INCHES NOMINAL |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| HANDLE HEIGHT | 0.750 INCHES NOMINAL |
| HANDLE CLEARANCE | 0.500 INCHES NOMINAL |
| SHAFT ACCOMMODATION STYLE | V1 ROUND |
| ACCOMMODATED SHAFT DIAMETER | 0.5625 INCHES MINIMUM AND 0.5632 INCHES MAXIMUM |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2093159 |
Restrictions/Controls & Freight Information | NSN 5340-00-040-8720
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-040-8720
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
