NSN 5340-00-097-6486 9M15, 00-097-6486, 000976486
Product Details | ANGLE BRACKET

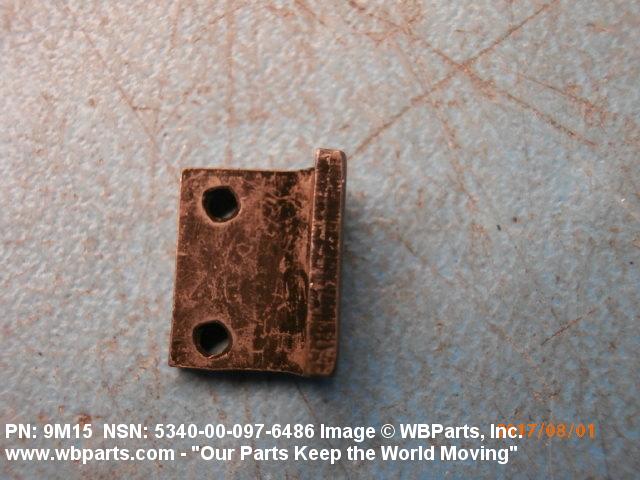

5340-00-097-6486 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 9M15, 5340-00-097-6486, 00-097-6486, 5340000976486, 000976486
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUL 1972 | 00-097-6486 | 16900 ( BRACKET, ANGLE ) |

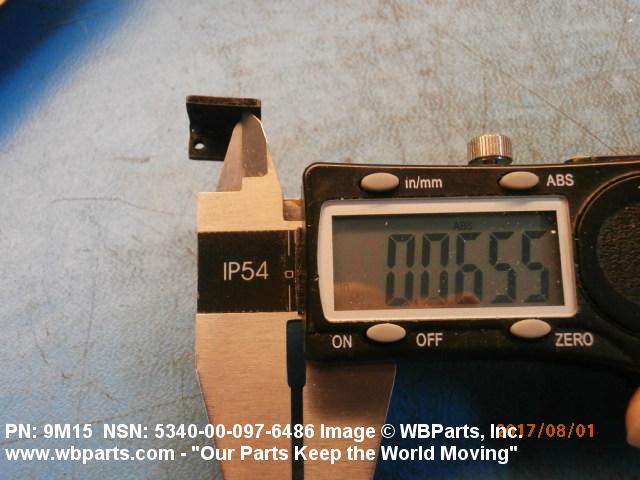

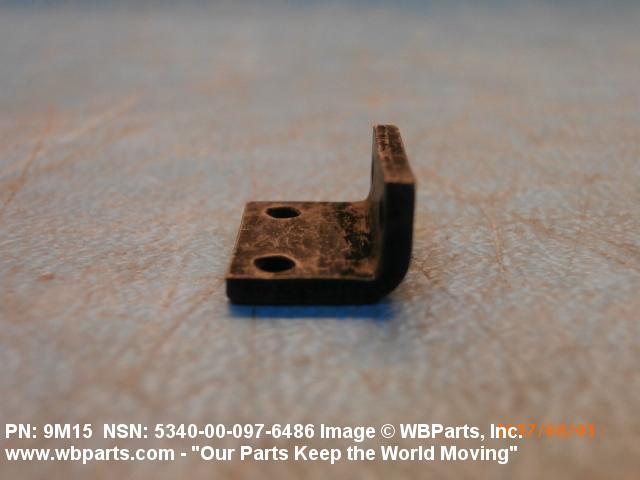

Drawings & Photos | NSN 5340-00-097-6486
Demand History | NSN 5340-00-097-6486
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-097-6486 | 2017-05-150 | 2 | United States |
| 5340-00-097-6486 | 2017-05-132 | 2 | United States |
Cross Reference | NSN 5340-00-097-6486
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9M15 | 25805 | TRANSICOIL LLC DBA ADS/TRANSICOIL USE CAGE CODE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-097-6486
Related Products | NSN 5340-00-097-6486
Technical Data | NSN 5340-00-097-6486
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5052 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/8 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |

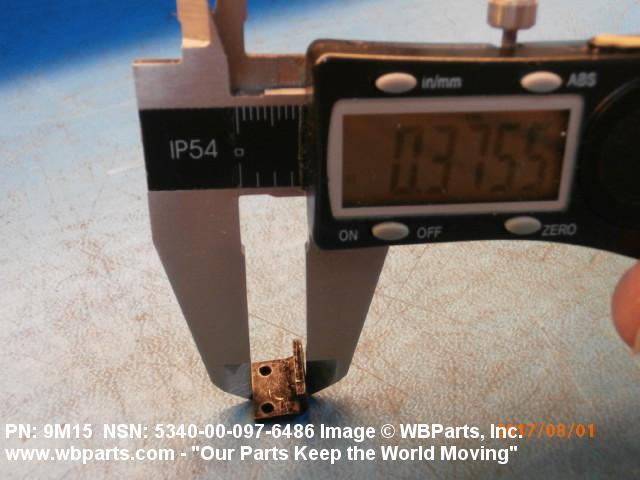

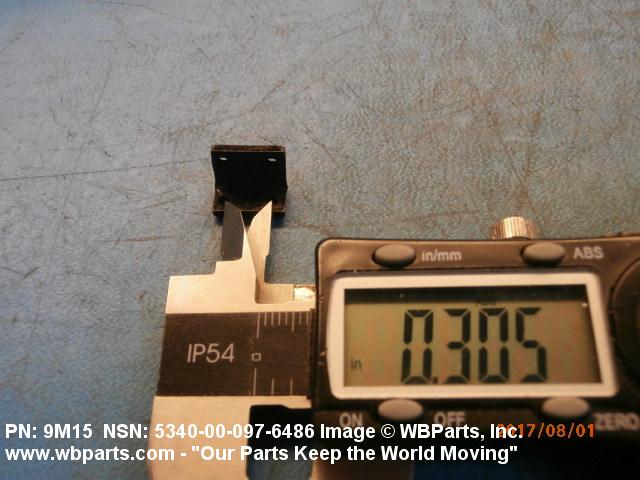

| FIRST LEG LENGTH | 0.281 INCHES NOMINAL |

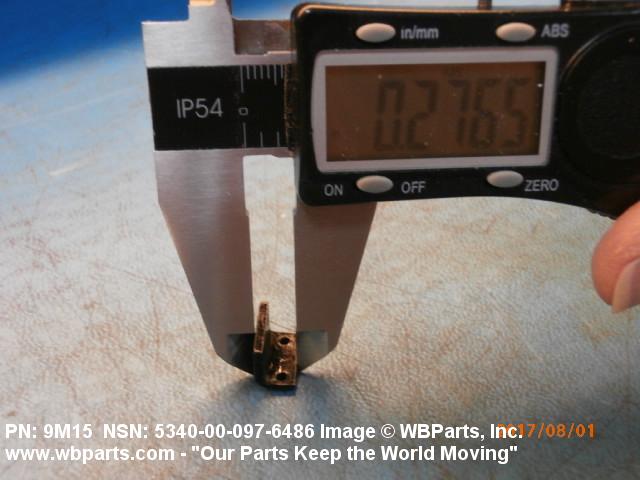

| SECOND LEG LENGTH | 0.375 INCHES NOMINAL |

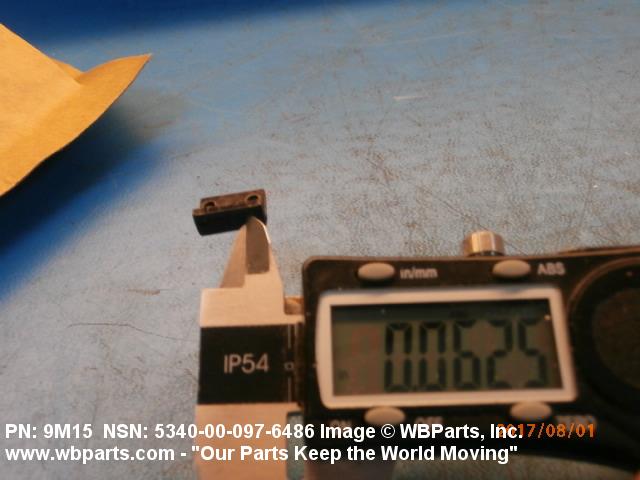

| FIRST LEG THICKNESS | 0.063 INCHES NOMINAL |

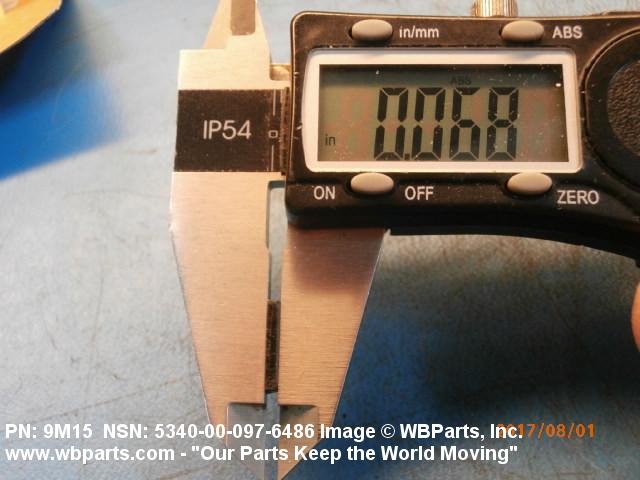

| SECOND LEG THICKNESS | 0.063 INCHES NOMINAL |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 104 SQUARE |

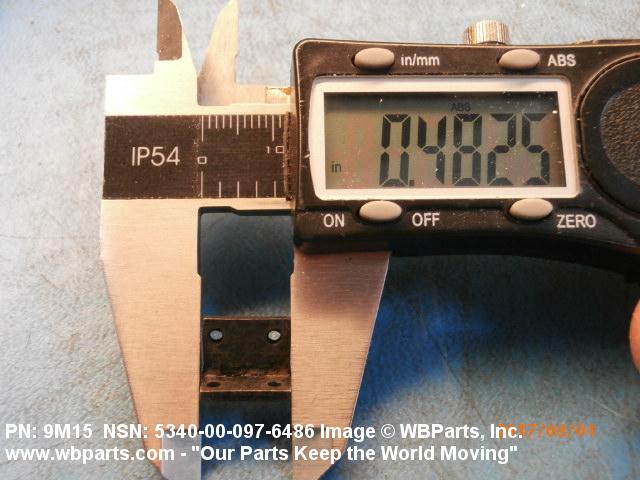

| FIRST LEG WIDTH | 0.469 INCHES NOMINAL |
| SECOND LEG WIDTH | 0.469 INCHES NOMINAL |

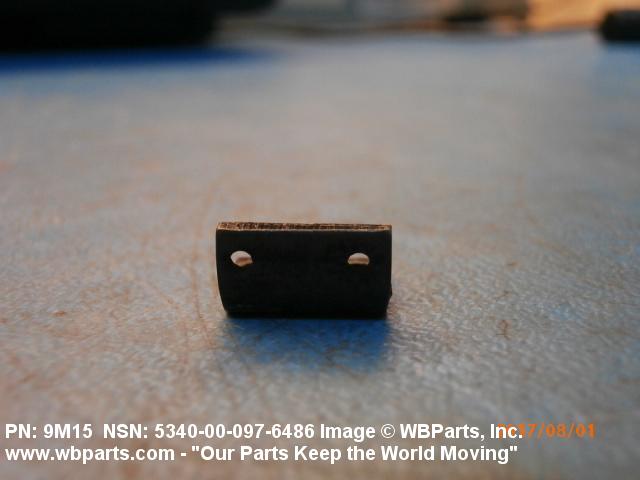

| FIRST LEG HOLE ARRANGEMENT STYLE | 133 TWO HOLES |
| FIRST LEG HOLE DIAMETER | 0.062 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 0.312 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.078 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.101 INCHES NOMINAL |
| SECOND LEG HOLE DIAMETER | 0.086 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 0.312 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.078 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.280 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 104 SQUARE |
| SECOND LEG HOLE ARRANGEMENT STYLE | 133 TWO HOLES |
| MOUNTING HOLE TYPE | THREADED |
| III HEAT TREATMENT | H-32 STRAIN HARDENED |
| MANUFACTURERS CODE | 25805 |
| DESIGN CONTROL REFERENCE | 9M15 |
Restrictions/Controls & Freight Information | NSN 5340-00-097-6486
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5340-00-097-6486
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
