Product Details | ANGLE BRACKET
5340-00-737-5190 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 118143, 7375190, 5340-00-737-5190, 00-737-5190, 5340007375190, 007375190
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-737-5190 | 16900 ( BRACKET, ANGLE ) |

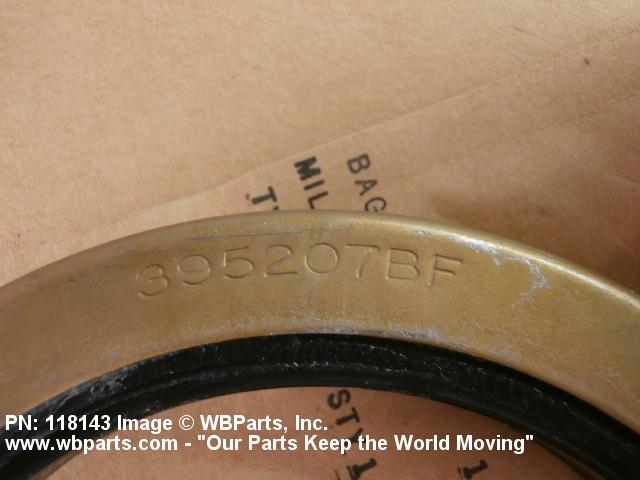

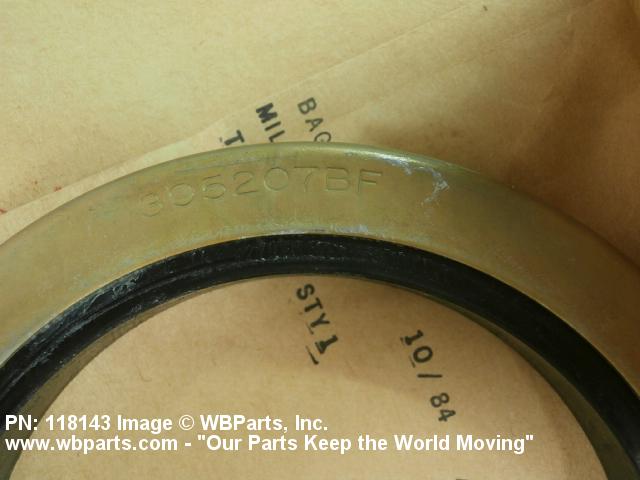

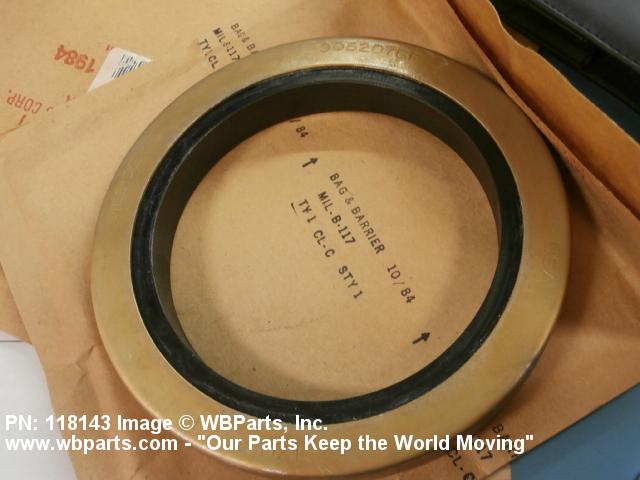

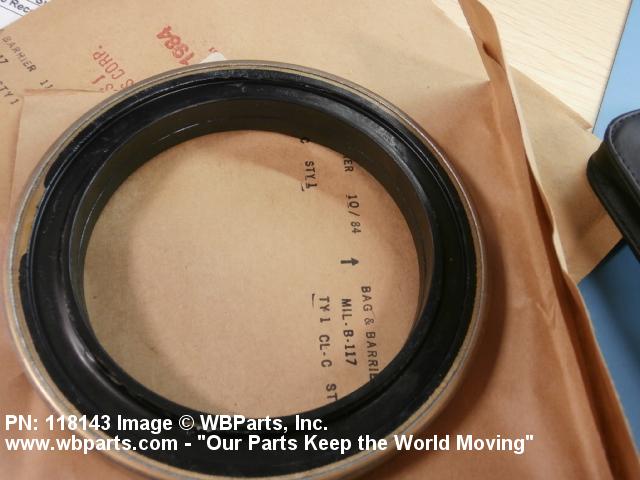

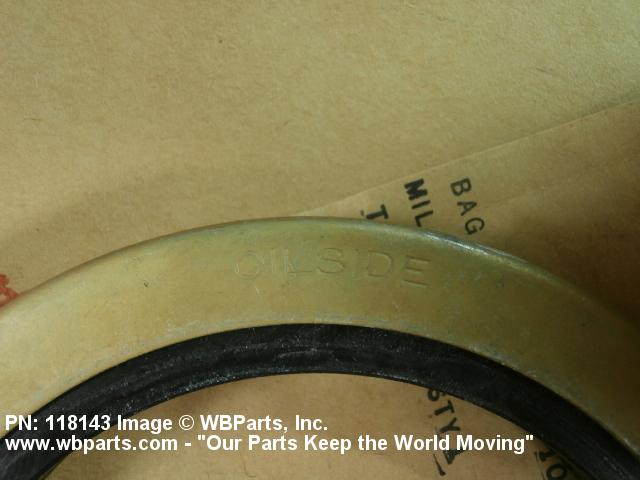

Drawings & Photos | NSN 5340-00-737-5190
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-737-5190
Related Products | NSN 5340-00-737-5190
5340-00-737-5225, 5340-00-737-5279, 5340-00-737-5327, 5340-00-737-5333, 5340-00-737-5352
Technical Data | NSN 5340-00-737-5190
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1009 OR STEEL COMP 1015 OR STEEL COMP 1020 |
| STYLE DESIGNATOR | 6 ANGLE |
| III FIRST LEG LENGTH | 1.438 INCHES NOMINAL |
| III SECOND LEG LENGTH | 1.093 INCHES NOMINAL |
| III FIRST LEG THICKNESS | 0.121 INCHES MINIMUM AND 0.131 INCHES MAXIMUM |
| III SECOND LEG THICKNESS | 0.121 INCHES MINIMUM AND 0.131 INCHES MAXIMUM |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |
| FIRST LEG HOLE DIAMETER | 0.422 INCHES MINIMUM AND 0.429 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.656 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.562 INCHES NOMINAL |
| SECOND LEG STYLE | 105 CORNER RADIUS |
| SECOND LEG WIDTH | 1.312 INCHES NOMINAL |
| SECOND LEG END RADIUS | 1.125 INCHES NOMINAL |
| SECOND LEG HOLE ARRANGEMENT STYLE | 133 TWO HOLES |
| SECOND LEG HOLE DIAMETER | 0.281 INCHES MINIMUM AND 0.286 INCHES MAXIMUM |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 0.688 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.312 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-737-5190
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-737-5190
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
