Product Details | HELICAL COMPRESSION SPRING SEAT
5340-00-737-5225 A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE.
Part Alternates: R600I263, 7375225, 5340-00-737-5225, 00-737-5225, 5340007375225, 007375225
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-737-5225 | 24328 ( SEAT, HELICAL COMPRESSION SPRING ) |

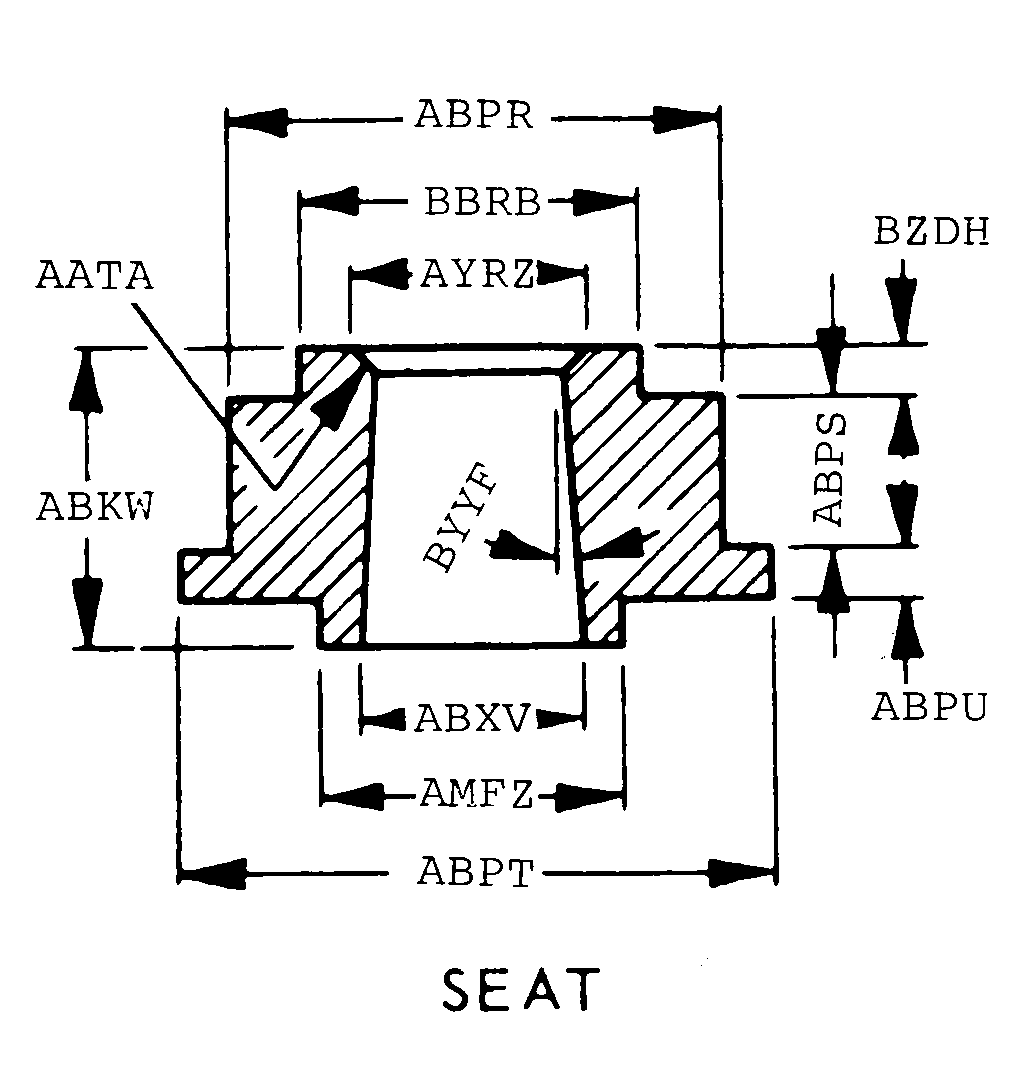

Drawings & Photos | NSN 5340-00-737-5225
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-737-5225
Related Products | NSN 5340-00-737-5225
5340-00-737-5279, 5340-00-737-5327, 5340-00-737-5333, 5340-00-737-5352, 5340-00-737-5375
Technical Data | NSN 5340-00-737-5225
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,SAE 8640 |
| MATERIAL HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 51.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | N3 SEAT |
| OVERALL HEIGHT | 0.6560 INCHES NOMINAL |
| END DIAMETER | 1.0000 INCHES MINIMUM AND 1.0100 INCHES MAXIMUM |
| DISTANCE FROM END TO FIRST STEP | 0.0780 INCHES MINIMUM AND 0.0930 INCHES MAXIMUM |
| FIRST STEP DIAMETER | 1.3900 INCHES MINIMUM AND 1.4000 INCHES MAXIMUM |
| FIRST STEP LENGTH | 0.3080 INCHES MINIMUM AND 0.3180 INCHES MAXIMUM |
| SECOND STEP DIAMETER | 1.6880 INCHES NOMINAL |
| SECOND STEP LENGTH | 0.1150 INCHES MINIMUM AND 0.1350 INCHES MAXIMUM |
| SECOND END DIAMETER | 0.9060 INCHES NOMINAL |
| BORE DIAMETER | 0.6520 INCHES NOMINAL |
| COUNTERSINK DIAMETER | 0.6570 INCHES NOMINAL |
| BORE TAPER IN DEG | 14.250 |
| COUNTERSINK ANGLE IN DEG | 45.0 |
| DESIGN TYPE | SOLID |
| FEATURES PROVIDED | CASEHARDENED |
| III FSC APPLICATION DATA | ENGINE,GASOLINE,NON-AIRCRAFT |
| MANUFACTURERS CODE | 14351 |
| DESIGN CONTROL REFERENCE | R600I263 |
