NSN 5340-00-737-5352 673783, 7375352, 00-737-5352
Product Details | HINGED HASP
5340-00-737-5352 An item consisting of a hinged strap with a slot in one end through which a loop or staple may pass. When a loop or staple is passed through the slot in the strap, a means of securing the two parts together is afforded. It may include a staple.
Part Alternates: 673783, 7375352, 5340-00-737-5352, 00-737-5352, 5340007375352, 007375352
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-737-5352 | 06611 ( HASP, HINGED ) |

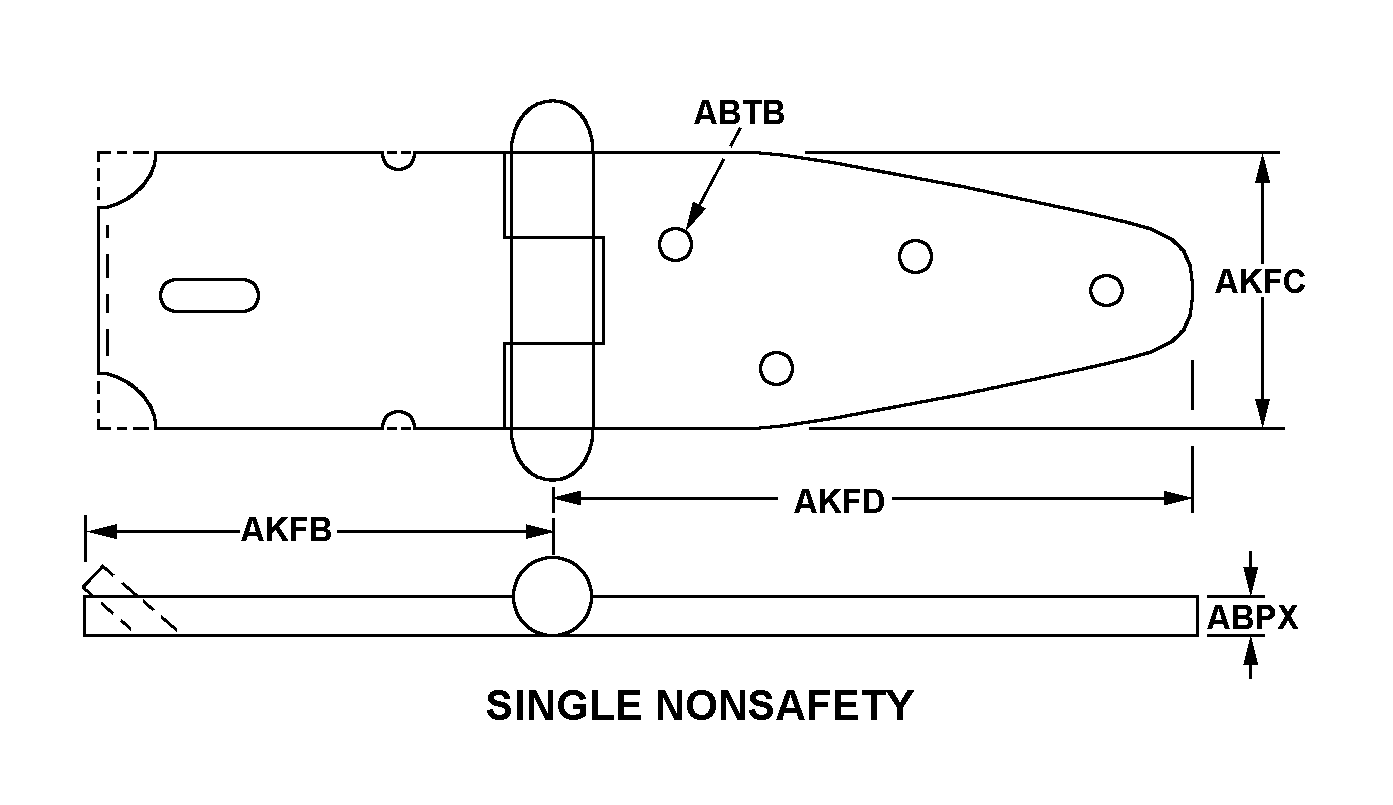

Drawings & Photos | NSN 5340-00-737-5352
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-737-5352
Technical Data | NSN 5340-00-737-5352
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, WROUGHT BODY STEEL PIN |
| STYLE DESIGNATOR | 2 SINGLE NONSAFETY |
| MATERIAL THICKNESS | 0.060 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | ANY ACCEPTABLE |
| SLOTTED LEAF LENGTH | 5.906 INCHES NOMINAL |
| LEAF WIDTH | 1.500 INCHES NOMINAL |
| FIXED LEAF LENGTH | ANY ACCEPTABLE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 3 |
| MOUNTING HOLE QUANTITY | 4 |
Restrictions/Controls & Freight Information | NSN 5340-00-737-5352
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095220 | HASPS/HASPS-HOOKS COMBINED |
| Less than car load rating | T | 55 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
