Product Details | HELICAL COMPRESSION SPRING SEAT
5340-00-991-4338 A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE.
Part Alternates: 009914338
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-991-4338 | 24328 ( SEAT, HELICAL COMPRESSION SPRING ) |

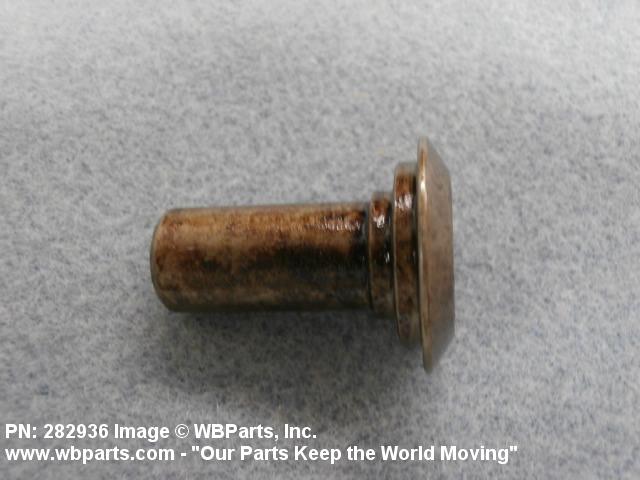

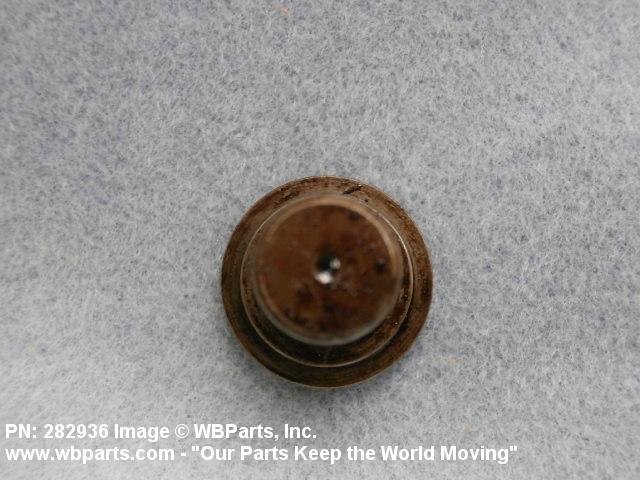

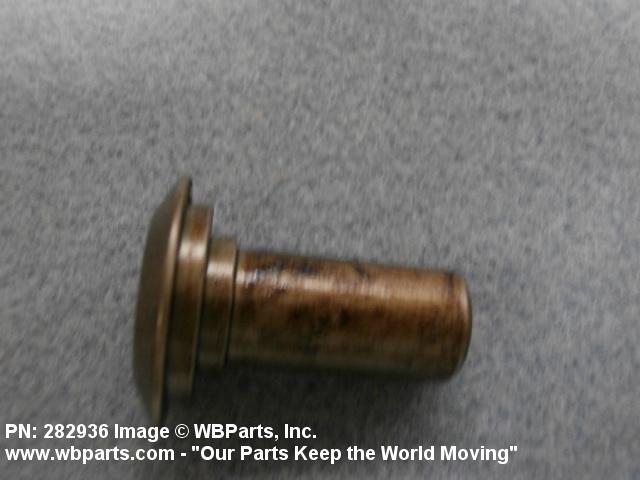

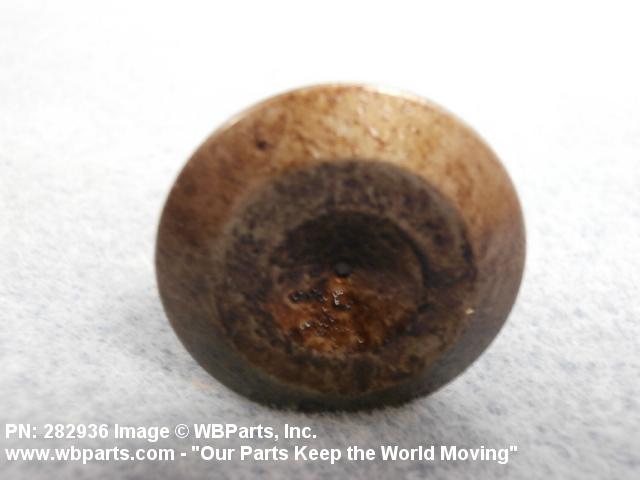

Drawings & Photos | NSN 1650-00-991-4338
Demand History | NSN 5340-00-991-4338
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 282936 | 2014-01-17 | 73 | United States |
| 282936 | 2009-09-17 | 4 | United States |
| 1650-00-991-4338 | 2009-08-04 | 164 | DIBBS |
| 1650-00-991-4338 | 2009-06-29 | 6 | DIBBS |
| 1650-00-991-4338 | 2009-05-31 | 185 | DIBBS |
| 282936 | 2009-05-04 | 85 | United States |
| 1650-00-991-4338 | 2009-04-21 | 16 | DIBBS |
| 1650-00-991-4338 | 2009-04-21 | 39 | DIBBS |
| 1650-00-991-4338 | 2009-04-16 | 85 | DIBBS |
| 1650-00-991-4338 | 2009-03-26 | 4 | DIBBS |
| 1650-00-991-4338 | 2009-02-12 | 39 | DIBBS |
| 1650-00-991-4338 | 2009-02-11 | 16 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5340-00-991-4338
1650-00-991-4509, 1650-00-991-4513, 1650-00-991-4514, 1650-00-991-4587, 1650-00-991-4588
Technical Data | NSN 5340-00-991-4338
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL HARDNESS RATING | NOT RATED |
| STYLE DESIGNATOR | N12 SEAT |
Restrictions/Controls & Freight Information | NSN 5340-00-991-4338
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
