Product Details | ROD END CLEVIS

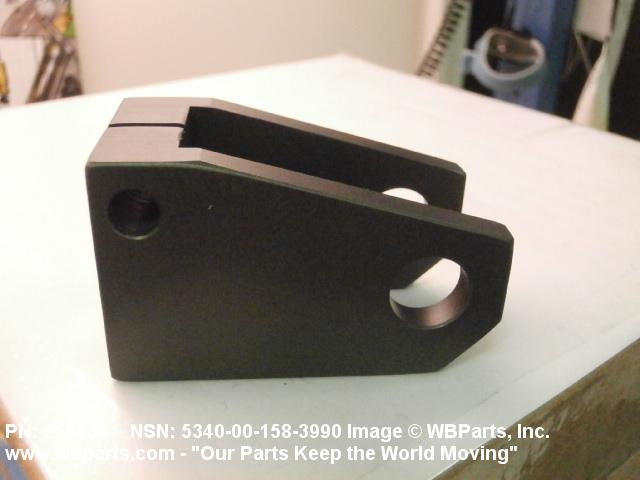

5340-00-158-3990 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial

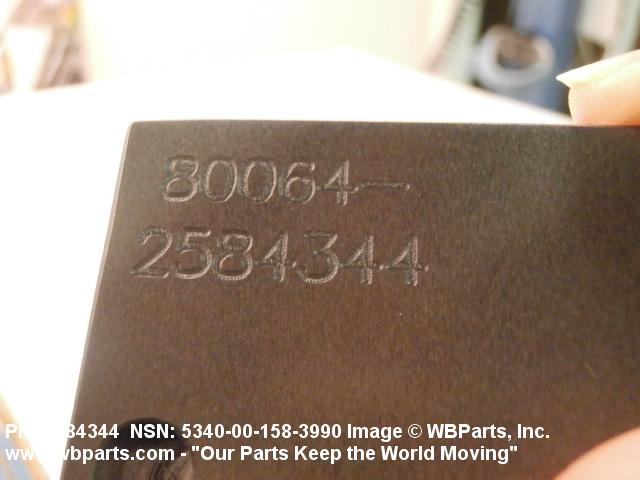

Part Alternates: 2584344, 5340-00-158-3990, 00-158-3990, 5340001583990, 001583990
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 AUG 1971 | 00-158-3990 | 03796 ( CLEVIS, ROD END ) |

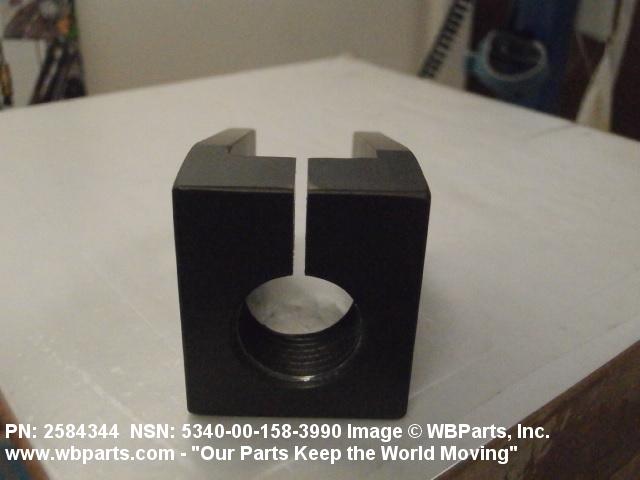

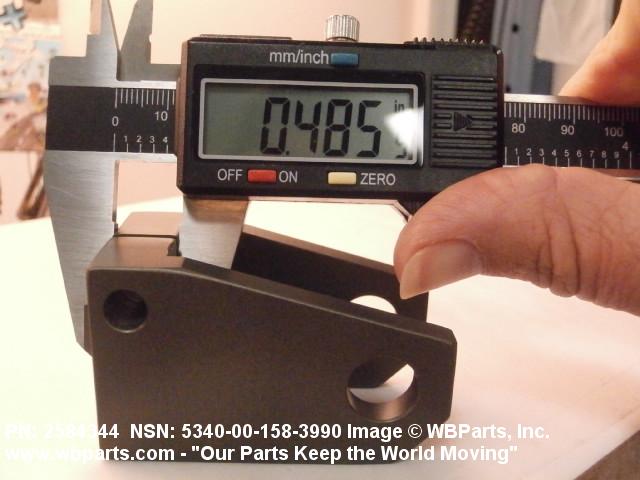

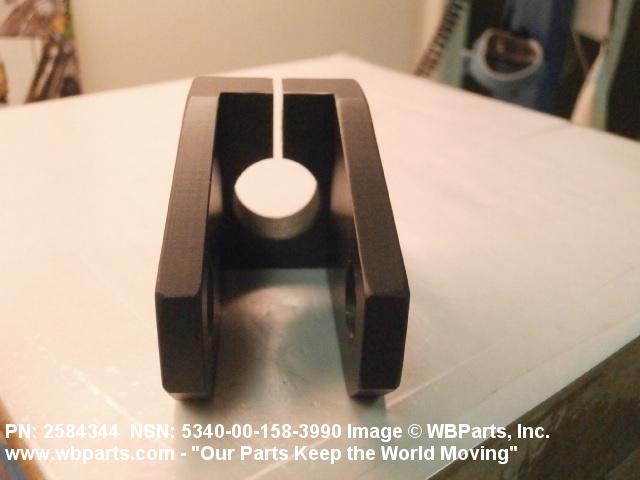

Drawings & Photos | NSN 5340-00-158-3990
Demand History | NSN 5340-00-158-3990
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-158-3990 | 2019-03-27 | 92 | DIBBS |
| 5340-00-158-3990 | 2019-01-23 | 13 | DIBBS |
| 5340-00-158-3990 | 2018-10-31 | 94 | DIBBS |
| 5340-00-158-3990 | 2018-10-23 | 94 | DIBBS |
| 5340-00-158-3990 | 2018-06-07 | 100 | DIBBS |
| 5340-00-158-3990 | 2018-05-30 | 100 | DIBBS |
| 5340-00-158-3990 | 2017-11-29 | 192 | DIBBS |
| 5340-00-158-3990 | 2017-10-17 | 150 | DIBBS |
| 5340-00-158-3990 | 2015-06-21 | 447 | DIBBS |
| 5340-00-158-3990 | 2015-01-27 | 465 | DIBBS |
| 5340-00-158-3990 | 2013-11-13 | 352 | US |
| 5340-00-158-3990 | 2013-09-07 | 45 | United States |
| 5340-00-158-3990 | 2013-03-13 | 352 | DIBBS |
| 5340-00-158-3990 | 2013-01-15 | 226 | DIBBS |
| 5340-00-158-3990 | 2012-07-13 | 141 | DIBBS |
| 5340-00-158-3990 | 2008-09-03 | 428 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-158-3990
Related Products | NSN 5340-00-158-3990
5340-00-158-4073, 5340-00-158-4077, 5340-00-158-4078, 5340-00-158-4154, 5340-00-158-4186
Technical Data | NSN 5340-00-158-3990
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5083 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 3,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.750 INCHES ROD CONNECTION |
| THREAD CLASS | 2B ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.469 INCHES MINIMUM AND 0.531 INCHES MAXIMUM ROD CONNECTION |

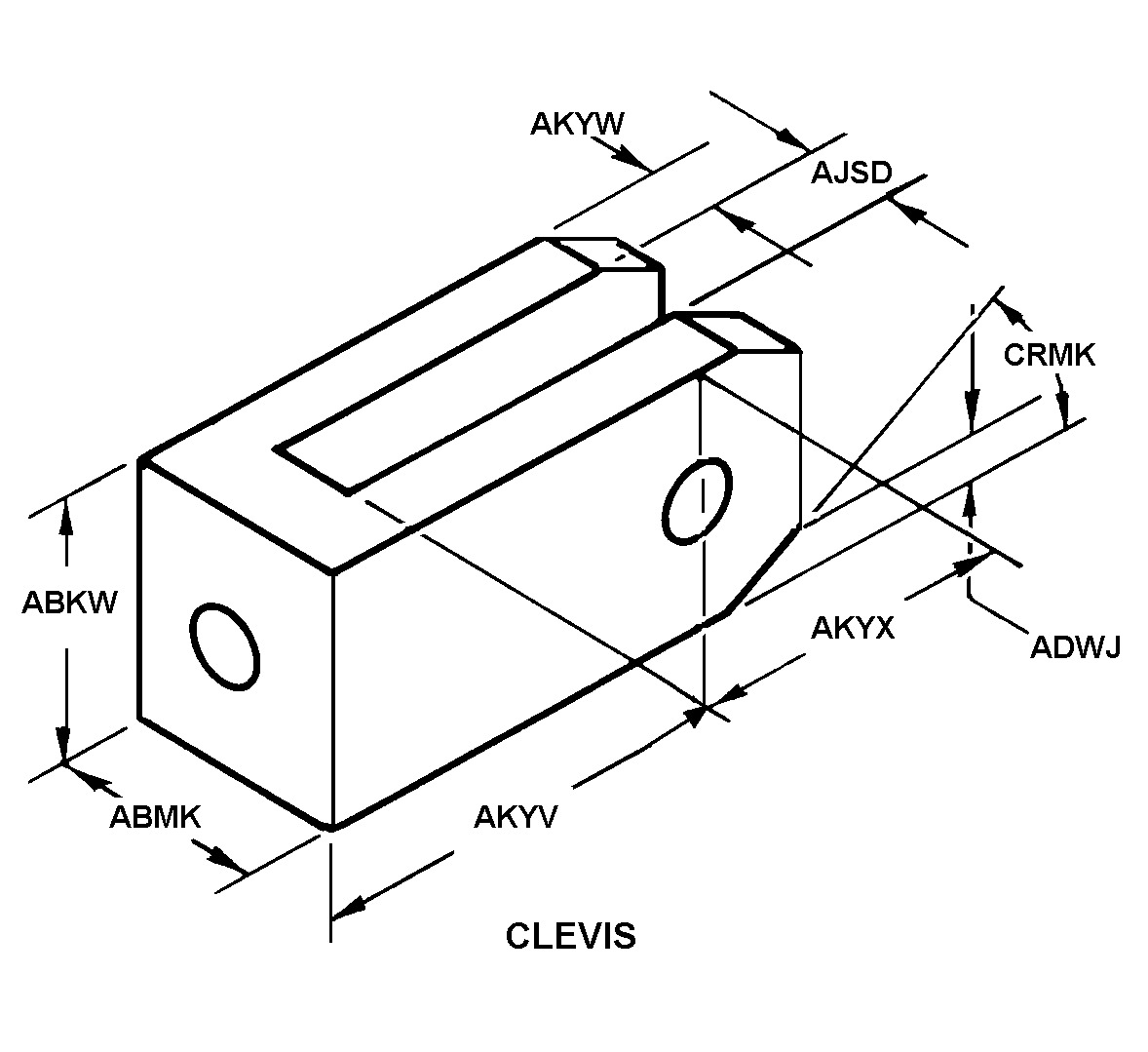

| STYLE DESIGNATOR | 19 CLEVIS |

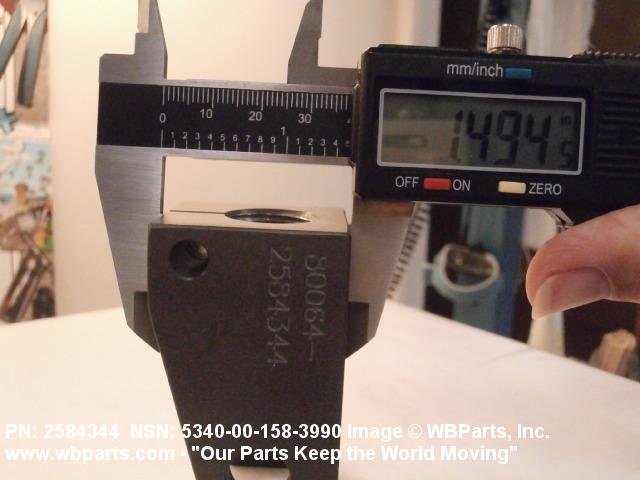

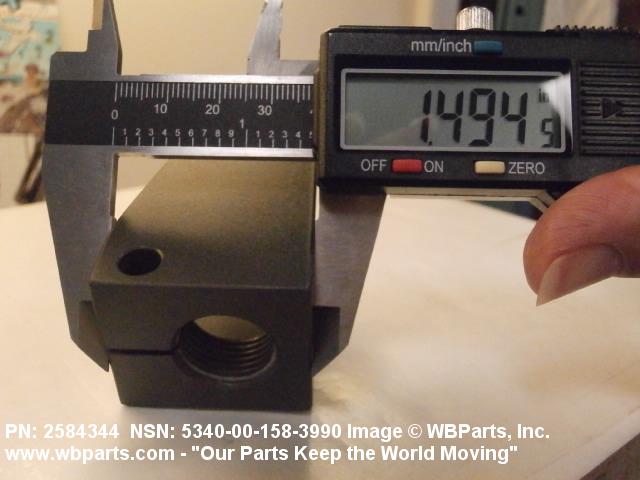

| OVERALL HEIGHT | 1.500 INCHES NOMINAL |

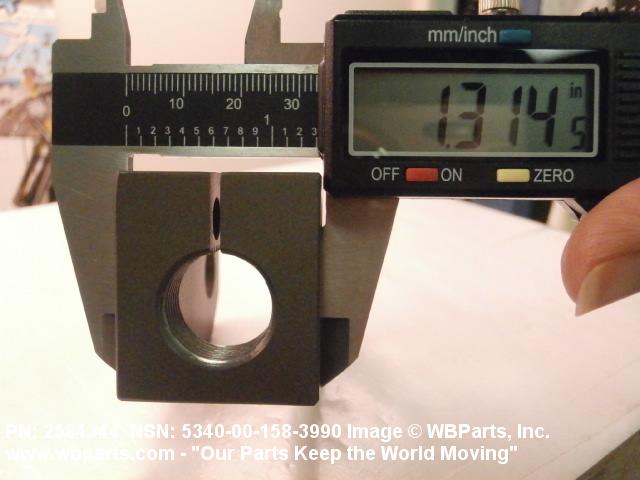

| OVERALL WIDTH | 1.312 INCHES NOMINAL |
| ANGLE HEIGHT | 0.375 INCHES NOMINAL |

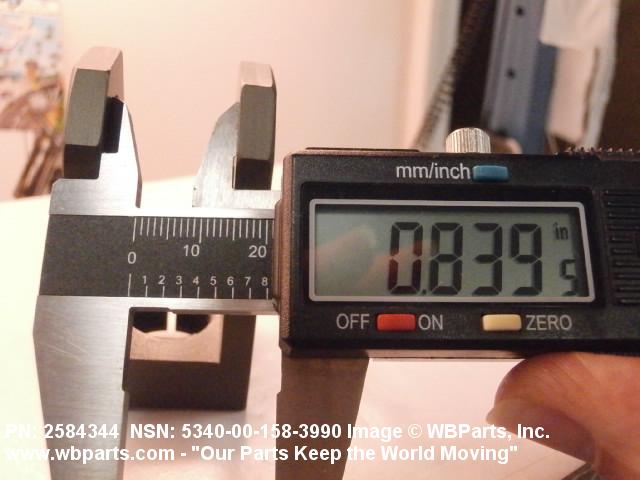

| FORK SPAN WIDTH | 0.812 INCHES MINIMUM AND 0.843 INCHES MAXIMUM |

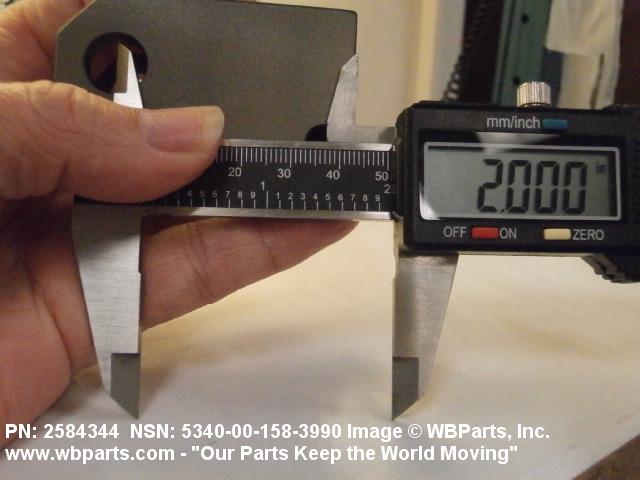

| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 2.000 INCHES NOMINAL |

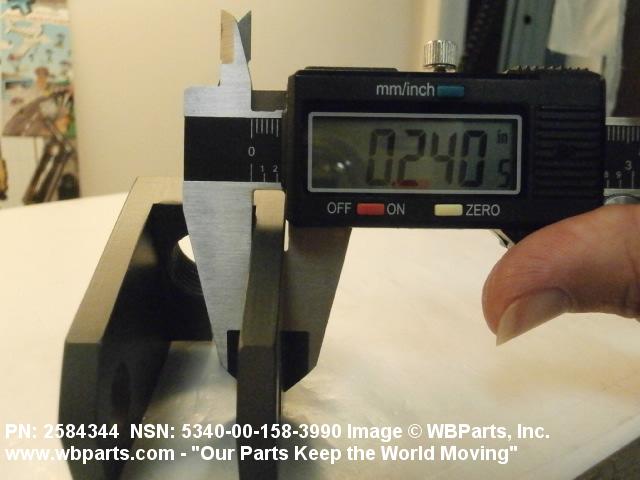

| FORK ARM THICKNESS | 0.250 INCHES NOMINAL |
| FORK DEPTH | 1.469 INCHES MINIMUM AND 1.531 INCHES MAXIMUM |
| ANGLE | 45.0 DEGREES NOMINAL |

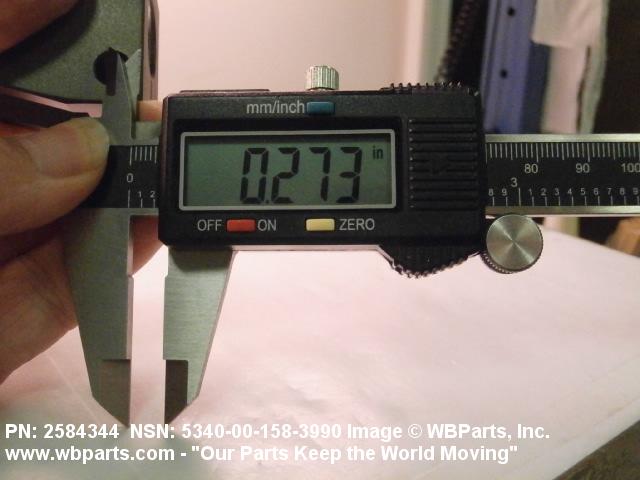

| SECURING PIN HOLE DIAMETER | 0.265 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF SECURING PIN HOLE TO ROD END | 0.219 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |

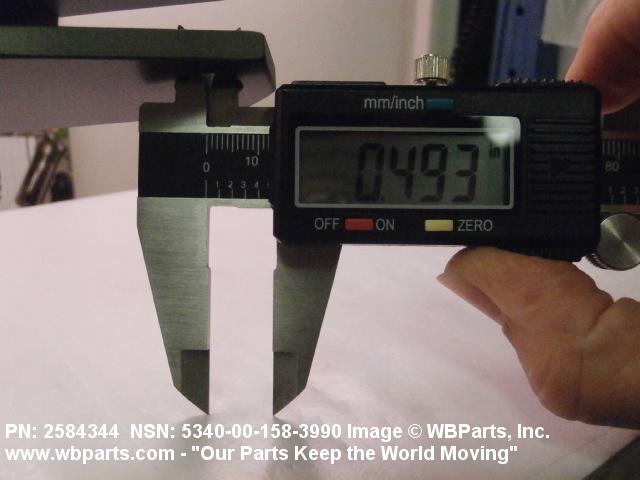

| HOLE DIAMETER | 0.500 INCHES MINIMUM AND 0.503 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5340-00-158-3990
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-158-3990
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
