NSN 5340-00-299-0069 1086418, 10876418, 3005103
Product Details | ROD END CLEVIS
5340-00-299-0069 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 1086418, 10876418, 3005103, 5340-00-299-0069, 00-299-0069, 5340002990069, 002990069
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 MAR 1971 | 00-299-0069 | 03796 ( CLEVIS, ROD END ) |

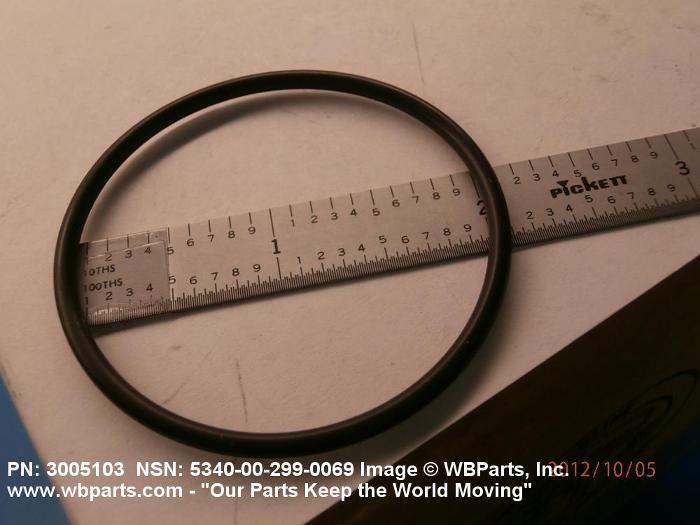

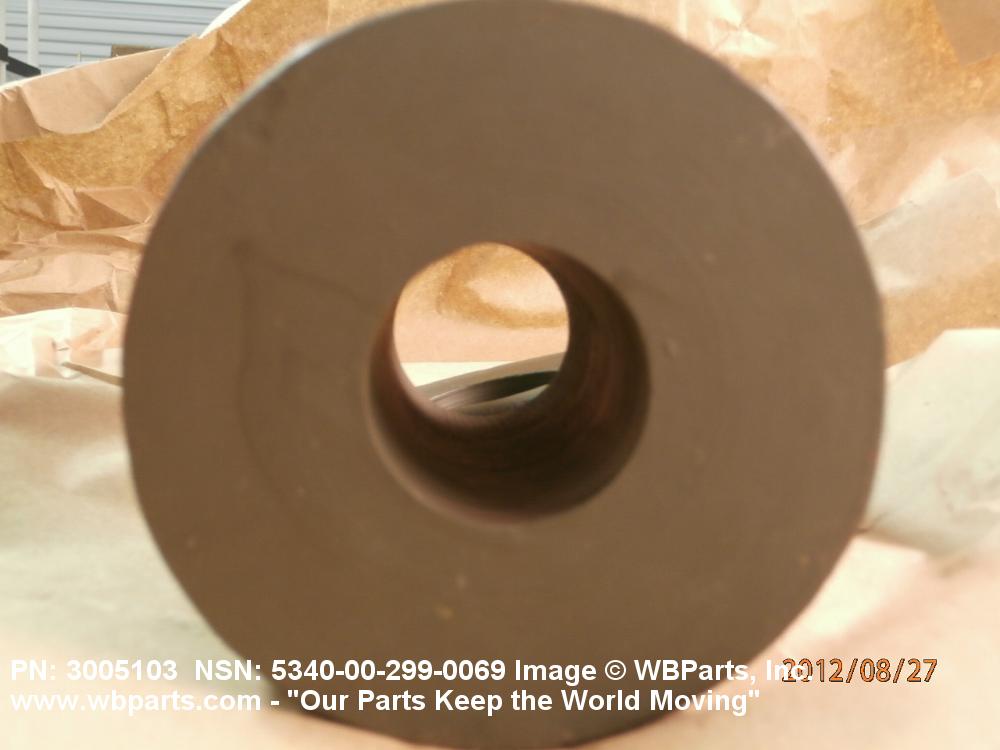

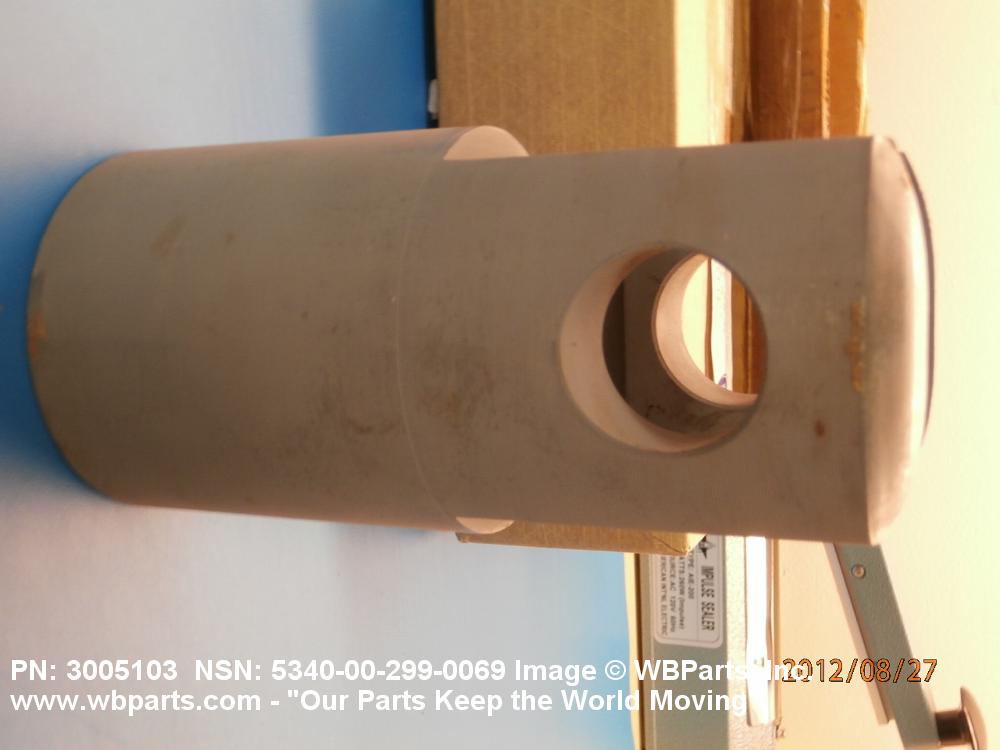

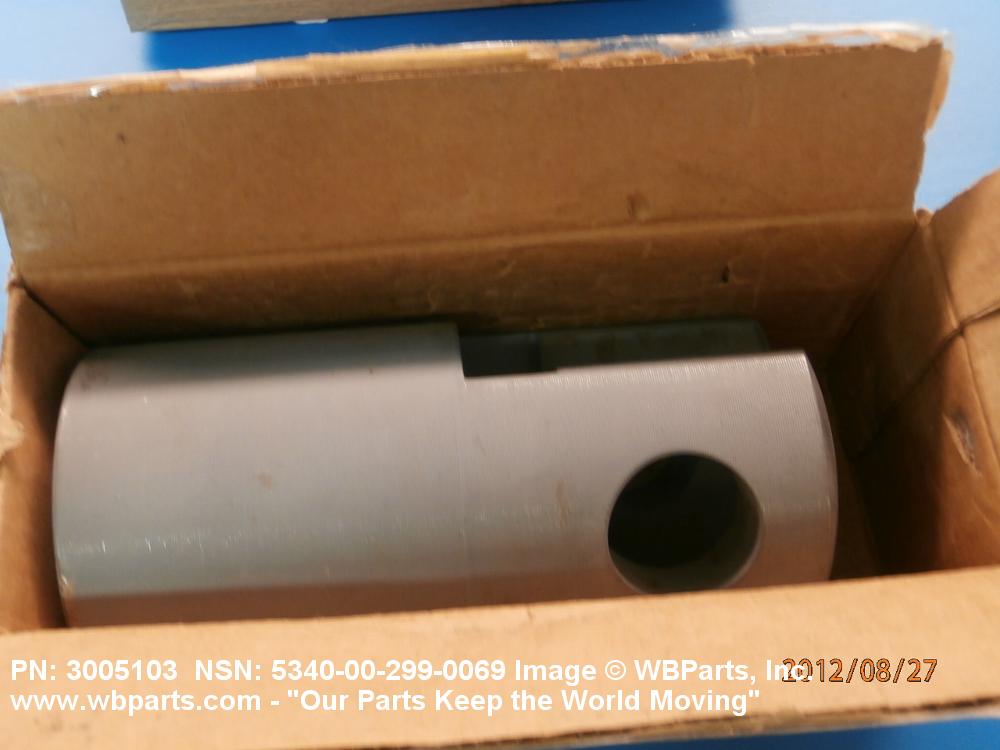

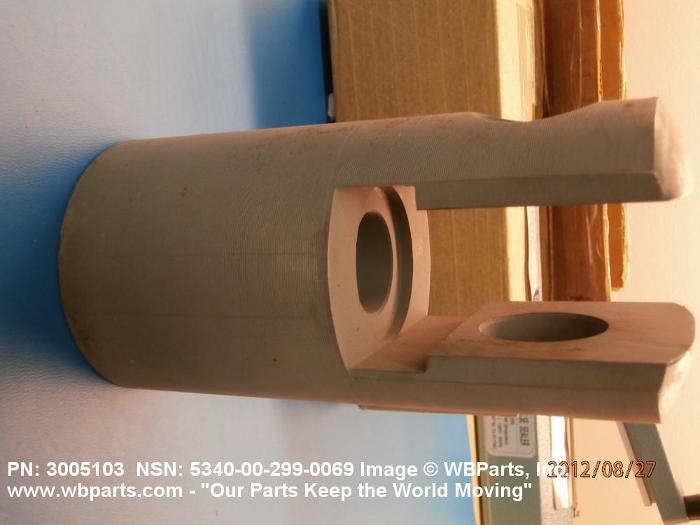

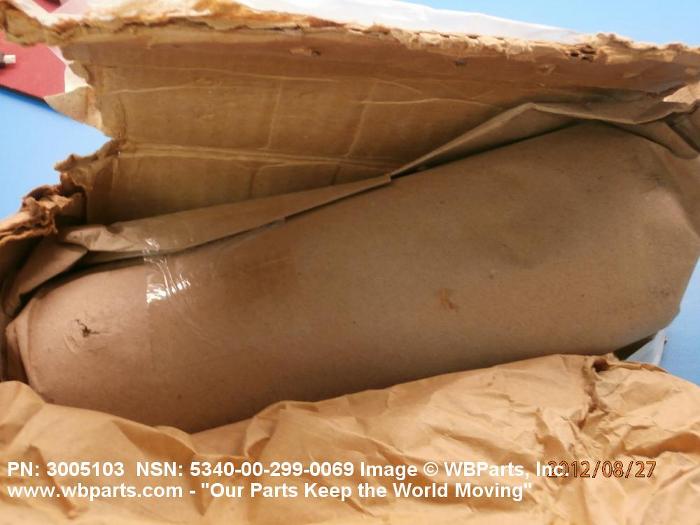

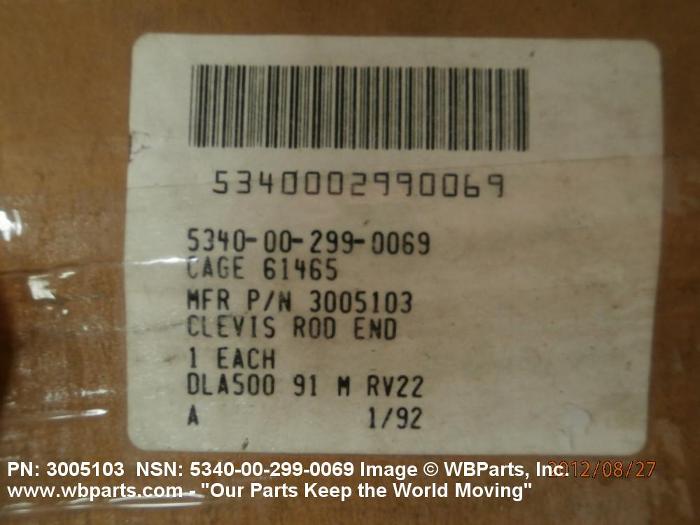

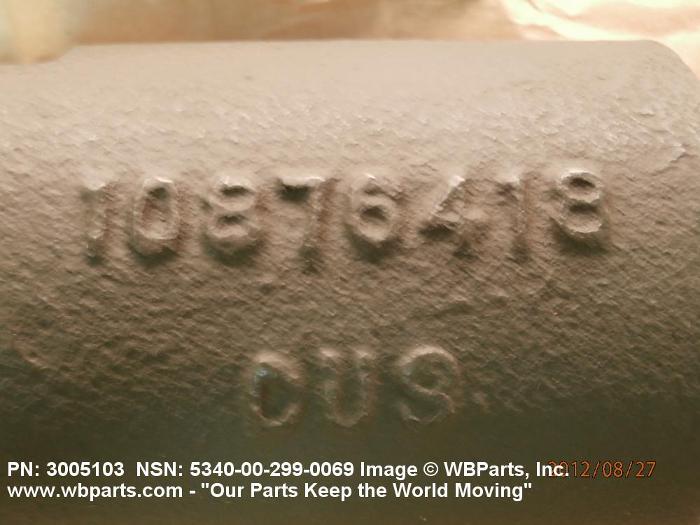

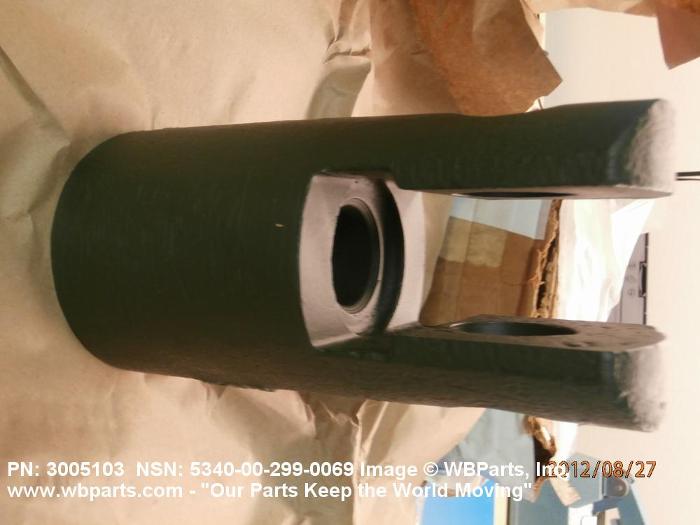

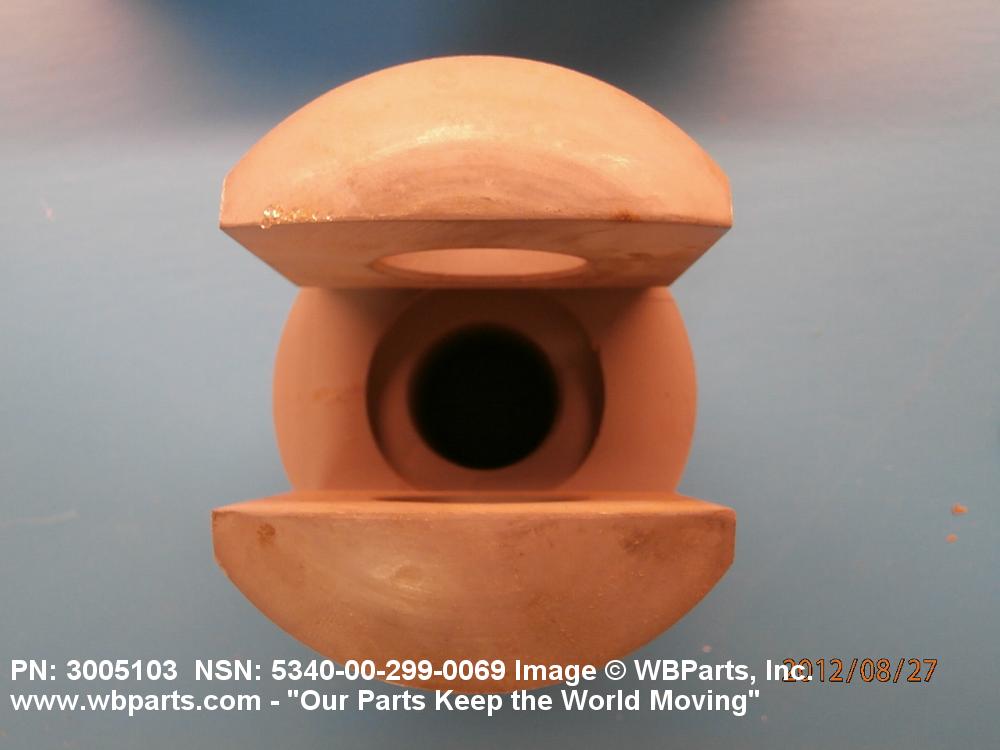

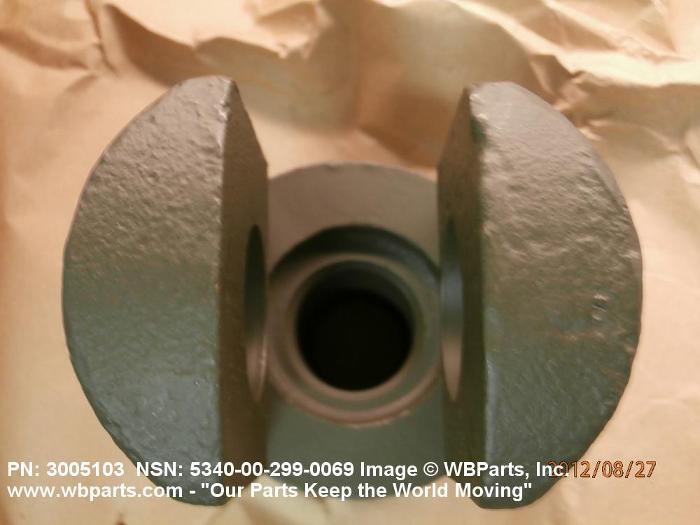

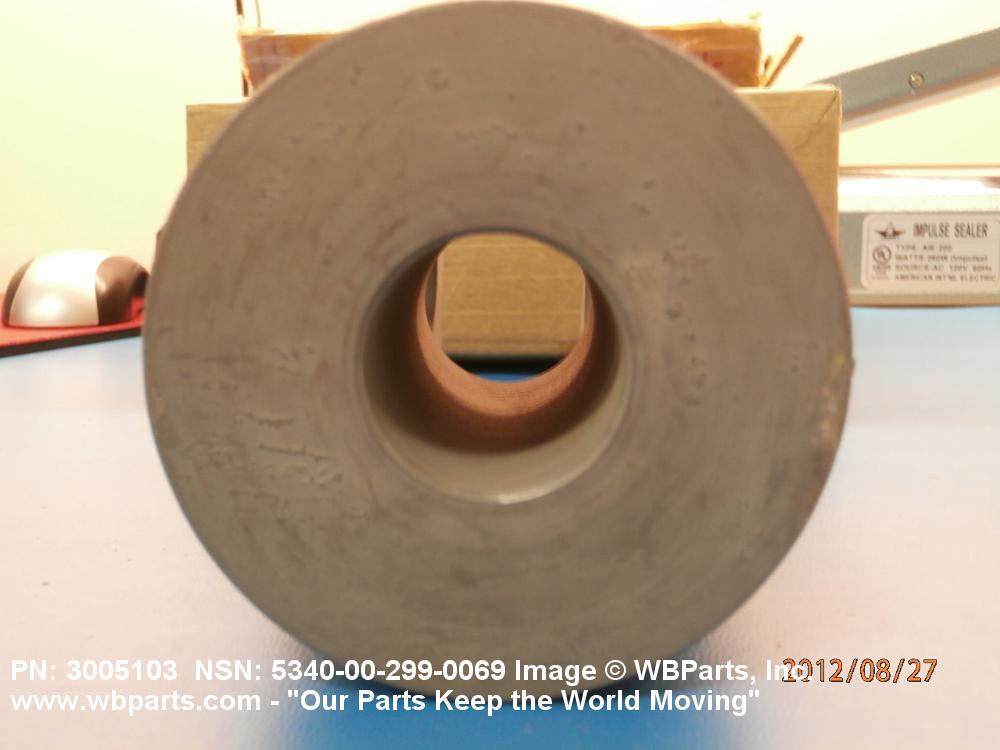

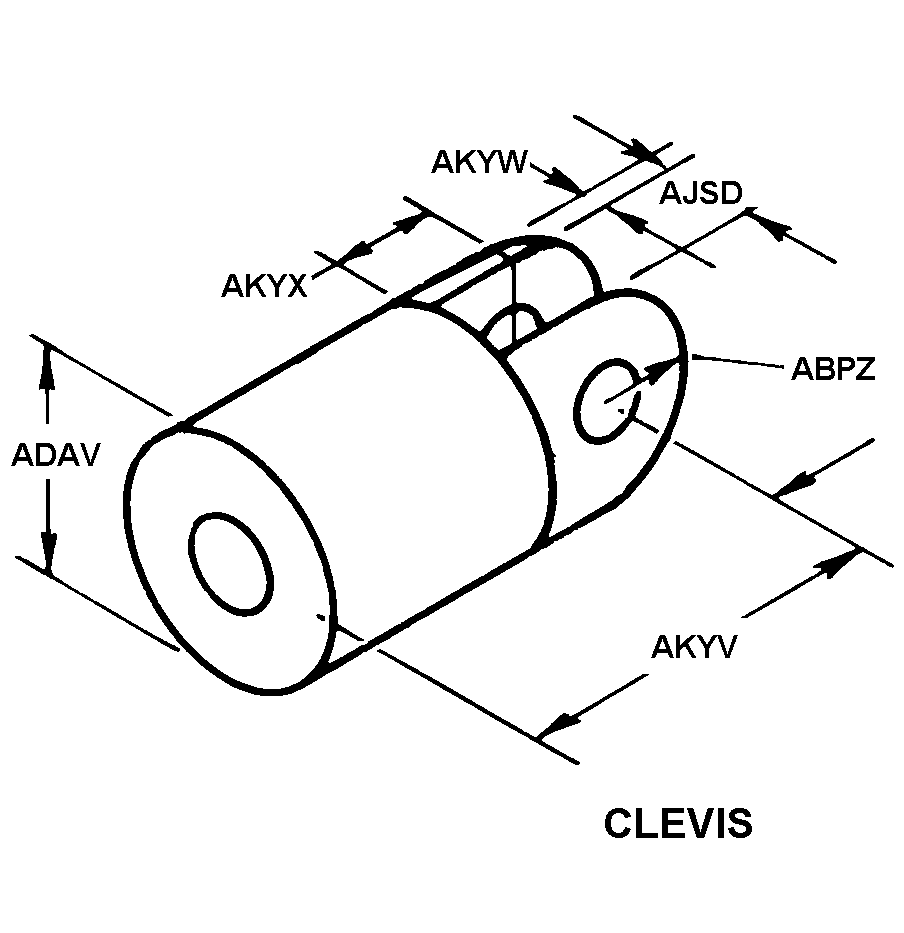

Drawings & Photos | NSN 5340-00-299-0069
Demand History | NSN 5340-00-299-0069
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-299-0069 | 2012-08-223 | 2 | United States |
| 5340-00-299-0069 | 2012-08-223 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-299-0069
Technical Data | NSN 5340-00-299-0069
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS J03001 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-681,65-35 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PRIMER AND ENAMEL OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | TT-P-636 FED SPEC SINGLE TREATMENT RESPONSE AND TT-E-529,OLIVE DRAB FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 29 CLEVIS |
| OVERALL DIAMETER | 3.750 INCHES NOMINAL |
| FORK SPAN WIDTH | 1.625 INCHES NOMINAL |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 5.953 INCHES NOMINAL |
| FORK ARM THICKNESS | 1.062 INCHES NOMINAL |
| FORK DEPTH | 2.000 INCHES NOMINAL |
| ROD CONNECTION BORE DIAMETER | 1.375 INCHES MINIMUM AND 1.380 INCHES MAXIMUM |
| ROD CONNECTION BORE DEPTH | 3.760 INCHES MINIMUM AND 3.765 INCHES MAXIMUM |
| HOLE DIAMETER | 1.501 INCHES MINIMUM AND 1.503 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 1086418 |
Restrictions/Controls & Freight Information | NSN 5340-00-299-0069
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-299-0069
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
