NSN 5340-00-172-4314 67B46313, 67B4631301, 67B46313-01
Product Details | STRAP FASTENER LOOP
5340-00-172-4314 An item of rigid material having an aperture or opening through which the end(s) of a strap(s) or belt(s) is designed to be inserted, folded, and secured to itself by sewing, riveting, or the like. It is used to fasten the end(s) of a strap or belt to itself, to another belt or strap, or to an object or structure.
Part Alternates: 67B46313, 67B4631301, 67B46313-01, 5340-00-172-4314, 00-172-4314, 5340001724314, 001724314
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 SEP 1972 | 00-172-4314 | 20539 ( LOOP, STRAP FASTENER ) |
Drawings & Photos | NSN 5340-00-172-4314
Demand History | NSN 5340-00-172-4314
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 67B4631301 | 2015-07-202 | 3200 | CA |
| 5340-00-172-4314 | 2014-10-279 | 200 | DIBBS |
| 5340-00-172-4314 | 2014-09-266 | 200 | DIBBS |
| 5340-00-172-4314 | 2007-12-344 | 20 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-172-4314
Related Products | NSN 5340-00-172-4314
Technical Data | NSN 5340-00-172-4314
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,SAE 1010 THRU 1025 OR SAE 1055 |
| SURFACE TREATMENT | CADMIUM PLATED,QQ-P-416,TYPE I,CLASS 3 OR PHOSPHATE COATED,MIL-P-16232,TYPE Z,CLASS 4 OR ZINC PLATED,QQ-Z-325,TYPE 1,CLASS 3 |
| PAINTED FEATURE | NOT INCLUDED |

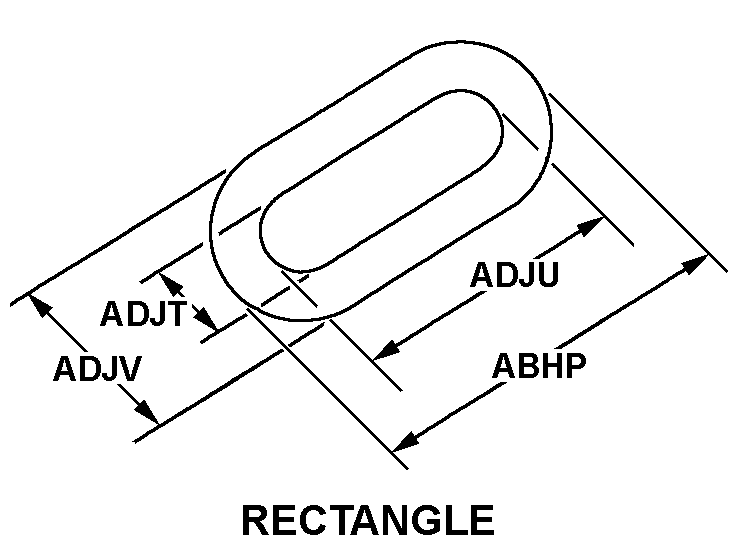

| STYLE DESIGNATOR | D1 RECTANGLE |
| OVERALL LENGTH | 2.125 INCHES NOMINAL |
| INSIDE WIDTH | 0.187 INCHES NOMINAL |
| INSIDE LENGTH | 1.875 INCHES NOMINAL |
| OUTSIDE WIDTH | 0.437 INCHES NOMINAL |
| MANUFACTURERS CODE | 98752 |
| DESIGN CONTROL REFERENCE | 67B46313-01 |
Restrictions/Controls & Freight Information | NSN 5340-00-172-4314
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-172-4314
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | CT | TG:463L MATERIELS HANDLING SYSTEM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
