NSN 5340-00-224-3236 212030083001, 212-030-083-001, 2120300831
Product Details | CATCH STRIKE

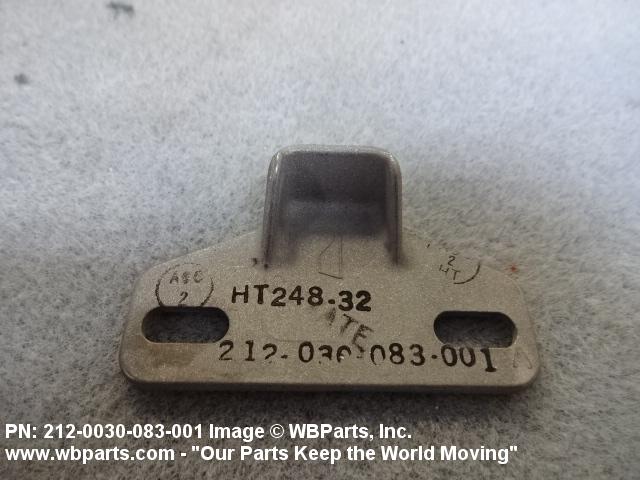

5340-00-224-3236 A platelike item designed to be fastened to a door, door jamb, or the like, for the purpose of receiving the mating pin, plunger or bolt, of a lock, latch, or catch. See also RECEPTACLE, FRICTION CATCH STUD.20210050018Guns, through 30mm53400020Hardware, Commerical
Part Alternates: 212030083001, 212-030-083-001, 2120300831, 212-030-083-1, 5340-00-224-3236, 00-224-3236, 5340002243236, 002243236
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAR 1970 | 00-224-3236 | 20251 ( STRIKE, CATCH ) |
Drawings & Photos | NSN 5340-00-224-3236
Demand History | NSN 5340-00-224-3236
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 212030083001 | 2023-10-275 | 4 | United States |
| 212-030-083-001 | 2020-01-08 | 43 | DIBBS |
| 212-030-083-001 | 2019-05-128 | 32 | DIBBS |
| 212030083001 | 2019-01-30 | 4 | US |
| 5340-00-224-3236 | 2018-12-338 | 34 | DIBBS |
| 5340-00-224-3236 | 2017-06-180 | 20 | United States |
| 5340-00-224-3236 | 2016-08-215 | 71 | DIBBS |
| 5340-00-224-3236 | 2016-05-124 | 18 | DIBBS |
| 5340-00-224-3236 | 2016-05-123 | 10 | DIBBS |
| 5340-00-224-3236 | 2016-04-105 | 2 | DIBBS |
| 5340-00-224-3236 | 2014-01-05 | 1 | DIBBS |
| 5340-00-224-3236 | 2012-05-150 | 6 | DIBBS |
| 5340-00-224-3236 | 2012-01-09 | 1 | DIBBS |
| 5340-00-224-3236 | 2011-01-10 | 8 | DIBBS |
| 5340-00-224-3236 | 2010-08-240 | 6 | DIBBS |
| 5340-00-224-3236 | 2009-12-351 | 13 | DIBBS |
| 5340-00-224-3236 | 2009-09-254 | 40 | DIBBS |
| 5340-00-224-3236 | 2009-09-246 | 20 | DIBBS |
| 5340-00-224-3236 | 2009-09-244 | 7 | DIBBS |
| 5340-00-224-3236 | 2009-07-192 | 1 | DIBBS |
| 5340-00-224-3236 | 2009-06-174 | 11 | DIBBS |
| 5340-00-224-3236 | 2009-02-54 | 4 | DIBBS |
| 5340-00-224-3236 | 2009-02-40 | 2 | DIBBS |
| 5340-00-224-3236 | 2009-01-10 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-224-3236
Related Products | NSN 5340-00-224-3236
Technical Data | NSN 5340-00-224-3236
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

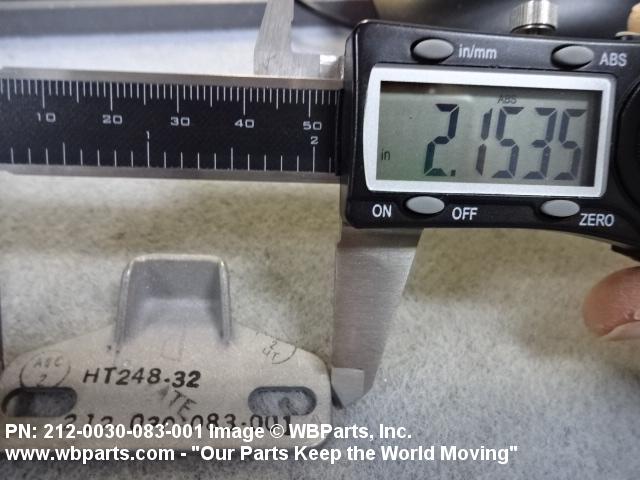

| OVERALL LENGTH | 2.300 INCHES NOMINAL |

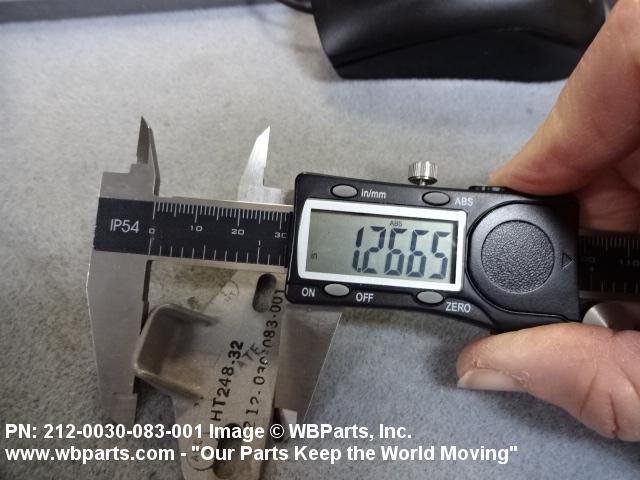

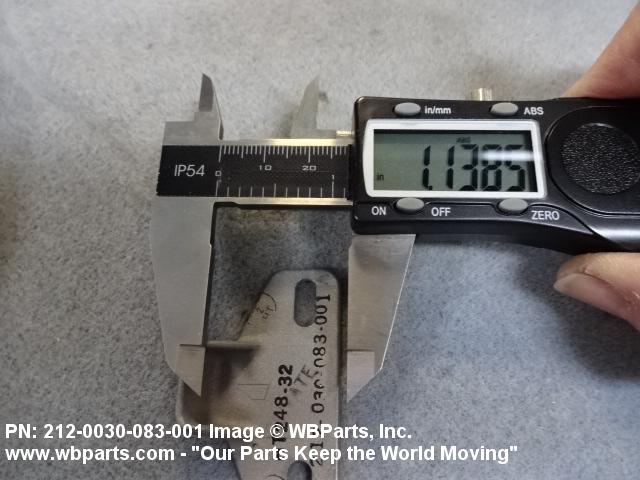

| OVERALL WIDTH | 1.130 INCHES NOMINAL |

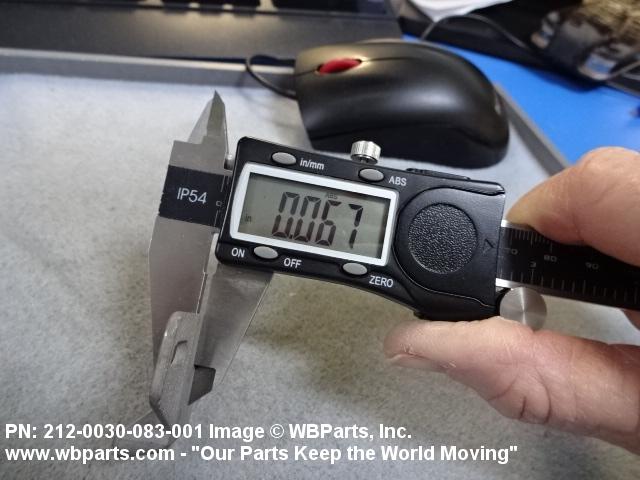

| MATERIAL THICKNESS | 0.063 INCHES NOMINAL |
| OPENING LENGTH | 0.560 INCHES NOMINAL |

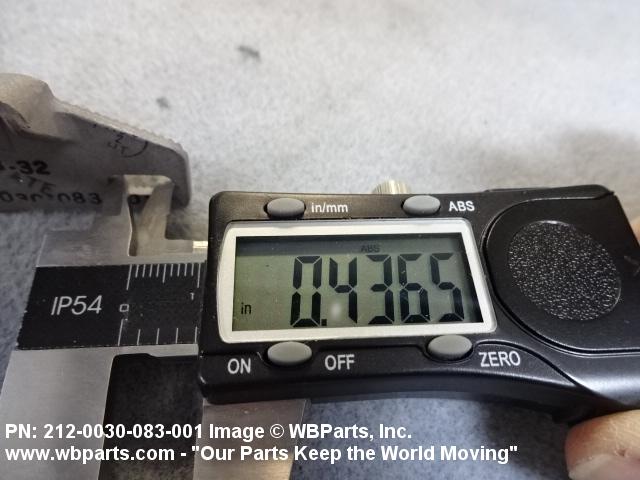

| HEIGHT | 0.450 INCHES NOMINAL |
| FIRST SURFACE HOLE QUANTITY | 2 |
| MOUNTING FACILITY | MOUNTING SLOTS |

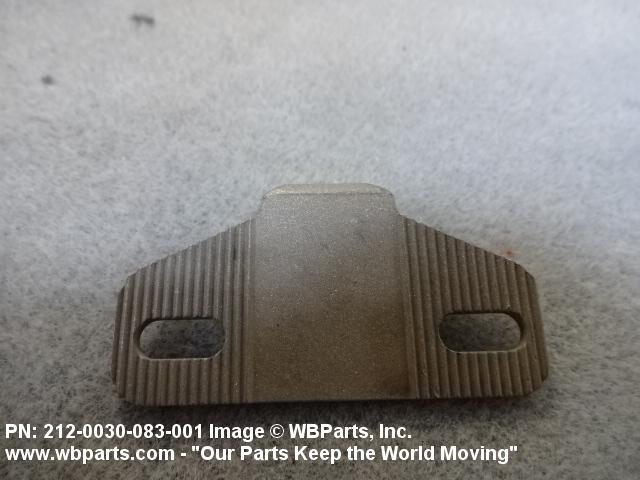

| SPECIAL FEATURES | SERRATED BASE |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 212-030-083-001 |
Restrictions/Controls & Freight Information | NSN 5340-00-224-3236
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-224-3236
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
