NSN 5340-00-449-4865 G22194, PY17F, T0302
Product Details | HANDWHEEL
5340-00-449-4865 An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL.
Part Alternates: G22194, PY17F, T0302, T0518, 25077253, 25077-25-3, 5132079242, 5-13-2079-24-2, 5132079252, 5-13-2079-25-2, 5RQL2 , 91764, 5340-00-449-4865, 00-449-4865, 5340004494865, 004494865
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-449-4865 | 13379 ( HANDWHEEL ) |

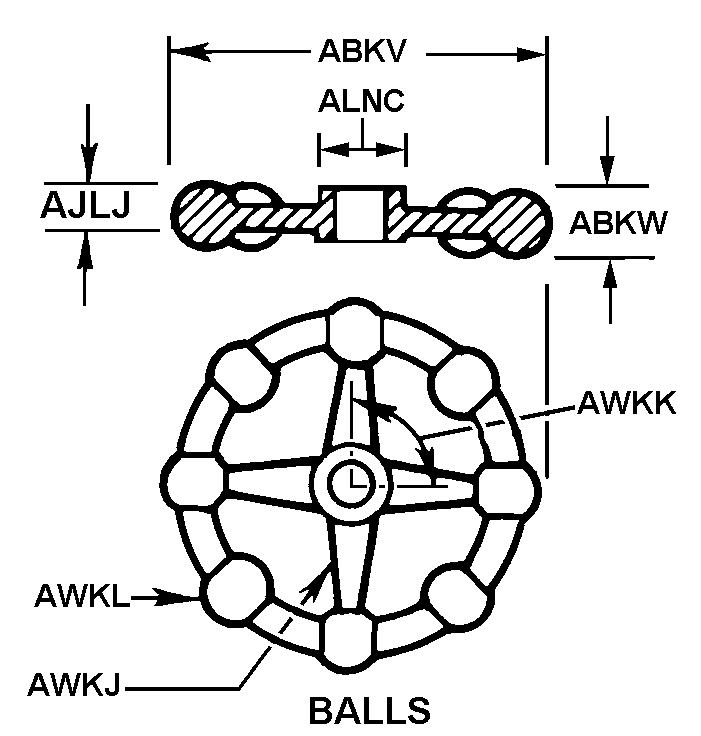

Drawings & Photos | NSN 5340-00-449-4865
Demand History | NSN 5340-00-449-4865
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-449-4865 | 2018-06-179 | 20 | DIBBS |
| 5340-00-449-4865 | 2018-06-171 | 20 | DIBBS |
| 5340-00-449-4865 | 2017-12-339 | 15 | DIBBS |
Cross Reference | NSN 5340-00-449-4865
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25077-25-3 | 92878 | HDT EXPEDITIONARY SYSTEMS, INC. |
| 5-13-2079-24-2 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| 5-13-2079-25-2 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| 5RQL2 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S |
| 91764 | 94833 | KECO INDUSTRIES INC. |
| G22194 | 93084 | VBM CORP |
| PY17F | 92870 | SILENT GLOW CORP THE |
| T0302 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S |
| T0302 | 90598 | ENGINEERED AIR SYSTEMS INC. DBA DRS SUSTAINMENT SYSTEMS |
| T0518 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S |
| T0518 | 90598 | ENGINEERED AIR SYSTEMS INC. DBA DRS SUSTAINMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-449-4865
Technical Data | NSN 5340-00-449-4865
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | IRON, CAST OVERALL |
| SURFACE TREATMENT AND LOCATION | PAINT OVERALL |
| COLOR AND LOCATION | OLIVE DRAB OVERALL |
| HANDWHEEL STYLE | 31 BALLS |
| OUTSIDE DIAMETER | 2.100 INCHES NOMINAL |
| OVERALL HEIGHT | 0.525 INCHES NOMINAL |
| HUB LENGTH | 0.375 INCHES NOMINAL |
| HUB OUTSIDE DIAMETER | 0.562 INCHES NOMINAL |
| SPOKE ANGLE IN DEG | 60.0 |
| SPOKE QUANTITY | 6 |
| GRIP QUANTITY | 6 |
| DRIVE FACILITY STYLE | 123 ROUND |
| INSIDE DIAMETER | 0.312 INCHES NOMINAL |
| DRIVE FACILITY THREAD SERIES DESIGNATOR | UNC |
| THREAD DIAMETER | 0.312 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| HANDLE COUNTERBALANCING WEIGHT | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-00-449-4865
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-449-4865
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
