NSN 5340-00-584-6176 SS105003, SS1050-03, SS10502
Product Details | ANGLE BRACKET
5340-00-584-6176 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: SS105003, SS1050-03, SS10502, SS1050-2, SS10503, SS1050-3, 5340-00-584-6176, 00-584-6176, 5340005846176, 005846176
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-584-6176 | 16900 ( BRACKET, ANGLE ) |

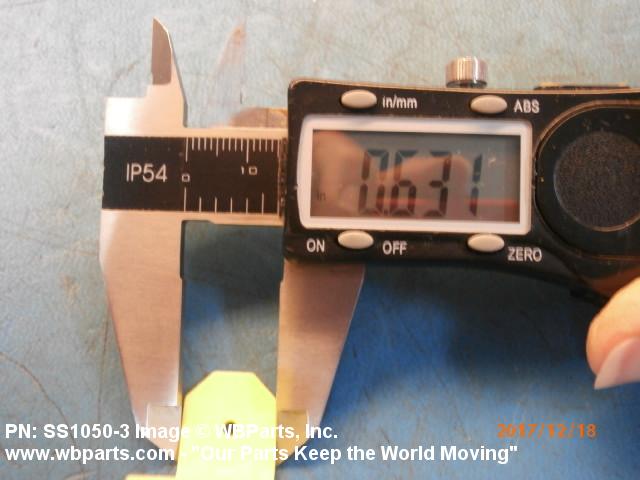

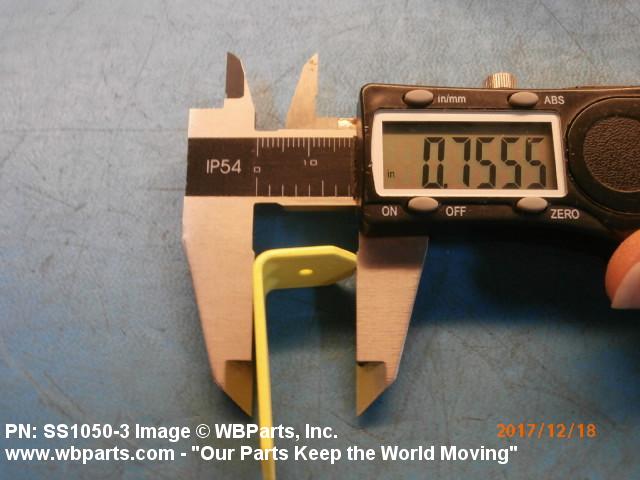

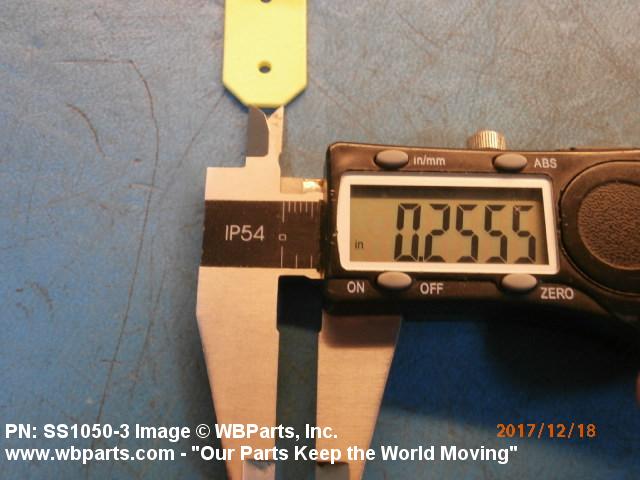

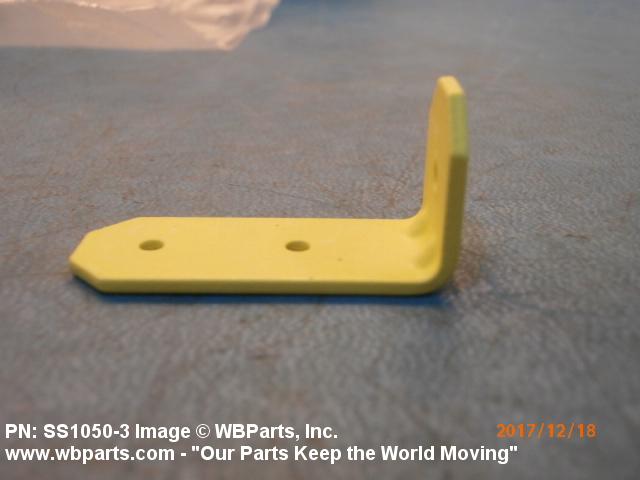

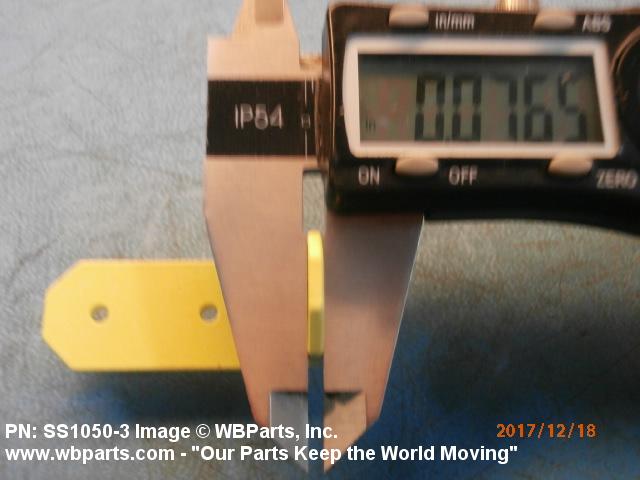

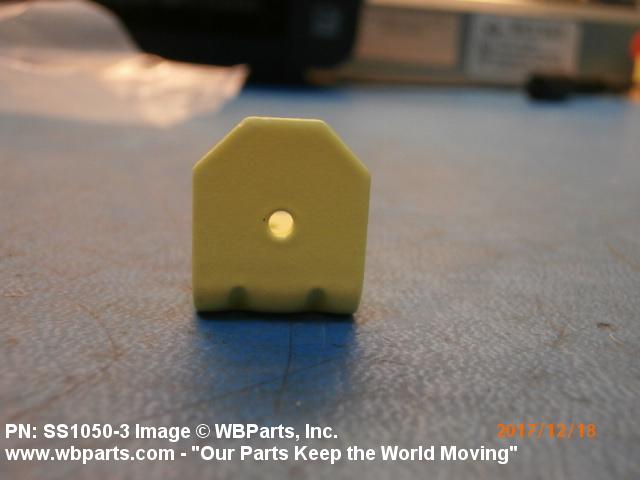

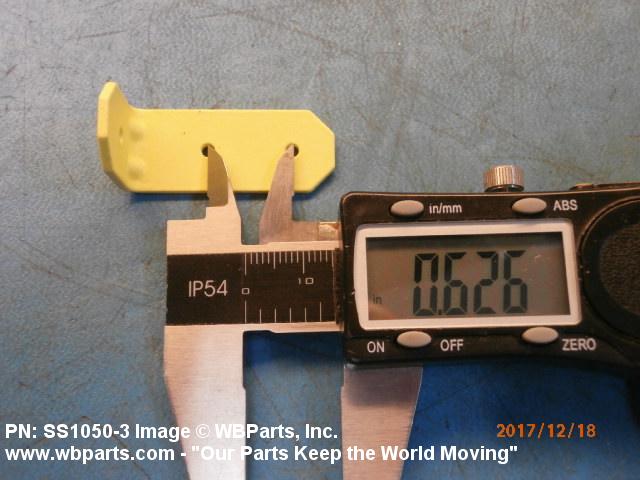

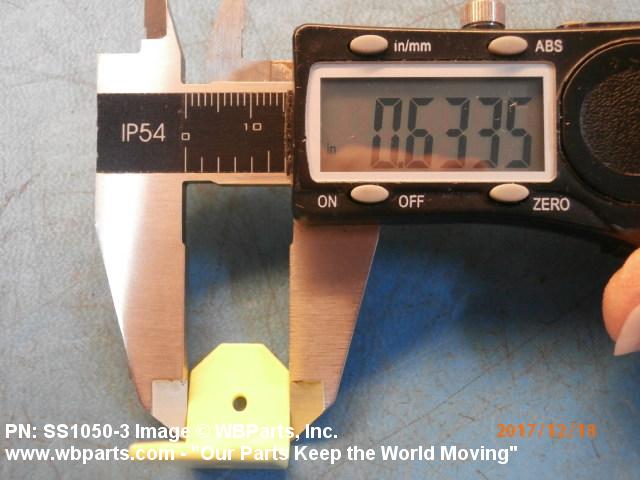

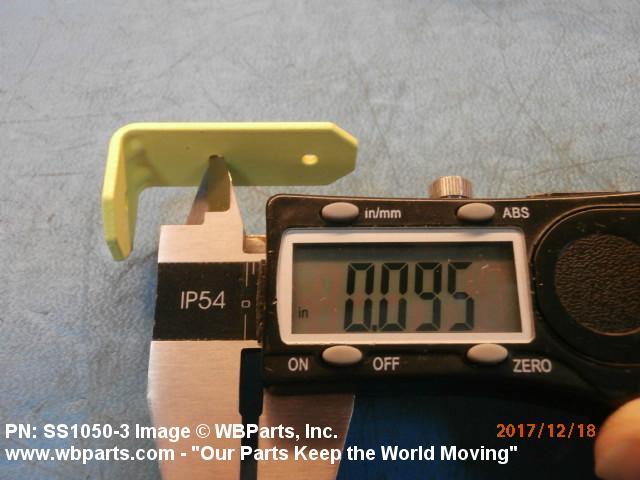

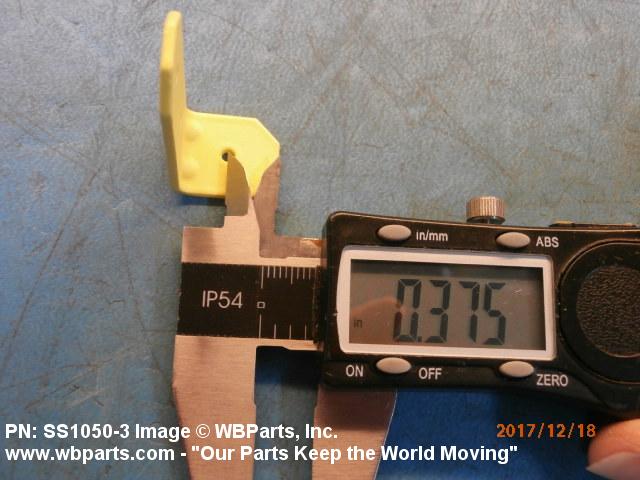

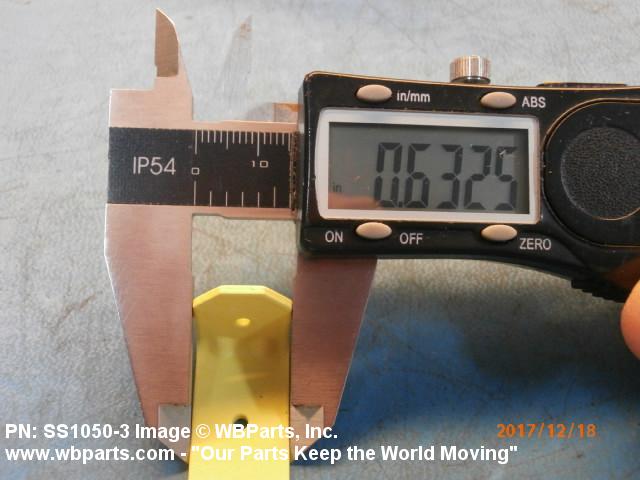

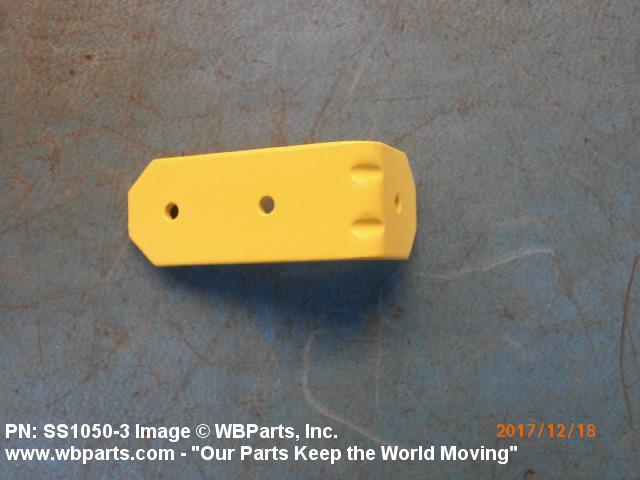

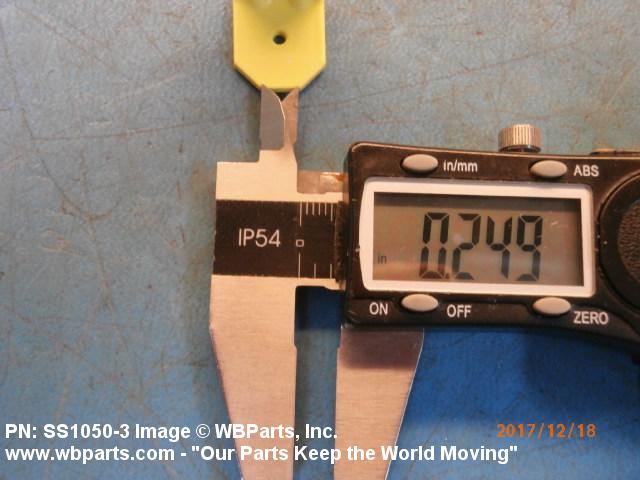

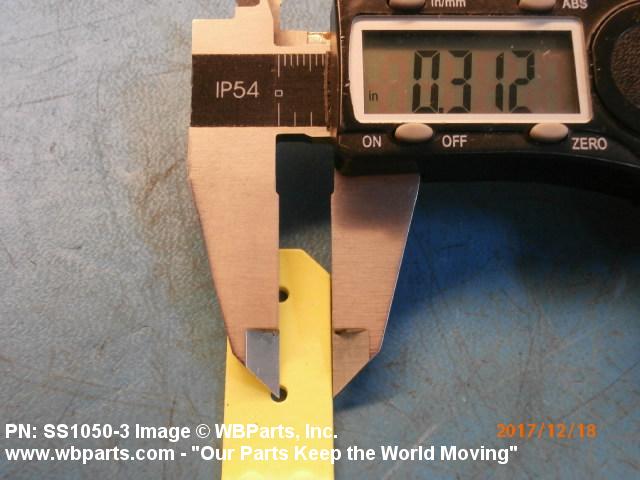

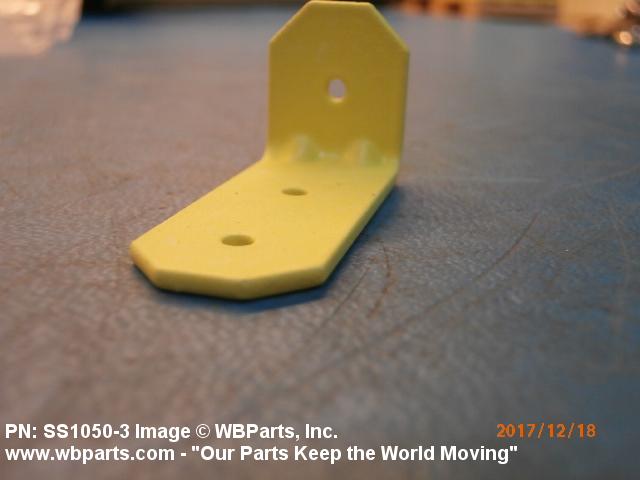

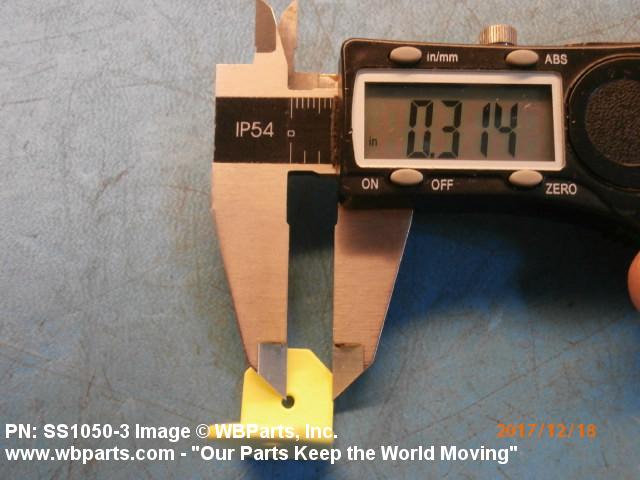

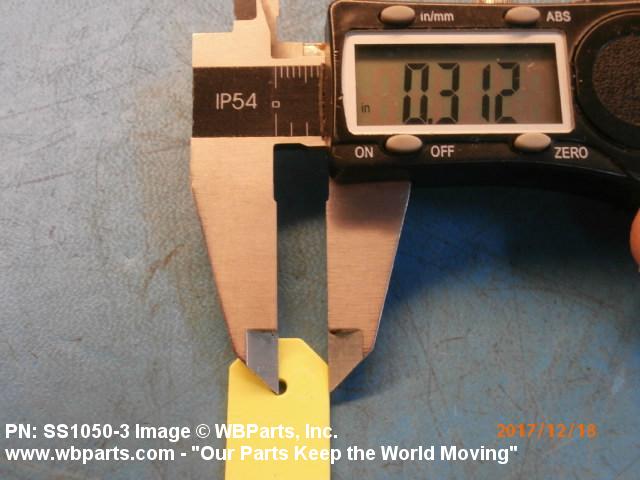

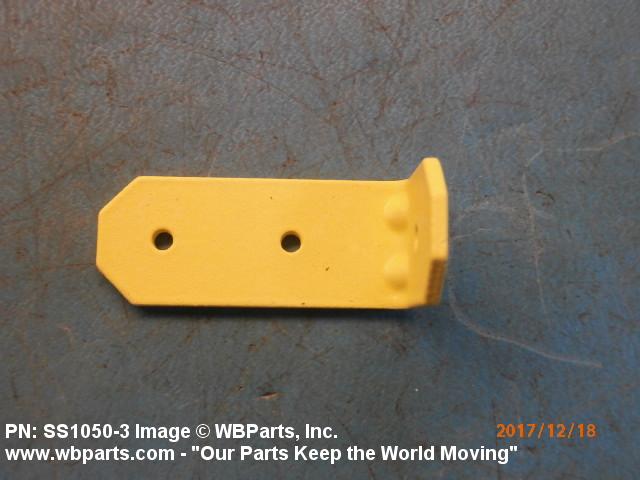

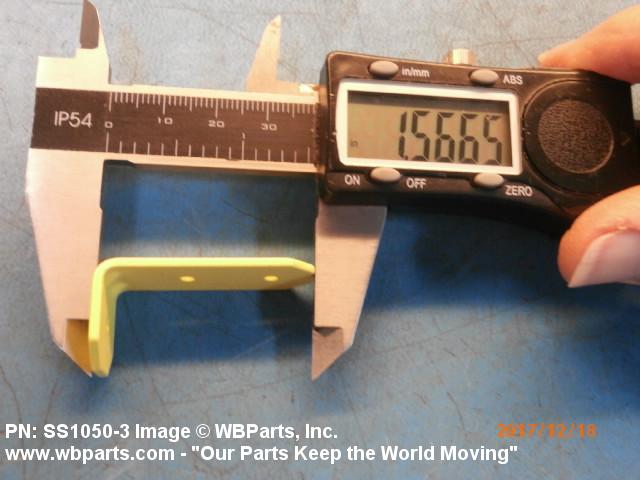

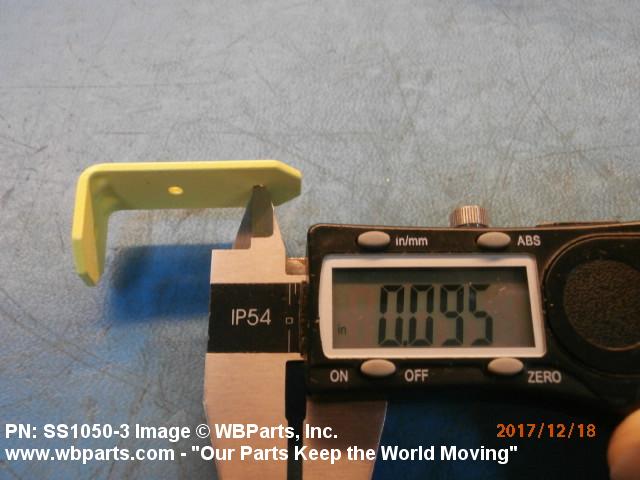

Drawings & Photos | NSN 5340-00-584-6176
