Product Details | TEE HINGE
5340-00-630-4191 A hinge whose general shape is like the letter T, with one leaf resembling that of a butt hinge, and the other that of a strap hinge. The hinge may also have both leaves resembling strap hinges or butt hinges of different widths.
Part Alternates: 3387073301, 33-87073-301, 5340-00-630-4191, 00-630-4191, 5340006304191, 006304191
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-630-4191 | 06916 ( HINGE, TEE ) |

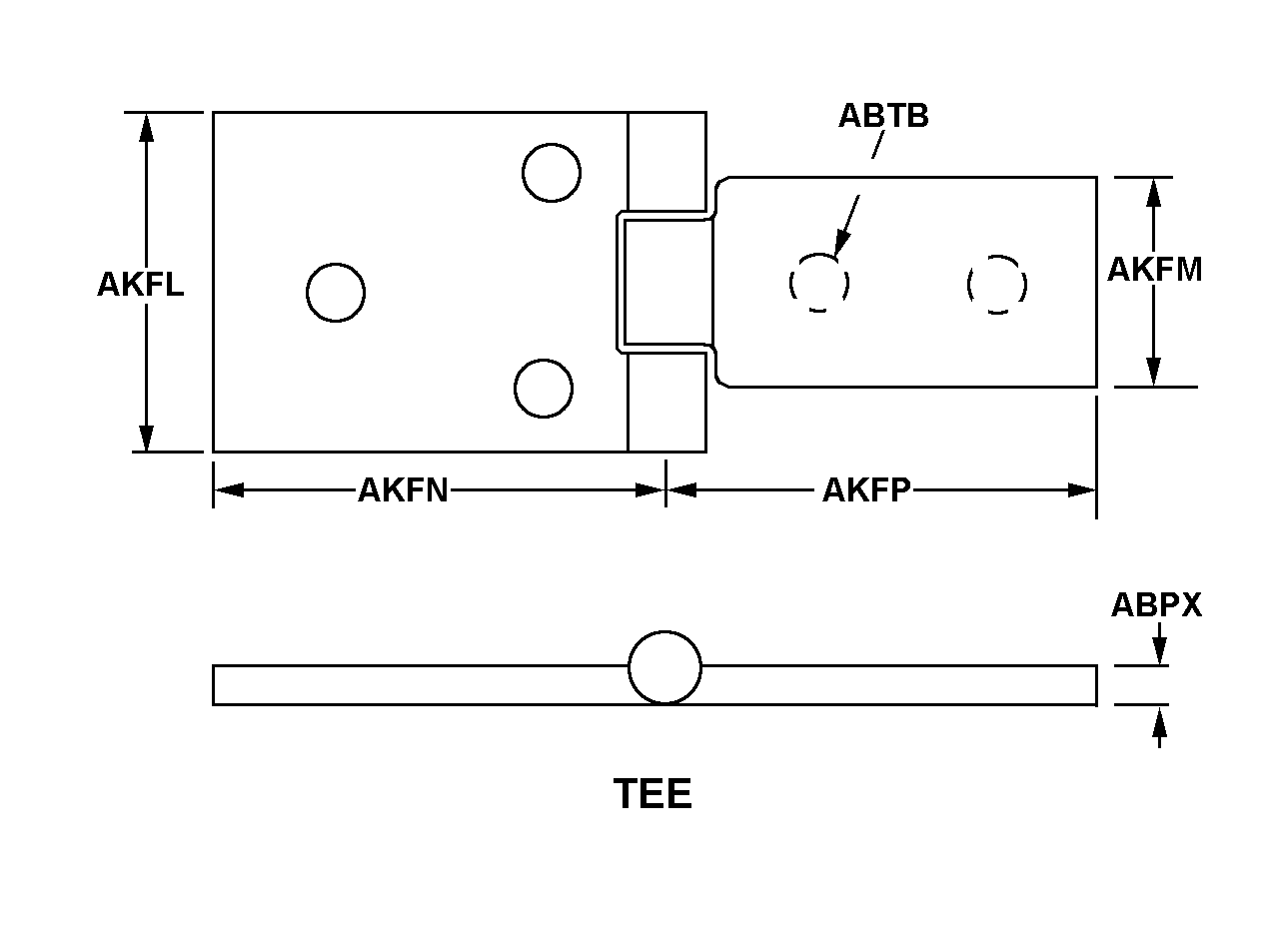

Drawings & Photos | NSN 5340-00-630-4191
Cross Reference | NSN 5340-00-630-4191
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 33-87073-301 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-630-4191
Technical Data | NSN 5340-00-630-4191
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-267, ALLOY 2024, T4-CANCELED OVERALL |
| STYLE DESIGNATOR | 74 TEE |
| MATERIAL THICKNESS | 0.150 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL |
| JAMB LEAF WIDTH | 1.690 INCHES NOMINAL |
| DOOR LEAF WIDTH | 2.120 INCHES NOMINAL |
| PIN CENTER TO JAMB LEAF EDGE DISTANCE | 2.210 INCHES NOMINAL |
| PIN CENTER TO DOOR LEAF EDGE DISTANCE | 2.370 INCHES NOMINAL |
| PIN TIP STYLE | 6 FLAT BUTTON |
| HINGE MOUNTING TYPE | FULL SURFACE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 7 |
| MOUNTING HOLE QUANTITY | 2 |
| PERFORMANCE TYPE | NOT RATED |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 33-87073-301 |
