NSN 5340-00-634-7797 3901, 390-1, 4074
Product Details | STRAP FASTENER LOOP
5340-00-634-7797 An item of rigid material having an aperture or opening through which the end(s) of a strap(s) or belt(s) is designed to be inserted, folded, and secured to itself by sewing, riveting, or the like. It is used to fasten the end(s) of a strap or belt to itself, to another belt or strap, or to an object or structure.
Part Alternates: 3901, 390-1, 4074, 5340-00-634-7797, 00-634-7797, 5340006347797, 006347797
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-634-7797 | 20539 ( LOOP, STRAP FASTENER ) |
Drawings & Photos | NSN 5340-00-634-7797
Demand History | NSN 5340-00-634-7797
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4074 | 2013-07-196 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-634-7797
Technical Data | NSN 5340-00-634-7797
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS |
| PAINTED FEATURE | NOT INCLUDED |

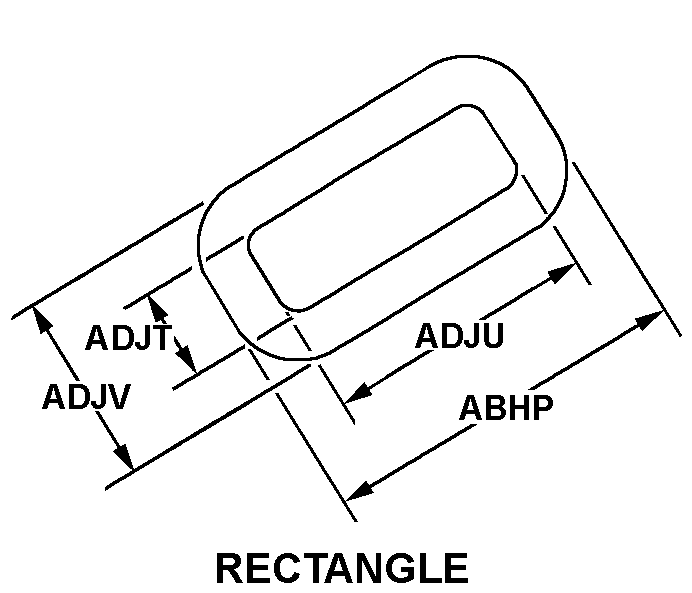

| STYLE DESIGNATOR | D2 RECTANGLE |
| OVERALL LENGTH | 1.313 INCHES NOMINAL |
| INSIDE WIDTH | 0.500 INCHES NOMINAL |
| INSIDE LENGTH | 1.000 INCHES NOMINAL |
| OUTSIDE WIDTH | 0.813 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-634-7797
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
