Product Details | RETAINING STRAP
5340-00-834-5905 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Part Alternates: 37201919, 3-72019-19, 5340-00-834-5905, 00-834-5905, 5340008345905, 008345905
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-834-5905 | 05072 ( STRAP, RETAINING ) |
Drawings & Photos | NSN 5340-00-834-5905
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5340-00-834-5905
5340-00-834-5906, 5340-00-834-5942, 5340-00-834-6869, 5340-00-834-6906, 5340-00-834-7048
Technical Data | NSN 5340-00-834-5905
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-287, ALLOY 7075-CANCELED |

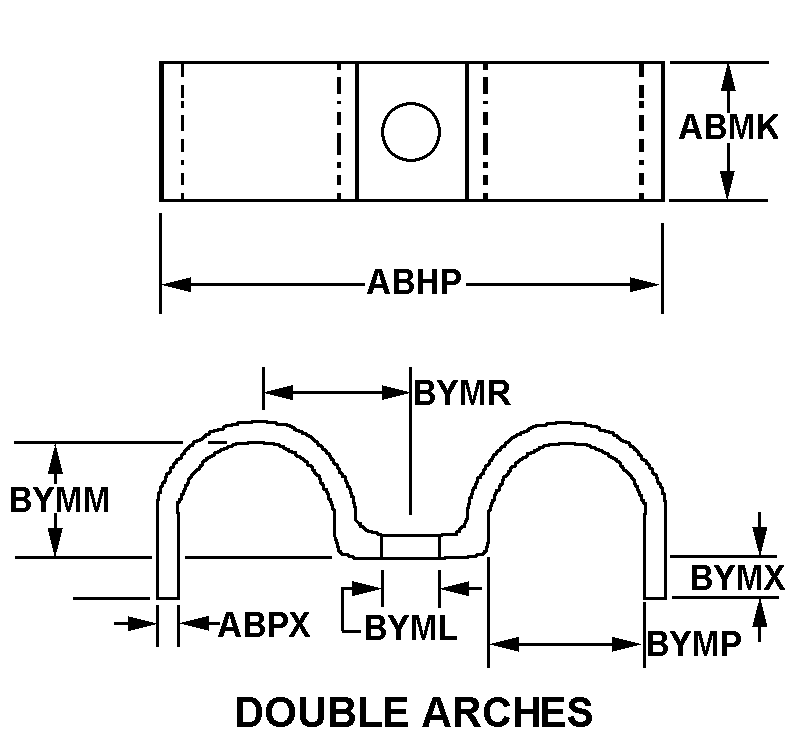

| STYLE DESIGNATOR | A15 DOUBLE ARCHES |
| OVERALL LENGTH | 1.800 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.071 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.169 INCHES NOMINAL |
| DISTANCE BETWEEN BASE AND INSIDE OF ARCH | 0.120 INCHES NOMINAL |
| INSIDE DIAMETER/ARCH LENGTH | 0.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN ARCH AND MOUNTING HOLE | 0.437 INCHES NOMINAL |
| DISTANCE BETWEEN BASE AND END OF ARCH PROTRUDING PORTION | 0.100 INCHES NOMINAL |
| CUSHION | NOT INCLUDED |
| MOUNTING PAD | INCLUDED |
| MANUFACTURERS CODE | 76823 |
| DESIGN CONTROL REFERENCE | 3-72019-19 |
Restrictions/Controls & Freight Information | NSN 5340-00-834-5905
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157170 | PLASTIC/RUBR STRAPS/ROPE/CORD/STRIP |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
