NSN 5340-00-916-9707 10187411, 00-916-9707, 009169707
Product Details | WEBBING STRAP
5340-00-916-9707 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.20416800049Miscellaneous Aircraft Accessories and Components53400020Hardware, Commercial84650020Individual Equipment84700015Armor, Personal
Part Alternates: 10187411, 5340-00-916-9707, 00-916-9707, 5340009169707, 009169707
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-916-9707 | 20659 ( STRAP, WEBBING ) |
Drawings & Photos | NSN 5340-00-916-9707
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-916-9707
Technical Data | NSN 5340-00-916-9707
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON, MIL-W-530, TYPE 2B, CLASS 4 |
| ENVIRONMENTAL PROTECTION | FUNGUS RESISTANT |
| LENGTH | 9.000 INCHES MINIMUM AND 10.000 INCHES MAXIMUM |
| WIDTH | 1.000 INCHES NOMINAL |
| COLOR | OLIVE DRAB |
| END TYPE | PLAIN |
| END ATTACHMENT/FASTENING FACILITY | END CLIP METALLIC GROMMET |
| END CLIP STYLE DESIGNATOR | E4 END CLIP |
| END CLIP MATERIAL | STEEL |
| END CLIP QUANTITY | 1 |
| GROMMET QUANTITY | 1 |
| GROMMET BARREL STYLE DESIGNATOR | F2 TAPERED ROUND TYPE |
| GROMMET FLANGE STYLE DESIGNATOR | G3 FLANGE |

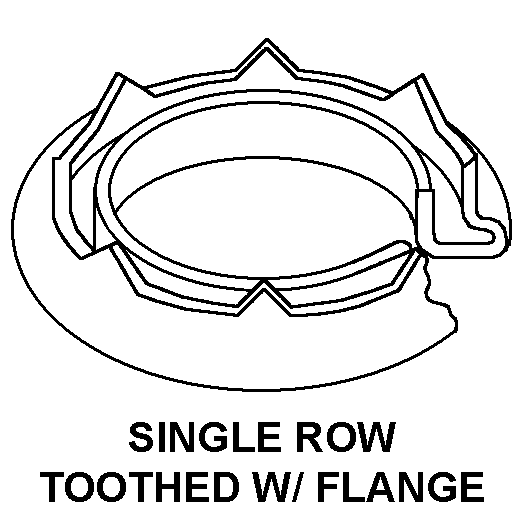

| GROMMET WASHER STYLE DESIGNATOR | H4 SINGLE ROW TOOTHED WITH FLANGE |
| DISTANCE FROM STRAP END TO FIRST GROMMET HOLE CENTER | 0.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-916-9707
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
