Product Details | ANGLE BRACKET
5340-00-933-6954 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 10917897 , 5340-00-933-6954, 00-933-6954, 5340009336954, 009336954
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 SEP 1966 | 00-933-6954 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-00-933-6954
Demand History | NSN 5340-00-933-6954
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-933-6954 | 2021-04-105 | 68 | DIBBS |
| 5340-00-933-6954 | 2021-01-31 | 30 | DIBBS |
| 5340-00-933-6954 | 2020-05-143 | 85 | DIBBS |
| 5340-00-933-6954 | 2020-05-143 | 80 | DIBBS |
| 5340-00-933-6954 | 2020-05-135 | 57 | DIBBS |
| 5340-00-933-6954 | 2020-05-129 | 14 | DIBBS |
| 5340-00-933-6954 | 2020-04-110 | 57 | DIBBS |
| 5340-00-933-6954 | 2020-04-107 | 85 | DIBBS |
| 5340-00-933-6954 | 2020-04-107 | 80 | DIBBS |
| 5340-00-933-6954 | 2020-02-36 | 14 | DIBBS |
| 5340-00-933-6954 | 2020-02-36 | 57 | DIBBS |
| 5340-00-933-6954 | 2020-01-08 | 80 | DIBBS |
| 5340-00-933-6954 | 2019-06-170 | 15 | DIBBS |
| 5340-00-933-6954 | 2019-06-162 | 15 | DIBBS |
| 5340-00-933-6954 | 2018-11-316 | 20 | DIBBS |
| 5340-00-933-6954 | 2018-06-162 | 30 | DIBBS |
| 5340-00-933-6954 | 2018-05-135 | 100 | DIBBS |
| 5340-00-933-6954 | 2018-05-134 | 80 | DIBBS |
| 5340-00-933-6954 | 2017-11-333 | 209 | DIBBS |
| 10917897 | 2017-07-192 | 1095 | PK |
| 5340-00-933-6954 | 2017-07-192 | 1095 | MANUAL |
| 5340-00-933-6954 | 2017-03-79 | 20 | DIBBS |
| 5340-00-933-6954 | 2017-02-51 | 20 | DIBBS |
| 5340-00-933-6954 | 2016-08-243 | 35 | DIBBS |
| 5340-00-933-6954 | 2016-08-235 | 35 | DIBBS |
| 10917897 | 2016-01-22 | 150 | TR |
| 5340-00-933-6954 | 2016-01-22 | 150 | MANUAL |
| 5340-00-933-6954 | 2015-07-204 | 519 | DIBBS |
| 5340-00-933-6954 | 2015-05-146 | 519 | DIBBS |
| 5340-00-933-6954 | 2015-05-134 | 519 | DIBBS |
| 5340-00-933-6954 | 2014-11-308 | 25 | Spain |
| 5340-00-933-6954 | 2013-07-190 | 168 | DIBBS |
| 5340-00-933-6954 | 2013-06-163 | 0 | DIBBS |
| 5340-00-933-6954 | 2012-03-90 | 309 | DIBBS |
| 10917897 | 2011-06-155 | 4 | PK |
| 10917897 | 2011-06-155 | 4 | PK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-933-6954
Related Products | NSN 5340-00-933-6954
Technical Data | NSN 5340-00-933-6954
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OR ALUMINUM ALLOY 6062 |
| STYLE DESIGNATOR | 6 ANGLE |
| FIRST LEG LENGTH | 1.250 INCHES NOMINAL |
| SECOND LEG LENGTH | 1.625 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.157 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
| SECOND LEG THICKNESS | 0.157 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 104 SQUARE |
| FIRST LEG WIDTH | 78.125 INCHES NOMINAL |
| SECOND LEG WIDTH | 78.125 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 131 NO HOLE |
| SECOND LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG WIDTH | 24.000 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG WIDTH | 24.000 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 3.125 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN THIRD AND FOURTH HOLE CENTERS ALONG WIDTH | 24.000 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.844 INCHES MINIMUM AND 0.906 INCHES MAXIMUM |
| SECOND LEG SLOT LENGTH | 1.000 INCHES NOMINAL |
| SECOND LEG SLOT WIDTH | 0.594 INCHES MINIMUM AND 0.656 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 104 SQUARE |

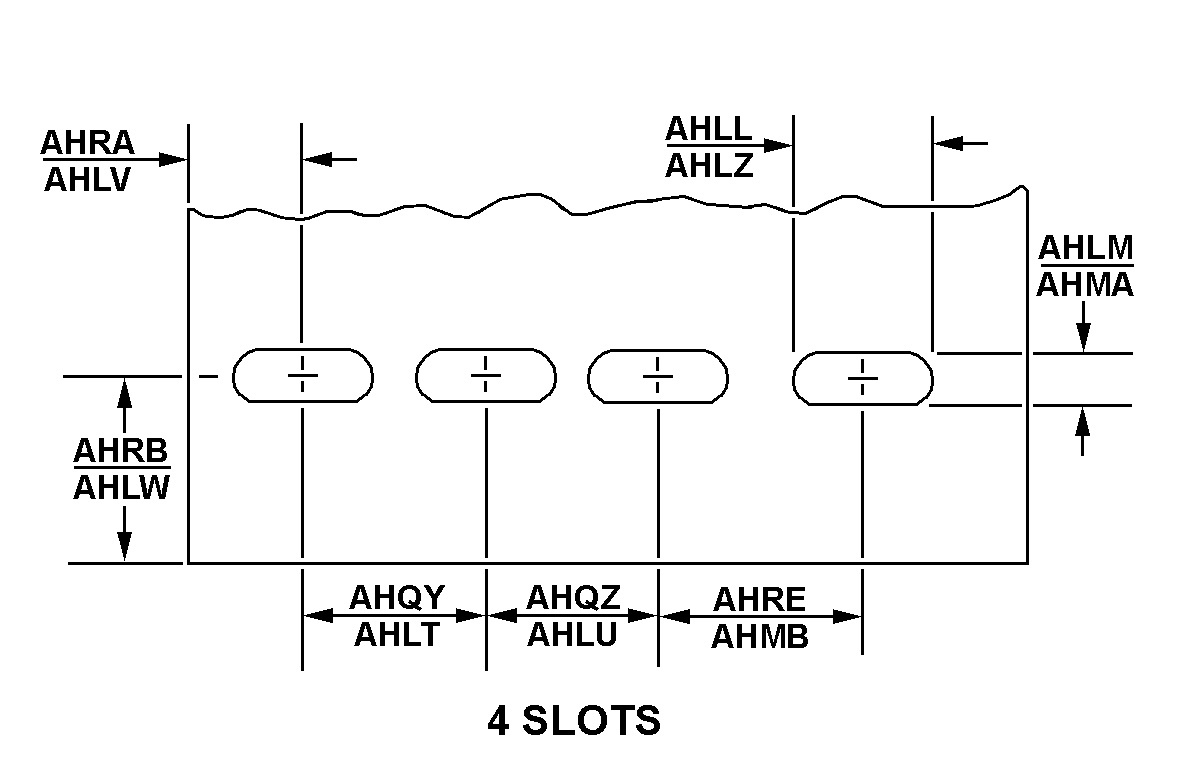

| SECOND LEG HOLE ARRANGEMENT STYLE | 214 4 SLOTS |
