NSN 5340-01-024-8516 MS750097, MS75009-7, 01-024-8516
Product Details | ANGLE BRACKET
5340-01-024-8516 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: MS750097, MS75009-7, 5340-01-024-8516, 01-024-8516, 5340010248516, 010248516
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JUL 1976 | 01-024-8516 | 16900 ( BRACKET, ANGLE ) |

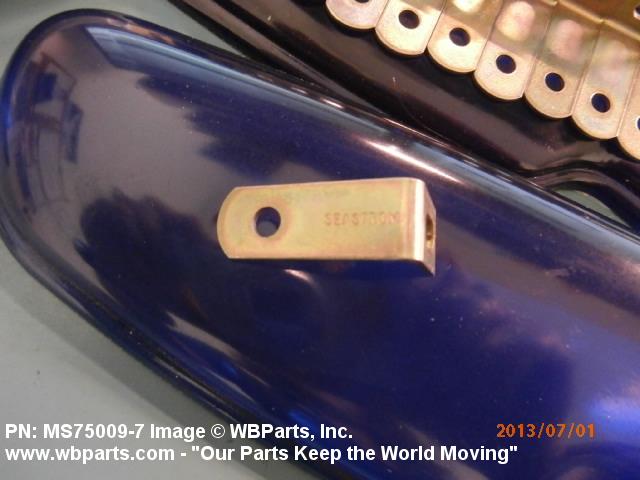

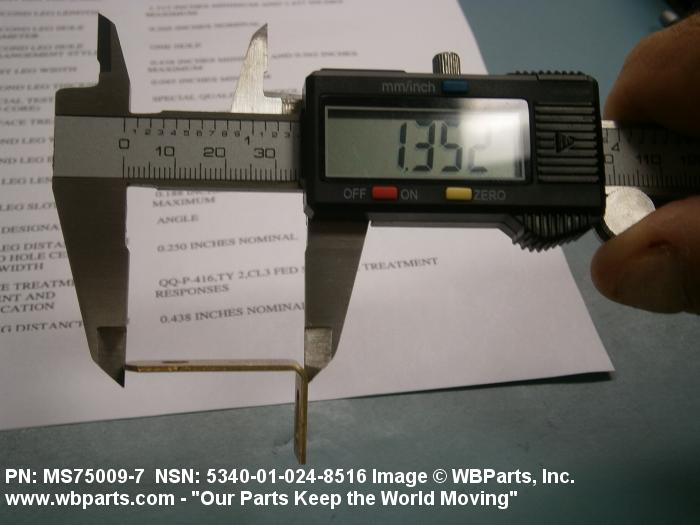

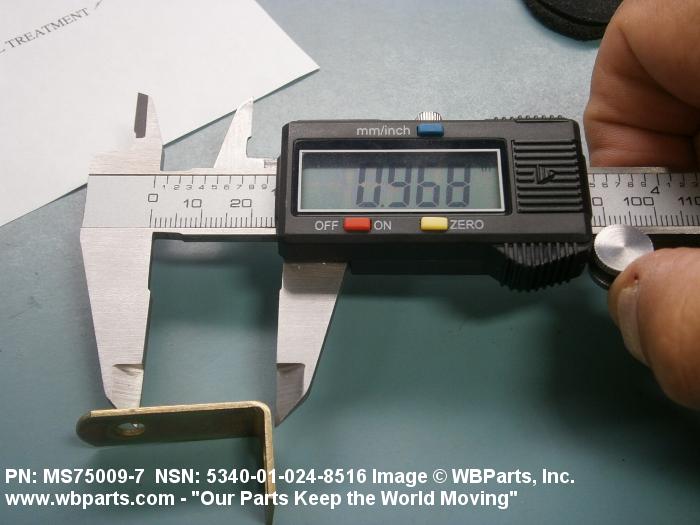

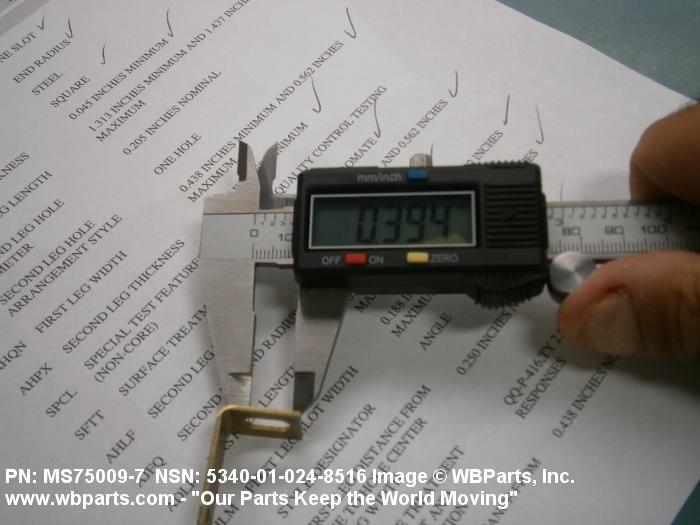

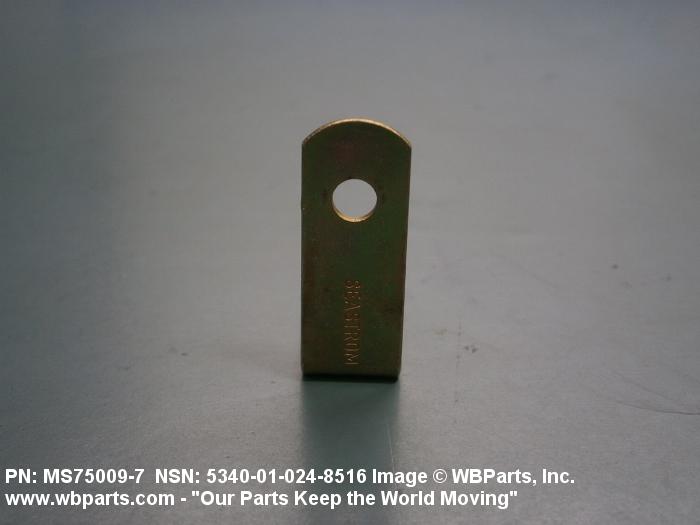

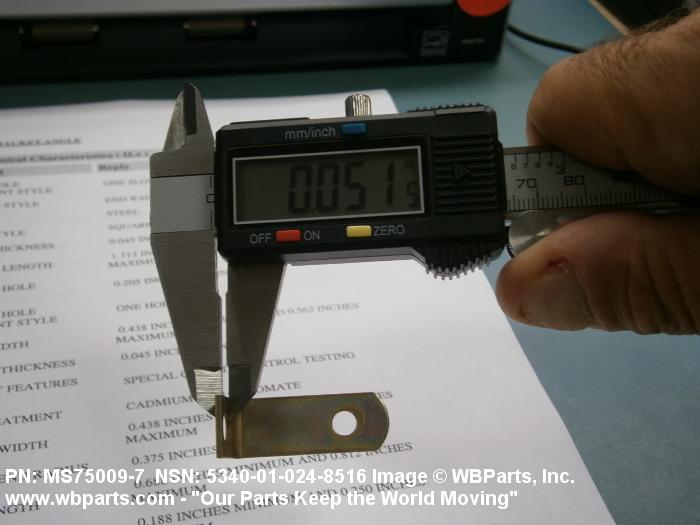

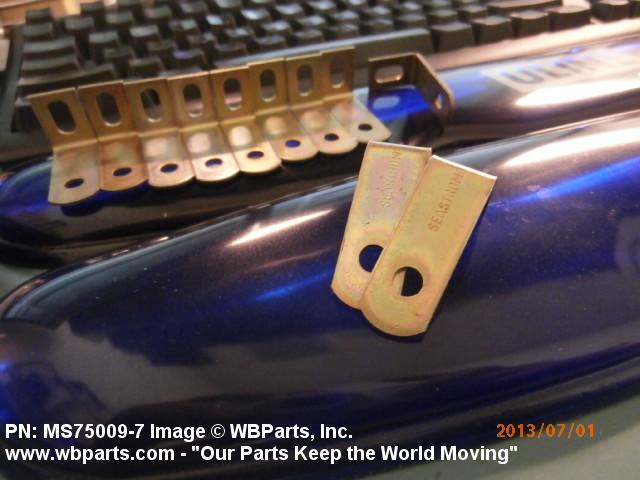

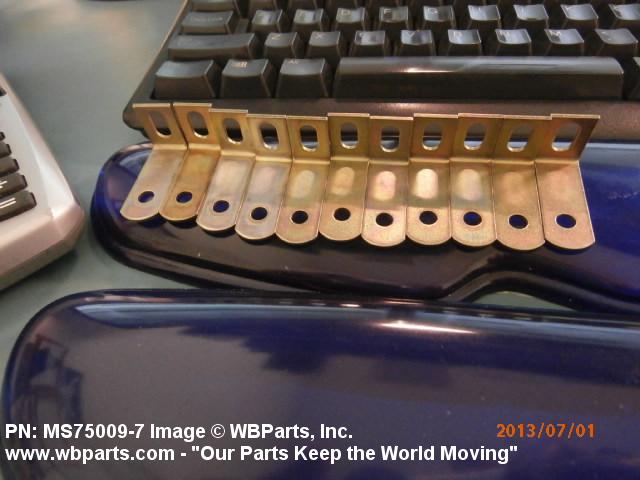

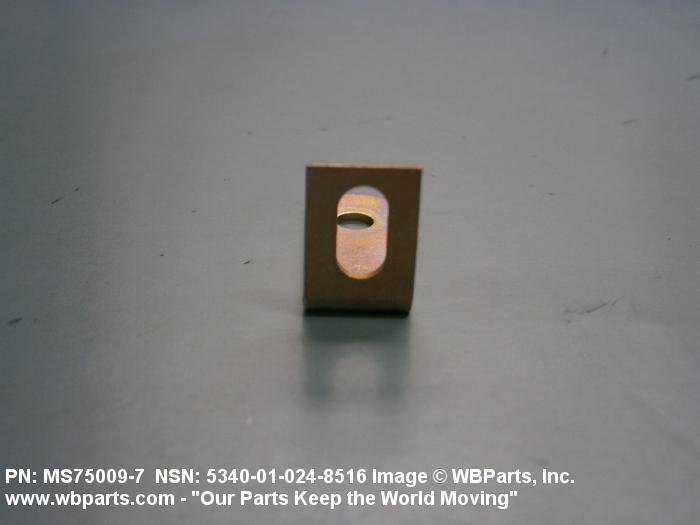

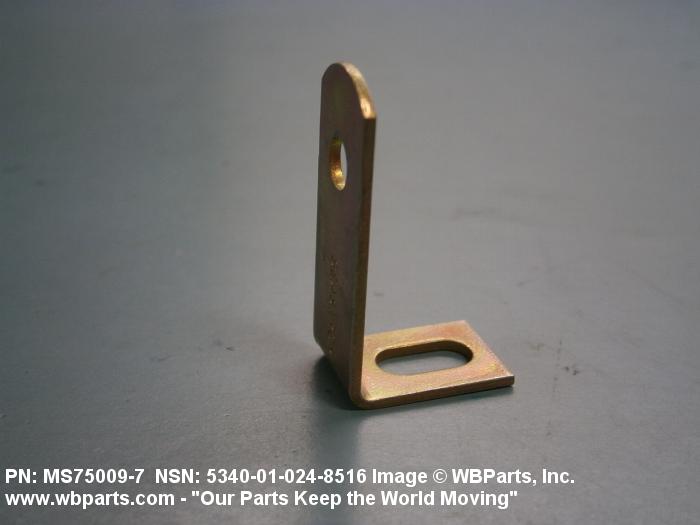

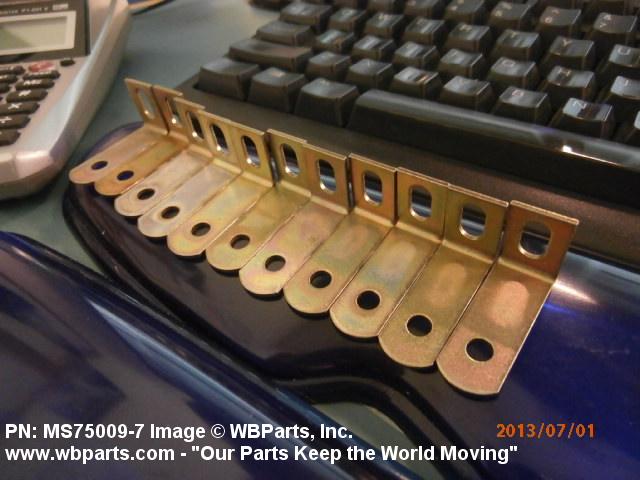

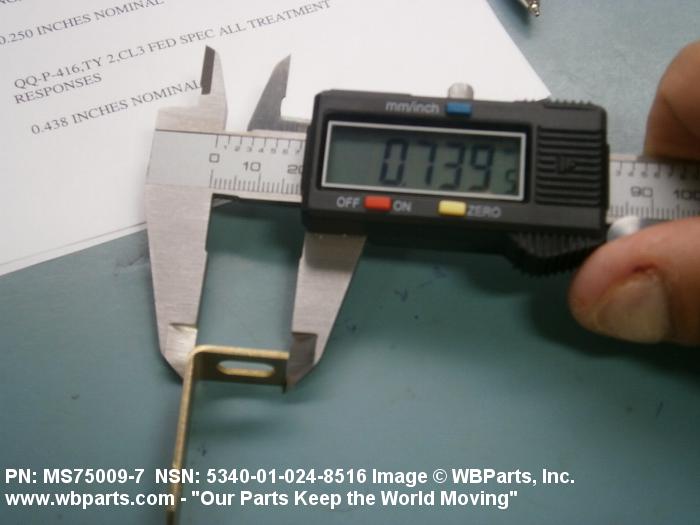

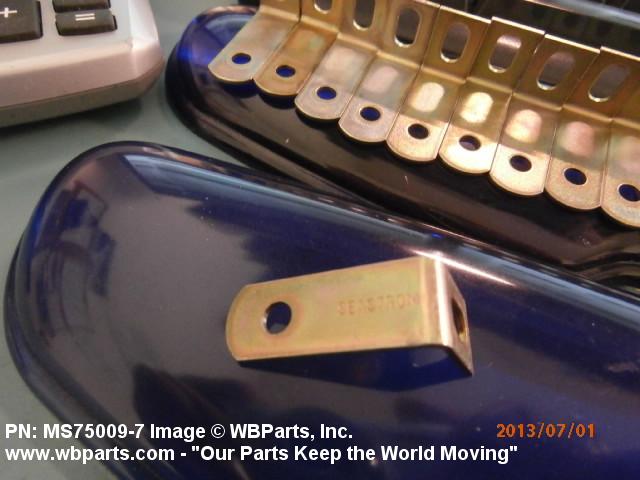

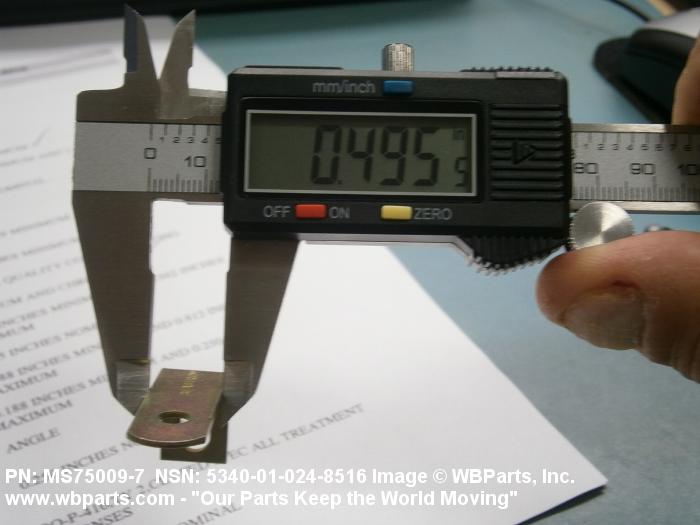

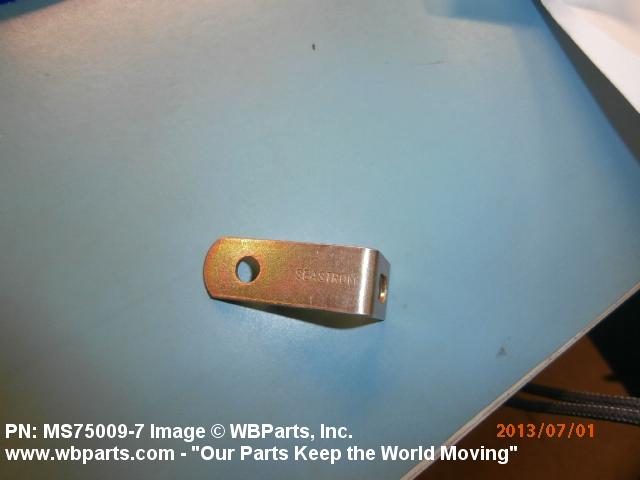

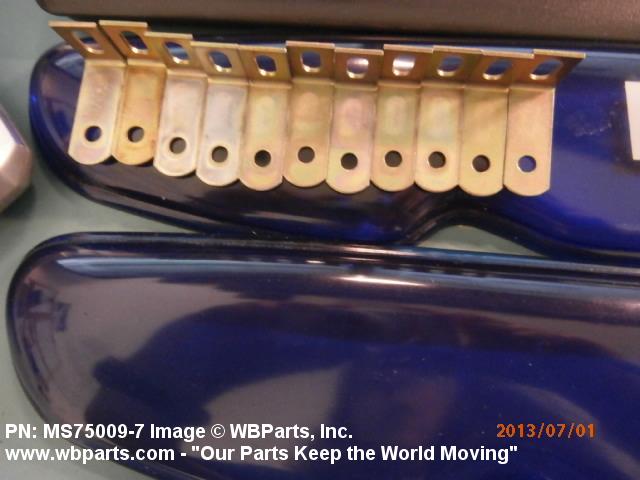

Drawings & Photos | NSN 5340-01-024-8516
Demand History | NSN 5340-01-024-8516
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-024-8516 | 2013-06-176 | 8 | United States |
| 5340-01-024-8516 | 2008-08-232 | 294 | DIBBS |
Cross Reference | NSN 5340-01-024-8516
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS75009-7 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-024-8516
Related Products | NSN 5340-01-024-8516
Technical Data | NSN 5340-01-024-8516
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL3 FED SPEC ALL TREATMENT RESPONSES |
| STYLE DESIGNATOR | 6 ANGLE |
| FIRST LEG LENGTH | 0.688 INCHES MINIMUM AND 0.812 INCHES MAXIMUM |
| SECOND LEG LENGTH | 1.313 INCHES MINIMUM AND 1.437 INCHES MAXIMUM |
| FIRST LEG THICKNESS | 0.045 INCHES MINIMUM |
| SECOND LEG THICKNESS | 0.045 INCHES MINIMUM |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 104 SQUARE |
| FIRST LEG WIDTH | 0.438 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| SECOND LEG WIDTH | 0.438 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| SECOND LEG END RADIUS | 0.375 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 146 ONE SLOT |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.250 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.438 INCHES NOMINAL |
| FIRST LEG SLOT LENGTH | 0.376 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| FIRST LEG SLOT WIDTH | 0.188 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SECOND LEG HOLE DIAMETER | 0.205 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.250 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.938 INCHES MINIMUM AND 1.062 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 102 END RADIUS |
| SECOND LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |
| (NON-CORE DATA) TEST DATA DOCUMENT | 81349-MIL-P-23199 SPECIFICATION |
| (NON-CORE DATA) SPECIAL TEST FEATURES | SPECIAL QUALITY CONTROL TESTING |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS75009-7 |
Restrictions/Controls & Freight Information | NSN 5340-01-024-8516
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-024-8516
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
