Product Details | HANDWHEEL
5340-01-068-6529 An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL.
Part Alternates: 04811, 12266911, 957D0481112, 957D048111-2, 5340-01-068-6529, 01-068-6529, 5340010686529, 010686529
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 NOV 1978 | 01-068-6529 | 13379 ( HANDWHEEL ) |
Drawings & Photos | NSN 5340-01-068-6529
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-068-6529
Technical Data | NSN 5340-01-068-6529
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-601, ALLOY 356, T6 OVERALL |
| SURFACE TREATMENT AND LOCATION | ANODIZED, MIL-A-8625, TYPE 2 OVERALL |
| COLOR AND LOCATION | BLACK OVERALL |
| HANDWHEEL STYLE | 40 DISK |
| OUTSIDE DIAMETER | 3.530 INCHES NOMINAL |
| OVERALL HEIGHT | 1.185 INCHES NOMINAL |
| HUB LENGTH | 0.655 INCHES NOMINAL |
| HUB OUTSIDE DIAMETER | 1.120 INCHES NOMINAL |

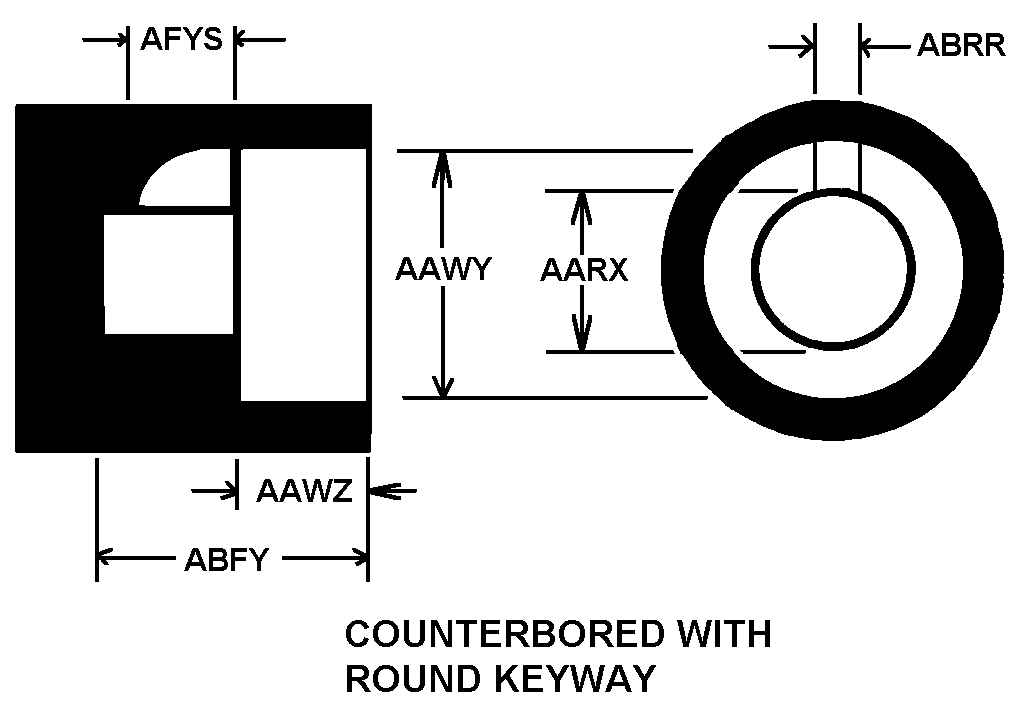

| DRIVE FACILITY STYLE | 138 COUNTERBORED WITH ROUND KEYWAY |
| INSIDE DIAMETER | 0.3750 INCHES MINIMUM AND 0.3756 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 0.780 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.140 INCHES NOMINAL |
| OVERALL DEPTH | 0.655 INCHES NOMINAL |
| KEYWAY WIDTH | 0.250 INCHES NOMINAL |
| KEYWAY LENGTH | 0.030 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | INTEGRAL |
| HANDLE STYLE | 61 RECESSED ROUND |
| HANDLE LENGTH | 1.355 INCHES MINIMUM AND 1.395 INCHES MAXIMUM |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| HANDLE COUNTERBALANCING WEIGHT | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 12266911 |
