NSN 5340-01-073-7671 XM62827, 12274704, 12284914
Product Details | ANGLE BRACKET
5340-01-073-7671 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: XM62827, 12274704, 12284914, 12304534, 5340-01-073-7671, 01-073-7671, 5340010737671, 010737671
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 MAR 1979 | 01-073-7671 | 16900 ( BRACKET, ANGLE ) |

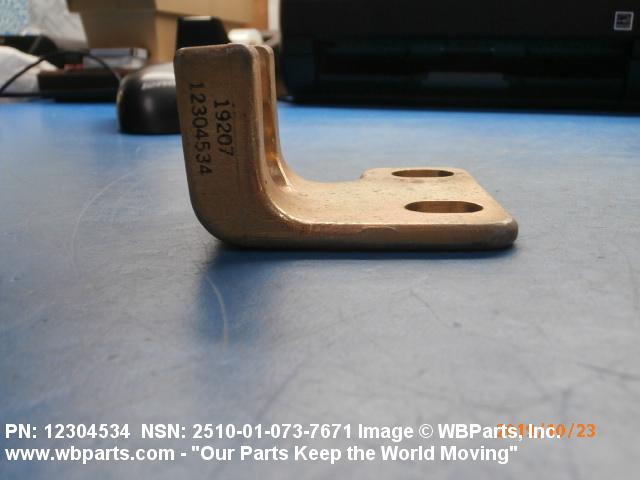

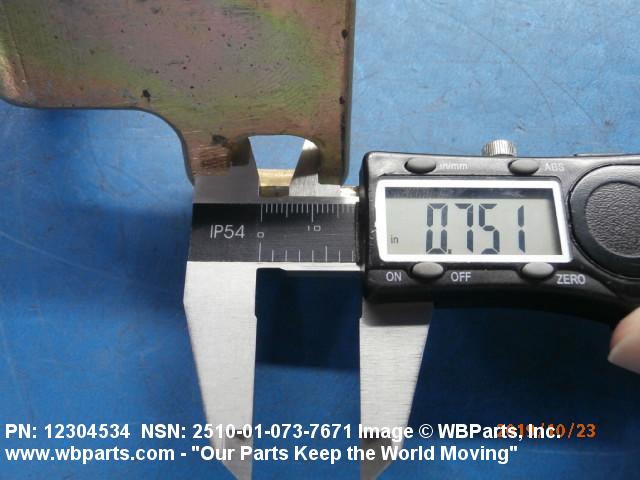

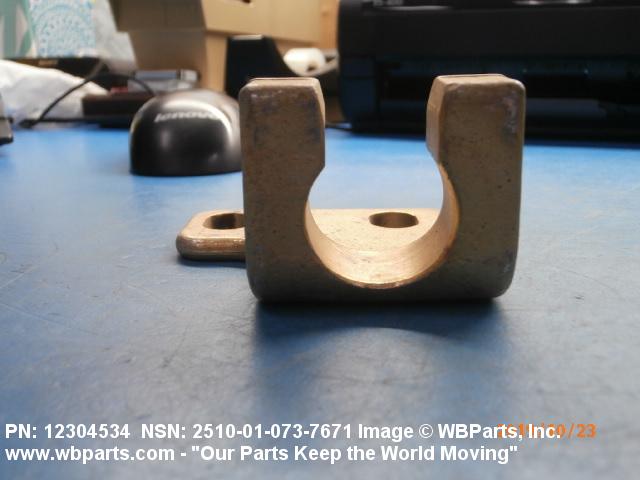

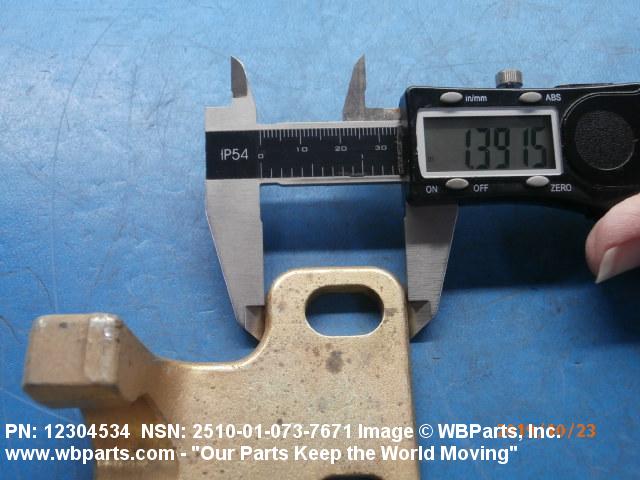

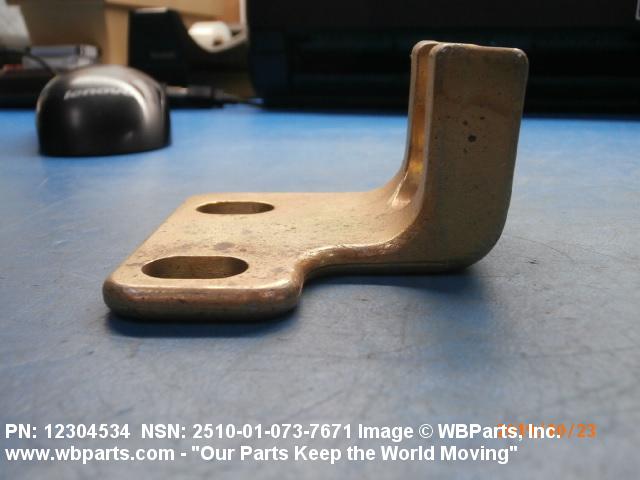

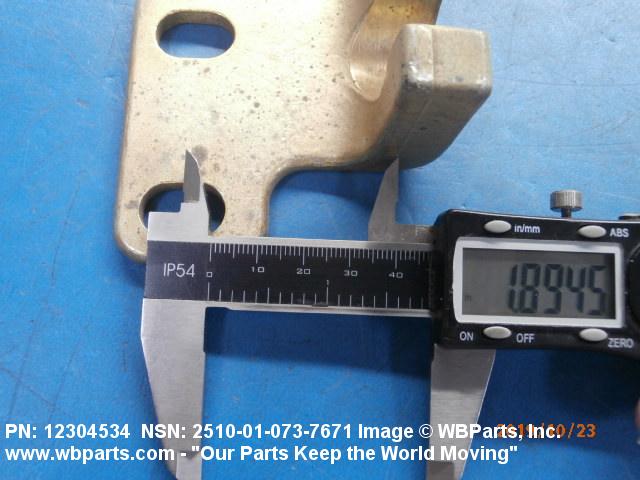

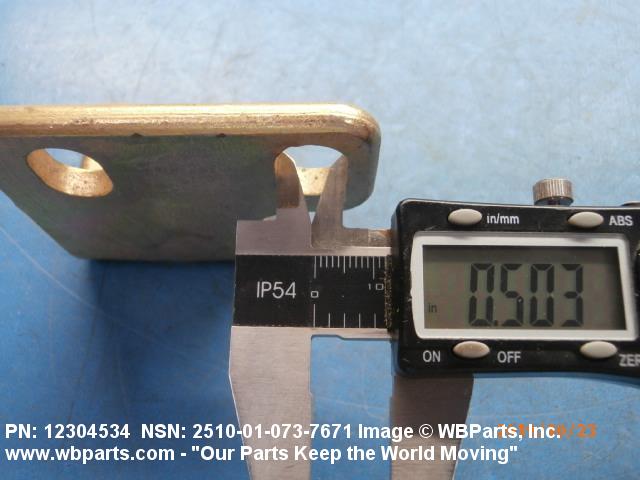

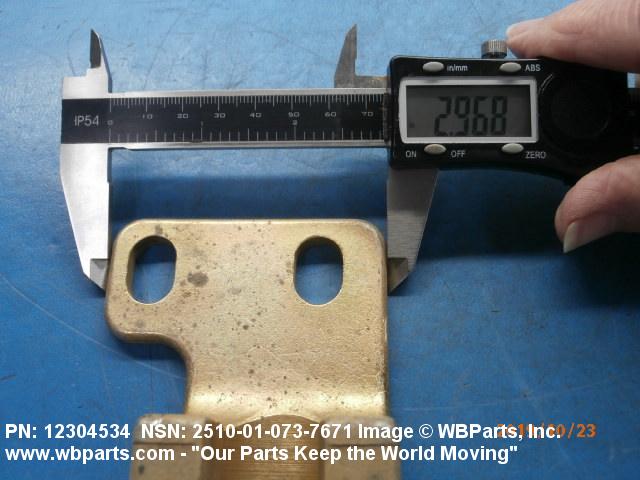

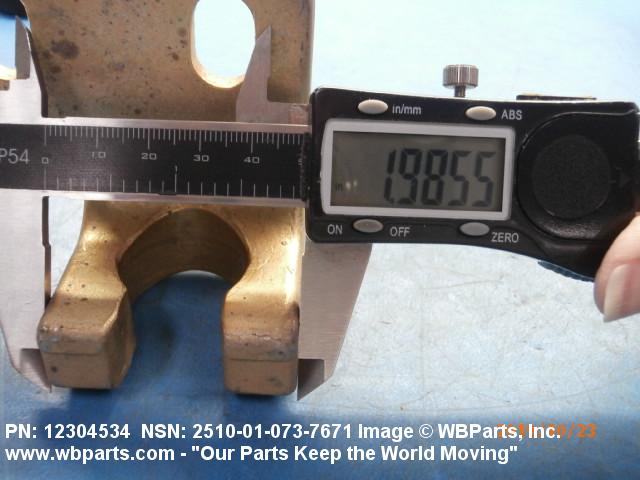

Drawings & Photos | NSN 5340-01-073-7671
Demand History | NSN 5340-01-073-7671
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-073-7671 | 2024-08-242 | 20 | DIBBS |
| 5340-01-073-7671 | 2024-08-231 | 20 | DIBBS |
| 5340-01-073-7671 | 2024-03-91 | 20 | DIBBS |
| 5340-01-073-7671 | 2022-05-135 | 122 | DIBBS |
| 5340-01-073-7671 | 2021-10-286 | 56 | DIBBS |
| 12304534 | 2020-03-73 | 4 | United States |
| 12304534 | 2020-02-58 | 4 | United States |
| 5340-01-073-7671 | 2019-10-287 | 5 | United States |
| 12274704 | 2018-08-216 | 227 | US |
| 5340-01-073-7671 | 2018-08-213 | 227 | DIBBS |
| 5340-01-073-7671 | 2018-06-169 | 195 | DIBBS |
| 5340-01-073-7671 | 2018-06-161 | 195 | DIBBS |
| 5340-01-073-7671 | 2018-03-65 | 91 | DIBBS |
| 5340-01-073-7671 | 2017-12-346 | 78 | DIBBS |
| 5340-01-073-7671 | 2017-12-338 | 78 | DIBBS |
| 5340-01-073-7671 | 2017-11-320 | 21 | DIBBS |
| 5340-01-073-7671 | 2017-08-234 | 18 | DIBBS |
| 5340-01-073-7671 | 2017-08-225 | 18 | DIBBS |
| 5340-01-073-7671 | 2017-06-170 | 10 | DIBBS |
| 5340-01-073-7671 | 2017-06-163 | 10 | DIBBS |
| 5340-01-073-7671 | 2016-12-350 | 12 | DIBBS |
| 5340-01-073-7671 | 2016-12-342 | 12 | DIBBS |
| 5340-01-073-7671 | 2016-10-304 | 11 | DIBBS |
| 5340-01-073-7671 | 2016-07-213 | 11 | DIBBS |
| 5340-01-073-7671 | 2016-04-115 | 35 | DIBBS |
| 5340-01-073-7671 | 2013-10-274 | 7 | DIBBS |
| 5340-01-073-7671 | 2012-07-206 | 3 | DIBBS |
| 5340-01-073-7671 | 2012-05-137 | 3 | DIBBS |
| 5340-01-073-7671 | 2012-02-60 | 3 | DIBBS |
| 5340-01-073-7671 | 2008-11-317 | 17 | DIBBS |
| 5340-01-073-7671 | 2008-10-297 | 5 | DIBBS |
| 5340-01-073-7671 | 2008-10-295 | 5 | DIBBS |
| 5340-01-073-7671 | 2008-08-228 | 1 | DIBBS |
Cross Reference | NSN 5340-01-073-7671
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-073-7671
Related Products | NSN 5340-01-073-7671
Technical Data | NSN 5340-01-073-7671
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-C-6021 MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| FIRST LEG LENGTH | 1.710 INCHES NOMINAL |
| SECOND LEG LENGTH | 2.940 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.690 INCHES NOMINAL |

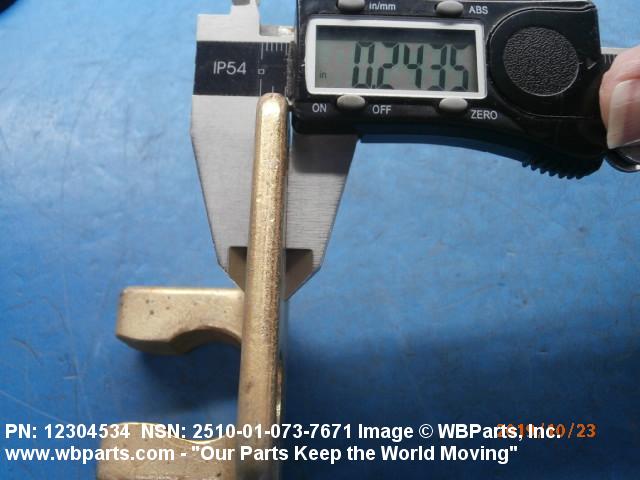

| SECOND LEG THICKNESS | 0.250 INCHES NOMINAL |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 115 CUT OUT |

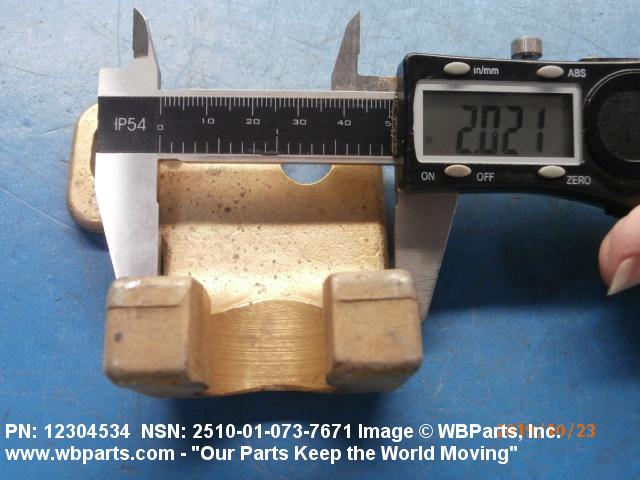

| FIRST LEG WIDTH | 2.000 INCHES NOMINAL |
| FIRST LEG CUTOUT LENGTH | 0.880 INCHES NOMINAL |
| FIRST LEG CUTOUT WIDTH | 0.781 INCHES MINIMUM AND 0.791 INCHES MAXIMUM |
| SECOND LEG WIDTH | 1.380 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |

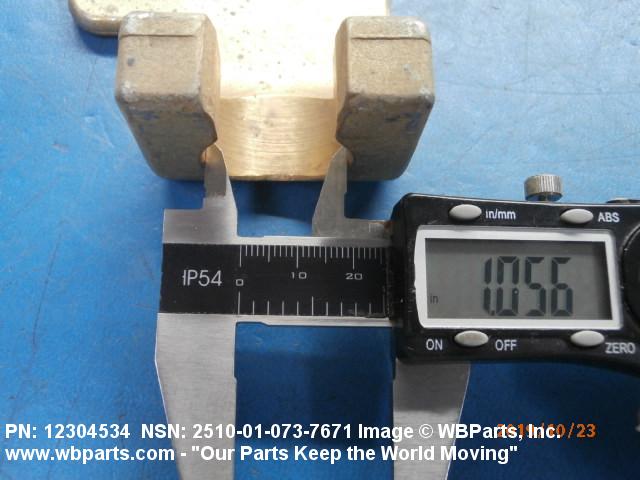

| FIRST LEG HOLE DIAMETER | 1.062 INCHES MINIMUM AND 1.072 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 1.000 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.880 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 1.750 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.625 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.472 INCHES NOMINAL |
| SECOND LEG SLOT LENGTH | 0.750 INCHES MINIMUM AND 0.770 INCHES MAXIMUM |
| SECOND LEG SLOT WIDTH | 0.500 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 104 SQUARE |
| SECOND LEG HOLE ARRANGEMENT STYLE | 204 2 SLOTS |
| III END ITEM IDENTIFICATION | TANK COMBAT,FULL TRACKED M1A1 |
Restrictions/Controls & Freight Information | NSN 5340-01-073-7671
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095760 | LOCKS/LOCK SETS NOI METAL IN BBL/BX |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-073-7671
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
