NSN 5340-01-131-7869 5166711, 01-131-7869, 011317869
Product Details | WEBBING STRAP
5340-01-131-7869 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.20416800049Miscellaneous Aircraft Accessories and Components53400020Hardware, Commercial84650020Individual Equipment84700015Armor, Personal
Part Alternates: 5166711, 5340-01-131-7869, 01-131-7869, 5340011317869, 011317869
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAY 1982 | 01-131-7869 | 20659 ( STRAP, WEBBING ) |

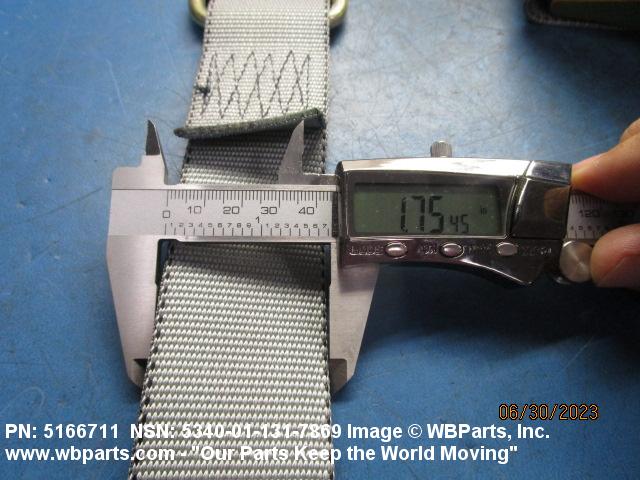

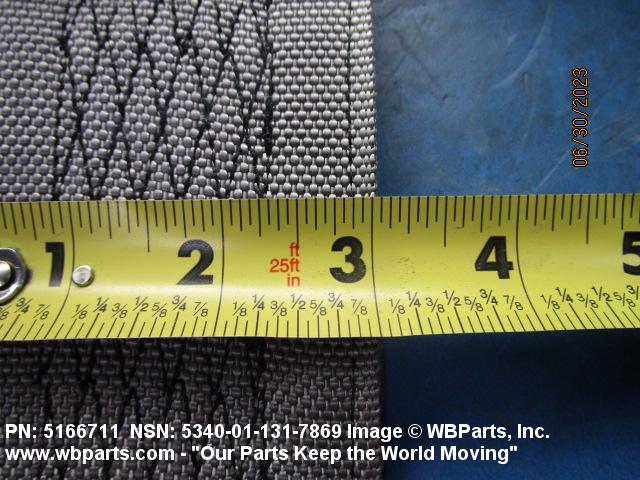

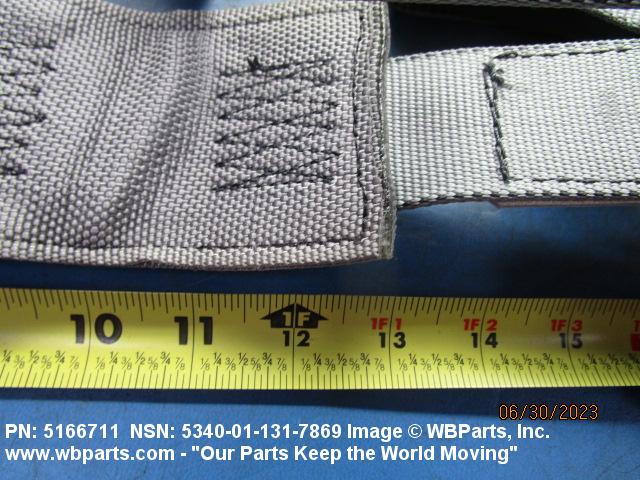

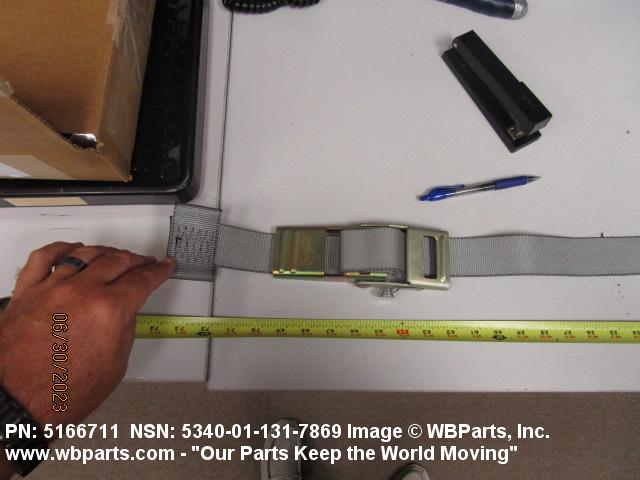

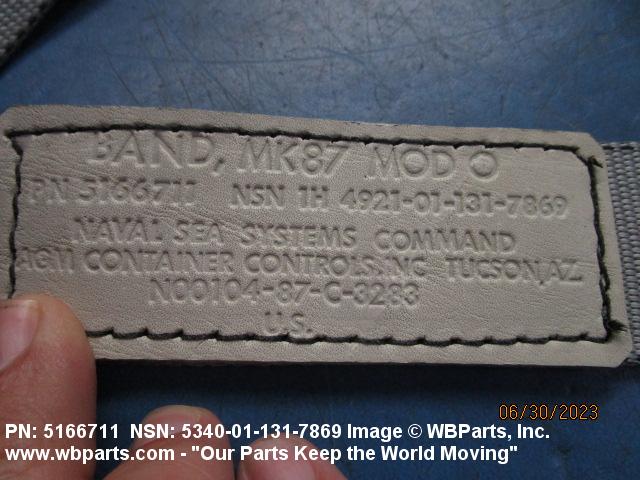

Drawings & Photos | NSN 5340-01-131-7869
Demand History | NSN 5340-01-131-7869
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-131-7869 | 2025-09-244 | 128 | DIBBS |
| 5340-01-131-7869 | 2025-05-128 | 70 | DIBBS |
| 5340-01-131-7869 | 2025-04-105 | 8 | us |
| 5340-01-131-7869 | 2025-03-76 | 8 | us |
| 5340-01-131-7869 | 2025-03-64 | 58 | DIBBS |
| 5340-01-131-7869 | 2025-02-44 | 8 | us |
| 5340-01-131-7869 | 2025-02-38 | 2 | United States |
| 5340-01-131-7869 | 2024-10-278 | 2 | United States |
| 5340-01-131-7869 | 2024-10-275 | 2 | United States |
| 5340-01-131-7869 | 2024-06-154 | 58 | DIBBS |
| 5340-01-131-7869 | 2023-06-166 | 2 | us |
| 011317869 | 2020-10-281 | 1 | GU |
| 5340-01-131-7869 | 2019-11-332 | 75 | DIBBS |
| 5340-01-131-7869 | 2019-01-01 | 55 | DIBBS |
| 5340-01-131-7869 | 2018-08-224 | 55 | DIBBS |
| 5340-01-131-7869 | 2018-03-84 | 58 | DIBBS |
| 5340-01-131-7869 | 2017-12-338 | 75 | DIBBS |
| 5340-01-131-7869 | 2016-12-357 | 75 | DIBBS |
| 5340-01-131-7869 | 2010-10-274 | 61 | DIBBS |
Cross Reference | NSN 5340-01-131-7869
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5166711 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-131-7869
Related Products | NSN 5340-01-131-7869
Technical Data | NSN 5340-01-131-7869
| Characteristic | Specifications |
|---|---|
| MATERIAL | NYLON, MIL-W-4088, TYPE 13 AND NYLON, MIL-W-4088, TYPE 9 |
| LENGTH | 64.000 INCHES NOMINAL |
| WIDTH | 1.750 INCHES NOMINAL |
| COLOR | GRAY |
| END TYPE | BOTH W/ATTACHMENTS |
| END ATTACHMENT/FASTENING FACILITY | BUCKLE END CLIP |
| PAD LENGTH | 13.000 INCHES NOMINAL |
| PAD WIDTH | 3.000 INCHES NOMINAL |
| PAD FASTENING METHOD | SEWED |
| RING SHAPE | D |
| FASTENED RING FEATURE | INCLUDED |
| RING FASTENING METHOD | SEWED |
| RING LOCATION | 24 IN. FROM HOOK END |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 5166711 |
Restrictions/Controls & Freight Information | NSN 5340-01-131-7869
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 179580 | STRAPS LEATHER IMITATION LEATHER |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-131-7869
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
