NSN 5340-01-180-9625 011809625
Product Details | GROOVED CLAMP COUPLING
5340-01-180-9625 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: 011809625
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-180-9625 | 20319 ( COUPLING, CLAMP, GROOVED ) |

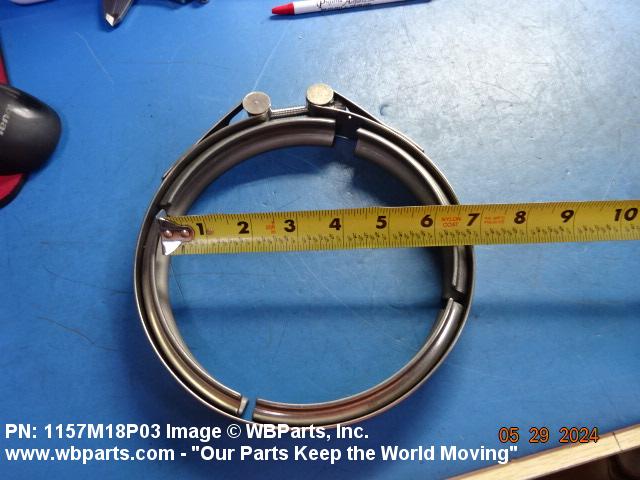

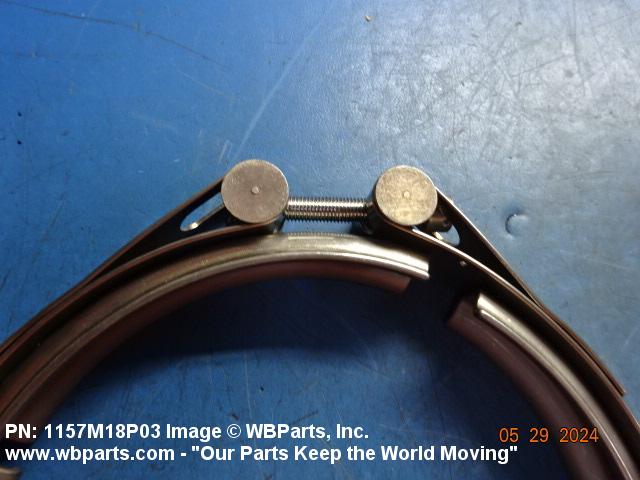

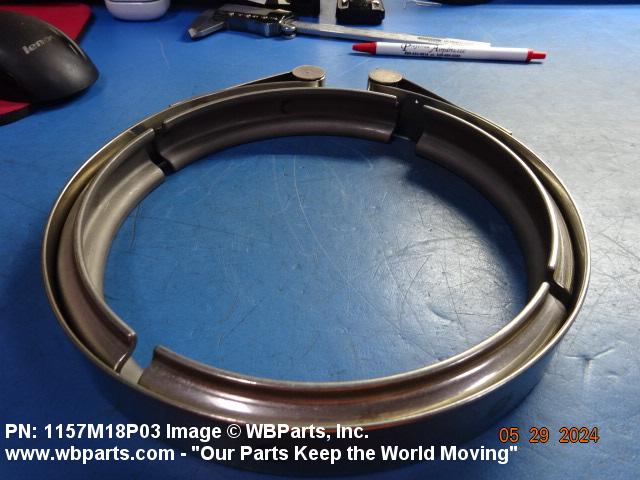

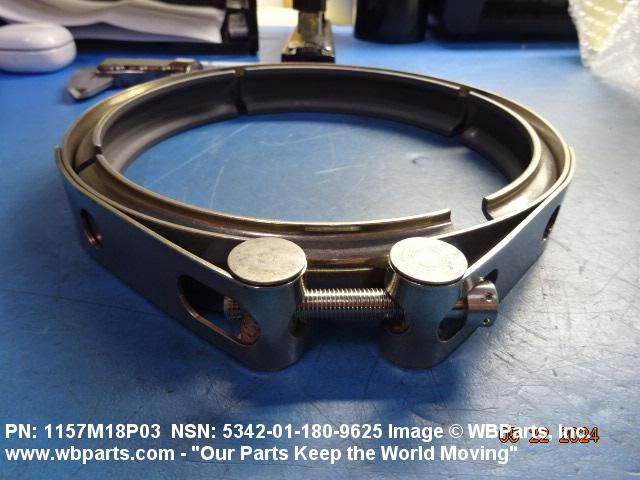

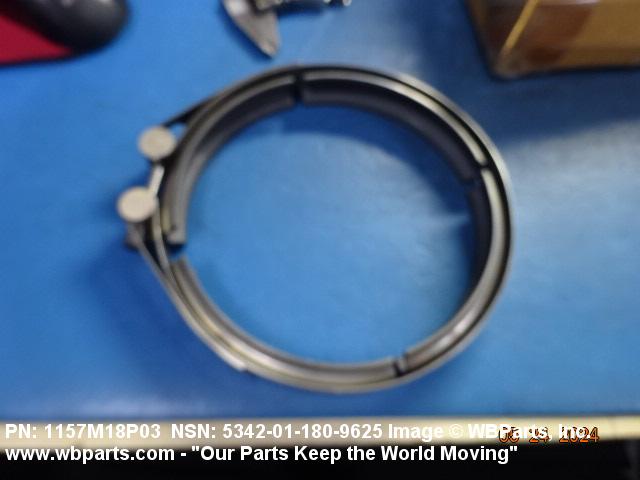

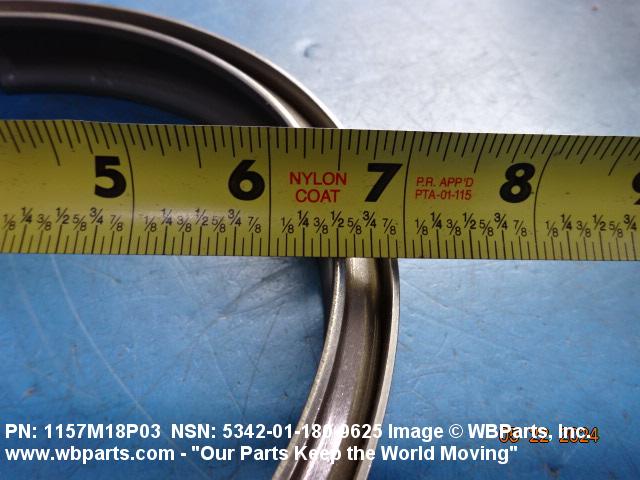

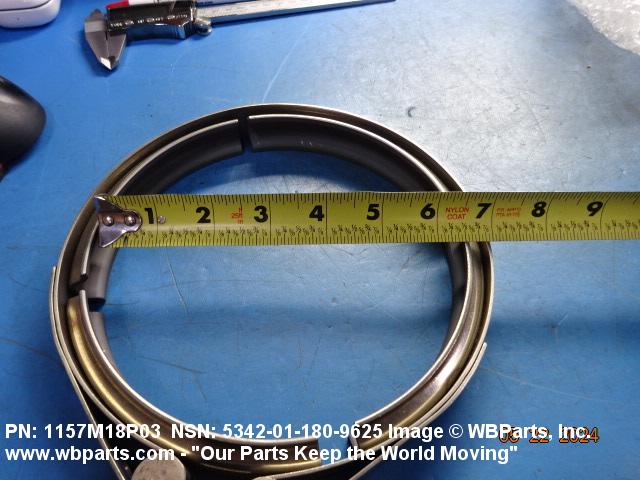

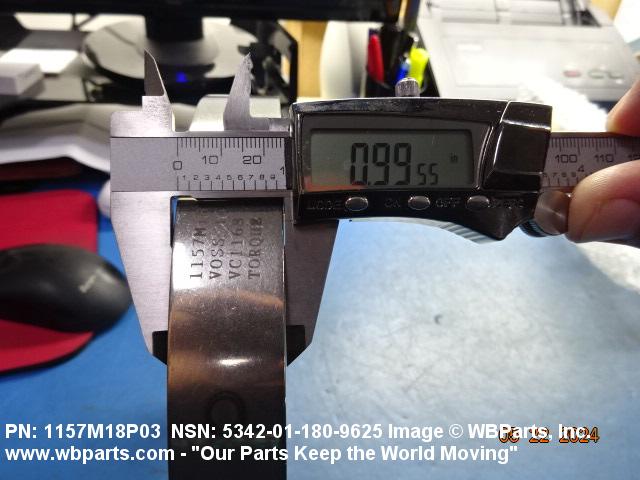

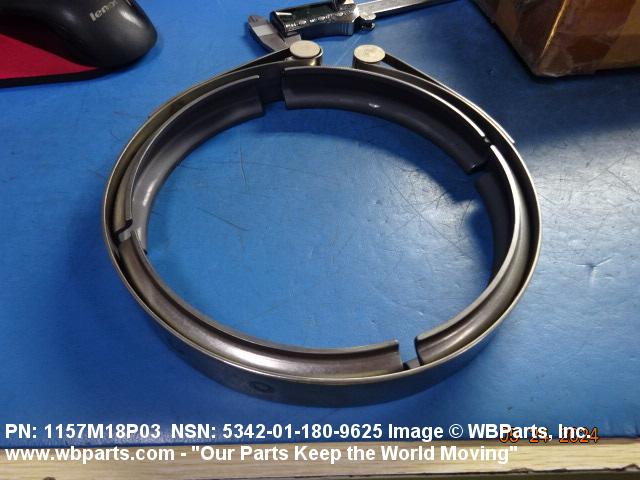

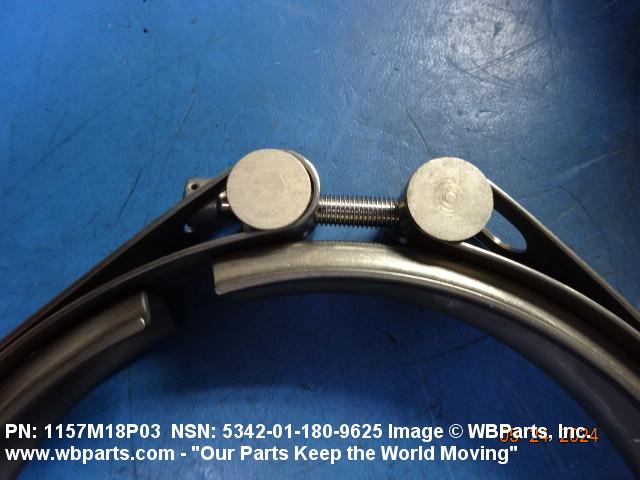

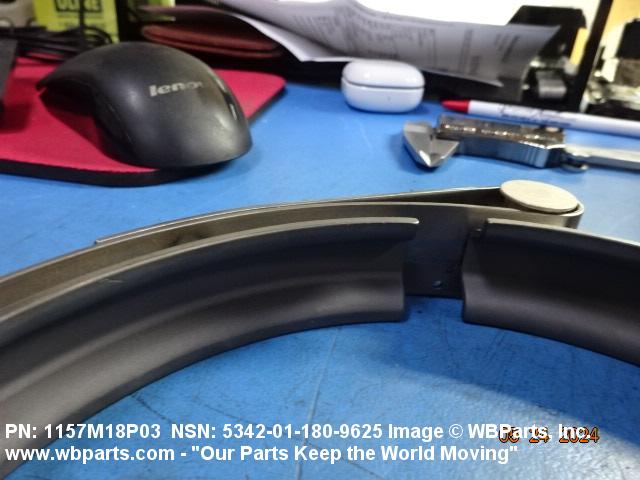

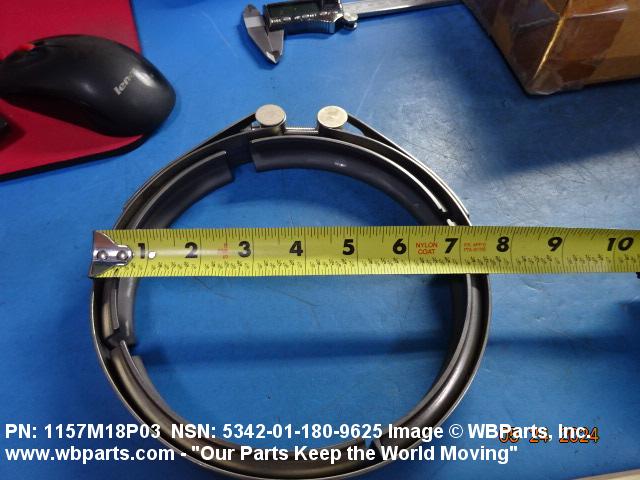

Drawings & Photos | NSN 5340-01-180-9625
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-180-9625
Technical Data | NSN 5340-01-180-9625
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 1 GROOVED RETAINER |
| RETAINER WIDTH | 0.980 INCHES MINIMUM AND 1.070 INCHES MAXIMUM |
| BAND THICKNESS | 0.063 INCHES NOMINAL |
| BAND WIDTH | 0.980 INCHES MINIMUM AND 1.070 INCHES MAXIMUM |
| HEIGHT | 0.300 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| INCLUDED ANGLE IN DEG | 20.0 |
| SHAPE | ROUND |
| LATCH STYLE | 33 SINGLE |
| TEMP RATING | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
| MANUFACTURERS CODE | 07482 |
| MFR SOURCE CONTROLLING REFERENCE | 1157M18P03 |
Restrictions/Controls & Freight Information | NSN 5340-01-180-9625
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
