Product Details | ANGLE BRACKET
5340-01-205-7016 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 10086867 , 13027546-1, 5340-01-205-7016, 01-205-7016, 5340012057016, 012057016, 130275461
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 APR 1985 | 01-205-7016 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-01-205-7016
Demand History | NSN 5340-01-205-7016
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10086867 | 2022-10-301 | 20 | UK |
| 5340-01-205-7016 | 2021-04-94 | 150 | AE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-205-7016
Related Products | NSN 5340-01-205-7016
Technical Data | NSN 5340-01-205-7016
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OR ALUMINUM ALLOY 7075 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/8 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-200/11 FED SPEC 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT | PAINT AND PRIMER EPOXY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-46168,383 GREEN MIL SPEC 1ST TREATMENT RESPONSE AND MIL-P-23377 MIL SPEC 2ND TREATMENT RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| FIRST LEG LENGTH | 382.5 MILLIMETERS NOMINAL |
| SECOND LEG LENGTH | 400.0 MILLIMETERS NOMINAL |
| FIRST LEG THICKNESS | 48.0 MILLIMETERS NOMINAL |
| SECOND LEG THICKNESS | 35.2 MILLIMETERS NOMINAL |
| FIRST LEG ANGLE | 4.7 RADIANS NOMINAL |
| FIRST LEG STYLE | 104 SQUARE |
| FIRST LEG WIDTH | 48.0 MILLIMETERS NOMINAL |
| SECOND LEG WIDTH | 35.2 MILLIMETERS NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 214 4 SLOTS |
| FIRST LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG WIDTH | 110.1 MILLIMETERS NOMINAL |
| FIRST LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG WIDTH | 110.1 MILLIMETERS NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 26.0 MILLIMETERS NOMINAL |
| FIRST LEG DISTANCE BETWEEN THIRD AND FOURTH HOLE CENTERS ALONG WIDTH | 110.1 MILLIMETERS NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 24.0 MILLIMETERS NOMINAL |
| FIRST LEG SLOT LENGTH | 12.0 MILLIMETERS NOMINAL |
| FIRST LEG SLOT WIDTH | 6.9 MILLIMETERS MINIMUM AND 7.1 MILLIMETERS MAXIMUM |
| SECOND LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG WIDTH | 90.3 MILLIMETERS NOMINAL |
| SECOND LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG WIDTH | 90.3 MILLIMETERS NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 38.5 MILLIMETERS NOMINAL |
| SECOND LEG DISTANCE BETWEEN THIRD AND FOURTH HOLE CENTERS ALONG WIDTH | 90.3 MILLIMETERS NOMINAL |
| SECOND LEG DISTANCE BETWEEN FOURTH AND FIFTH HOLE CENTERS ALONG WIDTH | 90.3 MILLIMETERS NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 17.6 MILLIMETERS NOMINAL |
| SECOND LEG SLOT LENGTH | 10.0 MILLIMETERS NOMINAL |
| SECOND LEG SLOT WIDTH | 6.0 MILLIMETERS MINIMUM AND 6.2 MILLIMETERS MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 104 SQUARE |

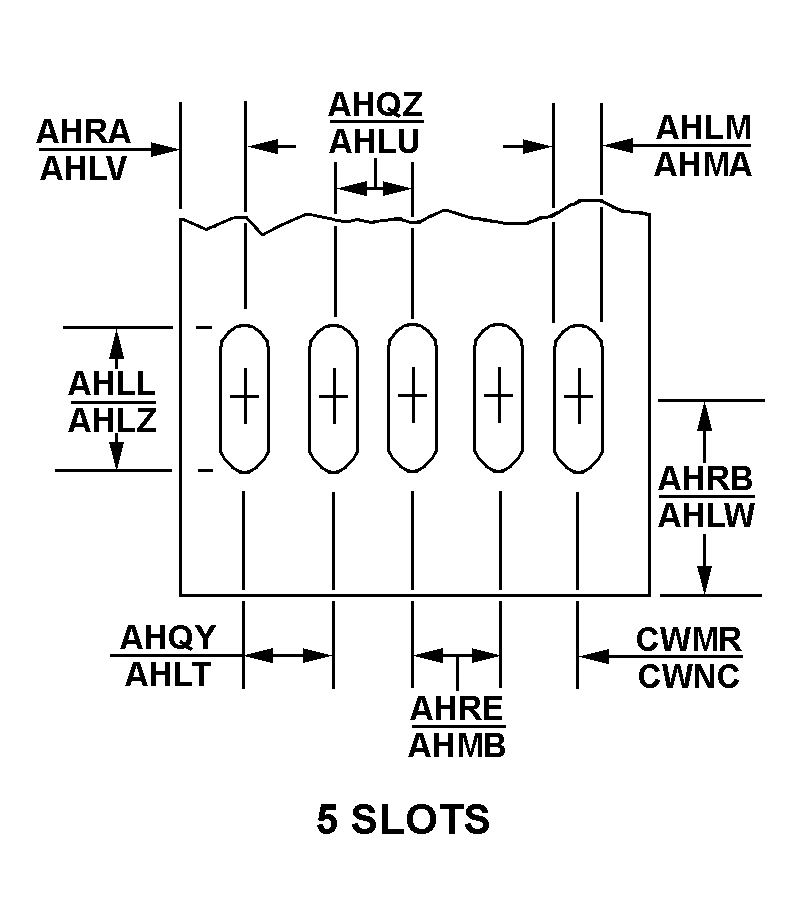

| SECOND LEG HOLE ARRANGEMENT STYLE | 212 5 SLOTS |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 13027546-1 |
