NSN 5340-01-412-2644 9483312, 01-412-2644, 014122644
Product Details | BOW HANDLE
5340-01-412-2644 An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR.
Part Alternates: 9483312, 5340-01-412-2644, 01-412-2644, 5340014122644, 014122644
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 APR 1995 | 01-412-2644 | 20350 ( HANDLE, BOW ) |
Drawings & Photos | NSN 5340-01-412-2644
Cross Reference | NSN 5340-01-412-2644
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9483312 | 18894 | AIR ARMAMENT CENTER/ EN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-412-2644
Technical Data | NSN 5340-01-412-2644
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OR ALUMINUM ALLOY 2024 HANDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/8 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE HANDLE |

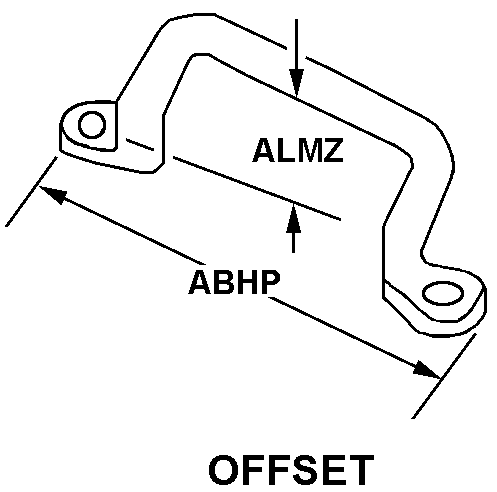

| STYLE DESIGNATOR | B38 OFFSET |
| OVERALL LENGTH | 13.750 INCHES NOMINAL |
| HANDLE CLEARANCE | 4.000 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| SPECIAL FEATURES | DISTANCE FROM HOLE CNTR TO EDGE 1.960 IN. |
| III END ITEM IDENTIFICATION | CONTAINER SHELL 1 AGM-142 |
Restrictions/Controls & Freight Information | NSN 5340-01-412-2644
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013455 | ALUM FORMS STRUCTURAL |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
