NSN 5340-01-438-7660 33127405, 3312740-5, 01-438-7660
Product Details | ANGLE BRACKET
5340-01-438-7660 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 33127405, 3312740-5, 5340-01-438-7660, 01-438-7660, 5340014387660, 014387660
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 NOV 1996 | 01-438-7660 | 16900 ( BRACKET, ANGLE ) |

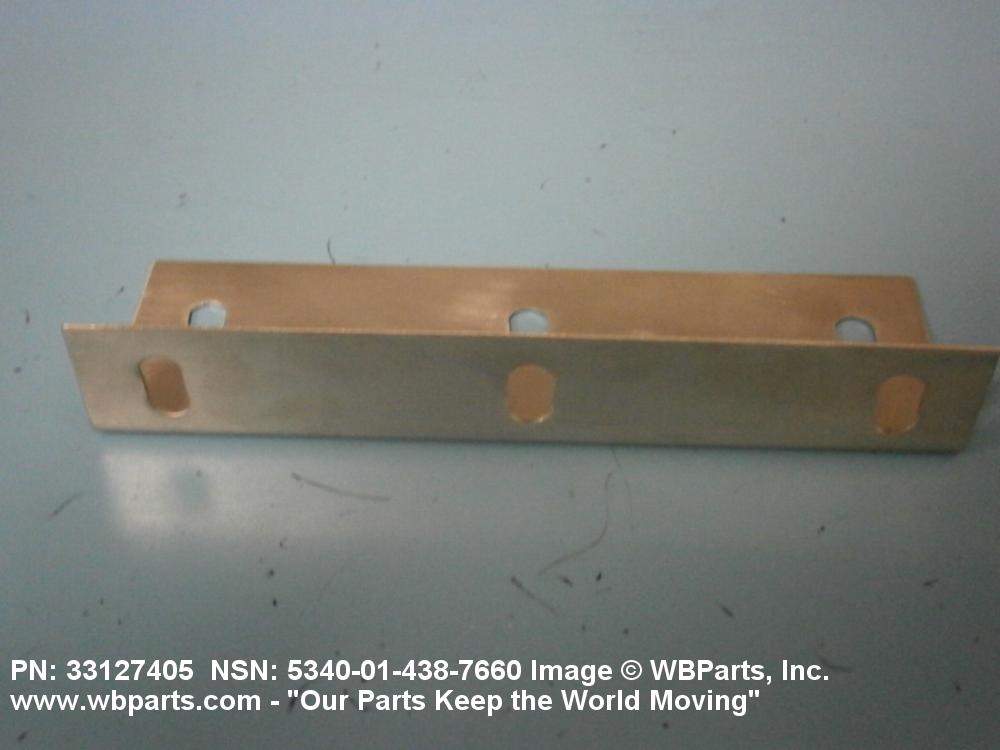

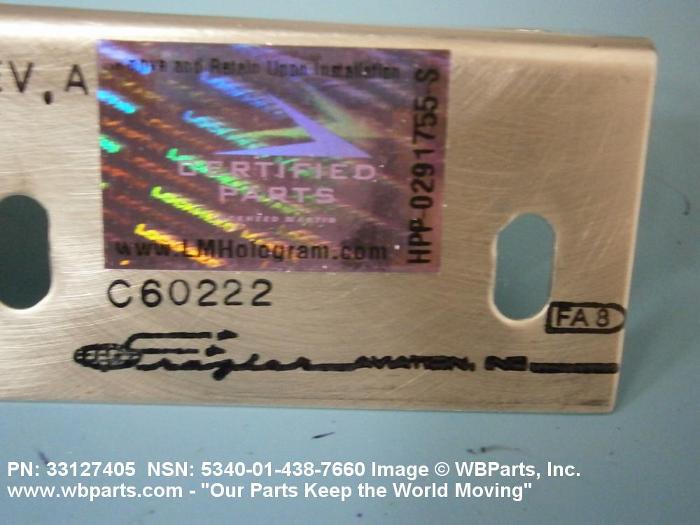

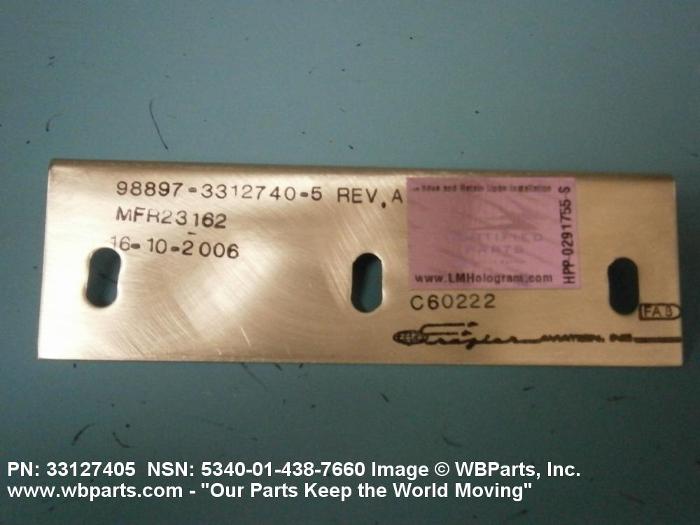

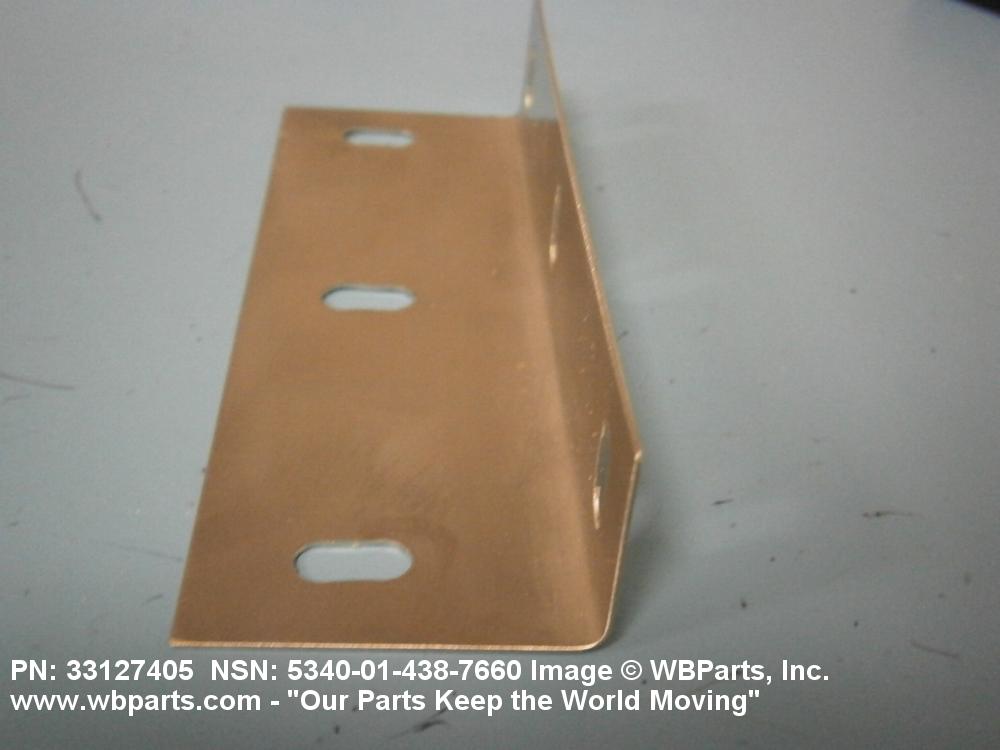

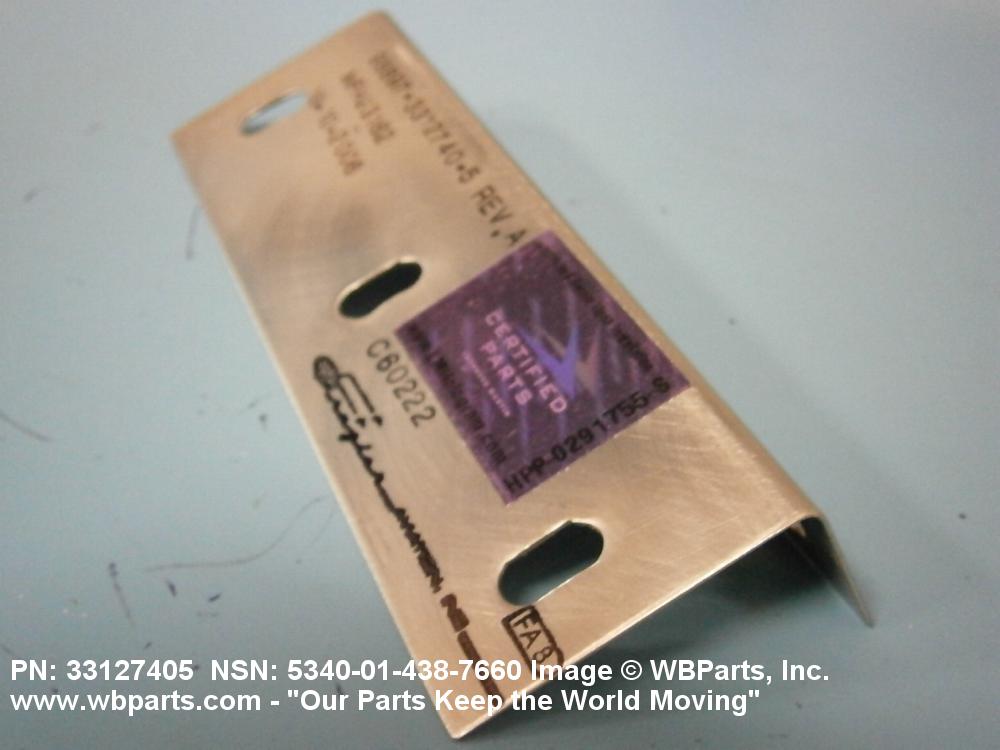

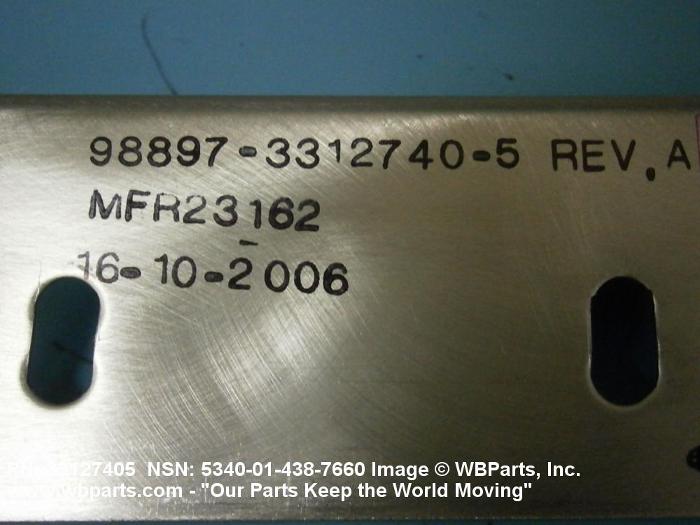

Drawings & Photos | NSN 5340-01-438-7660
Demand History | NSN 5340-01-438-7660
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 33127405 | 2012-06-164 | 1 | United States |
| 33127405 | 2012-05-137 | 1 | United States |
| 3312740-5 | 2012-03-82 | 1 | US |
Cross Reference | NSN 5340-01-438-7660
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3312740-5 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-438-7660
Technical Data | NSN 5340-01-438-7660
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6721 MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| III FIRST LEG LENGTH | 1.000 INCHES NOMINAL |
| III SECOND LEG LENGTH | 1.750 INCHES NOMINAL |
| III FIRST LEG THICKNESS | 0.032 INCHES NOMINAL |
| III SECOND LEG THICKNESS | 0.032 INCHES NOMINAL |
| III FIRST LEG ANGLE | 0.06 RADIANS NOMINAL |
| FIRST LEG STYLE | 104 |
| FIRST LEG HOLE ARRANGEMENT STYLE | 203 |
| SECOND LEG RELATIONSHIP TO FIRST LEG | IDENTICAL |
| III END ITEM IDENTIFICATION | FIXED WING AIRCRAFT, HERCULES MODEL C-130J |
Restrictions/Controls & Freight Information | NSN 5340-01-438-7660
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
