Product Details | ANGLE BRACKET
5340-01-467-8242 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 12466434, 5340-01-467-8242, 01-467-8242, 5340014678242, 014678242
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 SEP 1999 | 01-467-8242 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-01-467-8242
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-467-8242
Related Products | NSN 5340-01-467-8242
Technical Data | NSN 5340-01-467-8242
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 |
| STYLE DESIGNATOR | 6 ANGLE |
| FIRST LEG LENGTH | 4.120 INCHES NOMINAL |
| SECOND LEG LENGTH | 9.500 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.187 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.187 INCHES NOMINAL |
| FIRST LEG ANGLE | 0.56 RADIANS NOMINAL |
| FIRST LEG STYLE | 114 CHAMFERED ENDS |
| FIRST LEG WIDTH | 4.120 INCHES NOMINAL |
| FIRST LEG END WIDTH | 2.620 INCHES NOMINAL |
| SECOND LEG WIDTH | 4.120 INCHES NOMINAL |
| FIRST LEG CHAMFER ANGLE | 75.0 DEGREES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |
| FIRST LEG HOLE DIAMETER | 0.375 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 2.060 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 9.000 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 1.250 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 3.000 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 3.000 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.560 INCHES NOMINAL |
| SECOND LEG SLOT LENGTH | 0.150 INCHES NOMINAL |
| SECOND LEG SLOT WIDTH | 0.500 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 104 SQUARE |

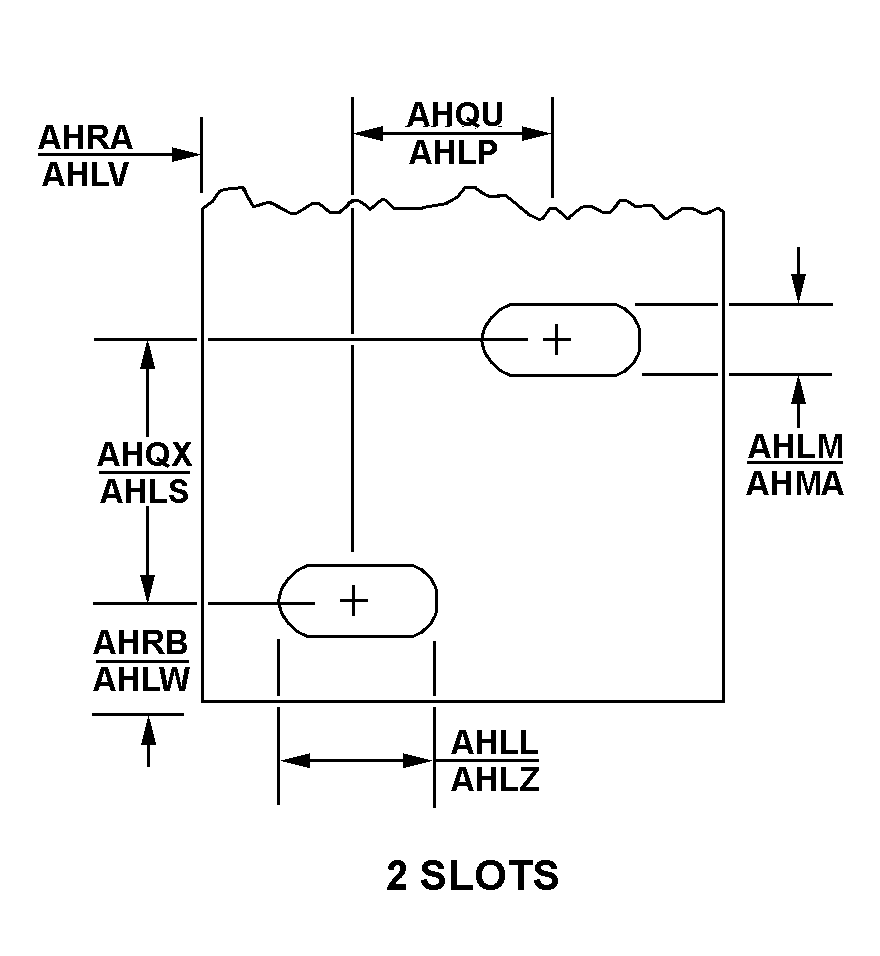

| SECOND LEG HOLE ARRANGEMENT STYLE | 202 2 SLOTS |
| MOUNTING HOLE TYPE | PLAIN |
| SPECIAL FEATURES | A ROUND BAR PROTRUDES PERPENDICULAR FROM THE FIRST LEG WITH LENGTH 3.000. |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BRACKET,MOUNTING,M240 MACHINE GUN |
