NSN 5342-00-097-7283 NH1004800125, NH100480-0125, GC550KC125
Product Details | GROOVED CLAMP COUPLING
5342-00-097-7283 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: NH1004800125, NH100480-0125, GC550KC125, 5342-00-097-7283, 00-097-7283, 5342000977283, 000977283
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 AUG 1972 | 00-097-7283 | 20319 ( COUPLING, CLAMP, GROOVED ) |

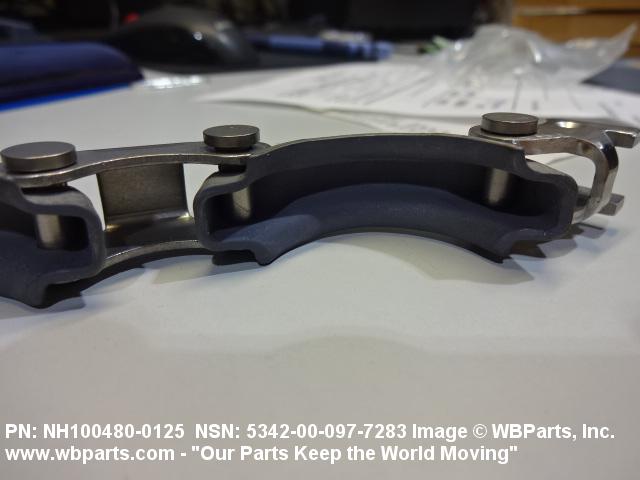

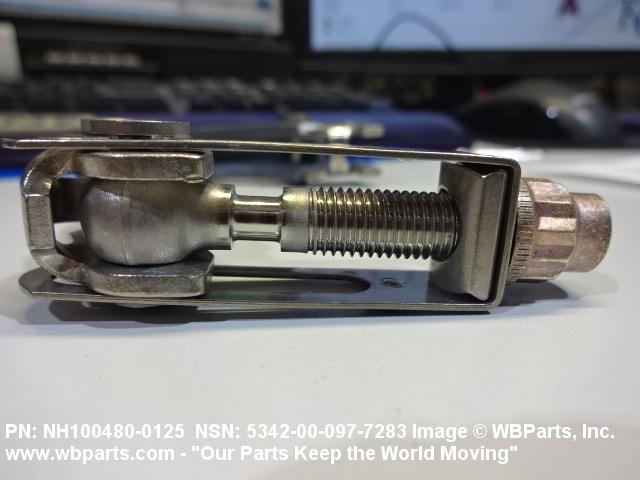

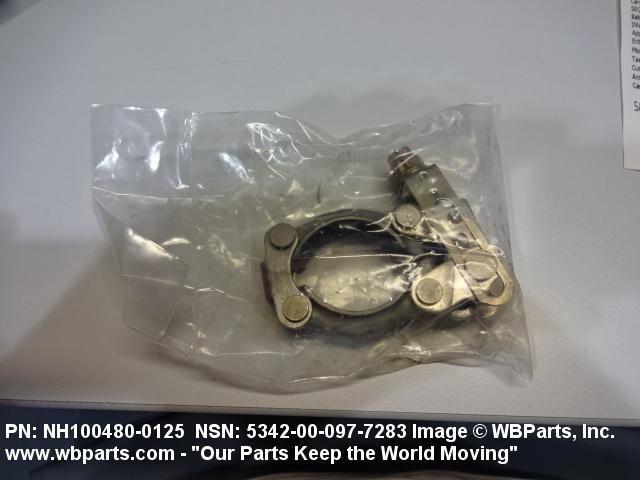

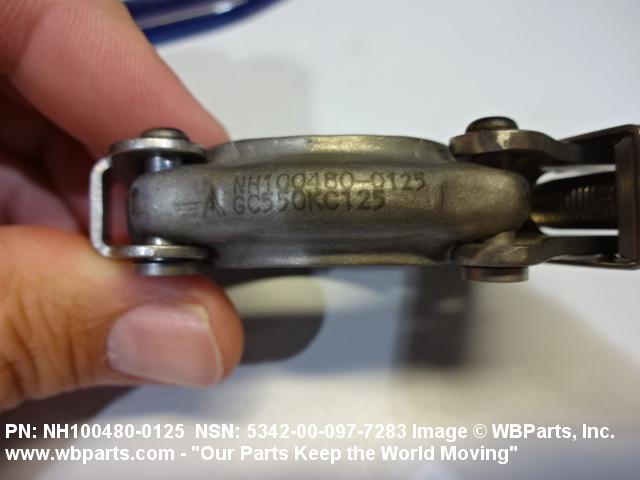

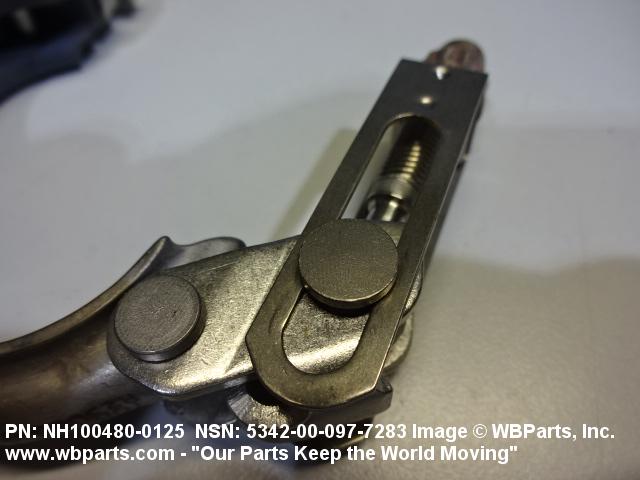

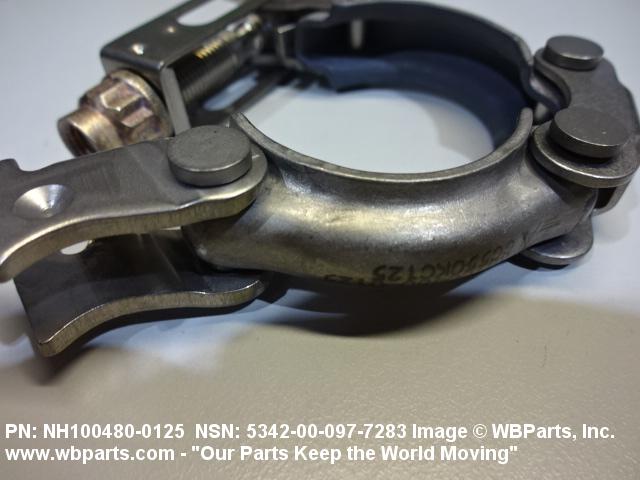

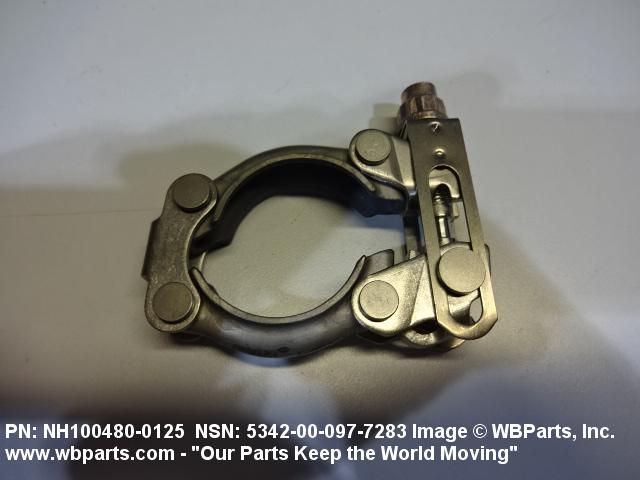

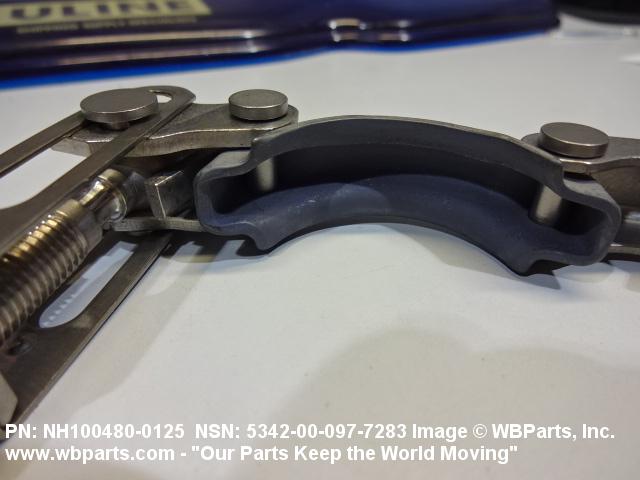

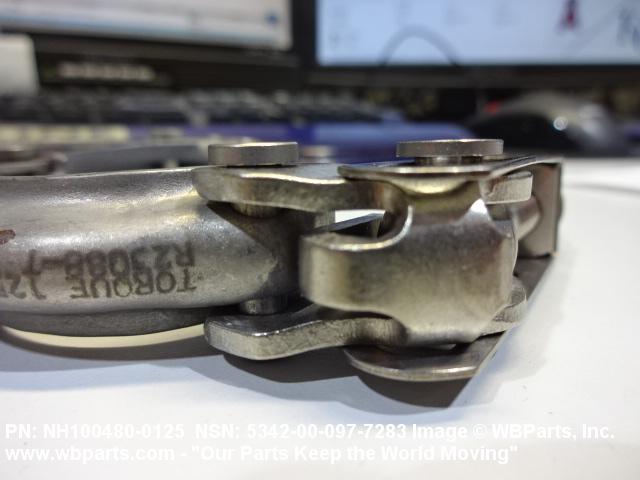

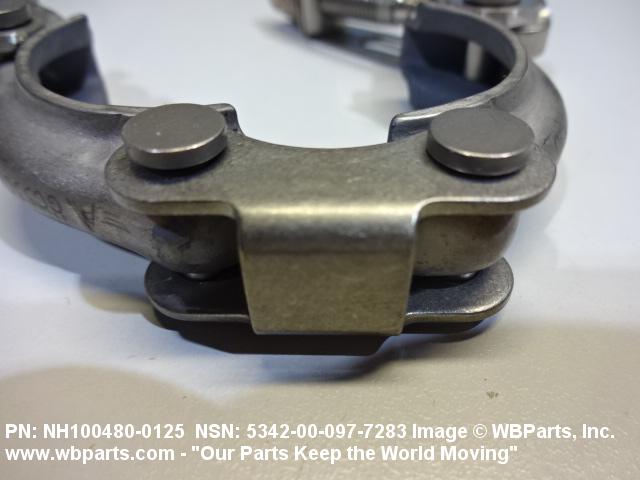

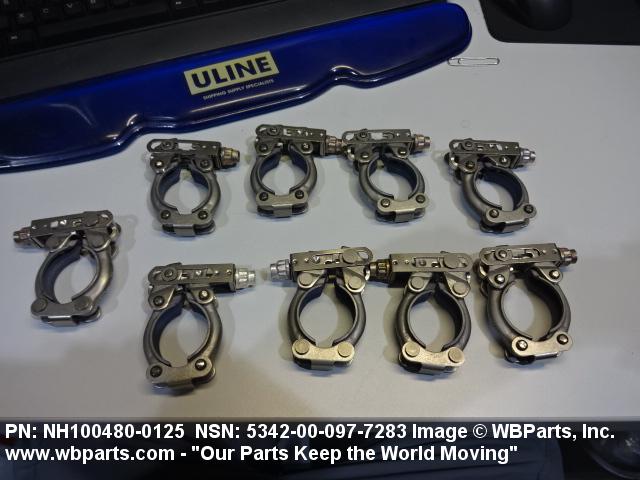

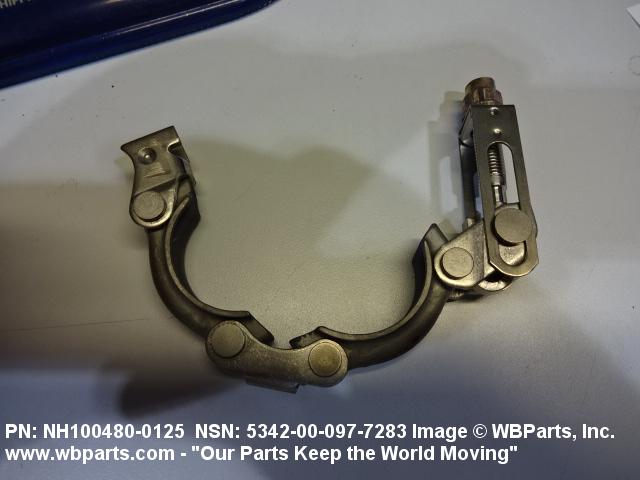

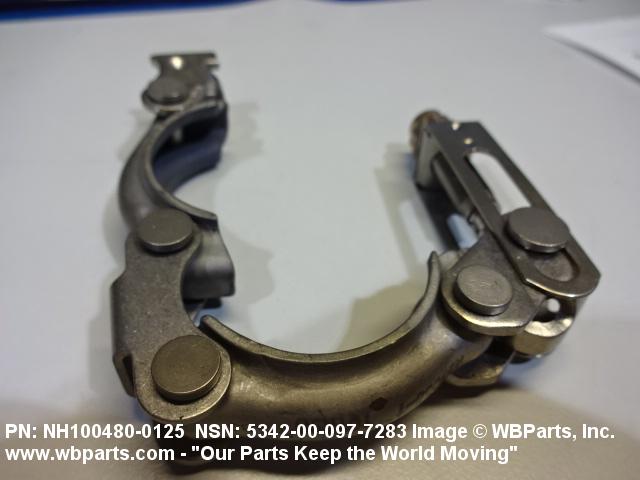

Drawings & Photos | NSN 5342-00-097-7283
Demand History | NSN 5342-00-097-7283
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-097-7283 | 2018-06-169 | 9 | United States |
| 5342-00-097-7283 | 2018-01-10 | 9 | DIBBS |
| 5342-00-097-7283 | 2017-09-249 | 9 | DIBBS |
| 5342-00-097-7283 | 2015-02-49 | 1 | DIBBS |
| 5342-00-097-7283 | 2014-01-27 | 1 | DIBBS |
| 5342-00-097-7283 | 2013-11-330 | 1 | DIBBS |
| 5342-00-097-7283 | 2013-08-223 | 1 | DIBBS |
| 5342-00-097-7283 | 2011-07-202 | 2 | DIBBS |
| 5342-00-097-7283 | 2010-06-175 | 1 | DIBBS |
| 5342-00-097-7283 | 2010-01-25 | 1 | DIBBS |
| 5342-00-097-7283 | 2010-01-25 | 2 | DIBBS |
| 5342-00-097-7283 | 2009-11-309 | 2 | DIBBS |
| 5342-00-097-7283 | 2009-09-247 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-00-097-7283
Technical Data | NSN 5342-00-097-7283
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 1A GROOVED RETAINER |
| MATERIAL AND LOCATION | IRON ALLOY, AMS 5732, COMP 660 SEGMENT OR IRON ALLOY, AMS 5737, COMP 660 NUT NICKEL ALLOY RETAINER IRON ALLOY, AMS 5732, COMP 660 BOLT OR IRON ALLOY, AMS 5737, COMP 660 BOLT NICKEL ALLOY LATCH |
| SURFACE TREATMENT AND LOCATION | SILVER PLATED NUT |
| SHAPE | ROUND |
| NUT TYPE | PLAIN CASTELLATED HEXAGON |
| SEGMENT QUANTITY | 2 |
| SEALING INNER LINER | NOT INCLUDED |
| TEMP RATING | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | NUT SILVER |
| MANUFACTURERS CODE | 00624 |
| DESIGN CONTROL REFERENCE | NH100480-0125 |
Restrictions/Controls & Freight Information | NSN 5342-00-097-7283
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-097-7283
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
