NSN 5342-00-200-5894 002005894
Product Details | RIGID SURFACE MECHANICAL PATCH

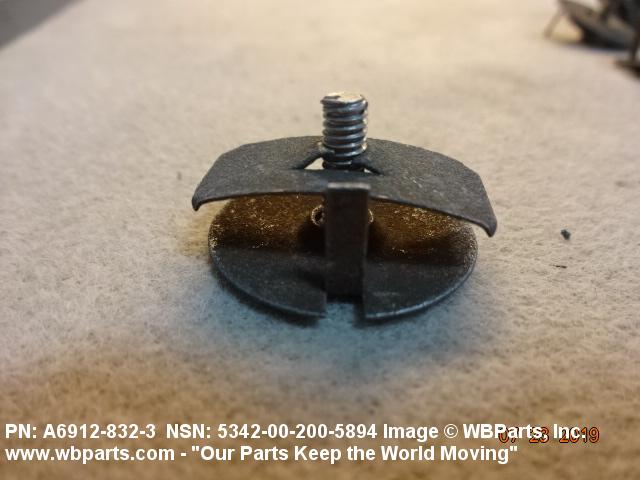

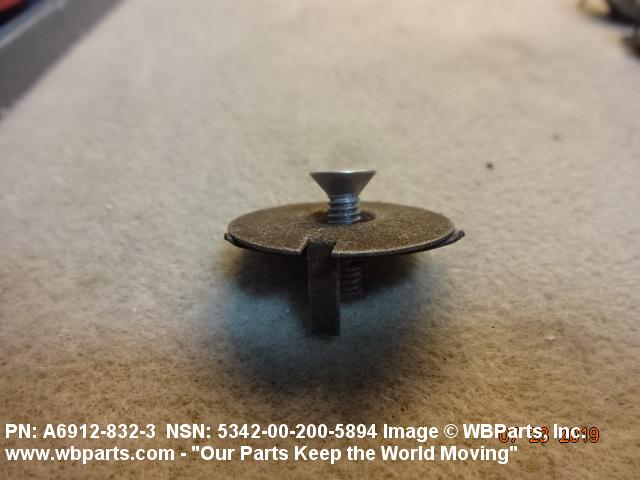

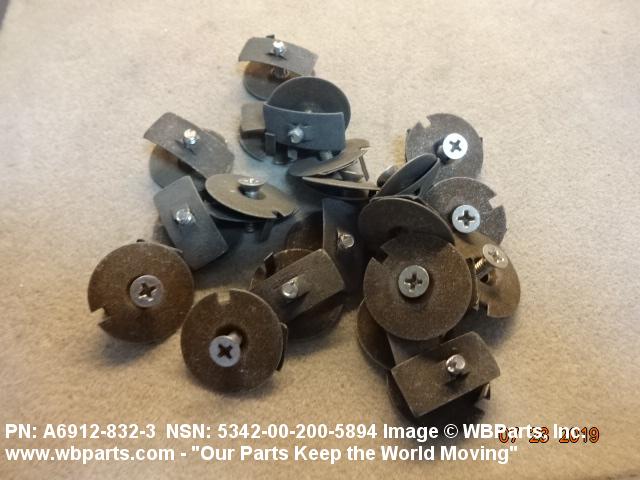

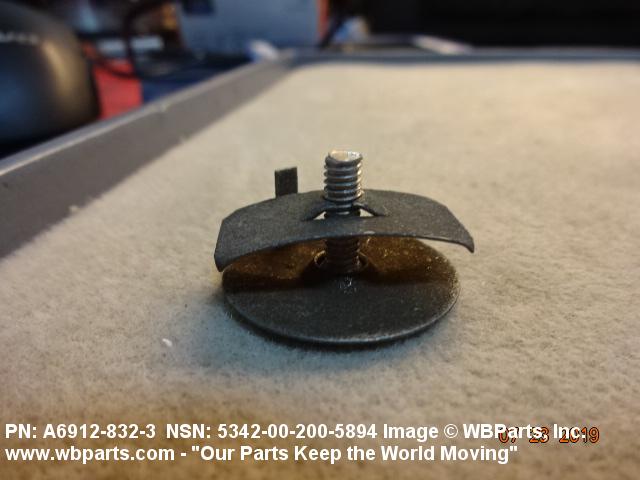

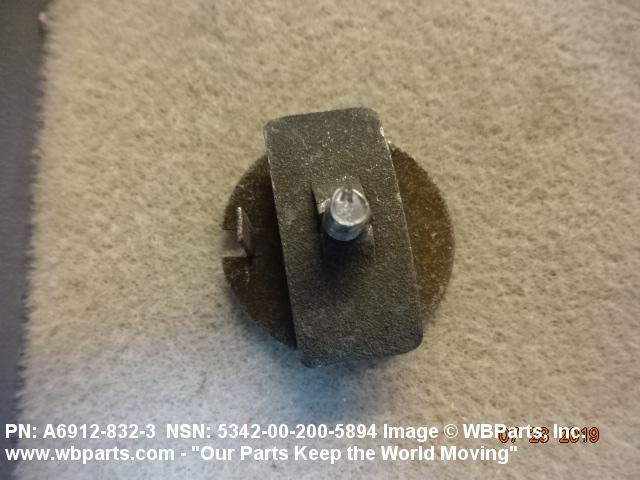

5342-00-200-5894 An item which consists of a patch plate, screw, and a nut, designed for covering a hole in a rigid surface. Complete installation is made from one side.
Part Alternates: 002005894
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-200-5894 | 10253 ( PATCH, MECHANICAL, RIGID SURFACE ) |
Drawings & Photos | NSN 5340-00-200-5894
Demand History | NSN 5342-00-200-5894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-200-5894 | 2022-01-27 | 17 | United States |
| 5340-00-200-5894 | 2022-01-26 | 17 | United States |
| 5340-00-200-5894 | 2022-01-21 | 17 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-200-5894
Related Products | NSN 5342-00-200-5894
Technical Data | NSN 5342-00-200-5894
| Characteristic | Specifications |
|---|---|
| NOMINAL THREAD SIZE | 0.164 INCHES |

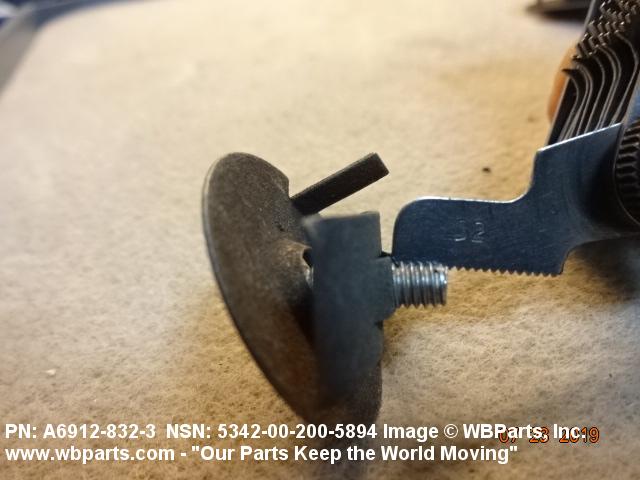

| THREAD QUANTITY PER INCH | 32 |

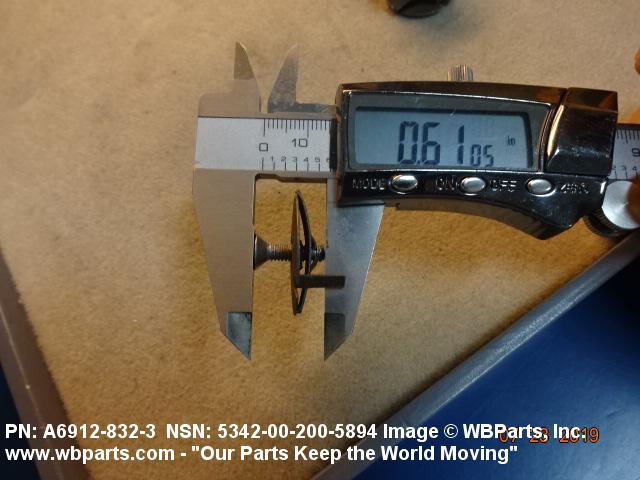

| THREAD LENGTH | 0.625 INCHES NOMINAL |

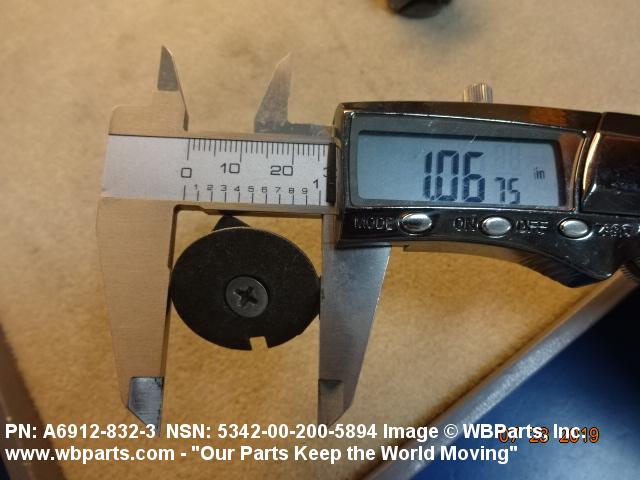

| PATCH PLATE DIAMETER | 1.062 INCHES NOMINAL |

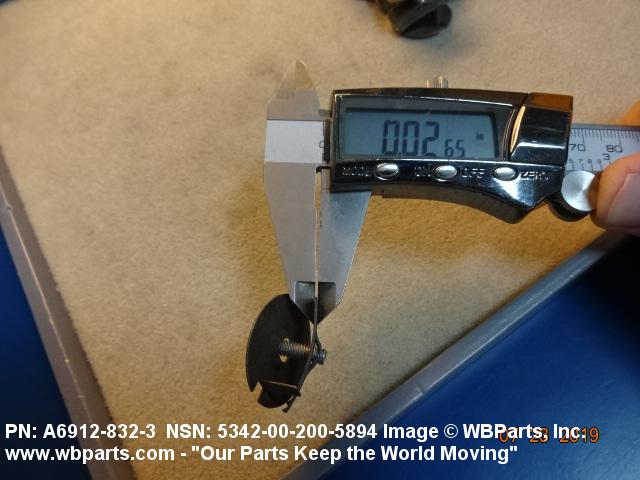

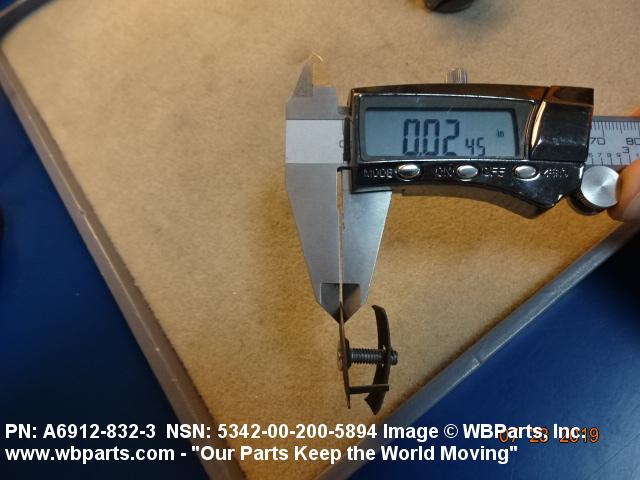

| PATCH PLATE MATERIAL THICKNESS | 0.020 INCHES NOMINAL |

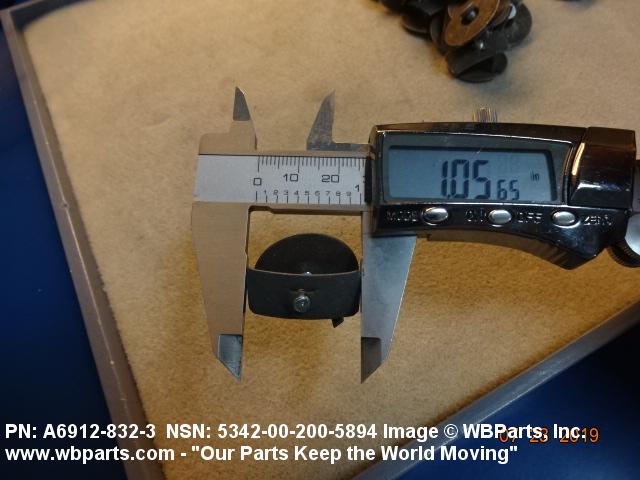

| NUT LENGTH | 1.062 INCHES NOMINAL |
| NUT MATERIAL THICKNESS | 0.017 INCHES NOMINAL |
| FEATURES PROVIDED | PATCH PLATE KEYED ANTITURN |
Restrictions/Controls & Freight Information | NSN 5342-00-200-5894
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
