NSN 5342-00-316-9240 C7883150, C7883-150 , C7883150S
Product Details | GROOVED CLAMP COUPLING
5342-00-316-9240 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: C7883150, C7883-150 , C7883150S, C7883-150S, ST7M276150, ST7M276-150, VR1026150, VR1026-150, D2320150, D2320-150, 2320150, 2320-150, 52242AE150, 5342-00-316-9240, 00-316-9240, 5342003169240, 003169240
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 NOV 1973 | 00-316-9240 | 20319 ( COUPLING, CLAMP, GROOVED ) |
Drawings & Photos | NSN 5342-00-316-9240
Demand History | NSN 5342-00-316-9240
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-316-9240 | 2023-11-311 | 6 | Singapore |
| VR1026150 | 2023-02-34 | 2 | United States |
| 5342-00-316-9240 | 2022-12-361 | 9 | MANUAL |
| C7883-150S | 2022-12-361 | 9 | Saudi Arabia |
| 5342-00-316-9240 | 2020-09-265 | 4 | US |
| 5342-00-316-9240 | 2020-09-261 | 4 | US |
| 5342-00-316-9240 | 2017-10-299 | 8 | us |
| 5342-00-316-9240 | 2017-07-186 | 24 | DIBBS |
| 5342-00-316-9240 | 2017-06-165 | 1 | DIBBS-RFPs |
| 5342-00-316-9240 | 2017-05-141 | 16 | DIBBS |
| 5342-00-316-9240 | 2017-04-94 | 45 | DIBBS |
| 5342-00-316-9240 | 2017-03-66 | 18 | DIBBS |
| 5342-00-316-9240 | 2017-01-04 | 29 | DIBBS |
| 5342-00-316-9240 | 2016-09-270 | 14 | DIBBS |
| 5342-00-316-9240 | 2016-09-262 | 14 | DIBBS |
| 5342-00-316-9240 | 2016-05-148 | 5 | us |
| 5342-00-316-9240 | 2016-01-13 | 162 | DIBBS |
| 5342-00-316-9240 | 2015-03-68 | 78 | DIBBS |
| 5342-00-316-9240 | 2015-02-35 | 73 | DIBBS |
| 5342-00-316-9240 | 2014-11-332 | 161 | DIBBS |
| 5342-00-316-9240 | 2014-11-324 | 161 | DIBBS |
| 5342-00-316-9240 | 2014-09-263 | 5 | Singapore |
| 5342-00-316-9240 | 2014-09-263 | 10 | Singapore |
| 5342-00-316-9240 | 2014-02-59 | 111 | DIBBS |
| 5342-00-316-9240 | 2014-02-51 | 111 | DIBBS |
| 5342-00-316-9240 | 2013-07-197 | 133 | DIBBS |
| 5342-00-316-9240 | 2013-05-127 | 2 | MANUAL |
| 5342-00-316-9240 | 2012-04-114 | 72 | United States |
| 5342-00-316-9240 | 2012-04-114 | 9 | United States |
| 5342-00-316-9240 | 2012-04-114 | 3 | United States |
| 5342-00-316-9240 | 2011-12-341 | 84 | DIBBS |
| 5342-00-316-9240 | 2011-10-290 | 135 | DIBBS |
| 5342-00-316-9240 | 2011-04-101 | 111 | DIBBS |
| 5342-00-316-9240 | 2008-05-128 | 123 | DIBBS |
| 5342-00-316-9240 | 2008-03-81 | 22 | DIBBS |
Cross Reference | NSN 5342-00-316-9240
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2320-150 | 15284 | EATON CORPORATION DBA FLUID CONVEYANCE |
| 52242AE150 | 94581 | V I J CORPORATION DBA NUCO |
| C7883-150S | 14242 | VOSS INDUSTRIES, INC. |
| D2320-150 | 15284 | EATON CORPORATION DBA FLUID CONVEYANCE |
| ST7M276-150 | 76301 | BOEING COMPANY, THE DBA BOEING |
| VR1026-150 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-316-9240
Related Products | NSN 5342-00-316-9240
Technical Data | NSN 5342-00-316-9240
| Characteristic | Specifications |
|---|---|

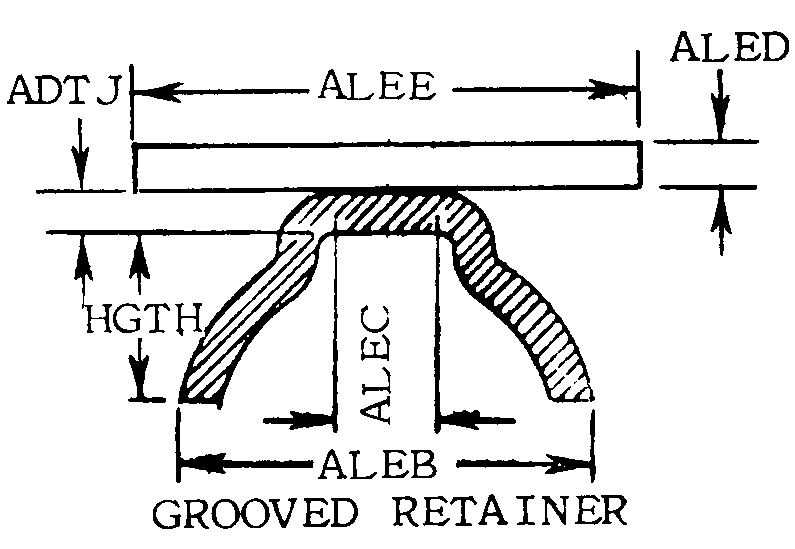

| CROSS-SECTIONAL SHAPE STYLE | 6 GROOVED RETAINER |
| RETAINER THICKNESS | 0.105 INCHES NOMINAL |
| RETAINER WIDTH | 0.535 INCHES NOMINAL |
| ROOT WIDTH | 0.329 INCHES MINIMUM AND 0.337 INCHES MAXIMUM |
| BAND THICKNESS | ANY ACCEPTABLE |
| BAND WIDTH | ANY ACCEPTABLE |
| HEIGHT | 0.275 INCHES NOMINAL |
| INCLUDED ANGLE IN DEG | 38.0 |
| MATERIAL AND LOCATION | STEEL AMS 5596 SAFETY LATCH IRON ALLOY, AMS 5732, COMP 660 BOLT IRON ALLOY, AMS 5732, COMP 660 NUT IRON ALLOY, AMS 5732, COMP 660 TRUNNION STEEL AMS 5662 RETAINER |
| SURFACE TREATMENT AND LOCATION | SILVER PLATED NUT PASSIVATED, QQ-P-35 BOLT PASSIVATE QQ-P-35 SAFETY LATCH PASSIVATED, QQ-P-35 TRUNNION PASSIVATED, QQ-P-35 BAND |
| SHAPE | ROUND |
| INSIDE DIAMETER | 1.500 INCHES NOMINAL |
| LATCH STYLE | 64 DOUBLE |
| NUT TYPE | PLAIN ROUND |
| DRILLED LOCKWIRE HOLE | NOT INCLUDED |
| SEGMENT QUANTITY | 2 |
| SEALING INNER LINER | INCLUDED |
| TEMP RATING | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
| MANUFACTURERS CODE | 76301 |
| MFR SOURCE CONTROLLING REFERENCE | ST7M276-150 |
Restrictions/Controls & Freight Information | NSN 5342-00-316-9240
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
