NSN 5342-00-607-6225 CP13542, CP1354-2, 99556-0463

Product Details | GROOVED CLAMP COUPLING

5342-00-607-6225 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.

Part Alternates: CP13542, CP1354-2, 99556-0463, 4369462M, 4369-462M, 99556-0462, 5342-00-607-6225, 00-607-6225, 5342006076225, 006076225, 995560462, 995560463

Hardware and Abrasives | Hardware, Weapon System

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-607-6225	20319 ( COUPLING, CLAMP, GROOVED )

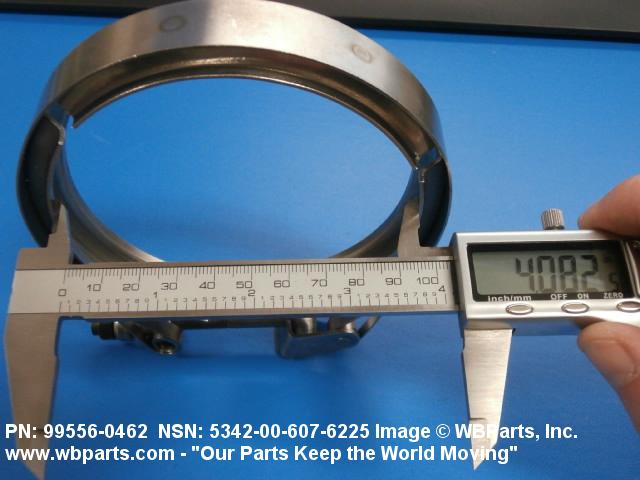

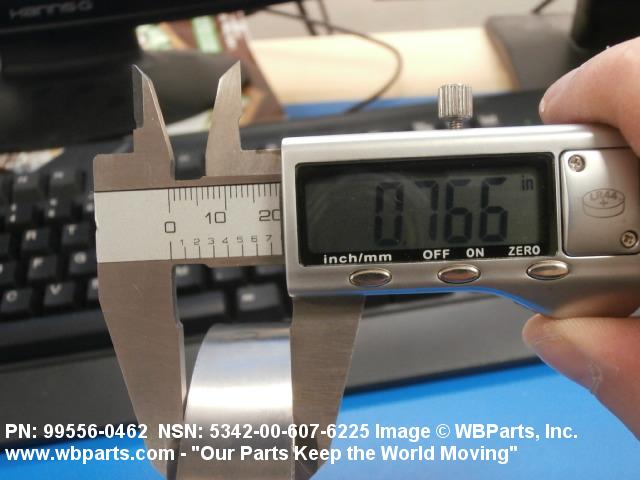

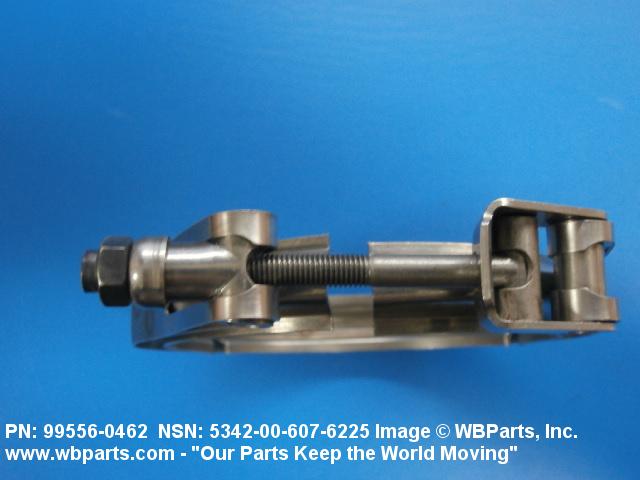

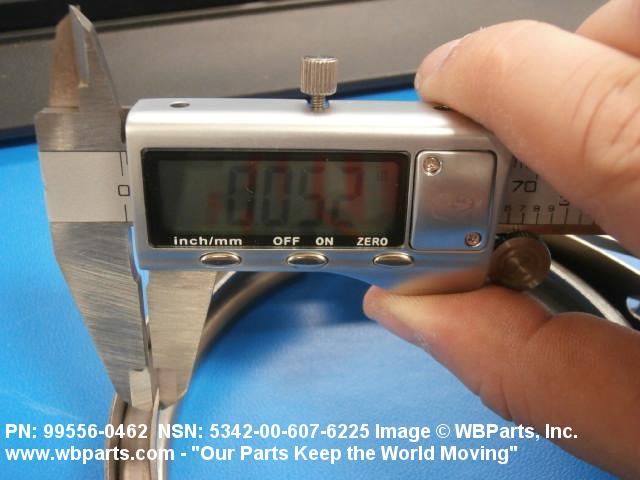

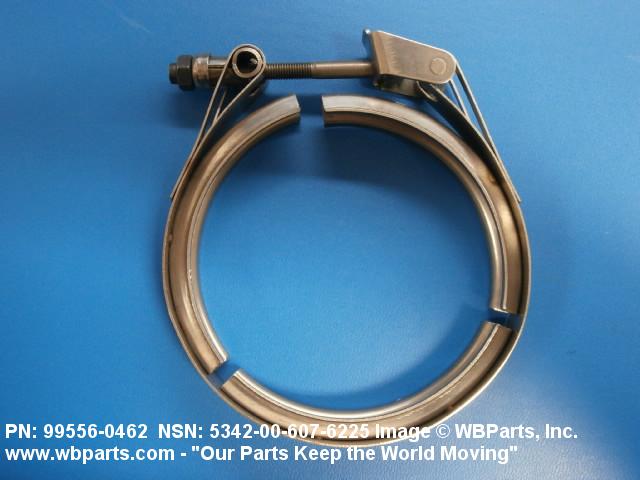

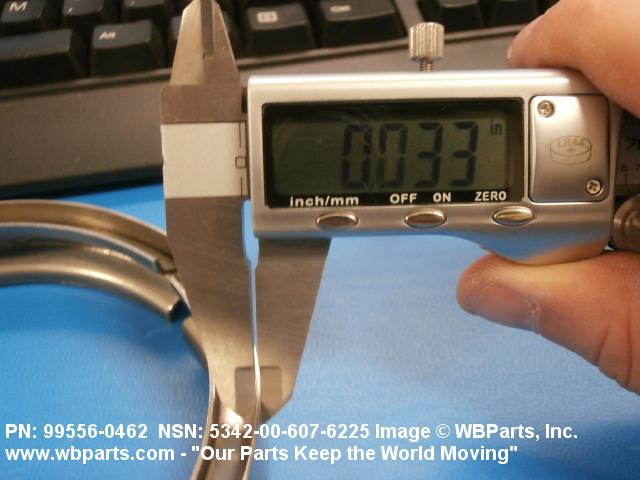

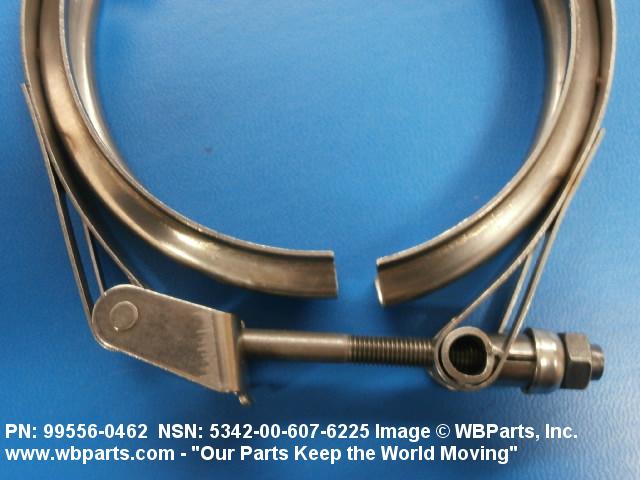

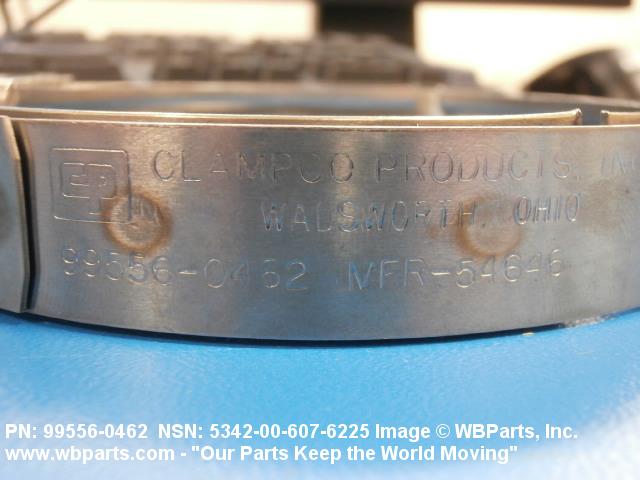

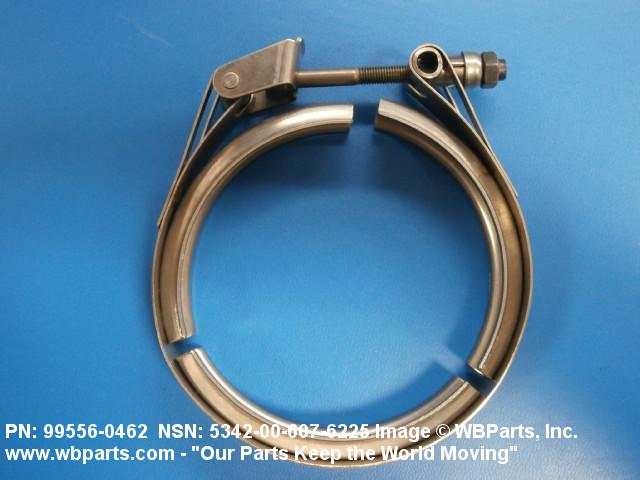

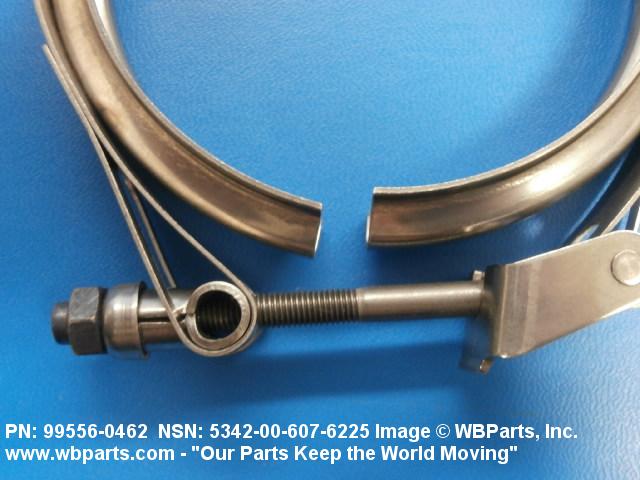

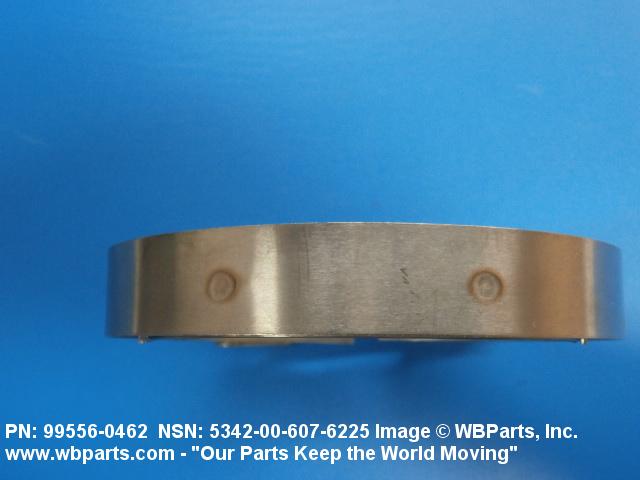

Drawings & Photos | NSN 5342-00-607-6225

Part Number	Request Date	QTY	Origin
5342-00-607-6225	2025-08-226	3	us
5342-00-607-6225	2025-08-225	3	us
5342-00-607-6225	2024-12-344	2	United States
4369-462M	2024-07-200	16	DIBBS
99556-0462	2024-07-200	16	DIBBS
4369-462M	2024-03-85	15	DIBBS
99556-0462	2024-03-85	15	DIBBS
4369-462M	2024-03-77	15	DIBBS
99556-0462	2024-03-77	15	DIBBS
5342-00-607-6225	2024-02-58	10	United States
5342-00-607-6225	2024-01-09	1	United States
4369-462M	2023-11-331	19	DIBBS
99556-0462	2023-11-331	19	DIBBS
4369-462M	2023-11-323	19	DIBBS
99556-0462	2023-11-323	19	DIBBS
4369-462M	2023-07-197	11	DIBBS
99556-0462	2023-07-197	11	DIBBS
4369-462M	2023-04-114	20	DIBBS
99556-0462	2023-04-114	20	DIBBS
4369-462M	2023-04-106	20	DIBBS
99556-0462	2023-04-106	20	DIBBS
5342-00-607-6225	2023-03-80	1	us
995560462	2023-03-68	1	US
4369-462M	2023-01-19	39	DIBBS
99556-0462	2023-01-19	39	DIBBS
4369-462M	2022-10-289	16	DIBBS
99556-0462	2022-10-289	16	DIBBS
4369-462M	2022-08-227	93	DIBBS
99556-0462	2022-08-227	93	DIBBS
4369-462M	2022-07-212	93	DIBBS
99556-0462	2022-07-212	93	DIBBS
4369-462M	2022-06-173	11	DIBBS
99556-0462	2022-06-173	11	DIBBS
5342-00-607-6225	2022-06-160	1	United States
5342-00-607-6225	2022-04-101	9	United States
4369-462M	2022-02-59	36	DIBBS
99556-0462	2022-02-59	36	DIBBS
4369-462M	2022-02-48	36	DIBBS
99556-0462	2022-02-48	36	DIBBS
4369-462M	2021-12-361	36	DIBBS
99556-0462	2021-12-361	36	DIBBS
4369-462M	2021-12-350	36	DIBBS
99556-0462	2021-12-350	36	DIBBS
5342-00-607-6225	2021-09-246	15	United States
5342-00-607-6225	2018-04-103	1	United States
5342-00-607-6225	2016-10-300	100	US
5342-00-607-6225	2015-01-12	1	United States
5342-00-607-6225	2009-05-147	561	DIBBS

Cross Reference | NSN 5342-00-607-6225

Part Number	Cage Code	Manufacturer
4369-462M	00624	EATON CORPORATION DBA AEROSPACE DIV
4369-462M	8W928	EATON CORPORATION DBA EATON QUIP
99556-0462	54646	CLAMPCO PRODUCTS, INC. DIV CLAMPCO PRODUCTS, INC.
99556-0463	54646	CLAMPCO PRODUCTS, INC. DIV CLAMPCO PRODUCTS, INC.
CP1354-2	80249	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5342-00-607-6225

Compare

Related Products | NSN 5342-00-607-6225

5342-00-607-6590, 5342-00-607-6592, 5342-00-607-6593, 5342-00-607-8614, 5342-00-607-9370

Technical Data | NSN 5342-00-607-6225

Characteristic	Specifications
CROSS-SECTIONAL SHAPE STYLE	1 GROOVED RETAINER

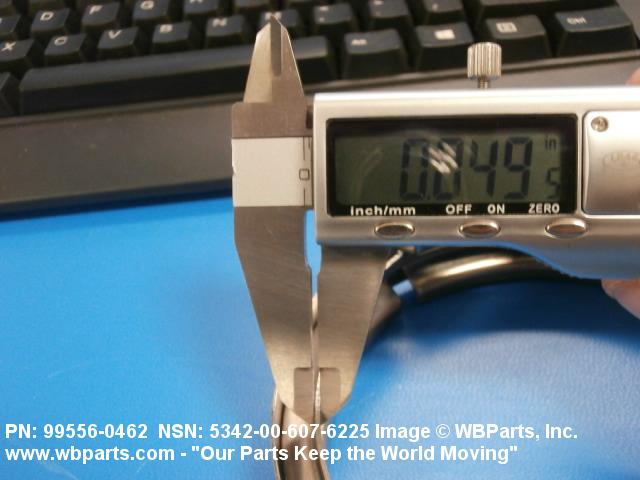

RETAINER THICKNESS	0.050 INCHES NOMINAL
RETAINER WIDTH	0.717 INCHES MINIMUM AND 0.726 INCHES MAXIMUM
ROOT WIDTH	0.212 INCHES NOMINAL
BAND THICKNESS	0.032 INCHES NOMINAL

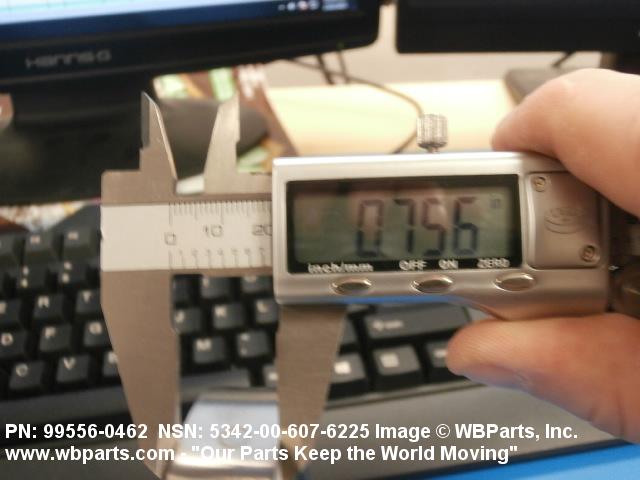

BAND WIDTH	0.750 INCHES NOMINAL

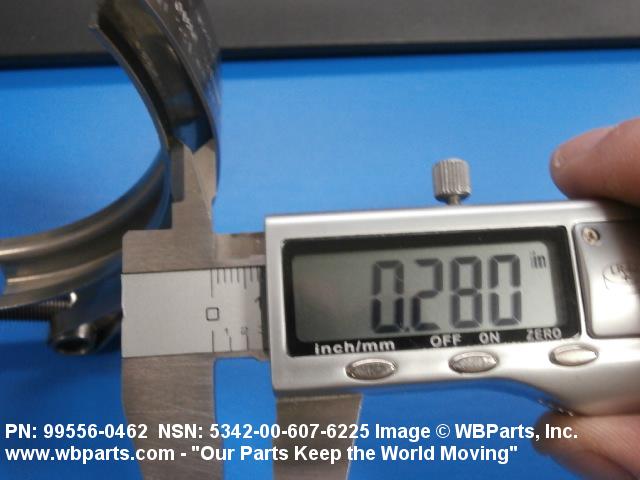

HEIGHT	0.280 INCHES NOMINAL
INCLUDED ANGLE IN DEG	40.0
MATERIAL AND LOCATION	STEEL, CORROSION RESISTING NUT STEEL, MIL-S-5059, TYPE 302, ANNEALED SEGMENT STEEL, MIL-S-5059, TYPE 301, 1/2 HARD BAND STEEL, MIL-S-18732, TYPE 431 BOLT
SHAPE	ROUND
INSIDE DIAMETER	4.620 INCHES NOMINAL
LATCH STYLE	30 SINGLE
NUT TYPE	SELF-LOCKING HEXAGON
SEGMENT QUANTITY	2
SEALING INNER LINER	NOT INCLUDED
TEMP RATING	NOT RATED
MAXIMUM LOAD RATING	NOT RATED
MANUFACTURERS CODE	8W928
DESIGN CONTROL REFERENCE	4369-462M

Restrictions/Controls & Freight Information | NSN 5342-00-607-6225

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5342-00-607-6225

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
