NSN 5342-01-069-3075 NM1021010250, NM102101-0250, 513111A314Z

Product Details | GROOVED CLAMP COUPLING

5342-01-069-3075 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.

Part Alternates: NM1021010250, NM102101-0250, 513111A314Z, 513111A-314-Z , 51311A314Z, 51311A-314-Z , 9187M73P140, 9187M73P40, 5342-01-069-3075, 01-069-3075, 5342010693075, 010693075

Hardware and Abrasives | Hardware, Weapon System

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	13 DEC 1978	01-069-3075	20319 ( COUPLING, CLAMP, GROOVED )

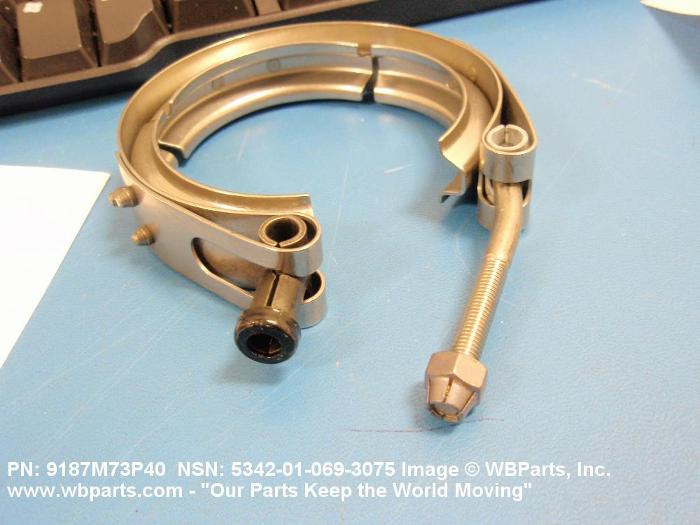

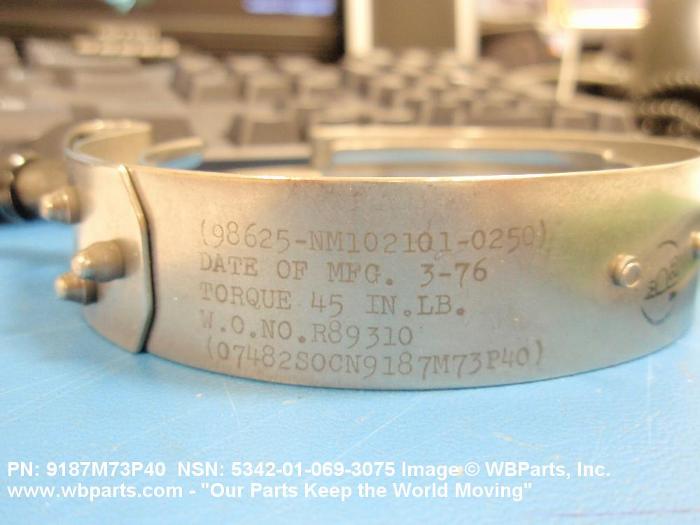

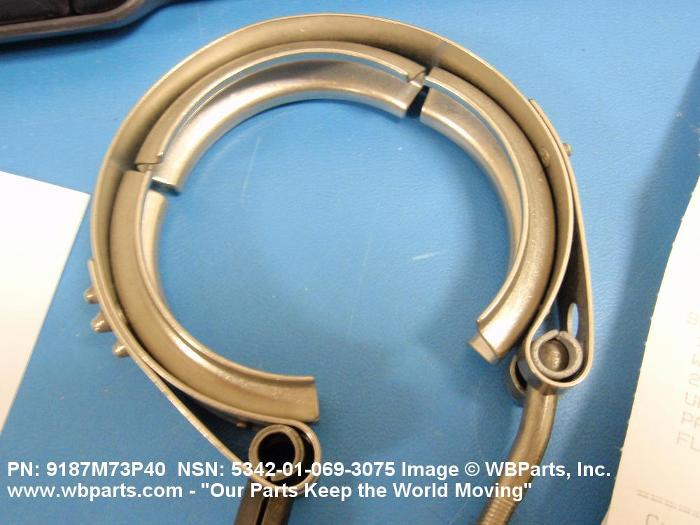

Drawings & Photos | NSN 5342-01-069-3075

Part Number	Request Date	QTY	Origin
5342-01-069-3075	2025-03-80	2	Netherlands
513111A-314-Z	2021-09-252	21	DIBBS
9187M73P140	2021-09-252	21	DIBBS
NM102101-0250	2021-09-252	21	DIBBS
513111A-314-Z	2021-09-251	16	DIBBS
9187M73P140	2021-09-251	16	DIBBS
NM102101-0250	2021-09-251	16	DIBBS
513111A-314-Z	2021-08-236	16	DIBBS
9187M73P140	2021-08-236	16	DIBBS
NM102101-0250	2021-08-236	16	DIBBS
513111A-314-Z	2020-11-309	10	DIBBS
9187M73P140	2020-11-309	10	DIBBS
NM102101-0250	2020-11-309	10	DIBBS
513111A-314-Z	2020-03-77	3	DIBBS
9187M73P140	2020-03-77	3	DIBBS
NM102101-0250	2020-03-77	3	DIBBS
513111A-314-Z	2020-02-57	4	DIBBS
9187M73P140	2020-02-57	4	DIBBS
NM102101-0250	2020-02-57	4	DIBBS
513111A-314-Z	2020-02-49	4	DIBBS
9187M73P140	2020-02-49	4	DIBBS
NM102101-0250	2020-02-49	4	DIBBS
513111A-314-Z	2019-10-291	8	DIBBS
9187M73P140	2019-10-291	8	DIBBS
NM102101-0250	2019-10-291	8	DIBBS
513111A-314-Z	2019-10-283	8	DIBBS
9187M73P140	2019-10-283	8	DIBBS
NM102101-0250	2019-10-283	8	DIBBS
513111A-314-Z	2019-09-259	2	DIBBS
9187M73P140	2019-09-259	2	DIBBS
NM102101-0250	2019-09-259	2	DIBBS
513111A-314-Z	2019-09-251	2	DIBBS
9187M73P140	2019-09-251	2	DIBBS
NM102101-0250	2019-09-251	2	DIBBS
513111A-314-Z	2019-06-177	2	DIBBS
9187M73P140	2019-06-177	2	DIBBS
NM102101-0250	2019-06-177	2	DIBBS
513111A-314-Z	2019-06-169	2	DIBBS
9187M73P140	2019-06-169	2	DIBBS
NM102101-0250	2019-06-169	2	DIBBS
9187M73P40	2018-05-135	3	FX
9187M73P40	2017-09-248	1	US
5342-01-069-3075	2015-12-356	6	DIBBS
5342-01-069-3075	2015-12-344	6	DIBBS
5342-01-069-3075	2014-12-349	11	DIBBS
5342-01-069-3075	2014-12-337	11	DIBBS
5342-01-069-3075	2014-09-272	3	DIBBS
5342-01-069-3075	2014-09-259	3	DIBBS
9187M73P40	2014-09-247	2	US
5342-01-069-3075	2014-08-236	2	DIBBS
5342-01-069-3075	2014-02-35	2	DIBBS
5342-01-069-3075	2014-01-05	2	DIBBS
5342-01-069-3075	2013-11-318	3	DIBBS
5342-01-069-3075	2013-10-293	2	DIBBS
5342-01-069-3075	2011-09-256	4	DIBBS
5342-01-069-3075	2011-06-181	5	DIBBS
5342-01-069-3075	2011-06-155	5	United States
5342-01-069-3075	2011-05-151	5	DIBBS
5342-01-069-3075	2011-04-102	3	DIBBS
5342-01-069-3075	2009-11-328	7	DIBBS
5342-01-069-3075	2009-09-244	6	DIBBS
5342-01-069-3075	2009-08-243	2	United States
5342-01-069-3075	2009-06-155	2	DIBBS
5342-01-069-3075	2009-01-14	2	DIBBS

Cross Reference | NSN 5342-01-069-3075

Part Number	Cage Code	Manufacturer
513111A-314-Z	14242	VOSS INDUSTRIES, INC.
51311A-314-Z	14242	VOSS INDUSTRIES, INC.
9187M73P140	07482	GENERAL ELECTRIC COMPANY DBA GE
9187M73P140	8W928	EATON CORPORATION DBA EATON QUIP
9187M73P140	R1120	SATAIR A/S
9187M73P40	00624	EATON CORPORATION DBA AEROSPACE DIV
9187M73P40	07482	GENERAL ELECTRIC COMPANY DBA GE
9187M73P40	R1120	SATAIR A/S
NM102101-0250	8W928	EATON CORPORATION DBA EATON QUIP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5342-01-069-3075

Compare

Related Products | NSN 5342-01-069-3075

5342-01-069-3076, 5342-01-069-3077, 5342-01-069-3088, 5342-01-069-4020, 5342-01-069-4052

Technical Data | NSN 5342-01-069-3075

Characteristic	Specifications
CROSS-SECTIONAL SHAPE STYLE	1 GROOVED RETAINER
RETAINER THICKNESS	0.047 INCHES MINIMUM AND 0.053 INCHES MAXIMUM
RETAINER WIDTH	0.690 INCHES MINIMUM AND 0.780 INCHES MAXIMUM
ROOT WIDTH	0.212 INCHES NOMINAL
BAND THICKNESS	0.047 INCHES MINIMUM AND 0.053 INCHES MAXIMUM
BAND WIDTH	0.860 INCHES MINIMUM AND 0.900 INCHES MAXIMUM
HEIGHT	0.271 INCHES MINIMUM AND 0.291 INCHES MAXIMUM
INCLUDED ANGLE IN DEG	40.0
MATERIAL AND LOCATION	STEEL, AMS 5596 RETAINER IRON ALLOY, AMS 5732, COMP 660 BOLT
SHAPE	ROUND
INSIDE DIAMETER	3.062 INCHES NOMINAL
LATCH STYLE	31 SINGLE
NUT TYPE	SELF-LOCKING HEXAGON
SEGMENT QUANTITY	3
SEALING INNER LINER	NOT INCLUDED
TEMP RATING	NOT RATED
MAXIMUM LOAD RATING	NOT RATED
MANUFACTURERS CODE	07482
MFR SOURCE CONTROLLING REFERENCE	9187M73P140

Restrictions/Controls & Freight Information | NSN 5342-01-069-3075

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5342-01-069-3075

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
