NSN 5342-01-147-7284 LE26100180350, LE261-0018-0350, 2320350H
Product Details | GROOVED CLAMP COUPLING
5342-01-147-7284 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: LE26100180350, LE261-0018-0350, 2320350H, 2320-350H, 5342-01-147-7284, 01-147-7284, 5342011477284, 011477284
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 FEB 1983 | 01-147-7284 | 20319 ( COUPLING, CLAMP, GROOVED ) |

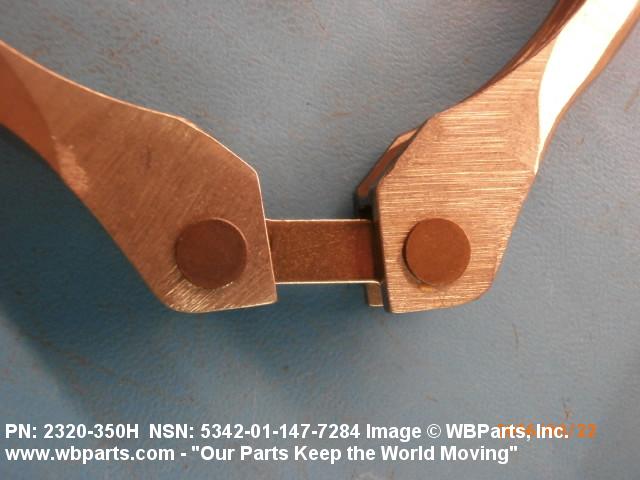

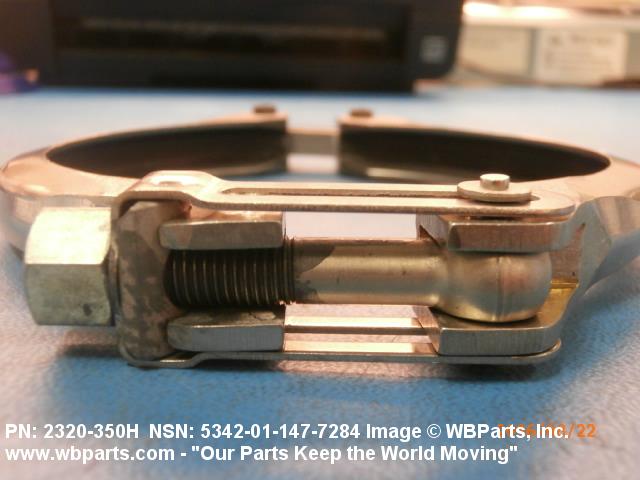

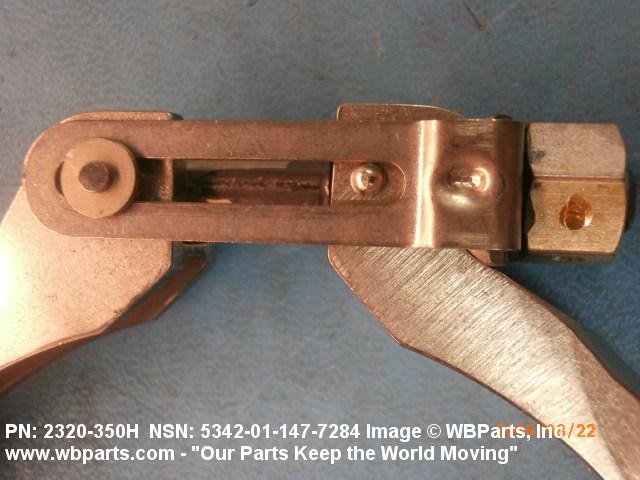

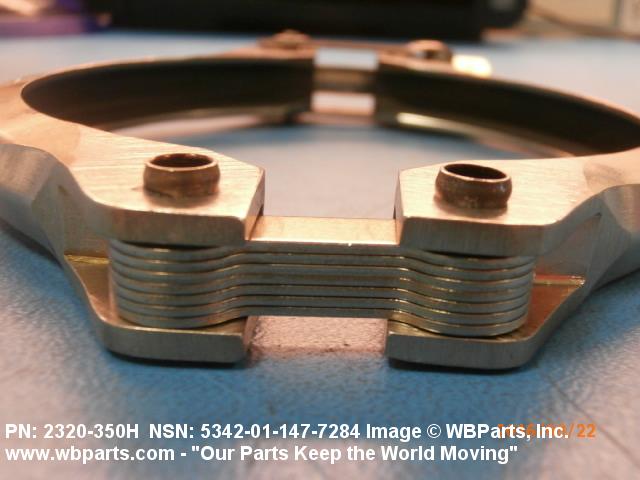

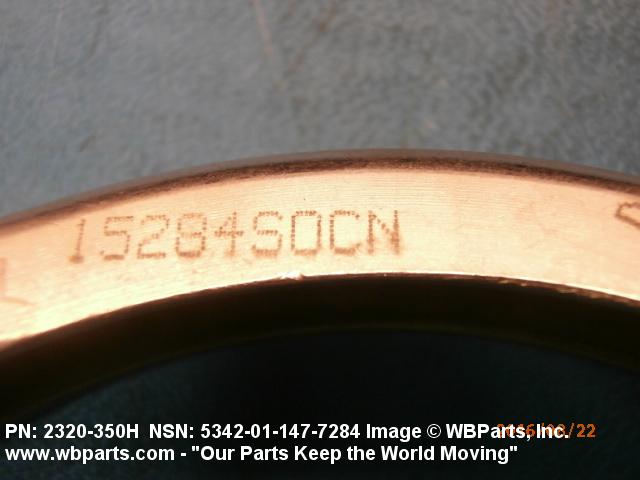

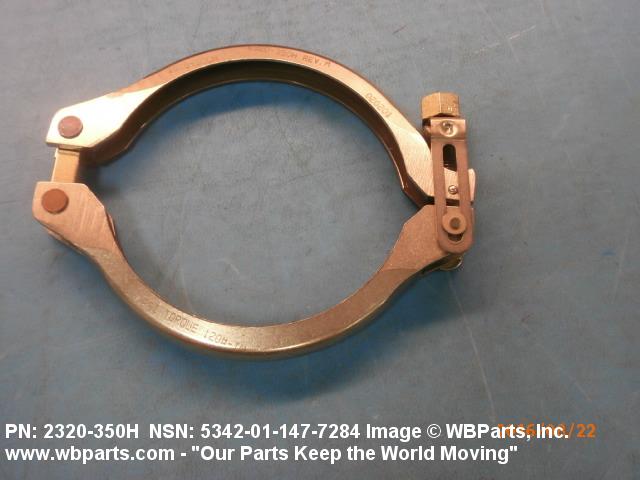

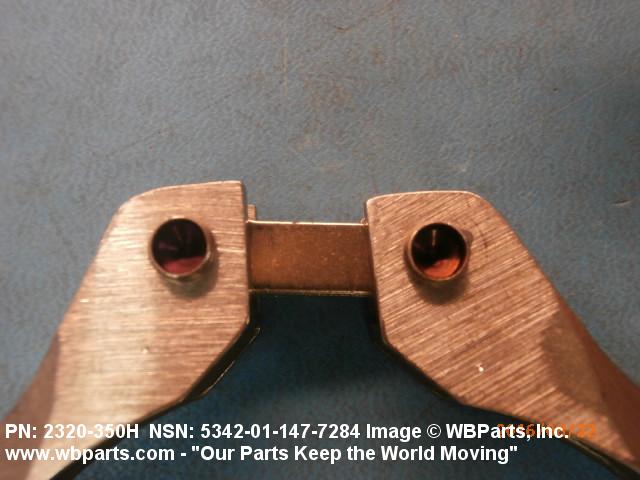

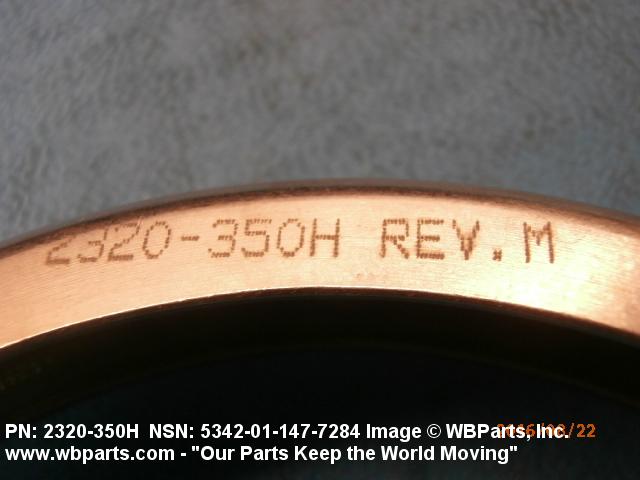

Drawings & Photos | NSN 5342-01-147-7284

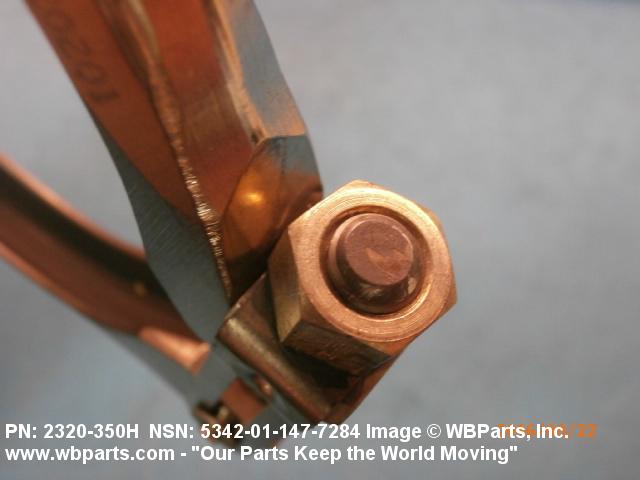

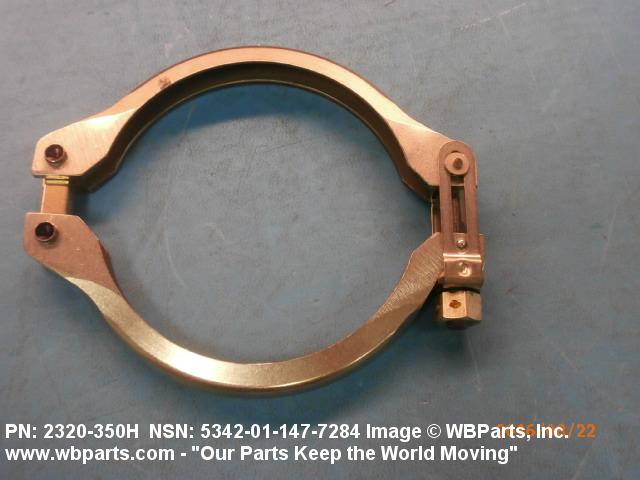

Demand History | NSN 5342-01-147-7284
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2320-350H | 2021-03-73 | 5 | DIBBS |
| 5342-01-147-7284 | 2018-09-253 | 12 | DIBBS |
| 5342-01-147-7284 | 2018-04-99 | 16 | DIBBS |
| 5342-01-147-7284 | 2017-11-325 | 8 | DIBBS |
| 2320350H | 2016-08-223 | 20 | United States |
| 2320350H | 2016-08-223 | 10 | United States |
| 5342-01-147-7284 | 2016-05-138 | 26 | DIBBS |
| 5342-01-147-7284 | 2015-04-104 | 50 | DIBBS |
| 5342-01-147-7284 | 2015-03-69 | 17 | DIBBS |
| 5342-01-147-7284 | 2015-03-60 | 24 | DIBBS |
| 5342-01-147-7284 | 2011-05-123 | 75 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-147-7284
Related Products | NSN 5342-01-147-7284
Technical Data | NSN 5342-01-147-7284
| Characteristic | Specifications |
|---|---|
| SHAPE | ROUND |

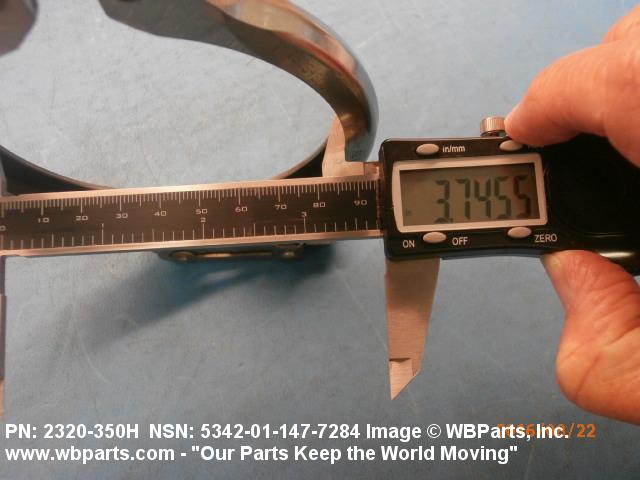

| INSIDE DIAMETER | 3.740 INCHES NOMINAL |
| LATCH STYLE | 30 SINGLE |
| NUT TYPE | PLAIN HEXAGON |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 1215.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 15284 |
| DESIGN CONTROL REFERENCE | 2320-350H |
Restrictions/Controls & Freight Information | NSN 5342-01-147-7284
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
