NSN 5342-01-265-9125 B45831, B4583-1, 01-265-9125
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-01-265-9125 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: B45831, B4583-1, 5342-01-265-9125, 01-265-9125, 5342012659125, 012659125
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 OCT 1987 | 01-265-9125 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

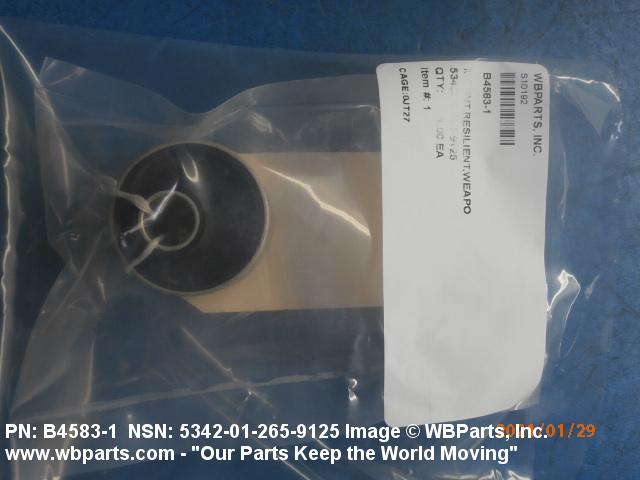

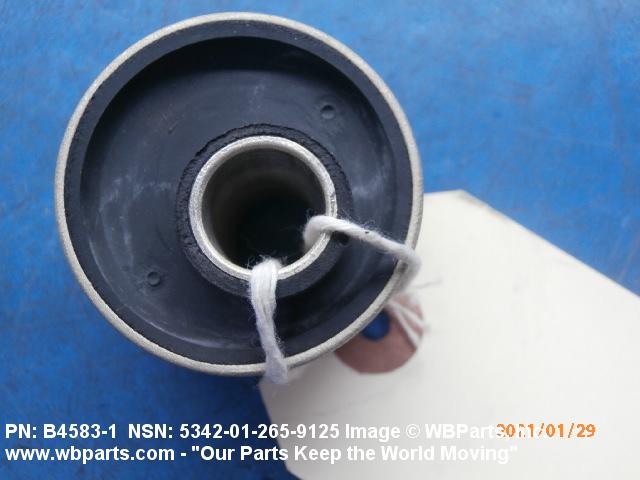

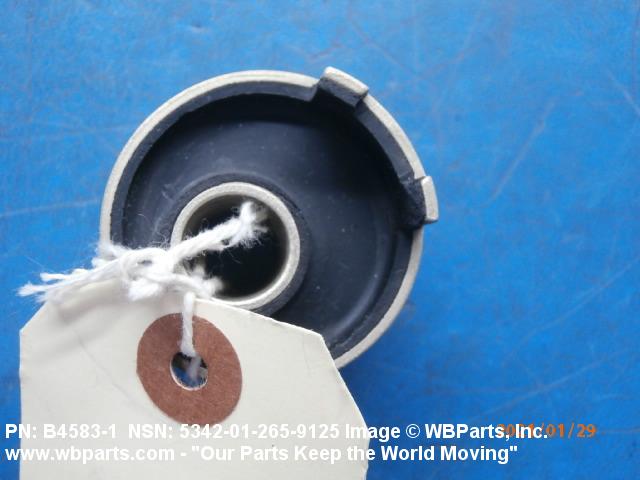

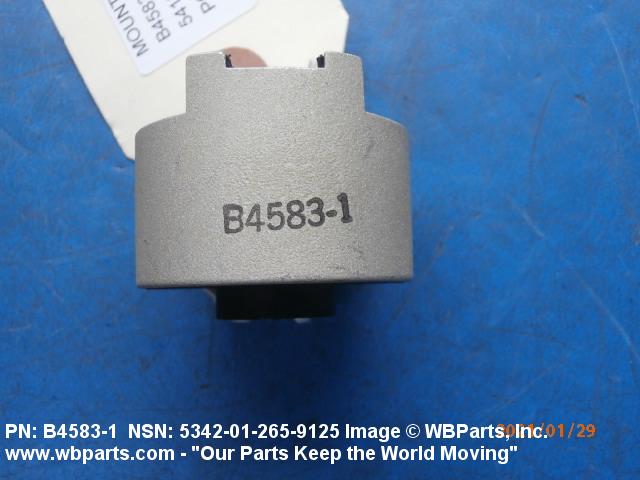

Drawings & Photos | NSN 5342-01-265-9125
Demand History | NSN 5342-01-265-9125
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B45831 | 2025-03-87 | 4 | Australia |
| B45831 | 2023-08-233 | 2 | US |
| 5342-01-265-9125 | 2022-06-154 | 4 | United States |
| B45831 | 2021-01-07 | 1 | United States |
| B45831 | 2020-12-346 | 4 | United States |
| 5342-01-265-9125 | 2020-11-309 | 8 | US |
| 5342-01-265-9125 | 2019-11-329 | 20 | United States |
| 5342-01-265-9125 | 2017-12-340 | 306 | DIBBS |
| 5342-01-265-9125 | 2016-11-306 | 1 | DIBBS-RFPs |
| 5342-01-265-9125 | 2013-10-281 | 2 | United States |
| 5342-01-265-9125 | 2011-12-343 | 275 | DIBBS |
| 5342-01-265-9125 | 2011-12-342 | 275 | DIBBS |
| 5342-01-265-9125 | 2011-10-301 | 109 | DIBBS |
| 5342-01-265-9125 | 2011-10-278 | 195 | DIBBS |
| 5342-01-265-9125 | 2011-09-259 | 123 | DIBBS |
| 5342-01-265-9125 | 2011-05-147 | 364 | DIBBS |
| 5342-01-265-9125 | 2011-04-91 | 805 | DIBBS |
Cross Reference | NSN 5342-01-265-9125
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B4583-1 | 54184 | ARA INC DBA AEROSPACE RESEARCH ASSOCIATES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-265-9125
Related Products | NSN 5342-01-265-9125
Technical Data | NSN 5342-01-265-9125
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER,ASTM D2000,GRADE 3BA410A14B1320F19K31L14Z |
| NONMETALLIC HARDNESS RATING | 35.0 MINIMUM SHORE DUROMETER A AND 45.0 MAXIMUM SHORE DUROMETER A |
| RIGID MEMBER MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-200/8, ALLOY 6061 TUBE AND ALUMINUM,WW-T-700/6,ALLOY 6061 TUBE |
| RIGID MEMBER SURFACE TREATMENT AND LOCATION | CHROMATE, MIL-C-5541 TUBE |

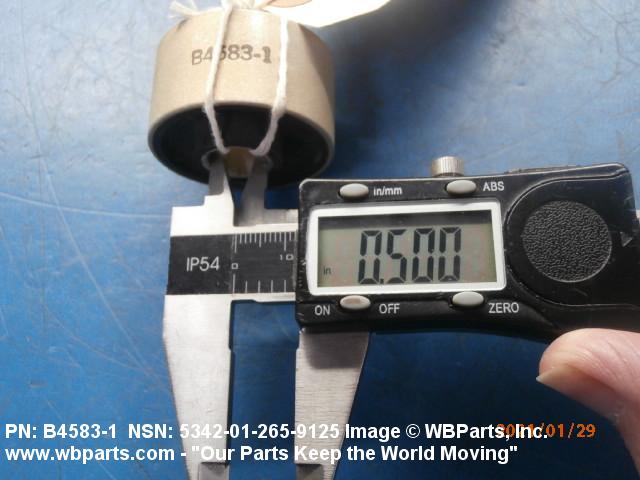

| INSIDE DIAMETER | 0.500 INCHES NOMINAL |

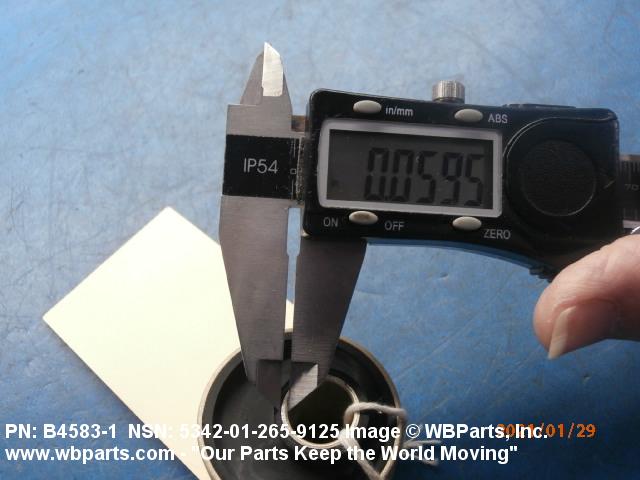

| FLANGE THICKNESS | 0.058 INCHES NOMINAL |

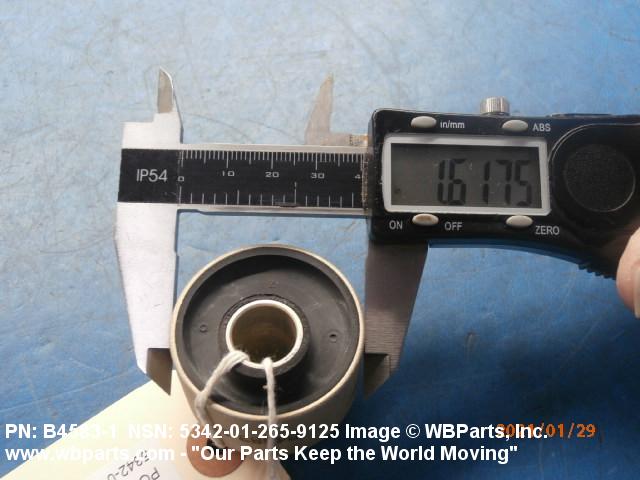

| MAJOR OUTSIDE DIAMETER | 1.625 INCHES NOMINAL |

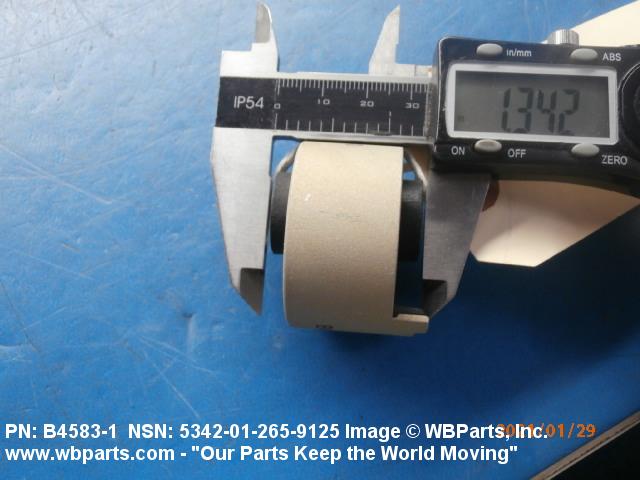

| HEIGHT | 1.380 INCHES NOMINAL |
| MAXIMUM LOAD RATING | NOT RATED |
| SPECIAL FEATURES | ADHESIVE AS REQUIRED |
| MANUFACTURERS CODE | 54184 |

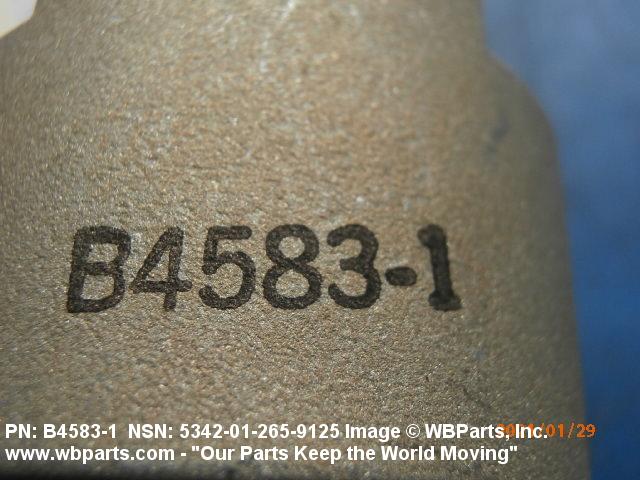

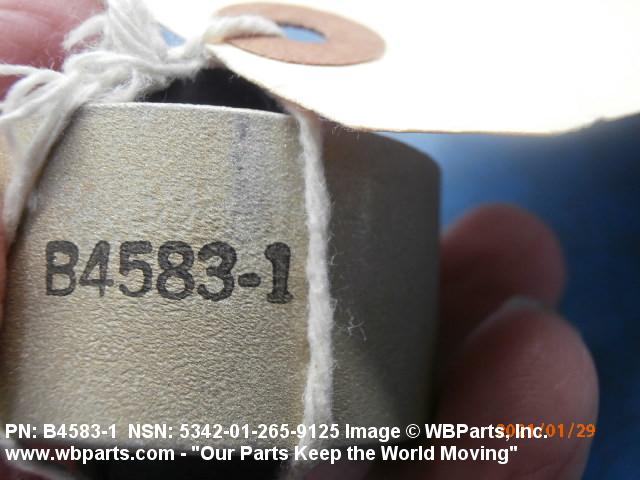

| DESIGN CONTROL REFERENCE | B4583-1 |
Restrictions/Controls & Freight Information | NSN 5342-01-265-9125
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Q | 36 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-265-9125
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
