NSN 5342-01-314-3609 810-4714432 PIECE 607, 8104714432PIECE607, 01-314-3609
Product Details | SECT PIPE BRACKET
5342-01-314-3609
Part Alternates: 810-4714432 PIECE 607, 8104714432PIECE607, 5342-01-314-3609, 01-314-3609, 5342013143609, 013143609
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JAN 1990 | 01-314-3609 | 77777 ( ) |

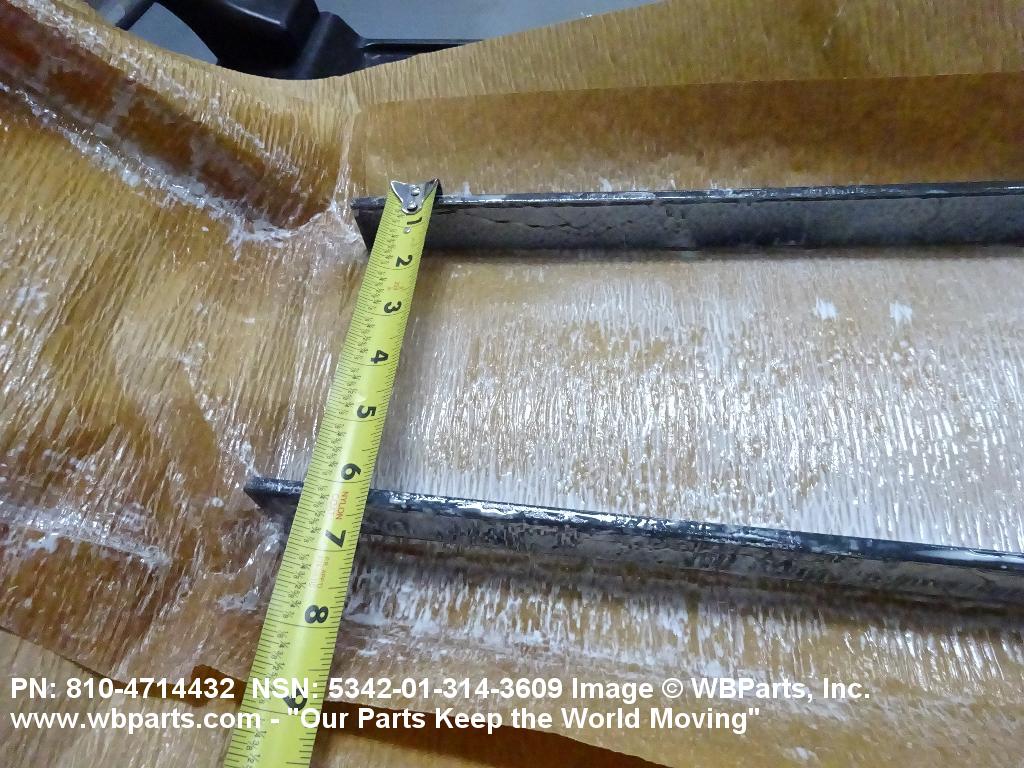

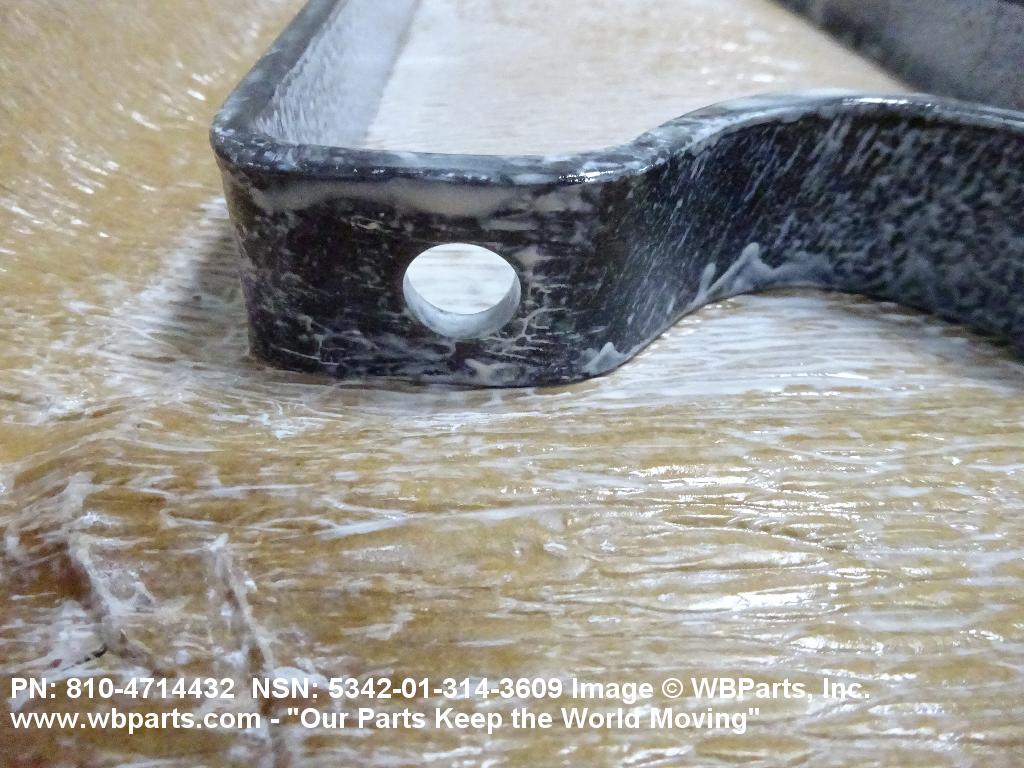

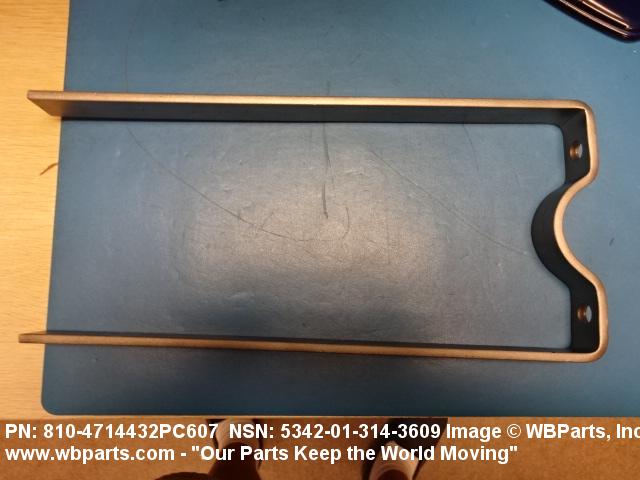

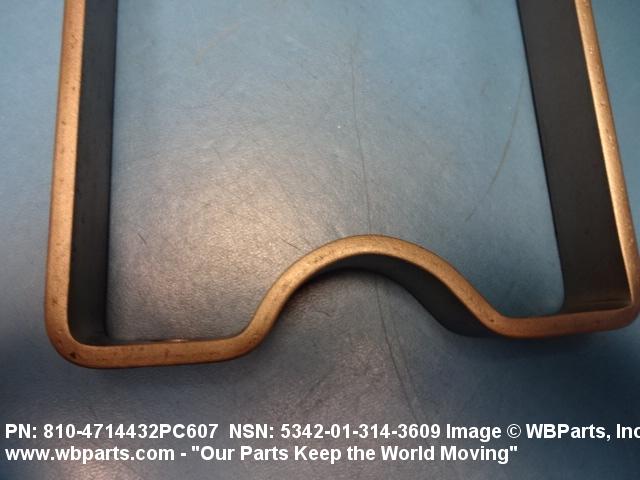

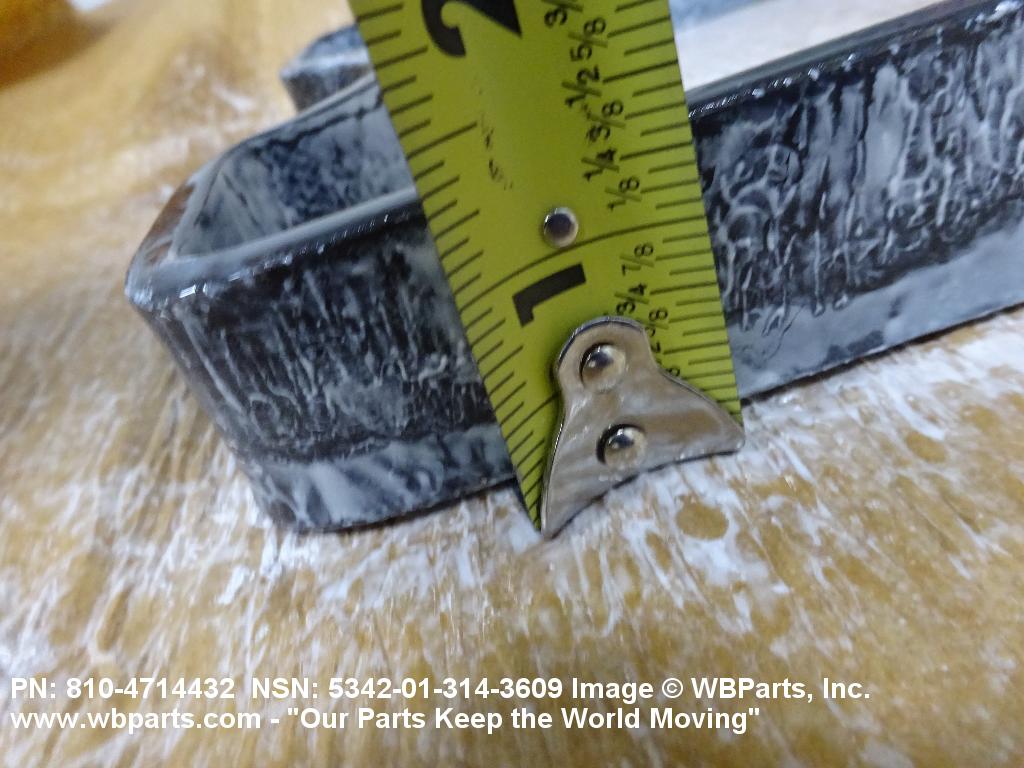

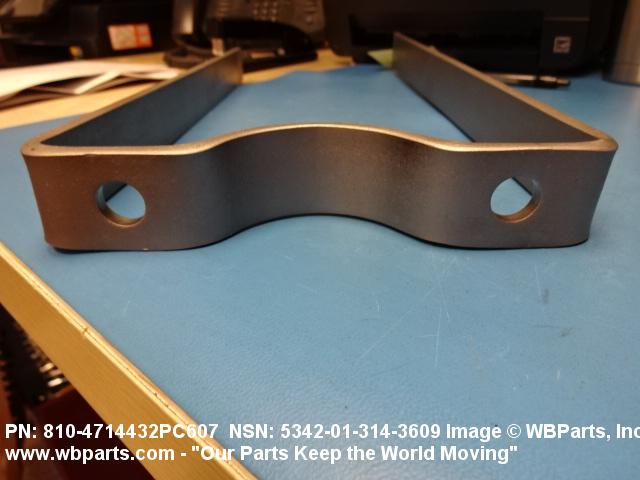

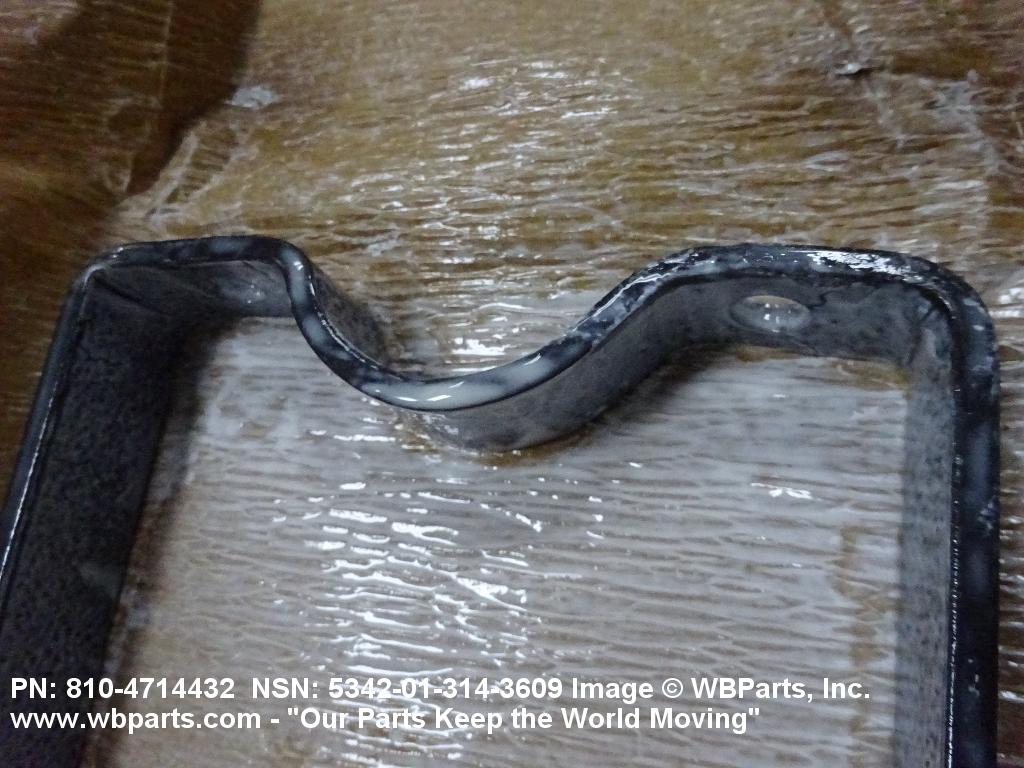

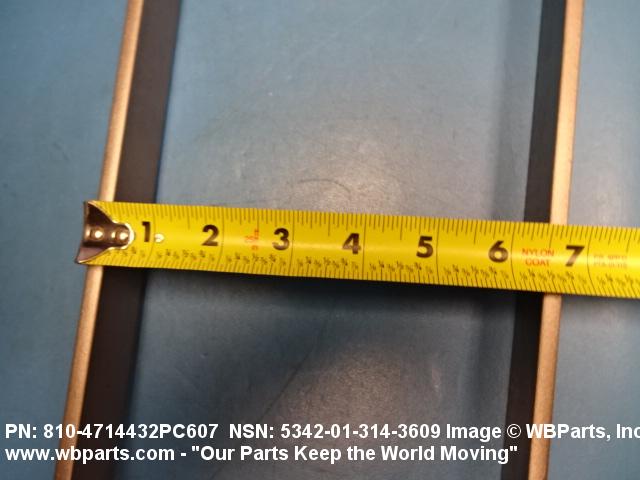

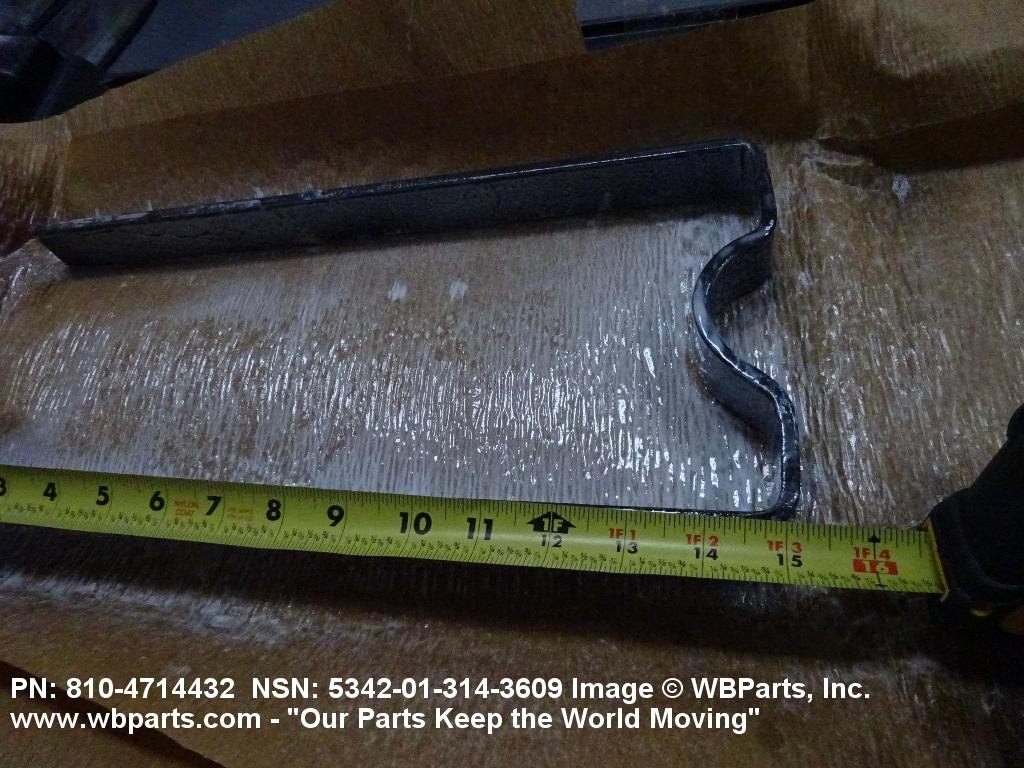

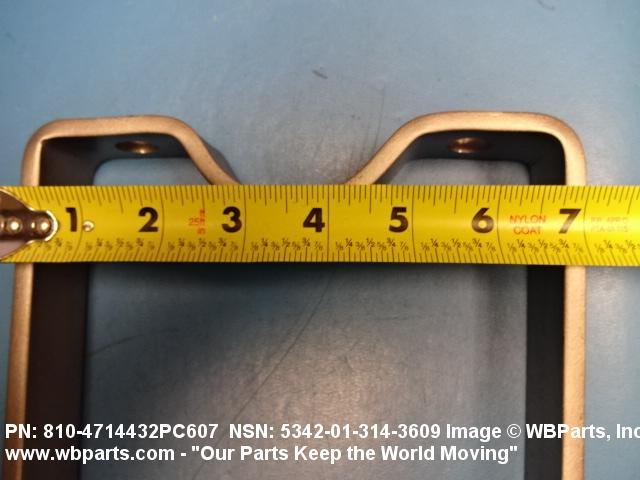

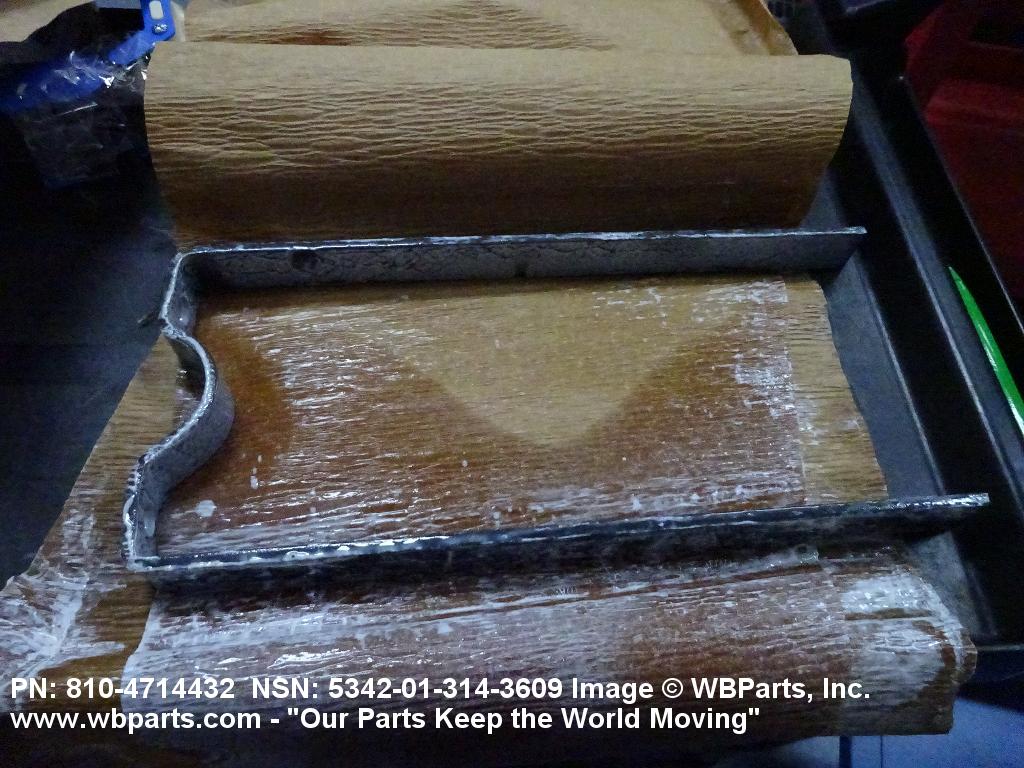

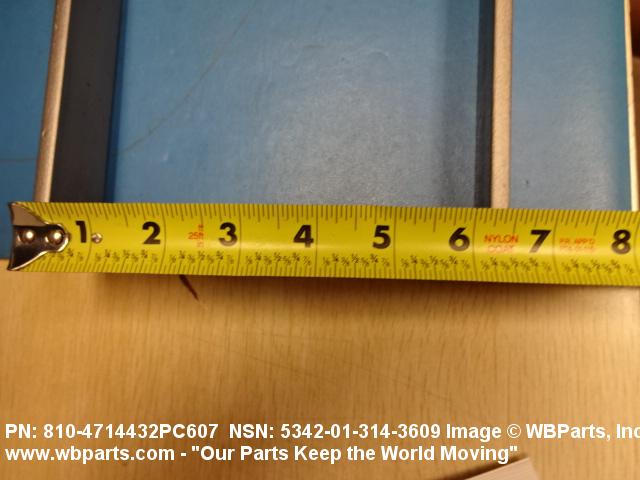

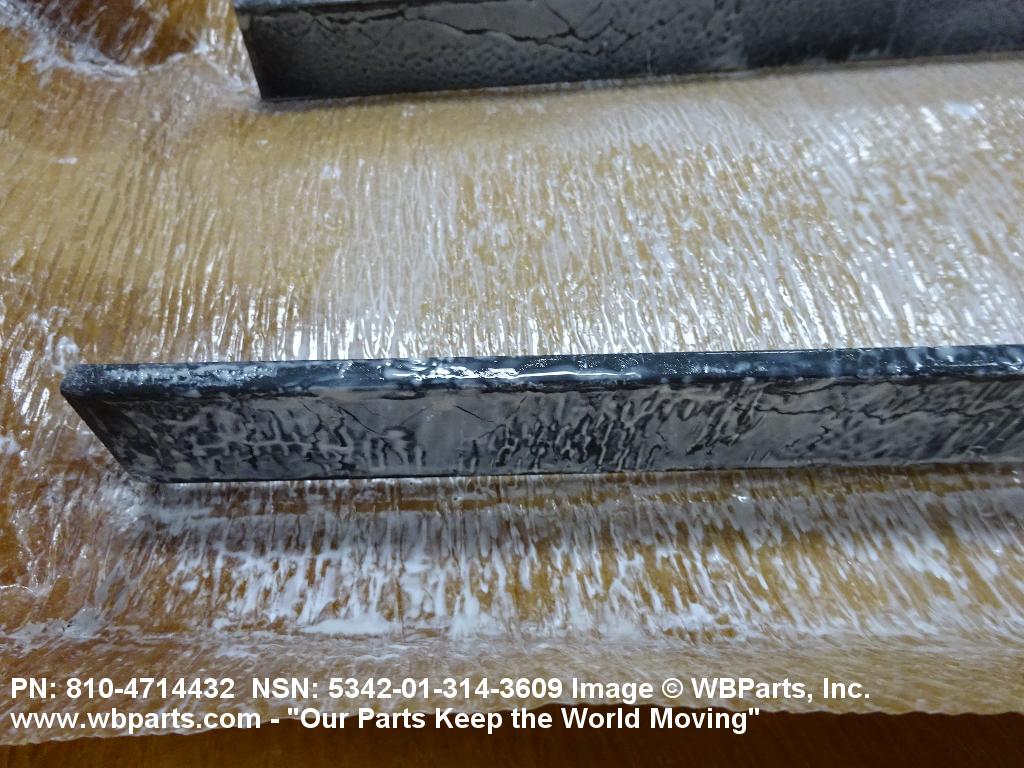

Drawings & Photos | NSN 5342-01-314-3609
Demand History | NSN 5342-01-314-3609
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-314-3609 | 2025-01-09 | 20 | United States |
| 5342-01-314-3609 | 2024-12-344 | 20 | US |
| 5342-01-314-3609 | 2023-03-75 | 10 | DIBBS |
| 5342-01-314-3609 | 2022-08-223 | 2 | United States |
| 5342-01-314-3609 | 2022-02-37 | 2 | DIBBS |
| 5342-01-314-3609 | 2021-08-239 | 10 | DIBBS |
| 5342-01-314-3609 | 2021-08-222 | 10 | DIBBS |
| 5342-01-314-3609 | 2020-06-166 | 10 | DIBBS |
| 5342-01-314-3609 | 2019-09-246 | 19 | DIBBS |
| 5342-01-314-3609 | 2019-08-232 | 19 | DIBBS |
| 5342-01-314-3609 | 2018-10-295 | 11 | United States |
| 5342-01-314-3609 | 2018-06-180 | 11 | DIBBS |
| 5342-01-314-3609 | 2018-06-172 | 11 | DIBBS |
| 5342-01-314-3609 | 2018-01-06 | 8 | DIBBS |
| 5342-01-314-3609 | 2017-12-362 | 8 | DIBBS |
| 5342-01-314-3609 | 2015-02-41 | 28 | DIBBS |
| 5342-01-314-3609 | 2014-05-134 | 1 | DIBBS |
| 5342-01-314-3609 | 2014-05-126 | 1 | DIBBS |
| 5342-01-314-3609 | 2012-05-150 | 2 | DIBBS |
Cross Reference | NSN 5342-01-314-3609
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 810-4714432 PIECE 607 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-314-3609
Related Products | NSN 5342-01-314-3609
Technical Data | NSN 5342-01-314-3609
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL,MIL-S-22698,GR A; 6.875 IN. MIN LG; 1.250 IN. W; 0.250 IN. THK; TWO MTG HOLES,0.562 IN. DIA,4.500 IN. DIST BTWN MTG HOLE CENTERS; 2.000 IN. IPS |
Restrictions/Controls & Freight Information | NSN 5342-01-314-3609
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-314-3609
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
