NSN 5342-01-352-8177 DAA3122P019107, DAA3122P019-107, 01-352-8177
Product Details | GROOVED CLAMP COUPLING
5342-01-352-8177 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: DAA3122P019107, DAA3122P019-107, 5342-01-352-8177, 01-352-8177, 5342013528177, 013528177
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 JAN 1992 | 01-352-8177 | 20319 ( COUPLING, CLAMP, GROOVED ) |
Drawings & Photos | NSN 5342-01-352-8177
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-352-8177
Technical Data | NSN 5342-01-352-8177
| Characteristic | Specifications |
|---|---|

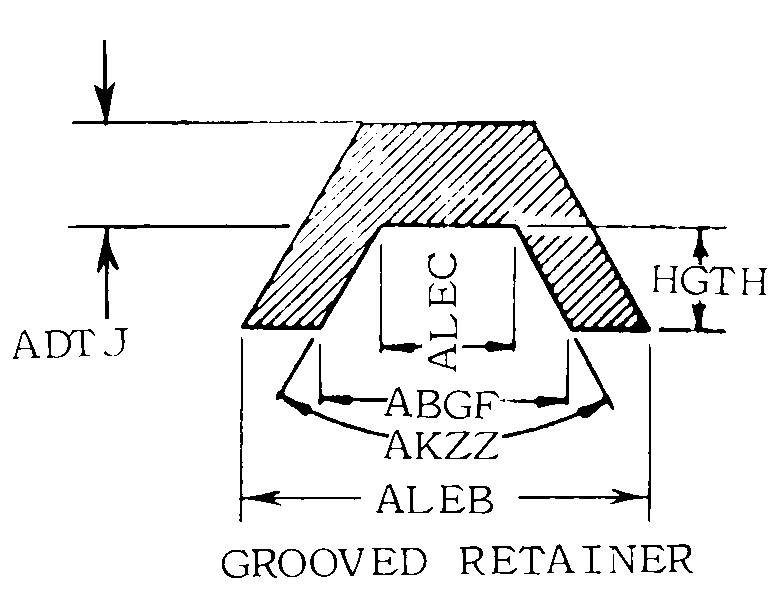

| CROSS-SECTIONAL SHAPE STYLE | 10A GROOVED RETAINER |
| RETAINER THICKNESS | 0.110 INCHES NOMINAL |
| RETAINER WIDTH | 0.540 INCHES NOMINAL |
| ROOT WIDTH | 0.180 INCHES NOMINAL |
| HEIGHT | 0.290 INCHES NOMINAL |
| INCLUDED ANGLE IN DEG | 38.5 |
| MATERIAL AND LOCATION | STEEL,AMS 5604,17-4PH BAND IRON ALLOY, AMS 5737, COMP 660 T BOLT |
| SURFACE TREATMENT AND LOCATION | PASSIVATED BAND |
| SHAPE | OBLONG |
| INSIDE LENGTH | 12.350 INCHES NOMINAL |
| INSIDE WIDTH | 6.100 INCHES NOMINAL |
| LATCH STYLE | 57 DOUBLE |
| NUT TYPE | SELF-LOCKING HEXAGON |
| SEGMENT QUANTITY | 2 |
| SEALING INNER LINER | INCLUDED |
| TEMP RATING | -81.0 DEG FAHRENHEIT AND 198.0 DEG FAHRENHEIT |
| MAXIMUM LOAD RATING | NOT RATED |
| MANUFACTURERS CODE | 80378 |
| MFR SOURCE CONTROLLING REFERENCE | DAA3122P019-107 |
Restrictions/Controls & Freight Information | NSN 5342-01-352-8177
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
