NSN 5342-01-481-2224 NH100687910, NH1006879-10, 15J48
Product Details | GROOVED CLAMP COUPLING
5342-01-481-2224 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: NH100687910, NH1006879-10, 15J48 , 15J4812, 15J48-12 , 30147, 30-147, 3014712, 30-147-12, 41212AB, 5342-01-481-2224, 01-481-2224, 5342014812224, 014812224
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 DEC 2000 | 01-481-2224 | 20319 ( COUPLING, CLAMP, GROOVED ) |
Drawings & Photos | NSN 5342-01-481-2224
Demand History | NSN 5342-01-481-2224
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-481-2224 | 2025-12-335 | 2 | TW |
| 5342-01-481-2224 | 2025-02-43 | 2 | TW |
| 5342-01-481-2224 | 2018-04-101 | 69 | DIBBS |
| 5342-01-481-2224 | 2018-04-93 | 69 | DIBBS |
| 5342-01-481-2224 | 2018-02-50 | 45 | DIBBS |
| 5342-01-481-2224 | 2018-02-39 | 45 | DIBBS |
| 5342-01-481-2224 | 2017-08-221 | 17 | DIBBS |
| 5342-01-481-2224 | 2016-06-159 | 38 | DIBBS |
| 5342-01-481-2224 | 2016-05-124 | 2 | Taiwan |
| 5342-01-481-2224 | 2015-02-40 | 49 | DIBBS |
| 5342-01-481-2224 | 2012-12-366 | 62 | DIBBS |
| 30147 | 2011-12-353 | 2 | US |
| 5342-01-481-2224 | 2011-10-278 | 27 | DIBBS |
| 5342-01-481-2224 | 2009-09-247 | 27 | DIBBS |
Cross Reference | NSN 5342-01-481-2224
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15J48-12 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| 30-147 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 30-147-12 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 41212AB | 94581 | V I J CORPORATION DBA NUCO |
| NH1006879-10 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| NH1006879-10 | 8W928 | EATON CORPORATION DBA EATON QUIP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-481-2224
Technical Data | NSN 5342-01-481-2224
| Characteristic | Specifications |
|---|---|

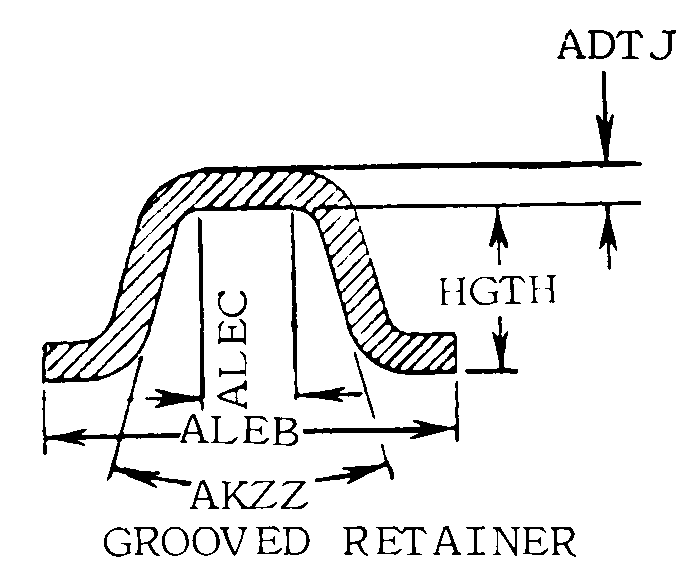

| CROSS-SECTIONAL SHAPE STYLE | 1A GROOVED RETAINER |
| RETAINER THICKNESS | 0.050 INCHES NOMINAL |
| RETAINER WIDTH | 0.750 INCHES NOMINAL |
| ROOT WIDTH | 0.202 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| HEIGHT | 0.190 INCHES MINIMUM AND 0.291 INCHES MAXIMUM |
| INCLUDED ANGLE IN DEG | 45.0 |
| MATERIAL AND LOCATION | TITANIUM, MIL-T-9046, TYPE 1, COMP B RETAINER TITANIUM, MIL-T-9046, TYPE 1, COMP B STRAP IRON ALLOY, AMS 5737, COMP 660 T BOLT STEEL, MIL-S-5059, TYPE 301 TRUNNION |
| SURFACE TREATMENT AND LOCATION | SILVER PLATED NUT |
| SHAPE | ROUND |
| INSIDE DIAMETER | 12.670 INCHES NOMINAL |
| LATCH STYLE | 31 SINGLE |
| NUT TYPE | PLAIN HEXAGON |
| DRILLED LOCKWIRE HOLE | NOT INCLUDED |
| SEGMENT QUANTITY | 1 |
| SEALING INNER LINER | NOT INCLUDED |
| TEMP RATING | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | NUT SILVER |
| III END ITEM IDENTIFICATION | AH-1W HELICOPTER |
Restrictions/Controls & Freight Information | NSN 5342-01-481-2224
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146190 | GUN CARRAIGES/MOUNTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-481-2224
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
