NSN 5342-01-499-0445 AS1895/4-225, AS18954225, 01-499-0445
Product Details | GROOVED CLAMP COUPLING
5342-01-499-0445 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: AS1895/4-225, AS18954225, 5342-01-499-0445, 01-499-0445, 5342014990445, 014990445
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JUL 2002 | 01-499-0445 | 20319 ( COUPLING, CLAMP, GROOVED ) |

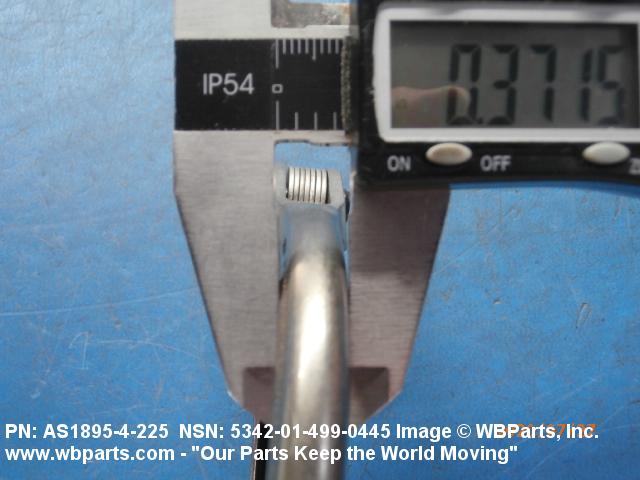

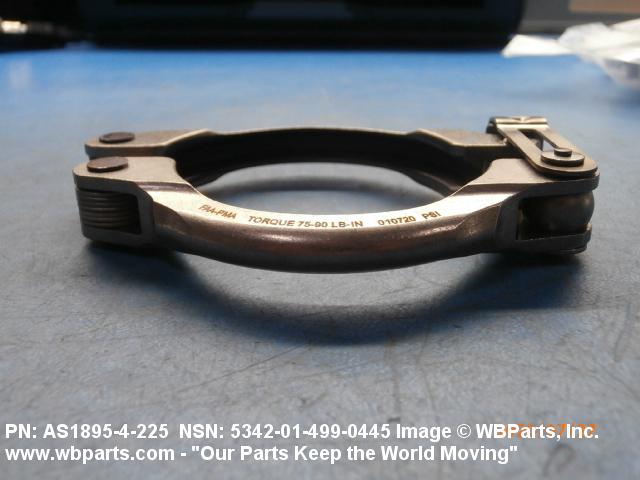

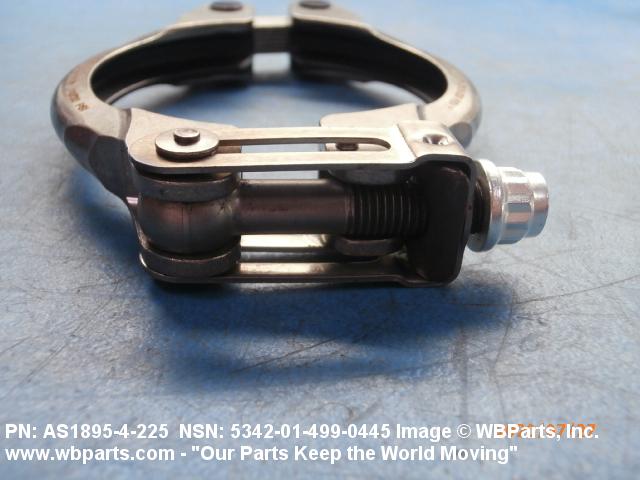

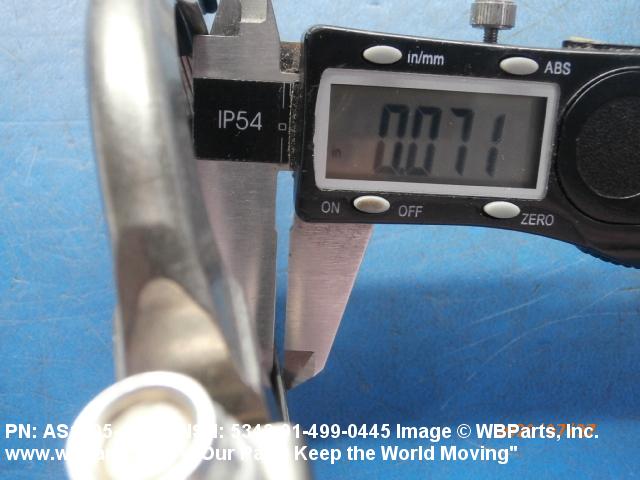

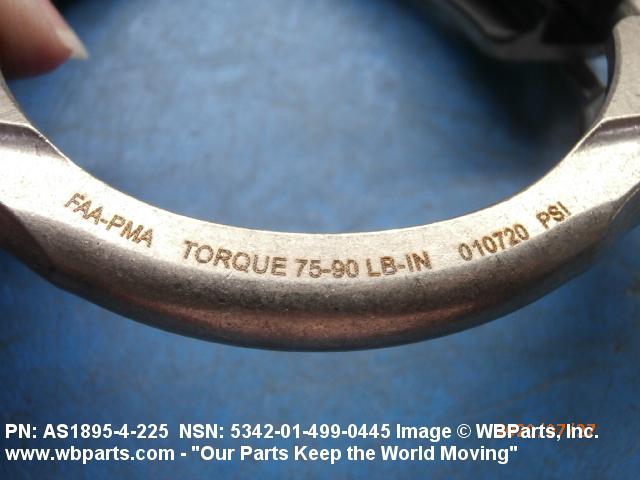

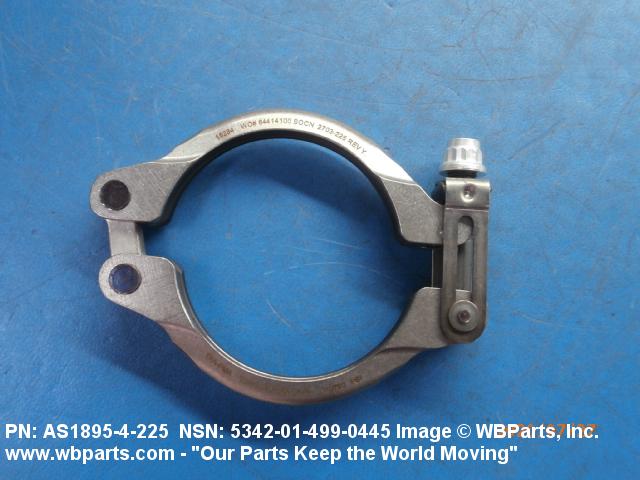

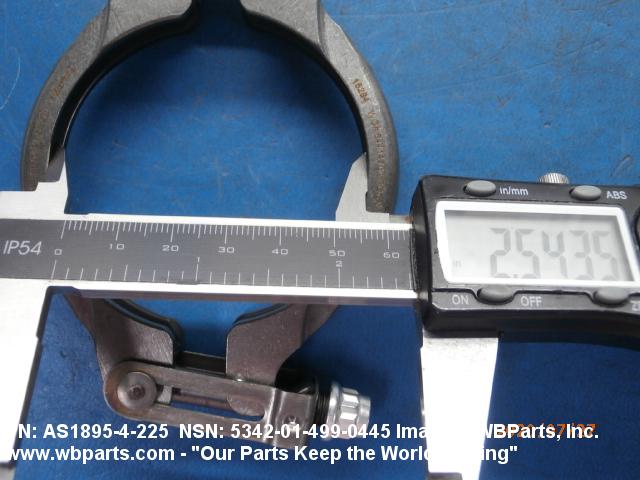

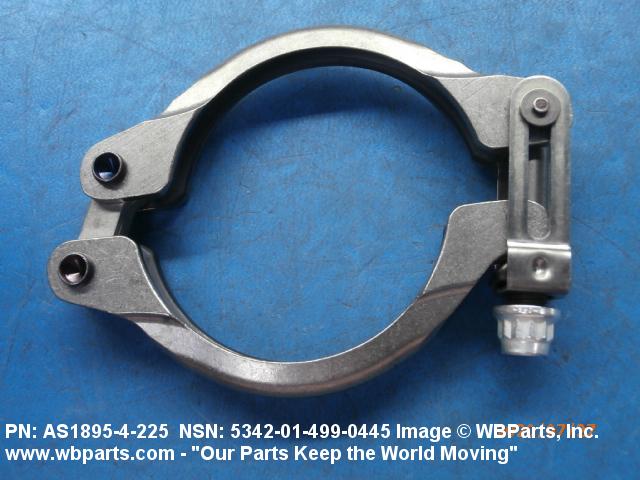

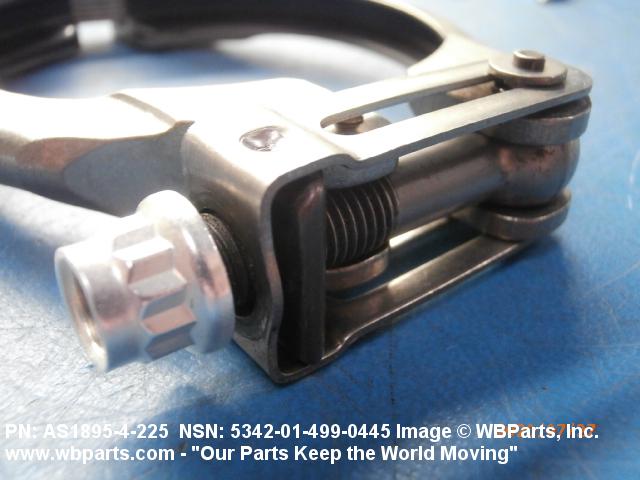

Drawings & Photos | NSN 5342-01-499-0445
Demand History | NSN 5342-01-499-0445
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS18954225 | 2025-04-115 | 10 | US |
| AS18954225 | 2023-10-304 | 10 | United States |
| AS18954225 | 2020-02-37 | 10 | us |
| AS1895/4-225 | 2020-01-10 | 8 | |
| 5342-01-499-0445 | 2020-01-09 | 8 | NECO |
| AS18954225 | 2019-08-217 | 6 | United States |
| AS18954225 | 2019-07-184 | 6 | US |
| AS18954225 | 2019-06-176 | 10 | US |
| AS18954225 | 2019-06-176 | 4 | US |
| 5342-01-499-0445 | 2019-06-176 | 5 | US |
| AS18954225 | 2019-05-141 | 4 | us |
| AS18954225 | 2019-05-137 | 4 | United States |
| AS18954225 | 2019-04-105 | 1 | United States |
| AS18954225 | 2019-04-93 | 1 | US |
| AS18954225 | 2014-06-156 | 2 | United States |
| AS18954225 | 2010-05-125 | 1 | US |
Cross Reference | NSN 5342-01-499-0445
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS1895/4-225 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-499-0445
Technical Data | NSN 5342-01-499-0445
| Characteristic | Specifications |
|---|---|
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | GE F414-400 ENGINE |
Restrictions/Controls & Freight Information | NSN 5342-01-499-0445
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-499-0445
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | SY | GE F414-400ENGINE |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
