NSN 5342-01-518-4511 AS1895/1, AS1895/1-350, AS18951
Product Details | GROOVED CLAMP COUPLING

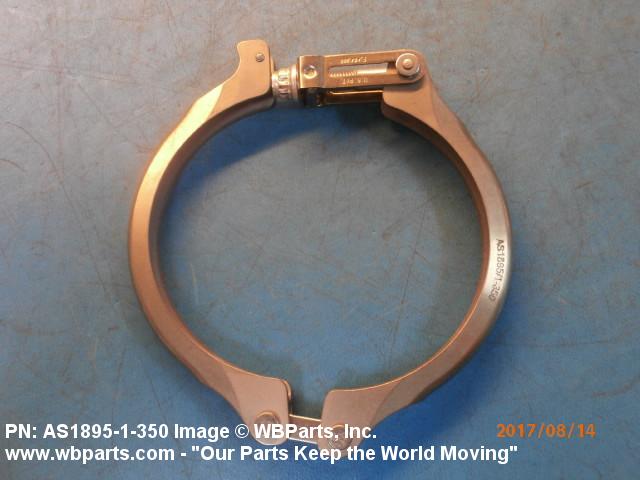

5342-01-518-4511 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: AS1895/1, AS1895/1-350, AS18951, AS18951350, 2166985937F690, 216-6985937F690, 2166985938F690, 216-6985938F690, 5342-01-518-4511, 01-518-4511, 5342015184511, 015184511
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAR 2004 | 01-518-4511 | 20319 ( COUPLING, CLAMP, GROOVED ) |

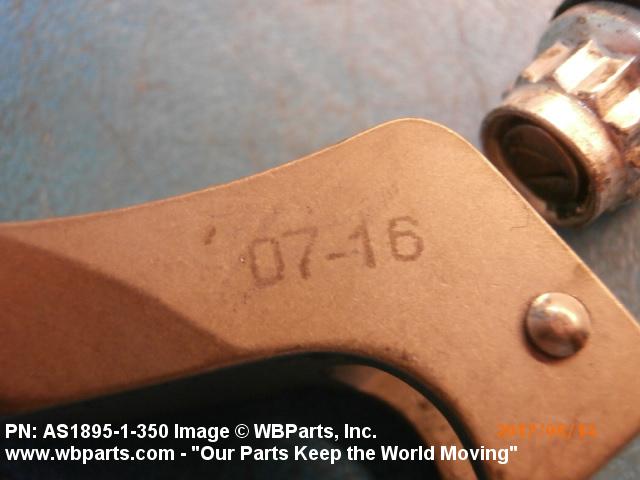

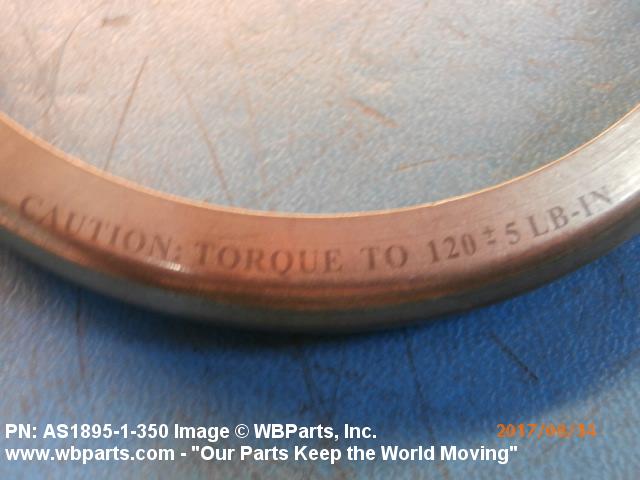

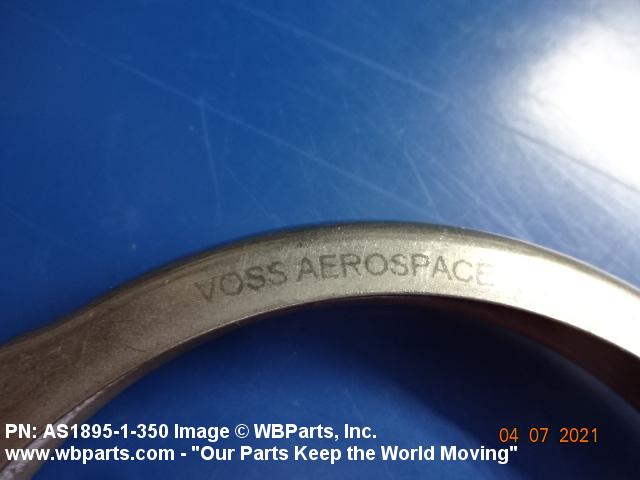

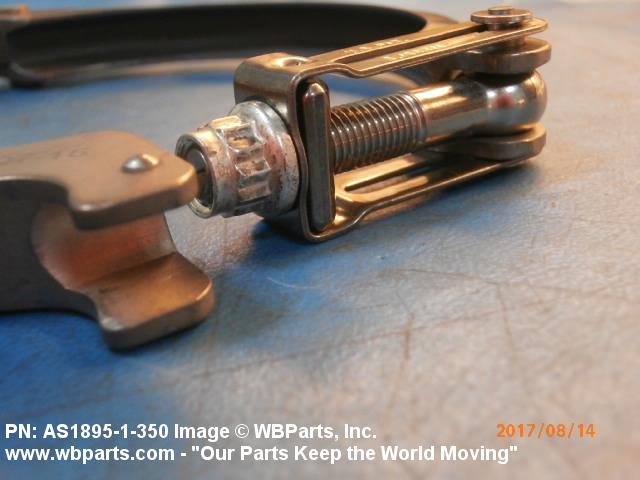

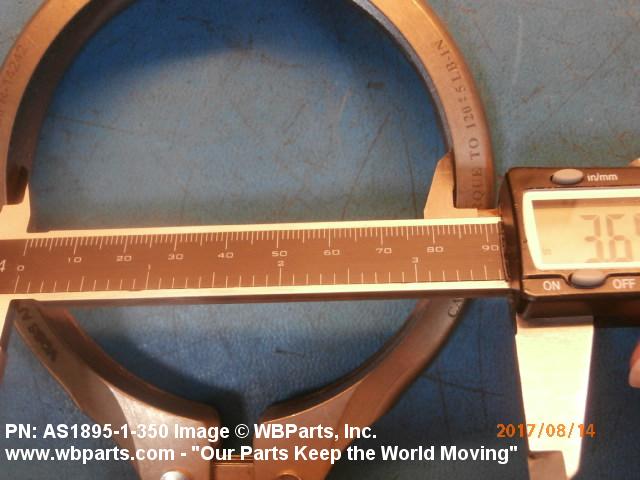

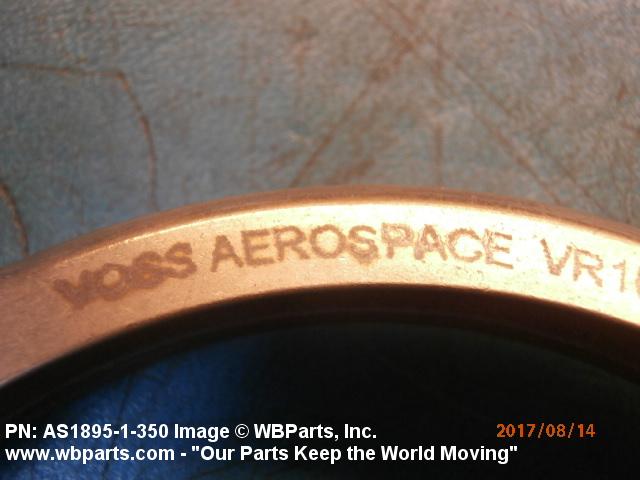

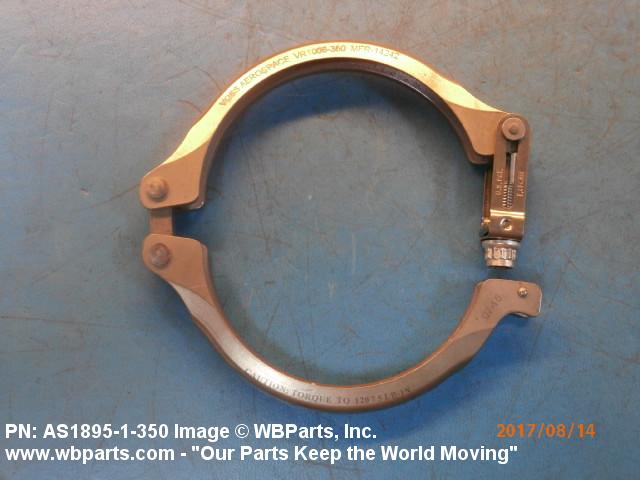

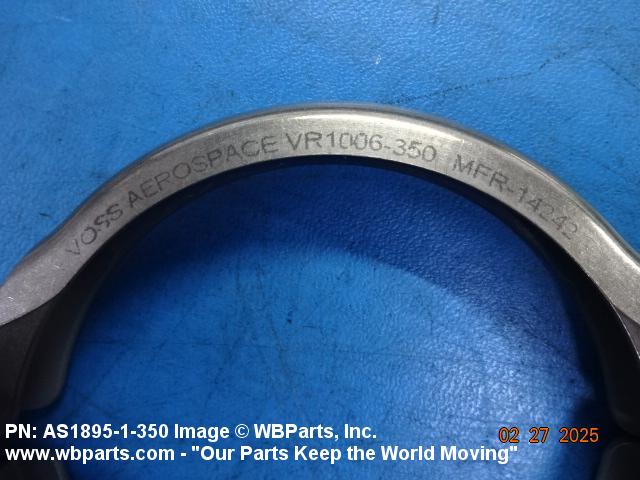

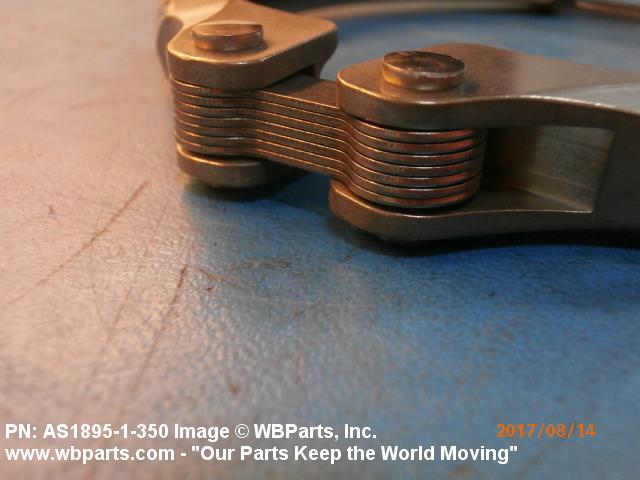

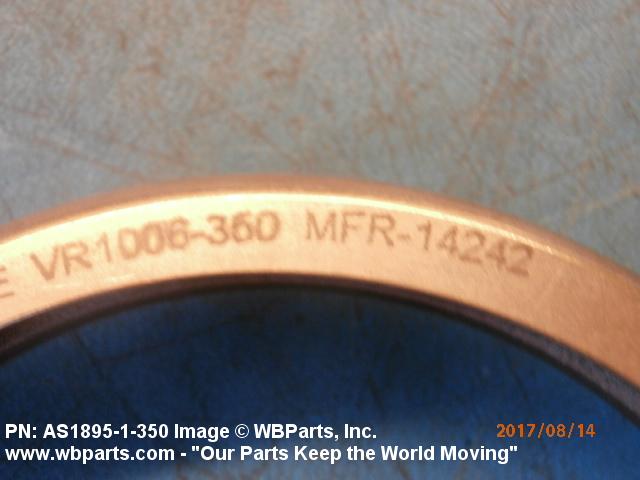

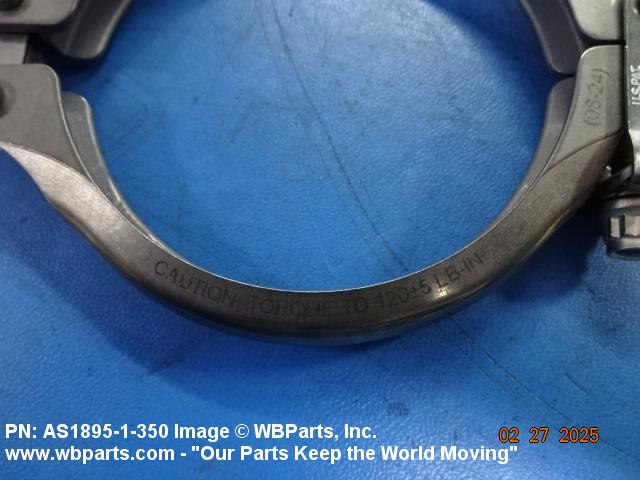

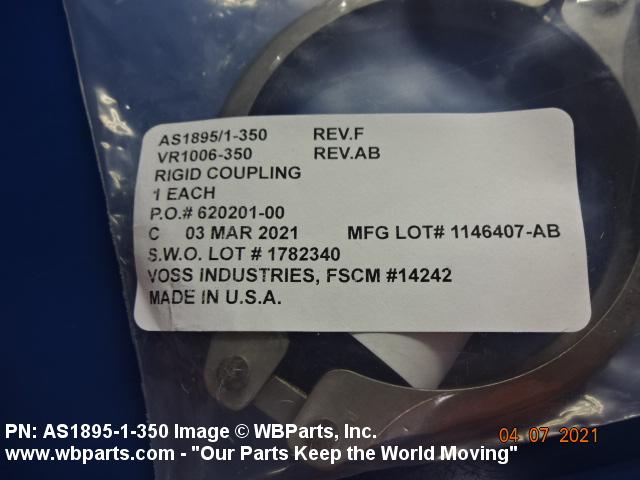

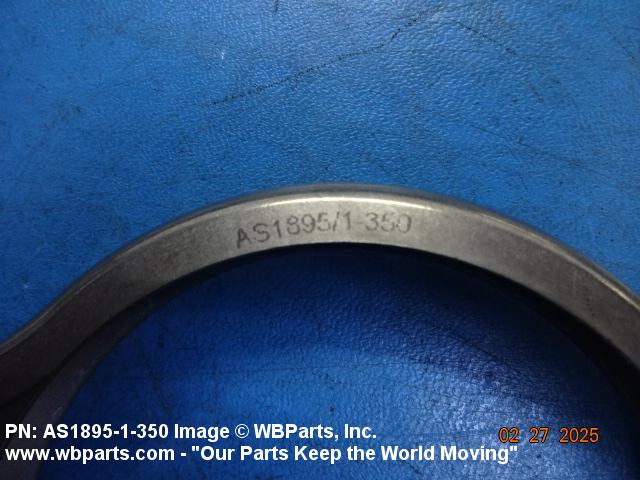

Drawings & Photos | NSN 5342-01-518-4511
Demand History | NSN 5342-01-518-4511
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS18951350 | 2025-11-317 | 10 | United States |
| AS18951350 | 2025-11-316 | 1 | US |
| AS18951350 | 2025-02-48 | 3 | United States |
| AS18951350 | 2024-10-288 | 3 | United States |
| AS18951350 | 2023-11-319 | 2 | Italy |
| AS18951350 | 2023-10-300 | 30 | United States |
| AS18951350 | 2023-07-184 | 1 | Greece |
| AS18951350 | 2022-12-341 | 12 | IT |
| AS18951350 | 2022-04-110 | 1 | UK |
| AS18951350 | 2021-09-266 | 12 | TR |
| AS18951350 | 2021-03-75 | 2 | Italy |
| AS18951350 | 2021-02-41 | 1 | IN |
| AS18951350 | 2020-03-90 | 10 | CN |
| AS18951350 | 2020-01-21 | 4 | US |
| AS18951350 | 2019-03-88 | 3 | US |
| AS18951350 | 2019-03-74 | 3 | United States |
| AS18951350 | 2018-01-23 | 30 | us |
| AS18951350 | 2017-08-219 | 3 | United States |
| AS18951350 | 2017-06-153 | 2 | US |
| 5342-01-518-4511 | 2017-04-94 | 7 | DIBBS |
| AS18951350 | 2017-02-48 | 1 | United States |
| 5342-01-518-4511 | 2016-05-124 | 1 | DIBBS |
| 5342-01-518-4511 | 2015-06-153 | 1 | DIBBS |
| AS18951350 | 2015-01-05 | 6 | United States |
| AS18951350 | 2014-05-140 | 5 | United States |
| AS18951350 | 2014-05-140 | 10 | United States |
| AS18951350 | 2014-04-106 | 1 | United States |
| AS18951350 | 2013-06-158 | 2 | United States |
| AS18951350 | 2012-03-87 | 2 | Canada |
| AS18951350 | 2010-02-55 | 5 | United Kingdom |
| AS18951350 | 2009-11-316 | 1 | us |
| AS18951350 | 2008-10-291 | 120 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-518-4511
Technical Data | NSN 5342-01-518-4511
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 11A GROOVED RETAINER |

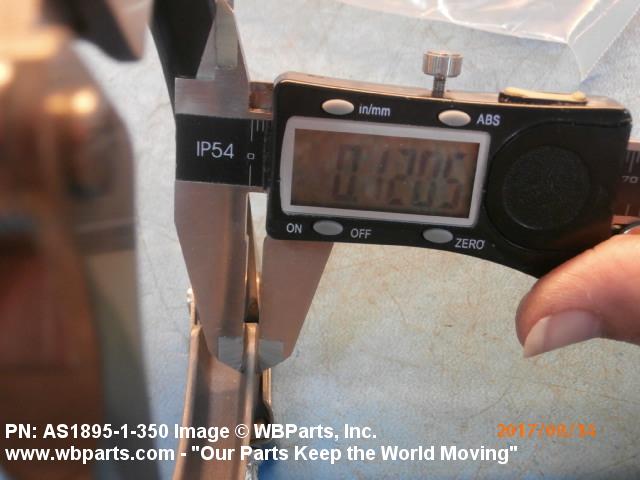

| RETAINER THICKNESS | 0.120 INCHES NOMINAL |

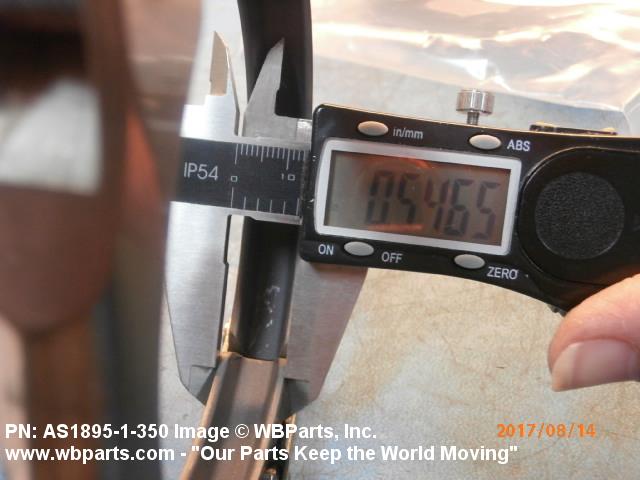

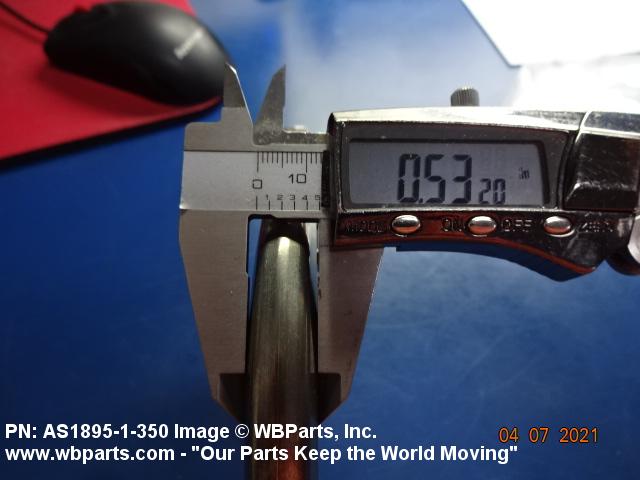

| RETAINER WIDTH | 0.550 INCHES NOMINAL |

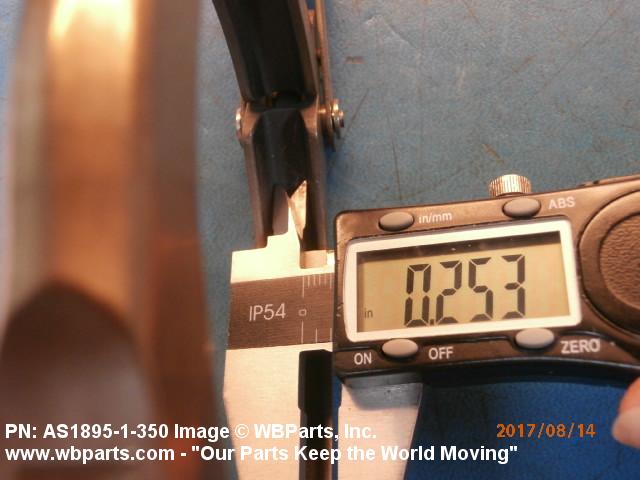

| HEIGHT | 0.250 INCHES NOMINAL |
| INCLUDED ANGLE IN DEG | 38.5 |
| SHAPE | ROUND |

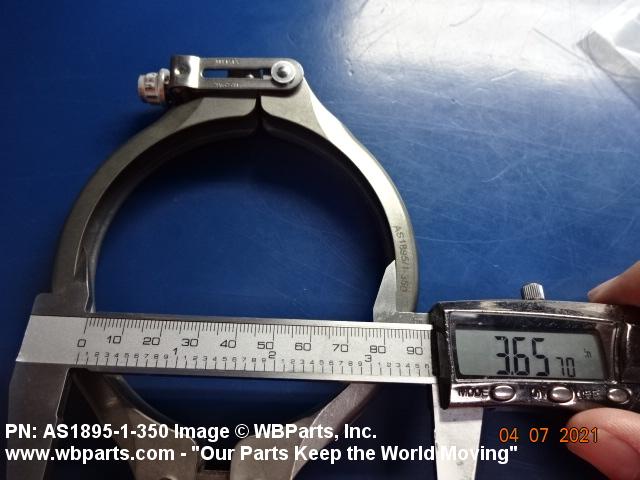

| INSIDE DIAMETER | 3.500 INCHES NOMINAL |
| SEGMENT QUANTITY | 2 |
| SEALING INNER LINER | NOT INCLUDED |
| TEMP RATING | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
| SPECIAL FEATURES | MATERIAL- STEEL,AMS 5525; STEEL,AMS 5732; STEEL,AMS 5596; NO FOOL PROOF FEATURE, SILVER PLATED NON-LUBRICATED NUT |
Restrictions/Controls & Freight Information | NSN 5342-01-518-4511
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146190 | GUN CARRAIGES/MOUNTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-518-4511
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
