NSN 5342-01-615-8764 AW2010HP40DE , 01-615-8764, 016158764
Product Details | GROOVED CLAMP COUPLING
5342-01-615-8764 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: AW2010HP40DE , 5342-01-615-8764, 01-615-8764, 5342016158764, 016158764
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2013025 | 01-615-8764 | 20319 ( COUPLING, CLAMP, GROOVED ) |

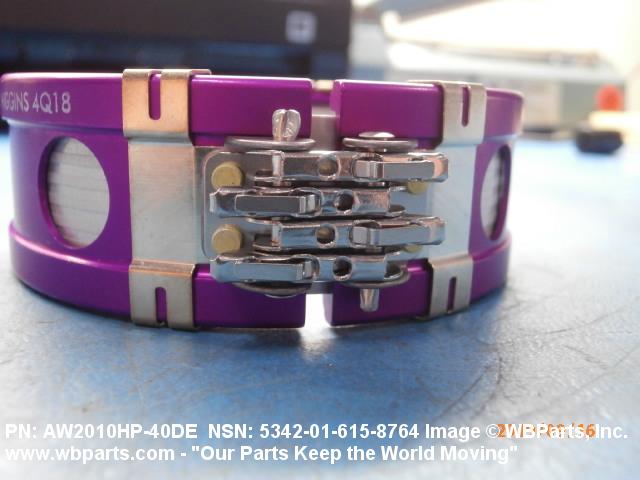

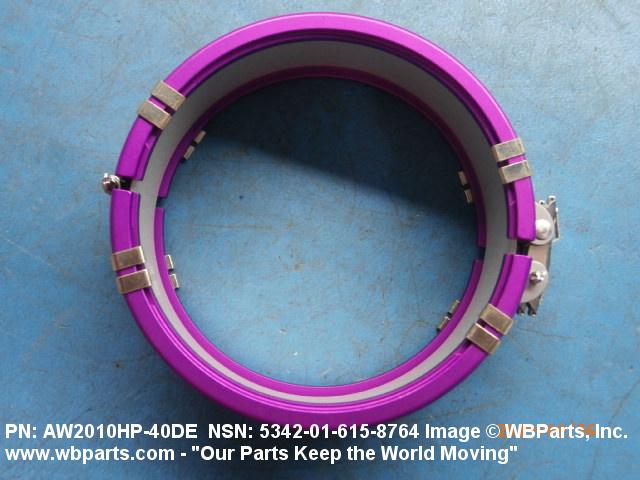

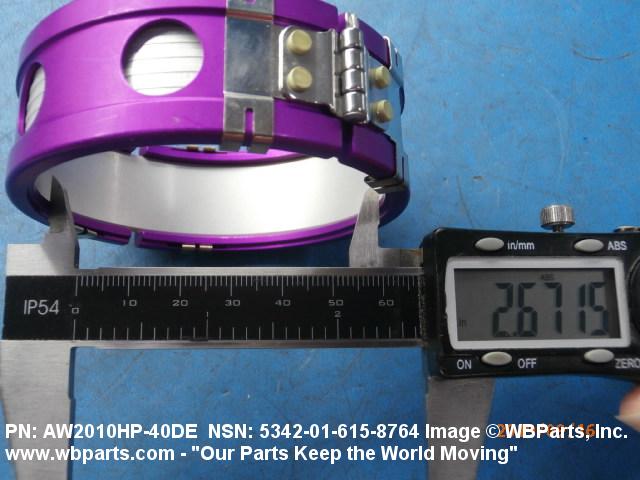

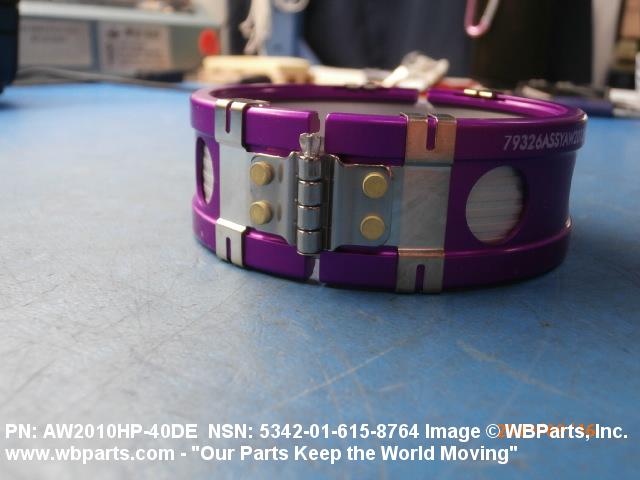

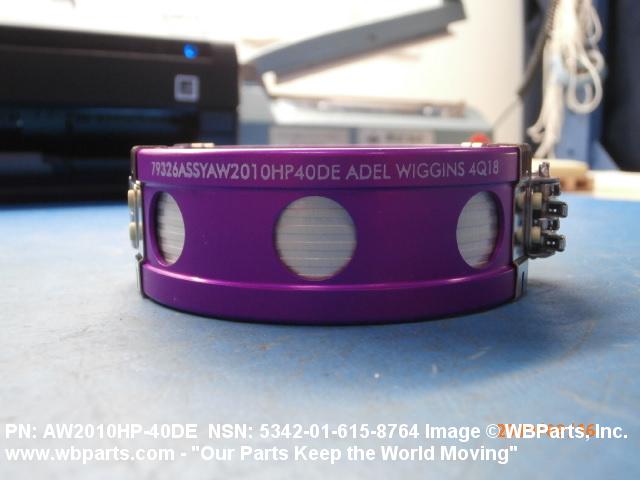

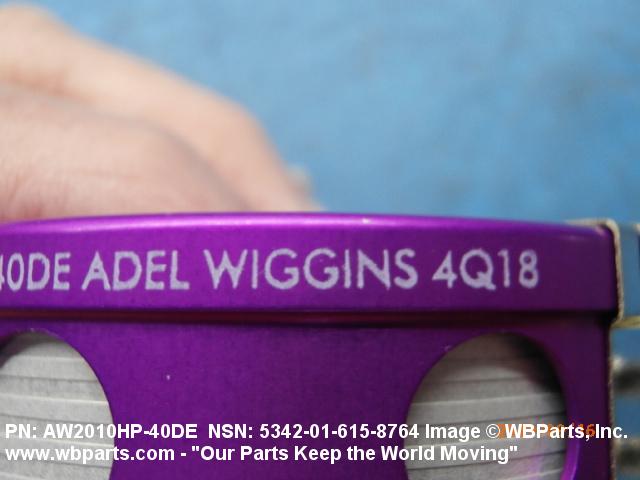

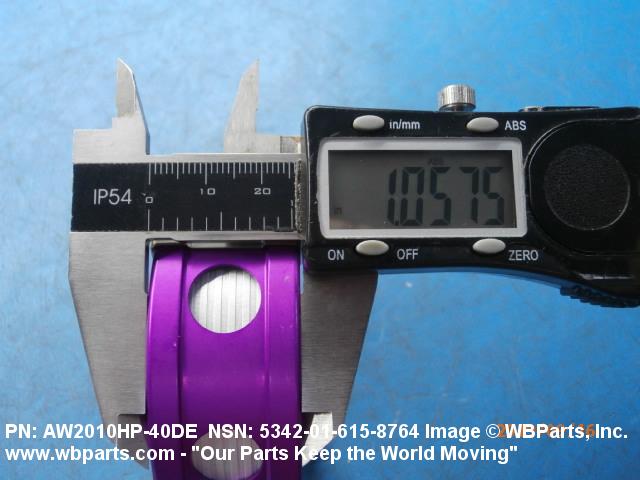

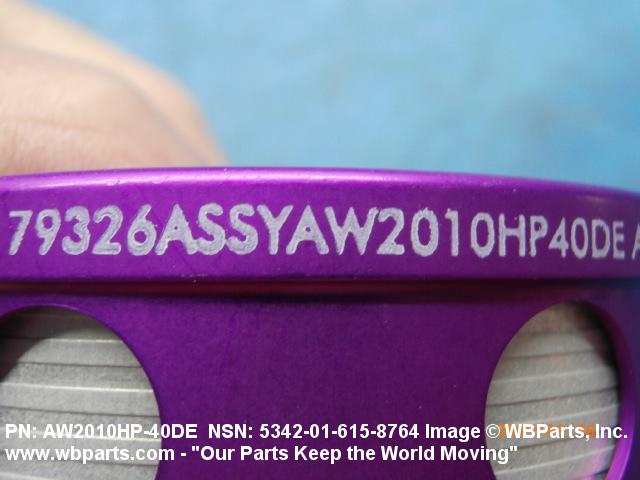

Drawings & Photos | NSN 5342-01-615-8764
Demand History | NSN 5342-01-615-8764
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-615-8764 | 2020-11-322 | 25 | United States |
| AW2010HP40DE | 2020-11-322 | 25 | US |
| AW2010HP40DE | 2019-08-239 | 8 | United States |
Cross Reference | NSN 5342-01-615-8764
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AW2010HP40DE | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-615-8764
Technical Data | NSN 5342-01-615-8764
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY, 2024 BAND |
| SHAPE | ROUND |
| SPECIAL FEATURES | TUBE SIZE: 2.500, OP PRESSURE: 125 PSI |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | COUPLING ASSEMBLY |
| III SUPPLEMENTARY FEATURES | FINISH: ANODIZE MAGENTA, SPEC MIL-A-8625 |
Restrictions/Controls & Freight Information | NSN 5342-01-615-8764
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
