NSN 5365-00-142-1305 AN81432, AN814-32, AS5169
Product Details | MACHINE THREAD PLUG
5365-00-142-1305 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: AN81432, AN814-32, AS5169, AS516932, AS5169-32, SAE AS5169, SAEAS5169, 5365-00-142-1305, 00-142-1305, 5365001421305, 001421305
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-142-1305 | 03801 ( PLUG, MACHINE THREAD ) |

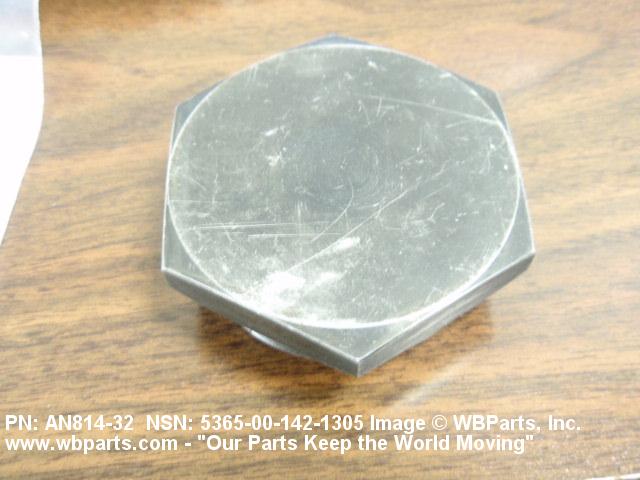

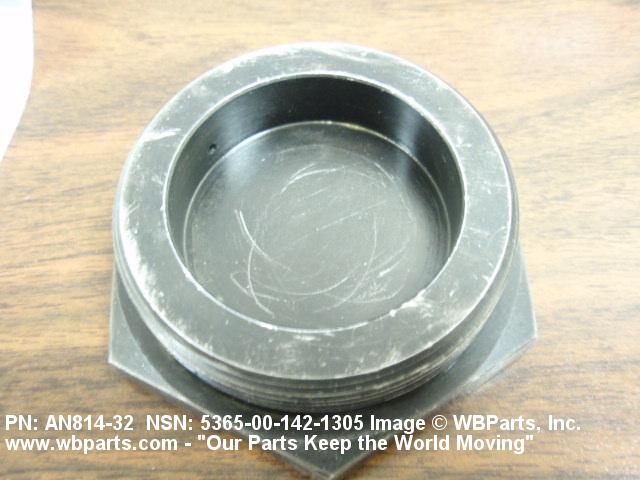

Drawings & Photos | NSN 5365-00-142-1305
Demand History | NSN 5365-00-142-1305
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-142-1305 | 2018-07-185 | 853 | DIBBS |
| 5365-00-142-1305 | 2018-03-80 | 193 | DIBBS |
| 5365-00-142-1305 | 2018-02-45 | 251 | DIBBS |
| 5365-00-142-1305 | 2018-02-37 | 251 | DIBBS |
| 5365-00-142-1305 | 2016-02-49 | 87 | DIBBS |
| 5365-00-142-1305 | 2015-12-348 | 89 | DIBBS |
| 5365-00-142-1305 | 2013-05-127 | 3 | MANUAL |
| 5365-00-142-1305 | 2012-04-96 | 8 | DIBBS |
| 5365-00-142-1305 | 2012-01-25 | 4 | DIBBS |
| 5365-00-142-1305 | 2010-08-229 | 1 | United States |
| 5365-00-142-1305 | 2010-08-218 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-142-1305
Related Products | NSN 5365-00-142-1305
Technical Data | NSN 5365-00-142-1305
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | C35A PLUG, MACHINE, W/BLEEDER HOLE |
| HEAD HEIGHT | 0.406 INCHES NOMINAL |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| BLEEDER HOLE CENTER TO THREADED END DISTANCE | 0.312 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| BLEEDER HOLE DIAMETER | 0.062 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UN EXTERNAL |
| NOMINAL THREAD SIZE | 2.500 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 12 EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.469 INCHES NOMINAL EXTERNAL |
| BODY CORE DIAMETER | 1.781 INCHES NOMINAL |
| CORE DEPTH | 0.500 INCHES MINIMUM AND 0.516 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5365-00-142-1305
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-142-1305
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
