NSN 5365-00-278-8804 MS24391D8L, AN8148DL, AN814-8DL
Product Details | MACHINE THREAD PLUG
5365-00-278-8804 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: MS24391D8L, AN8148DL, AN814-8DL, AS5169D08L, 133388, 190914, 61G9208, 61G920-8, 7318708, 731870-8, 7M68D, 7M6-8D, 8075275, 80752-75, 5365-00-278-8804, 00-278-8804, 5365002788804, 002788804
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-278-8804 | 03801 ( PLUG, MACHINE THREAD ) |

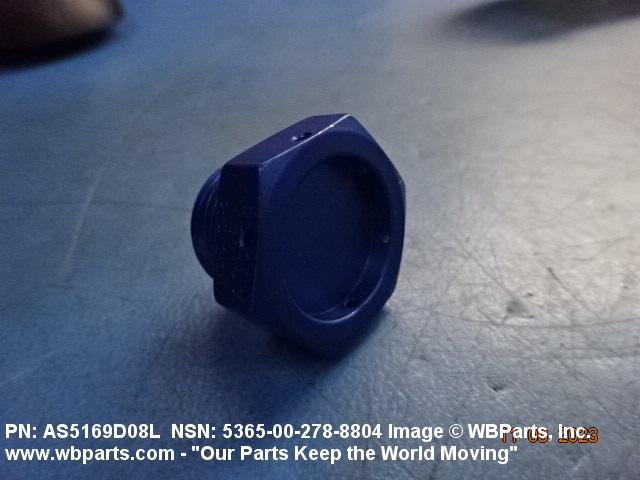

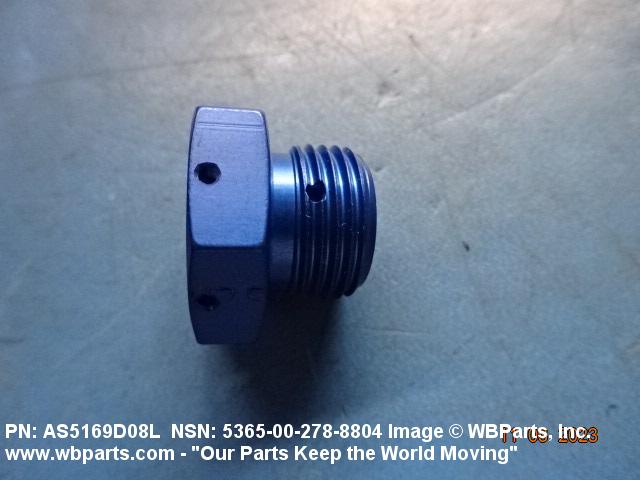

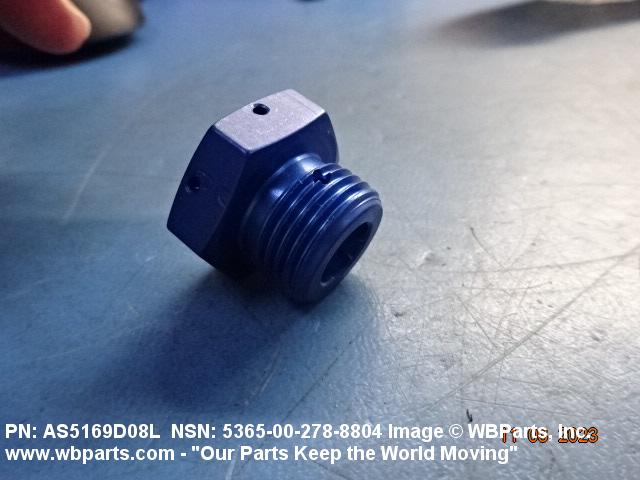

Drawings & Photos | NSN 5365-00-278-8804
Demand History | NSN 5365-00-278-8804
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-278-8804 | 2025-08-230 | 496 | DIBBS |
| 5365-00-278-8804 | 2025-04-101 | 3556 | DIBBS |
| AS5169D08L | 2025-03-84 | 160 | US |
| AS5169D08L | 2024-12-344 | 310 | US |
| 5365-00-278-8804 | 2024-08-221 | 320 | US |
| AS5169D08L | 2024-08-214 | 80 | Japan |
| AN8148DL | 2024-07-192 | 40 | Japan |
| 5365-00-278-8804 | 2023-10-293 | 320 | United States |
| 5365-00-278-8804 | 2020-06-168 | 1 | DIBBS-RFPs |
| AN8148DL | 2019-03-80 | 30 | Canada |
| AS5169D08L | 2018-02-32 | 1 | United States |
| AN8148DL | 2017-08-213 | 200 | United States |
| AN8148DL | 2017-07-207 | 200 | United States |
| AN8148DL | 2016-11-307 | 10 | South Africa |
| 5365-00-278-8804 | 2015-02-42 | 1900 | US |
| 5365-00-278-8804 | 2015-02-33 | 1 | DIBBS-RFPs |
| 5365-00-278-8804 | 2012-07-213 | 150 | United States |
Cross Reference | NSN 5365-00-278-8804
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 133388 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 190914 | 66503 | WOODWARD, INC. DBA WOODWARD |
| 61G920-8 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 731870-8 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 7M6-8D | 76301 | BOEING COMPANY, THE DBA BOEING |
| 80752-75 | 15472 | 3M PURIFICATION INC. |
| AN814-8DL | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS5169D08L | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24391D8L | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-278-8804
Related Products | NSN 5365-00-278-8804
Technical Data | NSN 5365-00-278-8804
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C35A PLUG, MACHINE, W/BLEEDER HOLE |

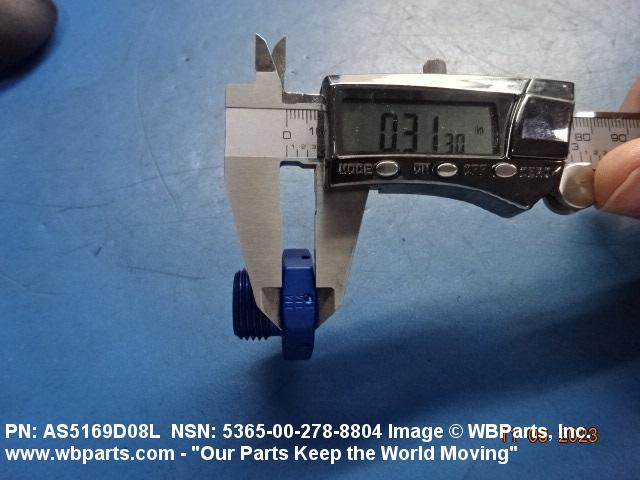

| HEAD HEIGHT | 0.312 INCHES NOMINAL |

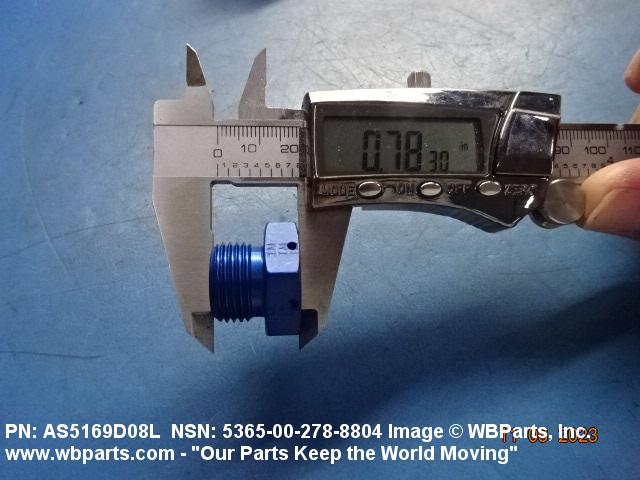

| OVERALL LENGTH | 0.781 INCHES NOMINAL |
| BLEEDER HOLE CENTER TO THREADED END DISTANCE | 0.250 INCHES NOMINAL |

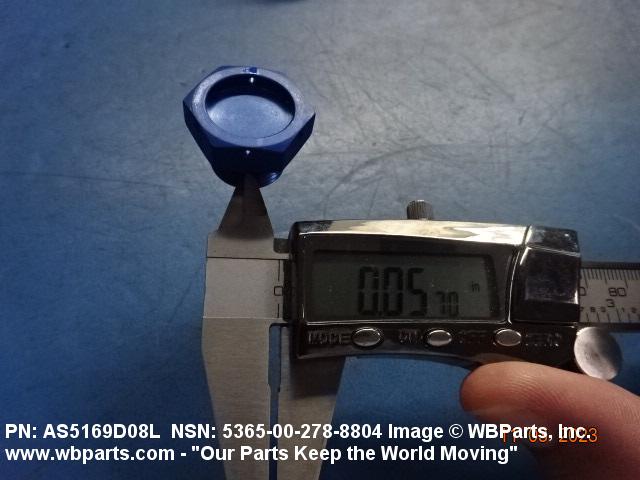

| BLEEDER HOLE DIAMETER | 0.062 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNF EXTERNAL |
| NOMINAL THREAD SIZE | 0.750 INCHES EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |

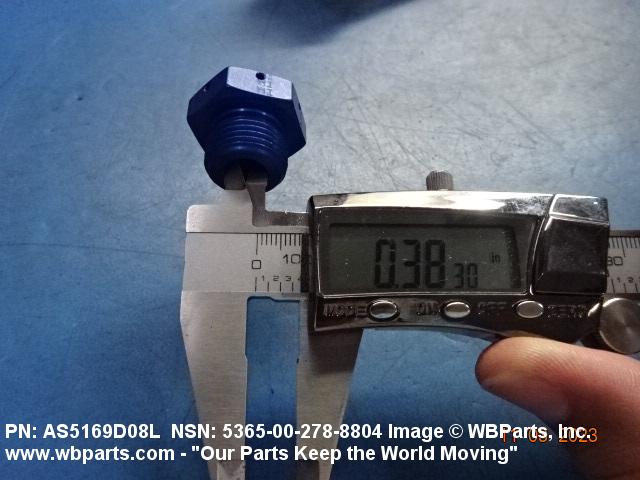

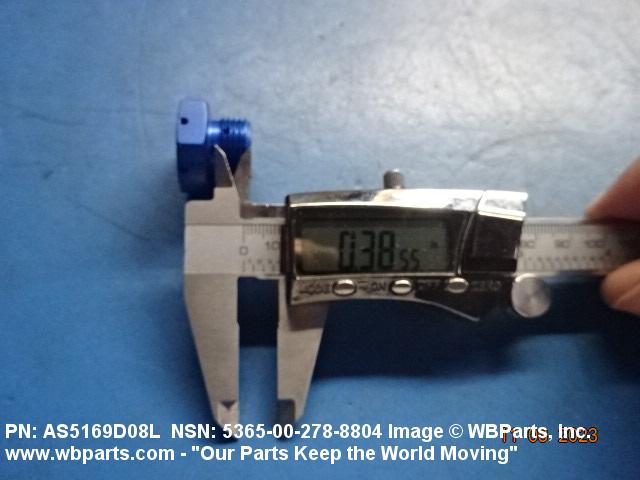

| THREAD LENGTH | 0.375 INCHES NOMINAL EXTERNAL |
| HEAD TYPE | CORED |
| HEAD CORE DIAMETER | 0.750 INCHES NOMINAL |
| BODY CORE DIAMETER | 0.390 INCHES NOMINAL |
| CORE DEPTH | 0.360 INCHES NOMINAL |
| (NON-CORE DATA) SAFETY WIRE HOLE QUANTITY | 6 |
Restrictions/Controls & Freight Information | NSN 5365-00-278-8804
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
