NSN 5365-00-289-0266 AN909S12, 00-289-0266, 002890266
Product Details | MACHINE THREAD PLUG
5365-00-289-0266 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: AN909S12, 5365-00-289-0266, 00-289-0266, 5365002890266, 002890266
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-289-0266 | 03801 ( PLUG, MACHINE THREAD ) |

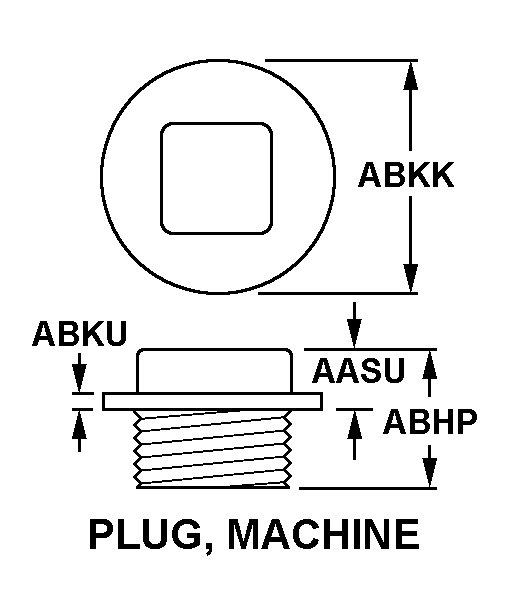

Drawings & Photos | NSN 5365-00-289-0266
Cross Reference | NSN 5365-00-289-0266
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN909S12 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-289-0266
Technical Data | NSN 5365-00-289-0266
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1015 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-630 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC AND CHROMATE OR CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-Z-325,TY 2 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,TY 2,CL 1 FED SPEC 3RD TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C26 PLUG, MACHINE |
| HEAD HEIGHT | 0.469 INCHES NOMINAL |
| OVERALL LENGTH | 0.844 INCHES NOMINAL |
| FLANGE DIAMETER | 1.000 INCHES NOMINAL |
| FLANGE THICKNESS | 0.125 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNF EXTERNAL |
| NOMINAL THREAD SIZE | 0.750 INCHES EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.282 INCHES NOMINAL EXTERNAL |
| HEAD CORE DIAMETER | 0.562 INCHES NOMINAL |
| BODY CORE DIAMETER | 0.562 INCHES NOMINAL |
| CORE DEPTH | 0.562 INCHES NOMINAL |
| (NON-CORE DATA) SAFETY WIRE HOLE QUANTITY | 2 |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN909S12 |
Restrictions/Controls & Freight Information | NSN 5365-00-289-0266
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
