NSN 5365-00-714-4129 7144129, 00-714-4129, 007144129
Product Details | MACHINE THREAD PLUG
5365-00-714-4129 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: 7144129, 5365-00-714-4129, 00-714-4129, 5365007144129, 007144129
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-714-4129 | 03801 ( PLUG, MACHINE THREAD ) |

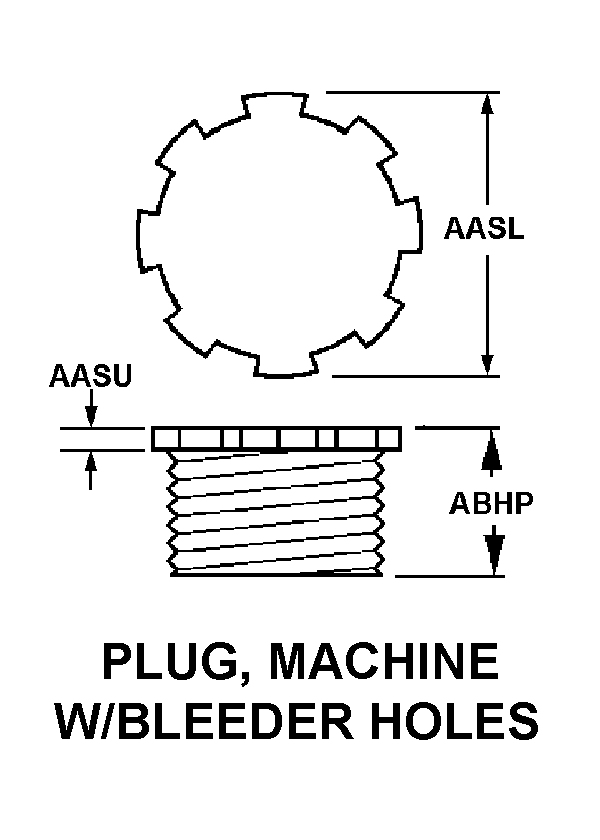

Drawings & Photos | NSN 5365-00-714-4129
Demand History | NSN 5365-00-714-4129
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-714-4129 | 2018-10-289 | 1 | DIBBS |
| 5365-00-714-4129 | 2018-03-67 | 5 | DIBBS |
| 5365-00-714-4129 | 2017-01-02 | 5 | DIBBS |
| 5365-00-714-4129 | 2016-01-19 | 23 | DIBBS |
| 5365-00-714-4129 | 2015-12-356 | 5 | DIBBS |
| 5365-00-714-4129 | 2015-02-36 | 7 | DIBBS |
Cross Reference | NSN 5365-00-714-4129
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7144129 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-714-4129
Related Products | NSN 5365-00-714-4129
Technical Data | NSN 5365-00-714-4129
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1018 OR STEEL COMP 1022 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| STYLE DESIGNATOR | C22A PLUG, MACHINE, W/BLEEDER HOLE |
| HEAD DIAMETER | 3.250 INCHES NOMINAL |
| HEAD HEIGHT | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| BLEEDER HOLE CENTER TO THREADED END DISTANCE | 0.625 INCHES NOMINAL |
| BLEEDER HOLE DIAMETER | 0.125 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UN EXTERNAL |
| NOMINAL THREAD SIZE | 2.875 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 16 EXTERNAL |
| THREAD CLASS | 2A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.312 INCHES NOMINAL EXTERNAL |
| BODY TYPE | CORED |
| BODY CORE DIAMETER | 2.375 INCHES NOMINAL |
| CORE DEPTH | 0.500 INCHES NOMINAL |
| SPECIAL FEATURES | TWO SPANNER GROOVES ON OD OF HEAD,AND 1 7/16 IN. DIA BY 1/8 IN. THK BOSS LOCATED IN CORE AND CENTERED OF AXIS OF PLUG |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 7144129 |
Restrictions/Controls & Freight Information | NSN 5365-00-714-4129
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-714-4129
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
